Aptiv GTS Sensomate Connector

The GTS SensoMate Series offers a range of benefits that make it an ideal choice for various applications. One notable advantage is its footprint interface compatibility with the Mini-Sealed Series released by all major OEMs. This ensures seamless integration and easy replacement options.

The GTS SensoMate™ series is designed to withstand harsh environments, particularly those required by EURO 7 regulations for engine and body applications. It can endure high levels of vibration up to 42 G sine, making it suitable for demanding industrial settings. This series connector operates at high temperatures of up to 150°C (T4). Additionally, it can endure an additional temperature of 175°C during a continuous period of 240 hours without compromising performance or reliability. This makes the connector highly reliable in extreme conditions where heat resistance is crucial.

The rear latch design adds convenience when unmatting the connector from the device. It allows for quick and effortless disconnection without any risk of accidental detachment. Moreover, the Connector Position Assurance feature ensures secure mating and prevents any unintended disconnections due to external factors such as vibrations or impacts. During mating, the GTS SensoMate™ SERIES exhibits an inertial effect that guarantees easy connection with devices. This eliminates any potential difficulties or complications during installation processes, ensuring a smooth and efficient operation.

Connector offers compatibility with back shell covers which provide added protection and guidance for cable bundles. The back shell cover simplifies cable management by securely holding multiple cables together while also protecting them from environmental factors such as dust or moisture.

Connector Features

• Withstanding high vibration up to 42 G sine
• High temperature 150°C (T4), enduring additionally 175°C during 240 hours
• Rear latch for easiness to the unmated connector from the device

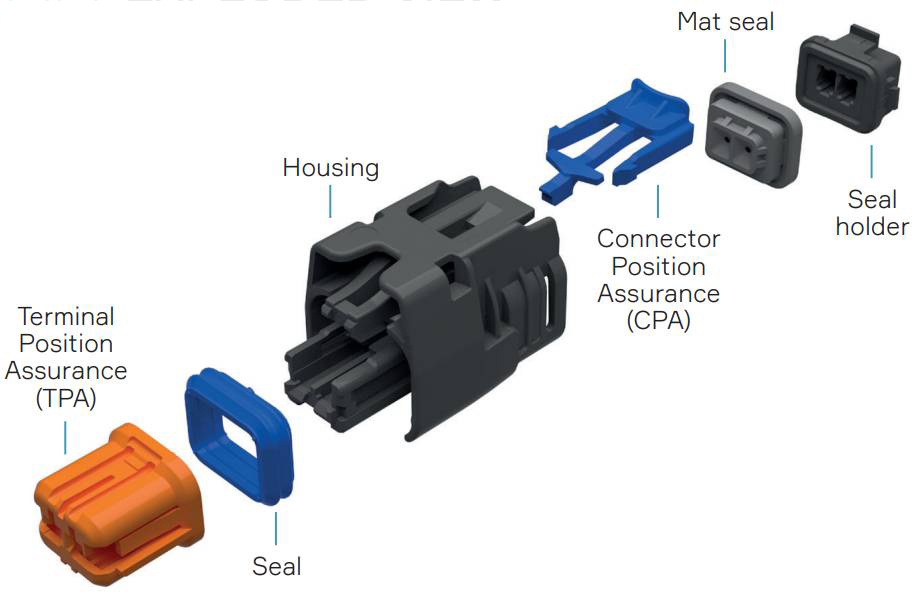

• Connector Position Assurance
• Inertial effect while mating the connector to the device which guarantees an easy mating
• Cavity Count (ways): 2, 3
• Cavity Configurations (mm): 1.5
• Genders: Female
• Sealing Type: Mat Sealed
• Centerline Spacing (mm): 3.33
• CPA: Premounted

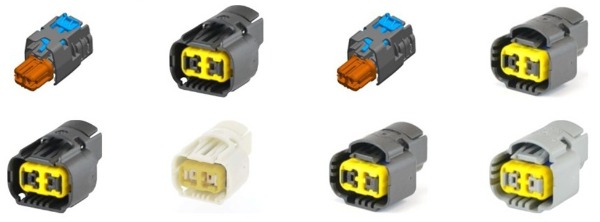

GTS Connector Specification Chart

GTS Sensomate Series Connector Applications

Engine Compartment

Aptiv GTS Sensomate Connectors are widely used in engine compartments where they must withstand extreme heat, vibration, and potential exposure to fluids. Their robust design ensures consistent performance in delivering power and signal transmission to various engine components, contributing to the efficient operation of the vehicle's engine.

ECU (Electronic Control Unit)

These connectors play a critical role in linking the ECU to various sensors and actuators throughout the vehicle. In modern automotive systems, the ECU is responsible for managing a range of vehicle functions, from engine control to safety features. The GTS Sensomate series ensures reliable data transmission and power supply, supporting the ECU's role in optimizing performance and safety.

Sensors

The precision and reliability of Aptiv GTS Sensomate Connectors make them ideal for sensor applications, where accurate and uninterrupted signal transmission is crucial. Whether used in temperature, pressure, or position sensors, these connectors support real-time data collection and feedback to the vehicle’s control systems, enhancing performance, efficiency, and safety.

Actuators

In automotive systems, actuators are responsible for executing control commands from the ECU, such as controlling valves, adjusting throttle, or engaging safety systems. GTS Sensomate connectors ensure a stable connection to these actuators, providing the power and signals necessary for their proper operation, even in challenging environments.

Inline or Device Connections

The GTS Sensomate series is also used for inline or direct device connections in various applications across the vehicle. Whether connecting wiring harnesses, power distribution systems, or individual devices, these connectors offer flexibility and reliability, making them suitable for a wide range of electrical systems.

Additional Notes

This list represents some of the more common uses of the Aptiv GTS Sensomate Series Connectors. However, the versatility, durability, and advanced features of these connectors mean they can be applied in a broader range of automotive, commercial vehicle, and industrial applications, particularly those that require secure, high-performance electrical connections in challenging conditions.

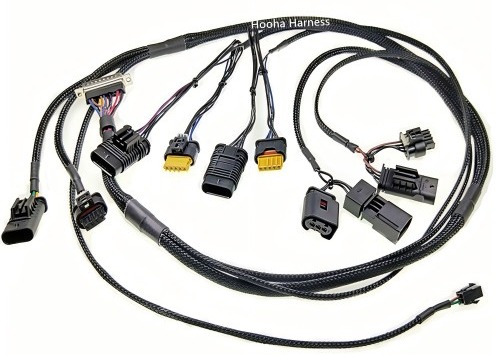

Support Custom Wire Harness Assembly

• Connectors: 2P and 3P.
• Wire Gauge: 24AWG ~ 14AWG
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
