BNC Cable
BNC Cable Custom Assembly Manufacturer
BNC Cable, also known as Bayonet Neill-Concelman Cable, is a type of coaxial cable commonly used in video and data transmission applications. It features a bayonet-style connector that provides a secure and reliable connection between devices.
One of the key advantages of BNC cables is their ability to carry high-frequency signals with minimal interference or signal loss. This makes them ideal for use in professional audio/video systems, CCTV surveillance systems, and networking equipment.

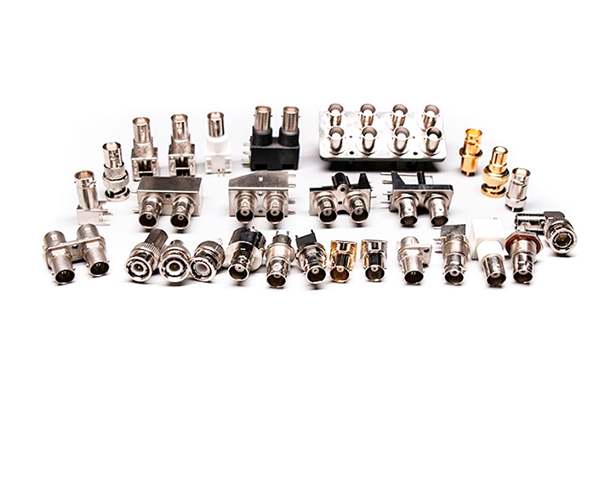

The BNC connector itself consists of two parts - a male plug and a female jack. The male plug has a central pin surrounded by a metal sleeve, while the female jack has an opening with slots to accommodate the pin and sleeve. When connected together, they create a tight connection that ensures proper signal transfer.
In addition to its excellent performance characteristics, BNC cables are also known for their durability and ease of use. They are designed to withstand frequent plugging/unplugging without compromising signal quality. Moreover, their compact size allows for easy installation even in tight spaces.
BNC cables come in various types such as RG-59/U (commonly used for analog video), RG-6/U (used for digital video), and RG-11/U (used for long-distance transmissions). Each type has specific impedance ratings and shielding capabilities tailored to different applications.
Hooha Harness is a professional manufacturer in the electronics industry, specializing in producing high-quality BNC cables. With our state-of-the-art production facilities and advanced technology, we are proud to manufacture over 50,000 pieces of BNC cables every year.
What Sets Us Apart
200+
professional skilled professionals
20+
Years Focus on Wire Harness Assembly
6000+
Project Cases Experience
10,000,000pcs +
Wire Harnesses Capacity per Year
IPC620
IPC/WHMA-A-620 Standard
1000+
Overmold Developing Tools Experience
Part of BNC Cable Product Cases
Hooha Wire and Cable Products Company is a professional provider of data cable, wire and cable harness assembly, and over-mold cable assembly solutions in China. With extensive expertise in the field, we serve a range of industries.

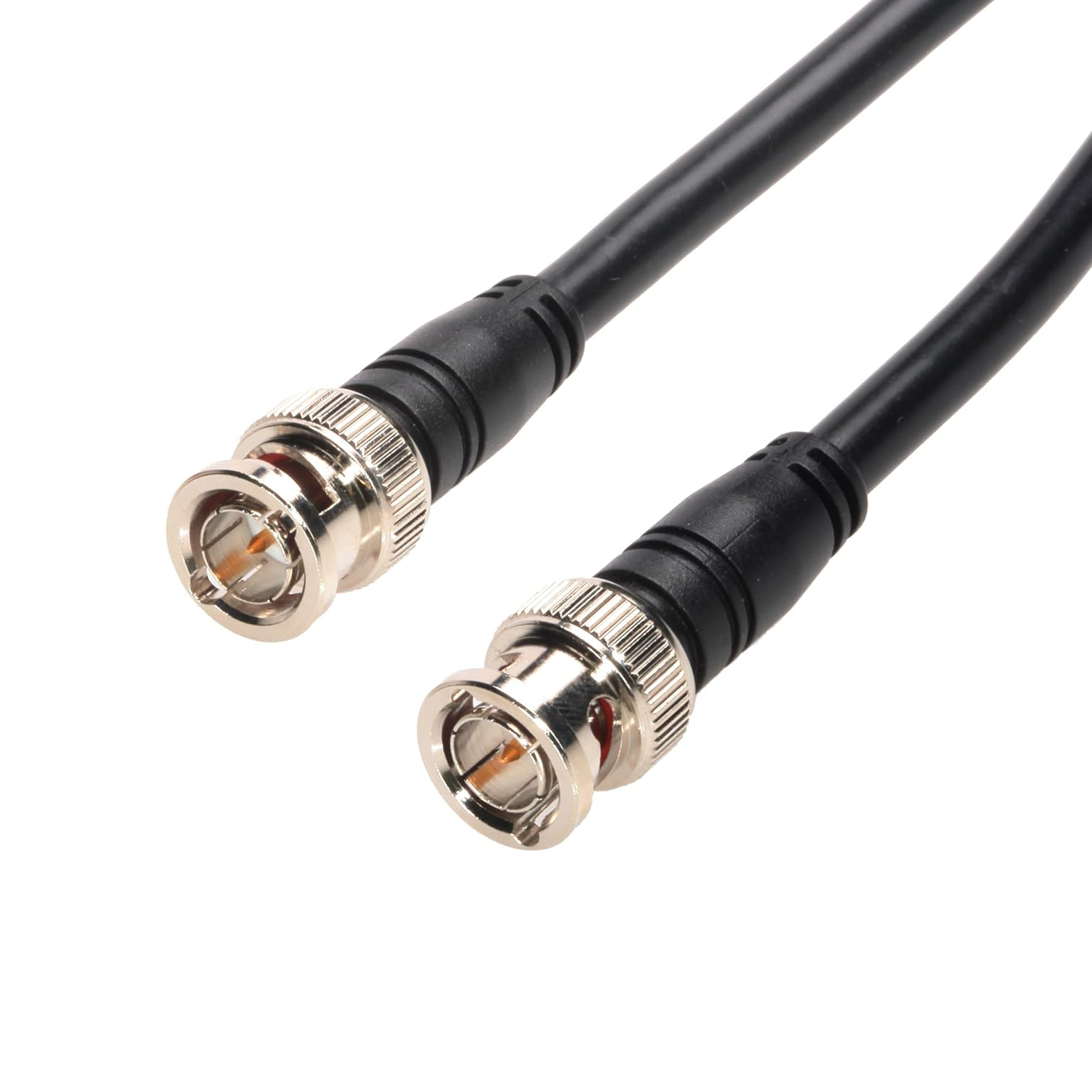

BNC to BNC Cable

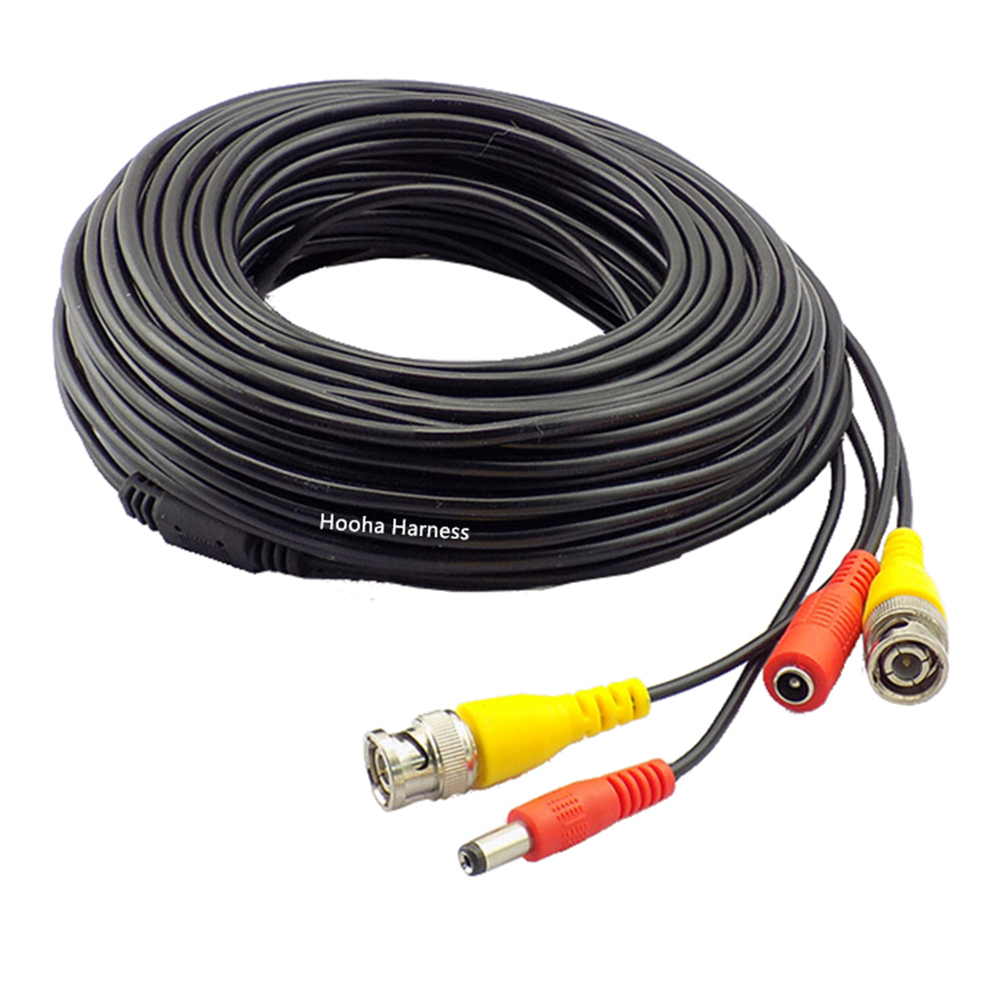

BNC Video Power Cable
BNC to AUX Cable

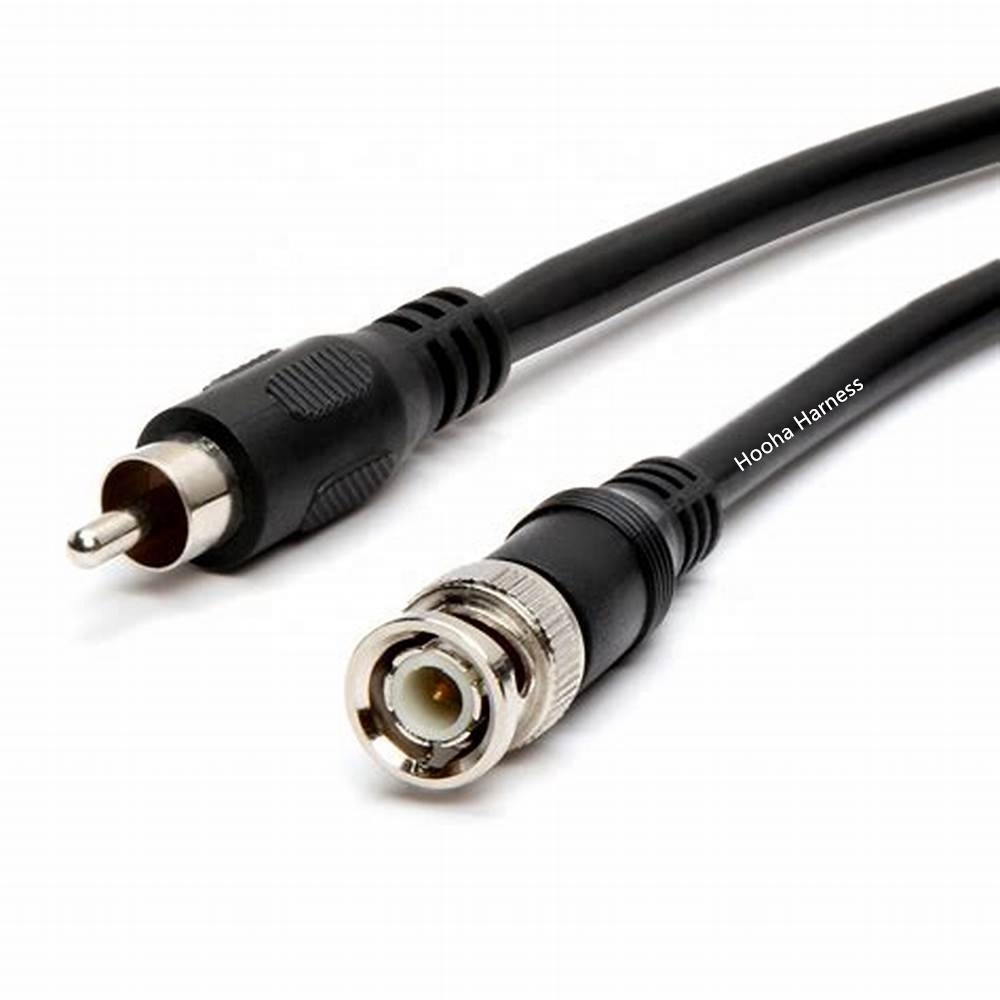

BNC to RCA Cable

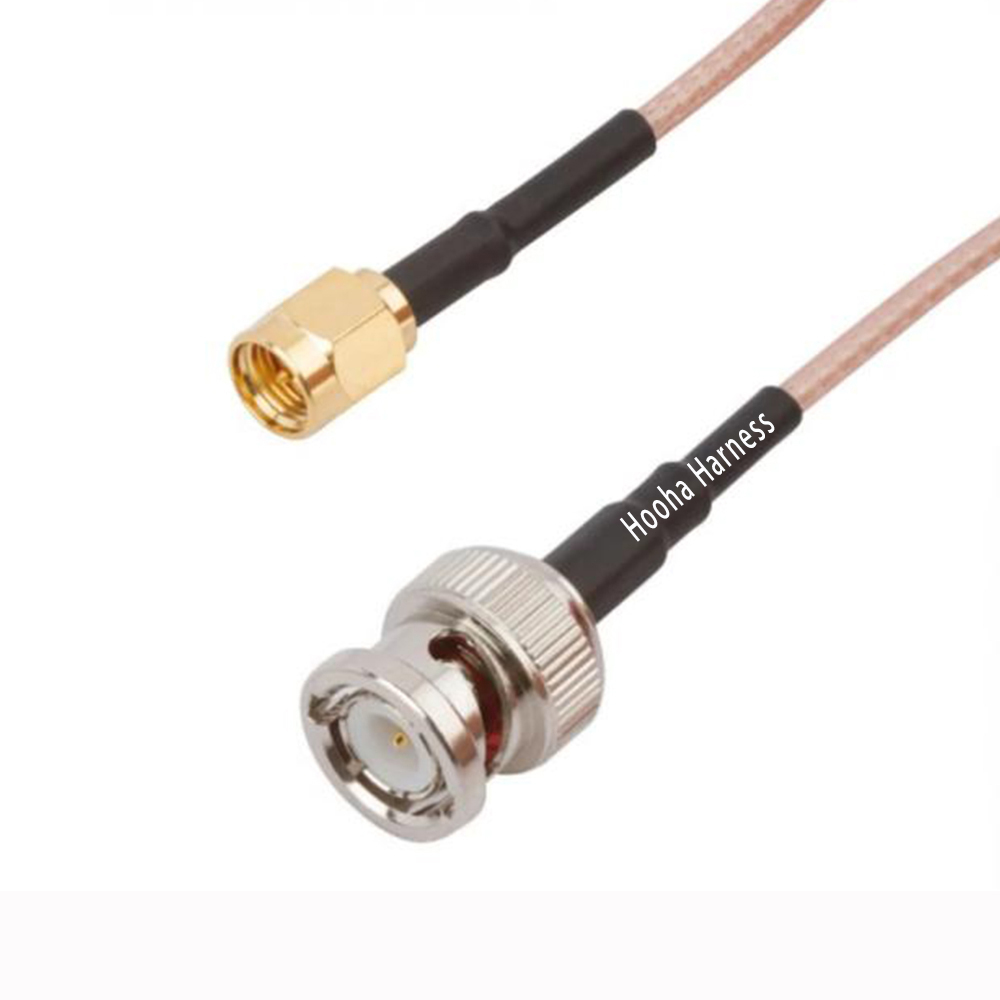

BNC to SMA Cable
BNC to USB Cable

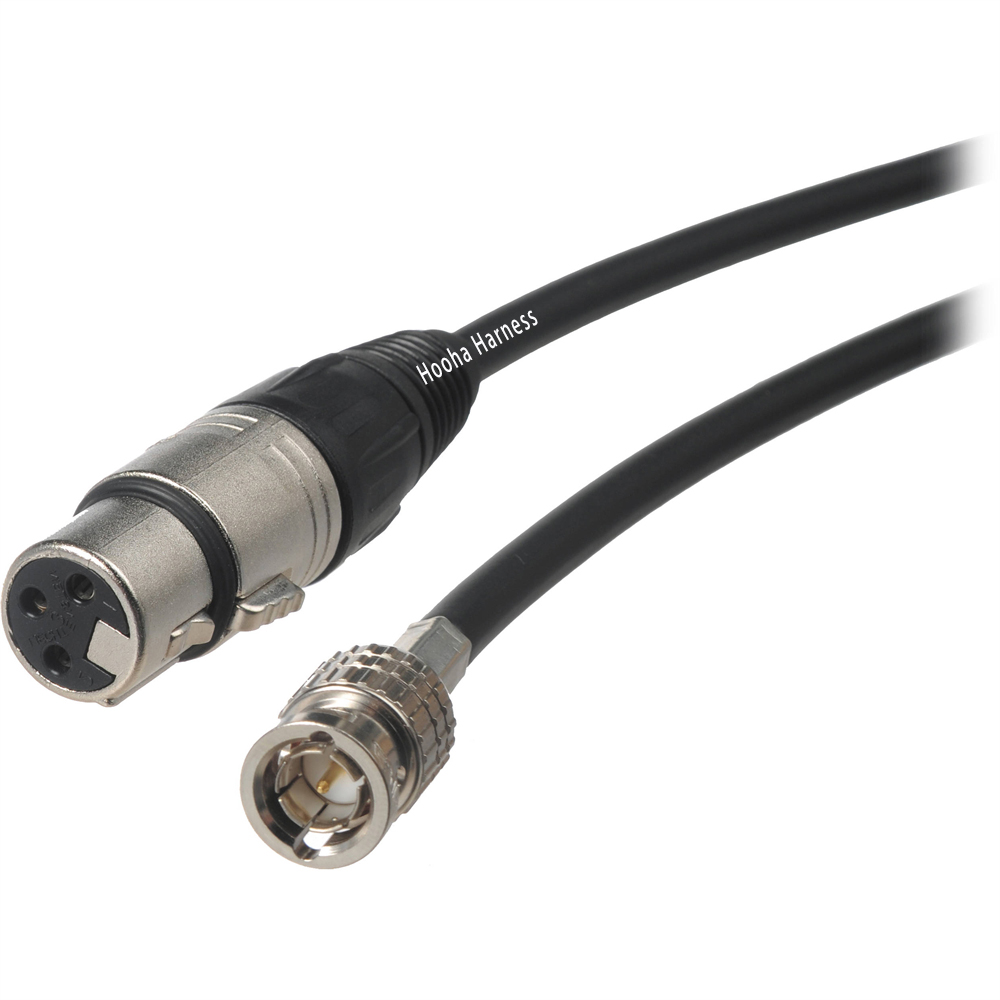

BNC to XLR Cable

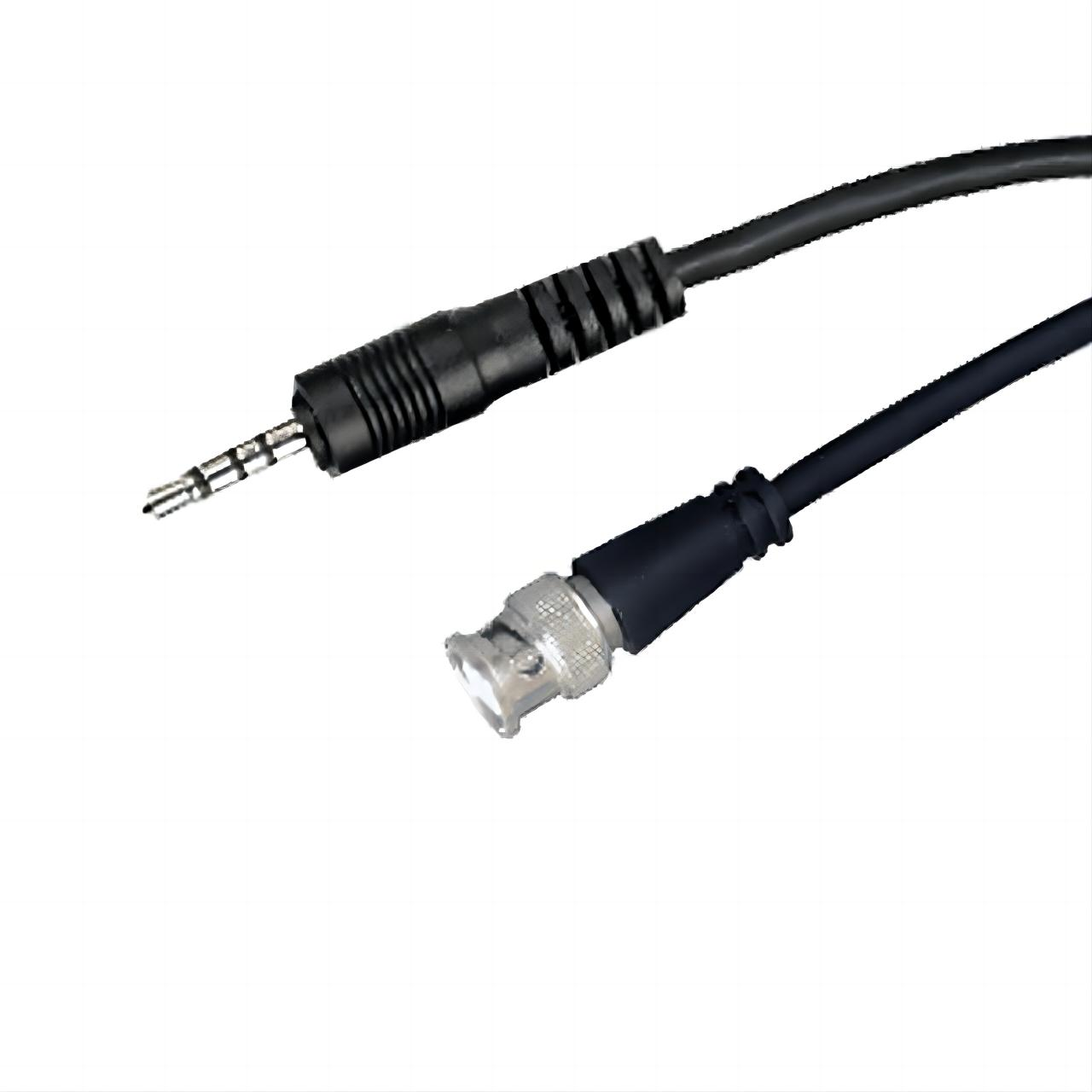

BNC to 3.5mm audio jack cable
BNC to DB9 cable
>>> Custom BNC Cable Manufacturer Since 2001 <<<
♦ Why do we always offer high-quality assembly service?
- Bulk purchase of raw materials to get the best price.
- Strict supplier audits to ensure stable raw materials.
- High-level IQC/IPQC/OQC quality control, decrease defective rates.
- Largely used automatic wire cutting, stripping, tinning, and crimping integrated machines, which carry out IPC/WHMA-A-620 standard.
- 100% continuity test, make sure all products have no circuit shorts, no mismatches, no isolation breaks or damage.
♦ We specialize in manufacturing high-quality BNC cables, providing professional network connectivity solutions for consumer electronics and customized electronic devices. With direct factory shipments and ample stock, we can reduce costs, expedite delivery, and build strong customer relationships.

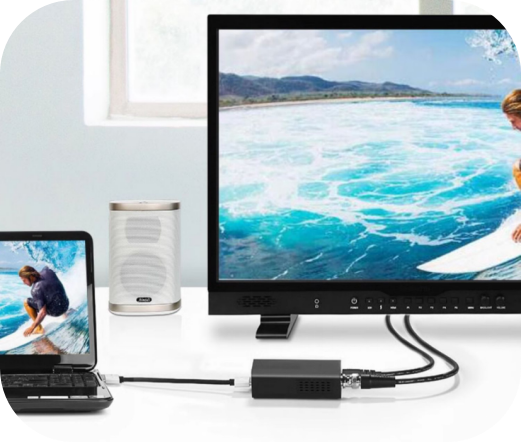

Widely Application
- Broadcast and Video
- Test and Measurement Equipment
- Networking and Communications
- RF and Microwave Systems
- Security Surveillance
- Aerospace and Military
Quality Assurance / IPC/WHMA-A-620 Standard
- We take great pride in ensuring that all of our custom BNC cables are manufactured in strict accordance with the IPC/WHMA-A-620 standard. This internationally recognized standard sets forth rigorous guidelines for the design, materials, and manufacturing processes of BNC cables.
- The IPC/WHMA-A-620 Standard serves as a comprehensive guide for the manufacture and inspection of wire harnesses and cable assemblies. It covers various aspects, including material selection, soldering techniques, crimping methods, insulation requirements, and testing procedures. Our team diligently follows these guidelines to guarantee that each product we deliver is reliable, durable, and safe.
Support Customized
♦ As a professional BNC cable manufacturer, we support customized BNC cables. As long as you provide detailed information, we can make a sample within 5 days. Since the cost of customized BNC cables can only be reduced through large-scale production, we do not offer customized services for a single cable, and the specific minimum order quantity is determined by the specific needs. Please feel free to contact us for details.
♦ Note: Before quoting the price, we need to know all the details of the BNC cables, including cable length, gauge/size, plug type, and order quantity.
♦ Please let us know the power cords you require, as well as wire length, gauge, plug type, and order quantity. We will provide a quotation within 1 working days.
♦ Additionally, we can also offer pricing based on drawings or samples.
Price Quote Notes
-
To quote out the price, we need to know all details, including wire length, gauge, color, electric circuits/diagram, connector type, cover materials, other accessories, if they have any, and order quantity. if you have a drawing, that would be better for us to understand what you need, if no have, pls tell us as many details as possible.
-
The wire, cable, and connector options listed here are not exhaustive. If you do not find what you need, it does not mean we cannot make it. Please provide details so we can determine whether we can accommodate your request.
-
Business Flow: Send us a drawing (or sample)→ Feedback with quotation→ Confirm quotation → Make Sample→ Samples test (approved sample will be used as the standard item for mass production)→ Place official order.
For more information, please contact us about the catalog, or send your wire harness details to me for a free quote.
