JST Connector Wiring Harness Assembly

JST Connector Wire Harness Assembly Manufacturer



The JST Connector is a crucial component in electrical systems that ensures reliable and efficient connectivity. This brand connector is designed to securely connect various electronic devices, such as sensors, switches, and actuators, to the main control unit or power source.



With its precise engineering and high-quality materials, the JST Connector offers excellent durability and resistance against environmental factors like moisture, heat, and vibration. Its compact design allows for easy installation in tight spaces while maintaining optimal performance.



This versatile connector is widely used in industries such as automotive manufacturing, consumer electronics production, and industrial automation. It plays a vital role in ensuring seamless communication between different components within complex systems.



The JST Connector features standardized connectors that enable quick plug-and-play connections with no more need for soldering or crimping. This not only saves time during assembly but also facilitates easier maintenance and troubleshooting processes.



Moreover, this brand connector adheres to strict quality standards to guarantee safe operation under various operating conditions. It undergoes rigorous testing procedures to ensure proper insulation properties and electrical conductivity throughout its lifespan.



If your wire harness chooses a JST connector as the plug and socket, congratulations! You have made an excellent choice by partnering with Hooha Harness. With our extensive experience in processing various JST brand connectors, we are well-equipped to handle all your wire harness assembly needs.





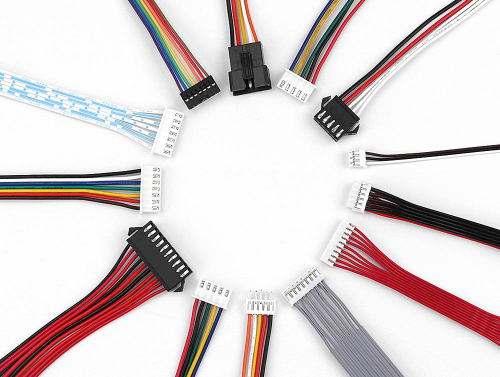

jst connectors

Hooha Harness Closely Works with JST Brand


More than 8,000,000pcs JST Connectors are used Every Year in Hooha Harness



Every year, we buy a large number of JST connectors used for all kinds of custom wire harness assembly, according to the regular usages, we stock many connectors in our warehouse, like XH, PH, JWPF, GH, SM, SUR, VH, ZH, PA, EH, etc. this could help us delivery products to our customer on time.










Why Choose Us to Assembly Your Wire Harness







employee

200+

professional skilled professionals





23 years

20+

Years Focus on Wire Harness Assembly





projects experience

6000+

Project Cases Experience





capacity

10,000,000pcs +

Wire Harnesses Capacity per Year





IPC620 standard

IPC620

IPC/WHMA-A-620 Standard





overmold developing experiece

1000+

Overmold Developing Tools Experience

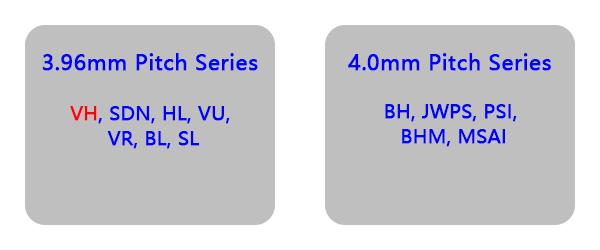

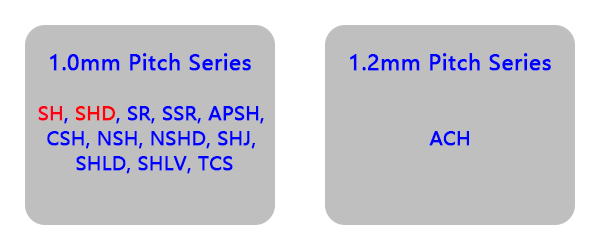

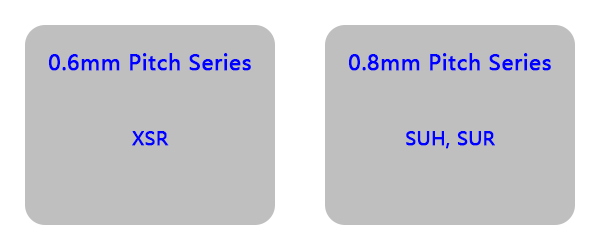

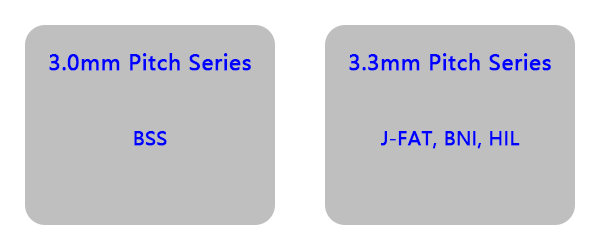

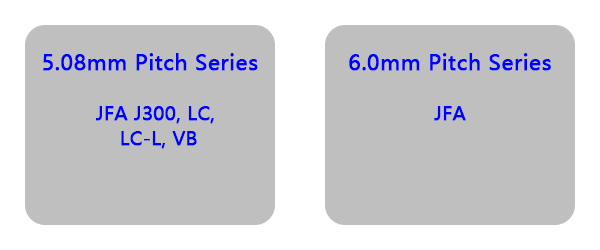

What JST Connectors We Can Process?





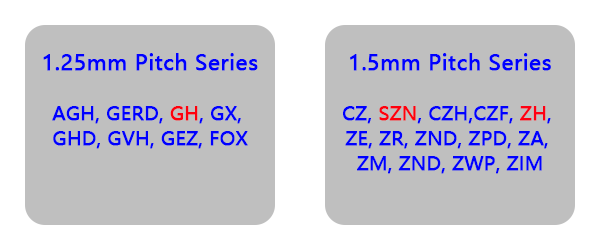

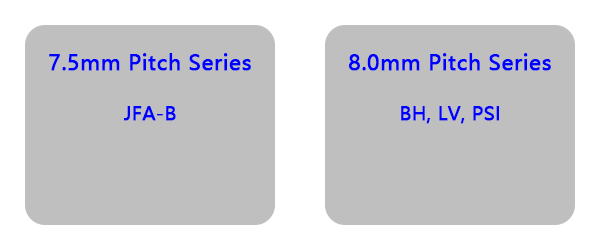

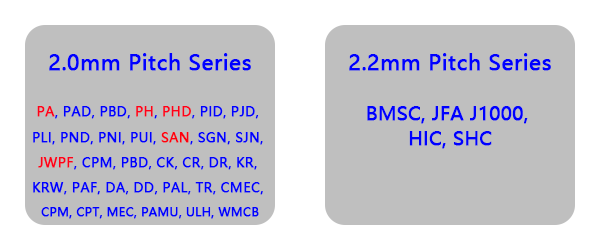

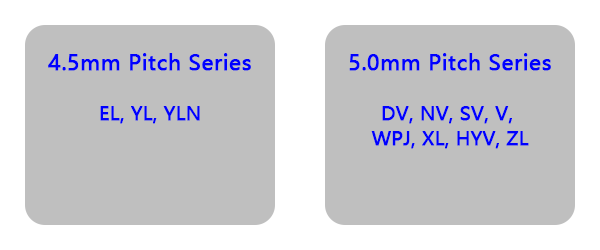

JST connector

JST connector

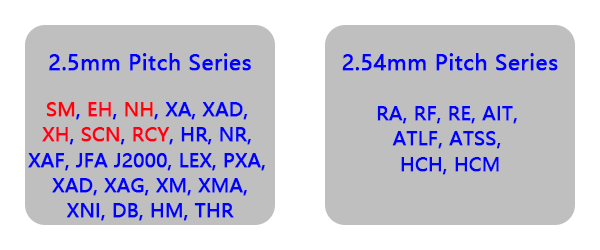

JST connector

JST connector

JST connector

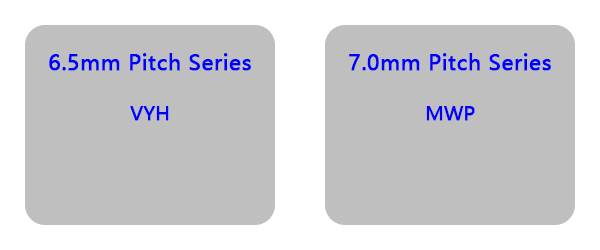

JST connector

JST connector

JST connector

jst connector

JST connector

JST connector

JST connector





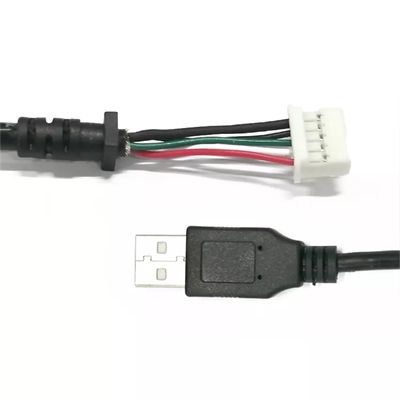

Part of JST Connector Wiring Harness Products Cases



Hooha Wire and Cable Products Company is a professional provider of customized wire harnesses, wire and cable harness assembly, and over-mold cable assembly solutions in China. With our extensive expertise in the field, we cater to various industries.



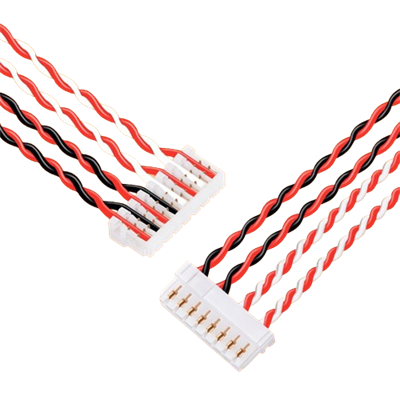

JST SUR connector wire harness

JST SUR connector wire harness



Connector support from 2Pin to 22Pin.

Current Rating: 0.5A(#32) 0.2A(#36)

Fit wire size: 0.5A AC, DC (32AWG);

                         0.2A AC, DC(36AWG).

Voltage rating: 30V DC.



quote



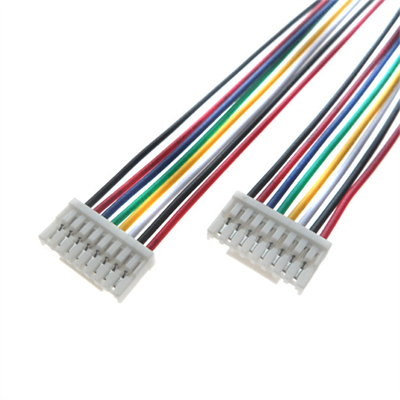

JST SH connector wire harness

JST SH connector wire harness



Connector support from 2Pin to 20Pin.

Header support from 2P to 20P.

Terminal fit for 32AWG~28AWG.

Current rating: 1.0A AC/DC (28AWG).

Voltage rating: 50V AC/DC.



quote



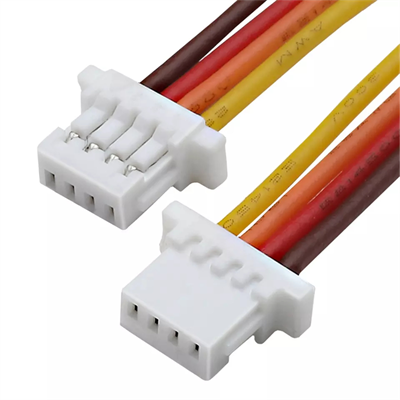

JST GH connector wire harness

JST GH connector wire harness



Connector support from 2Pin to 15Pin.

Header support from 2P to 15P.

Terminal fit for 30AWG~26AWG.

Current rating: 1.0A AC/DC (26AWG).

Voltage rating: 50V AC/DC.



quote

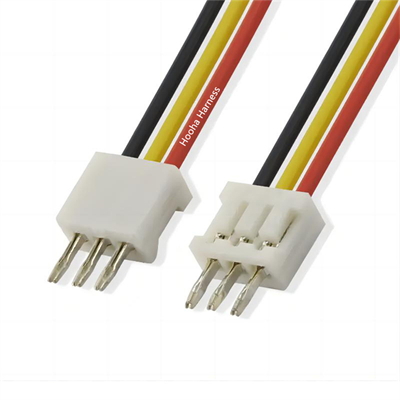

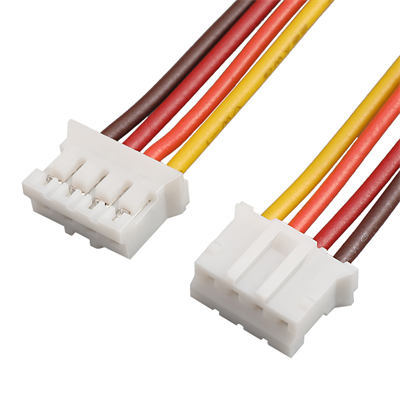

JST SZN connector wire harness

JST SZN connector wire harness



Connector support from 2Pin to 13Pin.

Terminal fit for 30AWG~26AWG (OD: 0.7-1.1mm).

Mounting onto printed circuit boards

Current rating: 0.7A AC/DC (26AWG).

Voltage rating: 50V AC/DC.



quote



JST ZH connector wire harness

JST ZH connector wire harness



Connector support from 2Pin to 13Pin.

Terminal fit for 32AWG~26AWG (OD: 0.5-1.1mm).

Header support from 2P to 13P.

Current rating: 1.0A AC/DC (26AWG).

Voltage rating: 50V AC/DC.



quote



JST PH connector wire harness

JST PH connector wire harness



Connector support from 2Pin to 16Pin.

Terminal fit for 24AWG~30AWG (OD: 0.5-1.5mm).

Header support from 2P to 16P.

Current rating: 2A AC/DC (24AWG).

Voltage rating: 100V AC/DC.



quote





JST SAN connector wire harness

JST SAN connector wire harness



Connector support from 2Pin to 15Pin.

Terminal fit for 30AWG~24AWG (OD: 0.9-1.3mm).

Current rating: 2A AC/DC (24AWG).

Voltage rating: 250V AC/DC.



quote



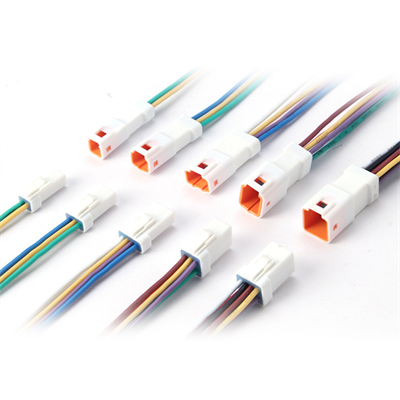

JST JWPF connector wire harness

JST JWPF connector wire harness



Connector support 2P, 3P, 4P, 6P, 8P.

Terminal fit for 26AWG~22AWG (OD: 1.4-1.7mm).

Current rating: 3A AC/DC (22AWG).

Voltage rating: 100V AC/DC.



quote



JST SCN connector wire harness

JST SCN connector wire harness



Connector support from 2Pin to 16Pin.

Terminal fit for 28AWG~22AWG (OD: 0.9-1.7mm).

Current rating: 3A AC/DC (22AWG).

Voltage rating: 250V AC/DC.



quote

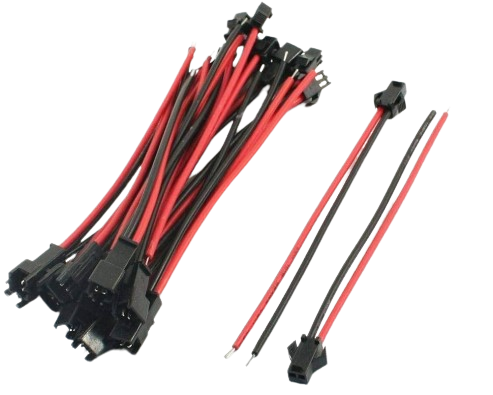

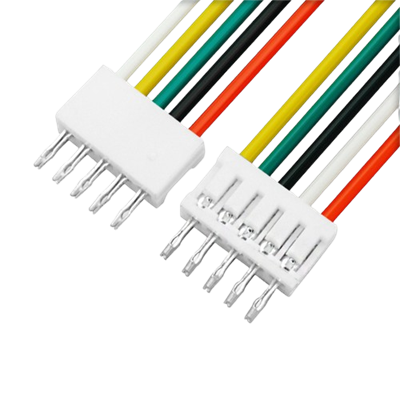

JST SM connector wire harness

JST SM connector wire harness



Connector support 2Pin to 12Pin and 18Pin.

Male and female available.

Terminal fit for 28AWG~22AWG (OD: 1.2-1.8mm).

Current rating: 3A AC/DC max.

Voltage rating: 250V AC/DC max.



quote



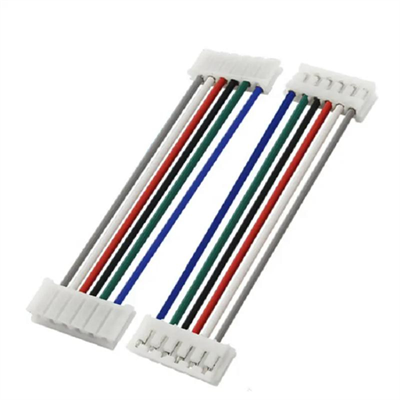

JST EH connector wire harness

JST EH connector wire harness



Connector support from 2Pin to 15Pin.

Terminal fit for 32AWG~22AWG (OD: 0.5-1.9mm).

Header support from 2P to 15P.

Current rating: 3A AC/DC (22AWG).

Voltage rating: 250V AC/DC.



quote



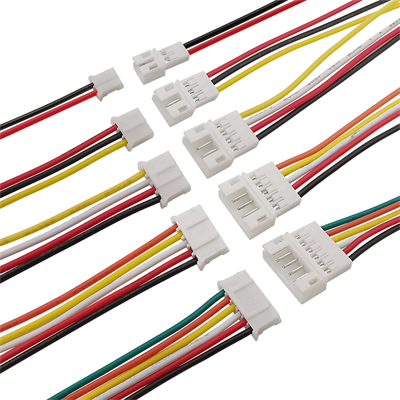

JST NH connector wire harness

JST NH connector wire harness



Connector support from 2Pin to 25Pin.

Terminal fit for 30AWG~22AWG (OD: 0.9-1.7mm).

Header support from 2P to 25P.

Current rating: 3A AC/DC (22AWG).

Voltage rating: 250V AC/DC.



quote






JST PA connector wire harness

JST PA connector wire harness



Connector support from 2Pin to 16Pin.

Terminal fit for 28AWG~22AWG (OD: 0.76-1.5mm).

Header support from 2P to 16P.

Current rating: 3A AC/DC (22AWG).

Voltage rating: 100V AC/DC.



quote



JST XH connector wire harness

JST XH connector wire harness



Connector support 1Pin to 16Pin and 20Pin.

Terminal fit for 30AWG~22AWG (OD: 0.9-1.9mm).

Header support from 2P to 16P and 20P.

Current rating: 3A AC/DC (22AWG).

Voltage rating: 250V AC/DC.



quote



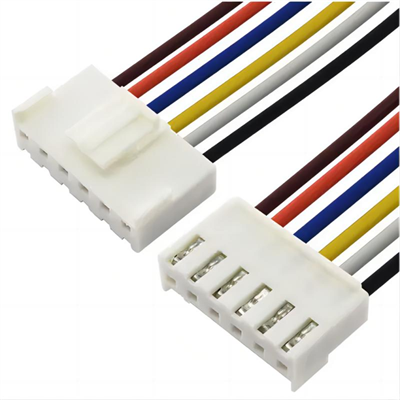

JST VH connector wire harness

JST VH connector wire harness



Connector support from 2Pin to 11Pin.

Terminal fit for 22AWG~16AWG (OD: 1.7-3.0mm).

Header support from 2P to 11P.

Current rating: 10A AC/DC (16AWG).

Voltage rating: 250V AC/DC.



quote






>>> Custom Wire Harness Manufacturer Since 2001 <<<





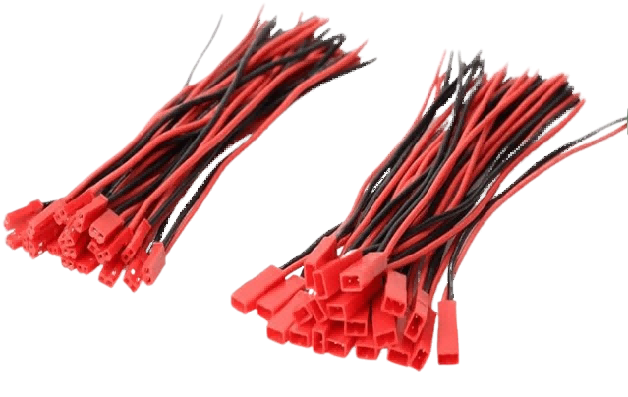

jst cable assembly


Competitive Price



      ♦  We closely collaborate with JST China agency, regularly consulting them to meet our requirements. They not only offer prompt delivery but also provide a competitive price compared to other competitors.






Alternative parts available


♦  Some of the connectors have replacements available in the Chinese market, which offer the same quality as the original brand but at a better price and with shorter delivery times. If you are open to using equivalents, we can provide samples for you to test their quality.

♦  Please rest assured that even if you choose the original brand, we will not substitute it with a replacement. The original brand typically features the JST logo, while replacements do not. Furthermore, it is important to note that this is not a one-time business transaction; we are a trusted company.



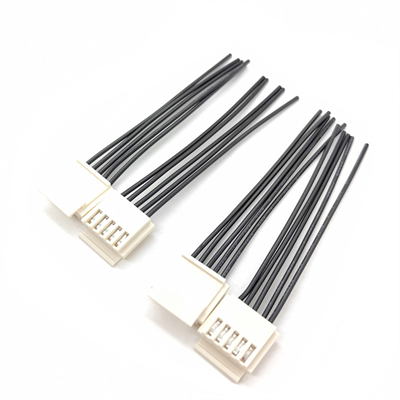

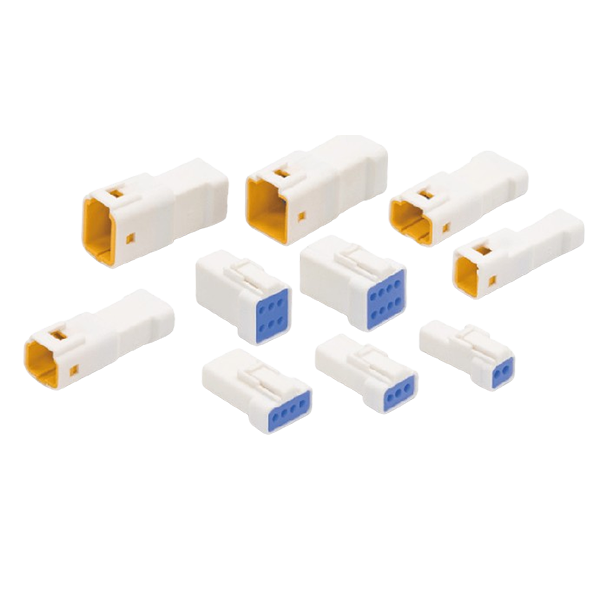

jst jwpf connector




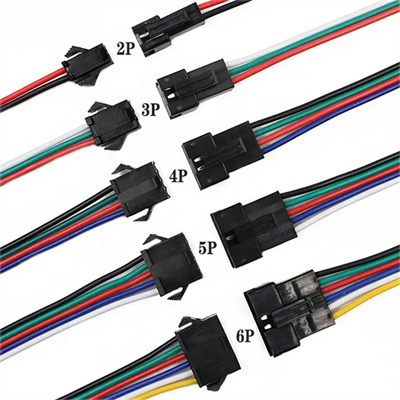

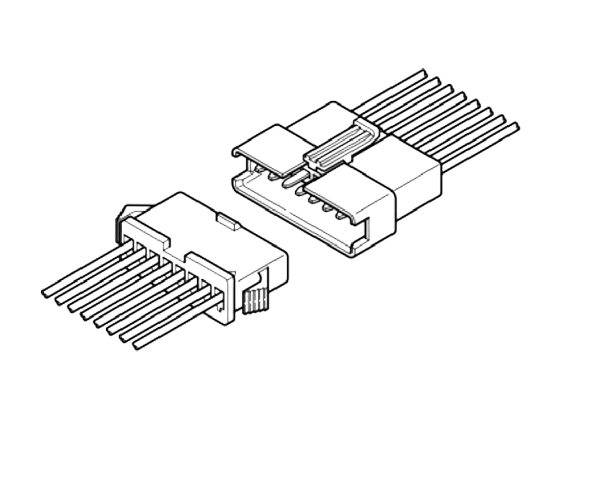

jst sm connector

Stable quality



♦  Why do we always offer high-quality assembly service?

1. Strict Supplier audit to provide stable raw materials;

2. High-level IQC/IPQC/OQC quality control, decrease defective rates;

3. Largely used automatic wire cutting, stripping, tinning, and crimping integrated machines, carry out IPC/WHMA-A-620 standard;

4. 100% continuity test, make sure all products are no circuit shorts, no mismatch, no isolation breaks and hurts.





Support Custom wire harness



♦  We are proud to offer our expertise in providing custom wire harness solutions. Our team of skilled professionals is dedicated to meeting the unique needs and specifications of our clients. With years of experience in the industry, we understand the importance of delivering high-quality wire harnesses that are tailored to specific applications.

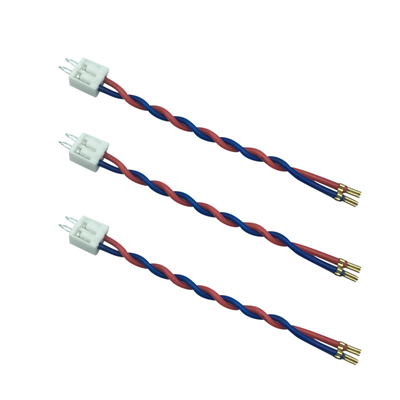

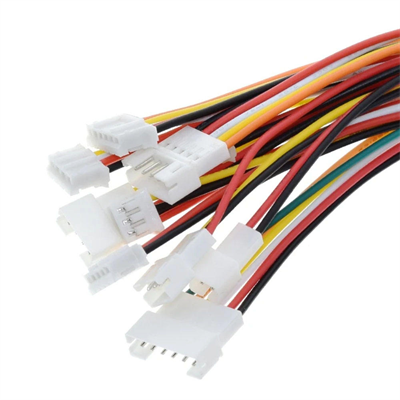

custom jst wire harness

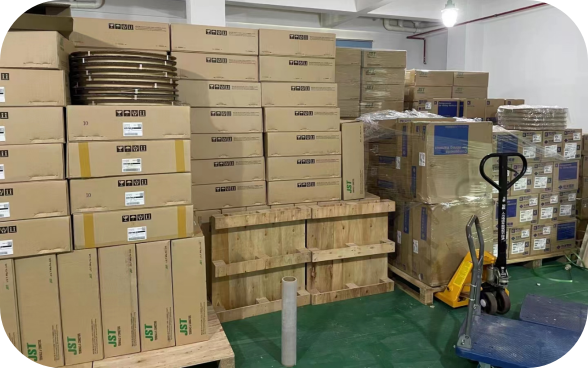

jst connector in warehouse



Large Quantity in Stock



♦  Our regular stocked series connector, which includes SUR, SH, GH, SZN, ZH, PH, SAN, JWPF, SCN, SM, EH, NH, PA,XH,VH and more varieties are readily available to meet your needs. By having these connectors in stock at all times we can significantly reduce delivery time for you. This means that once you place an order with us for any of these connectors mentioned above or others from our stocked series range,you can expect a faster turnaround time.






Shipping


♦  We offer various shipping options to meet different needs, including our Express service for fast and efficient door-to-door delivery. Our cost-effective solutions with competitive rates support both air and sea shipments, providing flexibility in logistics. With our experienced team ensuring safe transportation regardless of the chosen mode, customer satisfaction is our top priority as we continuously improve through innovation.



shipping






free quote

Free of Quote

♦  Just tell us what JST connector you need, wire length, gauge, color, electric circuits, and order quantity, and we will quote to you within three working days.

♦  Drawing or sample also available to quote out price.





Process Standard



We specialize in producing high and low-voltage pre-made wiring harnesses, custom cable manufacturing, wire and cable harness assemblies, cable assembly manufacturing, custom molded cable assembly, utilizing top-quality materials, and employing highly trained assembly technicians. Our dedicated assembly teams ensure that our custom cable assemblies or wire harnesses not only meet but also surpass your exacting specifications. All Wire Harness Assemblies are meticulously crafted to adhere to the highest industry standards: IPC/WHMA-A-620.





Raw Materials Option



  • Wire gauges: 32 AWG to 2/0 AWG (0.03mm² to 67mm²)

  • Wire Style in Stock: UL series: 1007, 1015, 1569, 1571, 3266, 1851, 1330, 1331, 1332, 1061, 1430, 3312, 1180, 3135, 2725, 2464, 2468, etc. Auto wires: AVS, AVSS, TXL, GXL, SXL, etc.

  • Wire Color: red, black, white, yellow, green, blue, orange, purple, and dual colors.

  • Wire and Cable Jacket: PVC, PU, TPE, TPU, TPEE, Teflon, Silicone, etc.

  • Connector Brand: TE, Molex, JST, Aptiv, Amphenol, Yazaki, Hirose, Sumitomo, Bosch, Escubedo, Fep, Fuji, Lear, Furukawa, Hirschmann, I-pex, ITT, JAE, KET, KUM, Kostal, NT, DuPont, etc. and those connector Chinese equivalents if they have.

  • Accessory: PVC tubes, heat shrink tubes, corrugated pipes, electric tape, labels, cable ties, clips, switches, fuse boxes, fuse holders, relays, car chargers, sensors, etc.





Price Quote Notes



  • Before quoting the price, we generally ask you whether you accept Chinese replacements if they have, if not accept, we will quote according to the drawing listed materials, if yes, we will try to find out.



  • To quote out the price, we need to know all details including wire length, gauge, color, electric circuits/diagram, connector brand, part number, cover materials, other accessories if they have, and order quantity. if you have a drawing, that would be better for us to understand what you need, if not, pls tell us as many details as possible.



  • The wire, cable, and connector options listed here are not exhaustive. If you do not find what you need, it does not mean we cannot make it. Please provide us with details so that we can determine if we can accommodate your request.



  • Business Flow: Send us a drawing (or sample)→ Feedback with quotation→ Confirm quotation → Make Sample→ Samples test (approved sample will be used as the standard item for mass production)→ Place official order.





For more information, pls contact us to ask about the catalog or send us your wire harness details to me to get a free quote.
