Wire Harness Crimping Machines: Ensuring Reliable Connections

Introduction

Wire harnesses play a vital role in managing electrical systems and safeguarding them from environmental conditions. One crucial step in wire harness assembly is wire crimping, where wires are securely joined to other components or wires. To achieve precise and reliable connections, wire harness manufacturers rely on specialized machines known as wire harness crimping machines. In this article, we will explore the significance of wire harness crimping machines and their essential features. Wire crimping involves joining wires to other components or wires using crimp terminals, which provide a reliable electrical connection. The manual crimping process can be time-consuming and prone to human error. Wire harness crimping machines offer a more efficient and consistent solution by automating the crimping process. Wire crimping involves joining wires to other components or wires using crimp terminals, which provide a reliable electrical connection. The manual crimping process can be time-consuming and prone to human error. Wire harness crimping machines offer a more efficient and consistent solution by automating the crimping process. By automating the crimping process, wire harness crimping machines significantly increase productivity. These machines can handle high volumes of wire crimps with consistent quality and reduced cycle times. The integration of cutting, stripping, and sealing capabilities in some models further streamlines the overall wire assembly process.

The Importance of Wire Harness Crimping Machines

Wire harness crimping machines are designed to streamline and automate the wire crimping process, ensuring consistent and durable connections. These machines eliminate the limitations and variability associated with manual crimping, enhancing productivity and overall quality. By employing wire harness crimping machines, manufacturers can achieve the following benefits:

Precise Crimping

Wire harness crimping machines offer precise control over the crimping process, ensuring optimal compression and contact between the wire and terminal. This precision minimizes the risk of loose connections or excessive strain on the wires, guaranteeing long-term reliability.

Enhanced Efficiency

With automated functions and advanced features, wire harness crimping machines significantly improve production efficiency. These machines can handle high volumes of wire crimping tasks with consistent speed and accuracy, reducing labor requirements and assembly time.

Versatile Application

Wire harness crimping machines cater to a wide range of wire gauges and terminal types, accommodating diverse requirements in the wire harness industry. They are capable of handling delicate micro coaxial cables, coaxial cables, single-conductor wires, and various other types of wire assemblies.

Notable Features and Types of Wire Harness Crimping Machines

Wire harness crimping machines come in different types and models, each offering unique features to meet specific manufacturing needs.

Here are some notable types of wire harness crimping machines:

1. Bench-Top Crimping Terminators: Bench-top crimping machines provide a versatile solution for wire crimping tasks. They offer precise crimp adjustment, control panels for easy operation, and varying crimp forces to accommodate different wire gauges.

2. Fully Automatic Crimping Machines: Fully automatic crimping machines, such as those offered by Schleuniger, provide comprehensive wire processing capabilities, including cutting, stripping, crimping, sealing, twisting, and tinning. These machines are equipped with multiple processing stations and optional accessories to cater to a wide range of applications.

The specific features of wire harness crimping machines may include

• Precise control and adjustment of crimp force to ensure optimal compression.
• User-friendly control panels for easy operation.
• Tool-less designs for efficient setup and changeovers.
• Compatibility with various wire gauges, from fine microcoaxial cables to thicker wires.
• Advanced controls and traceability systems for quality assurance and process monitoring.
• Integration with Industry 4.0 technologies, such as Ethernet and USB ports, for enhanced connectivity and data management.

wire and terminal crimping standard: IPC/WHMA-A-620

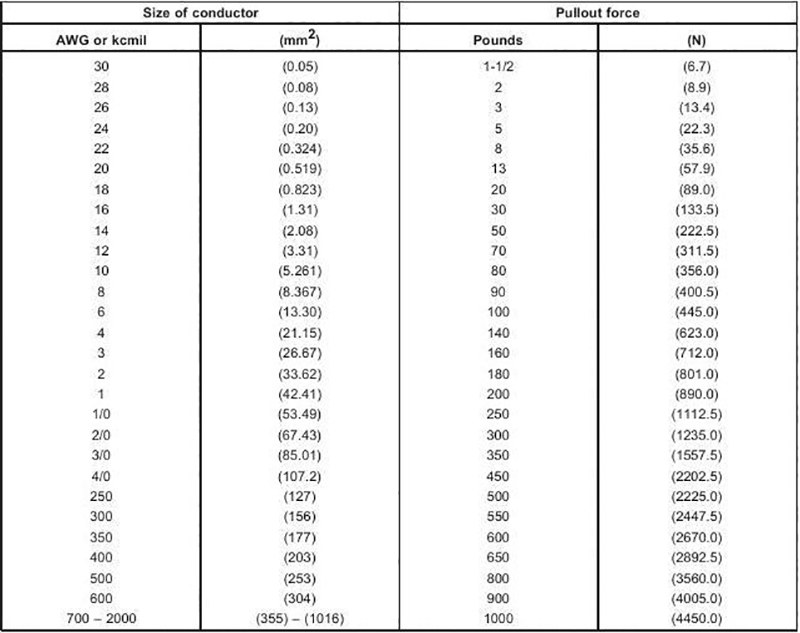

IPC/WHMA-A-620 provides guidelines on materials, methods, tests, and acceptance criteria for crimped, mechanically secured, and soldered interconnections. It covers various aspects of cable and wire harness assembly activities, including wire prep, soldering, crimping, connectors, molding, testing, and more. The latest revision of the standard, IPC/WHMA-A-620E, was released in October 2022 and features over 700 color pictures and illustrations, providing detailed visual guidance on different topics. The most important part that we think is the wire and terminal crimping standard, that means how much force that terminal crimp to the wire are good quality. here is a table for your reference.

Conclusion

The Wire Harness crimping standard IPC/WHMA-A-620, which has been issued by the Wiring Harness and Component Manufacturers Association, is a highly valuable resource for those seeking to ensure that their products meet the highest quality standards. This comprehensive guide provides detailed information on the appropriate force required for effective wire harness crimping, helping manufacturers to produce reliable and durable electrical components. Thanks to its rigorous standards and thorough guidelines, this standard has become widely recognized as an essential tool in all-electric industries. Whether you are working in automotive manufacturing or aerospace engineering, adhering to these guidelines can help you achieve consistent results and deliver products that meet or exceed customer expectations. So if you're looking for a way to improve your wire harness crimping processes and enhance the overall quality of your electrical components, look no further than IPC/WHMA-A-620. With its clear instructions and expert guidance, it's sure to be an invaluable resource for any manufacturer striving for excellence in their field.
