Anderson Euro Battery Connector, China Replacement

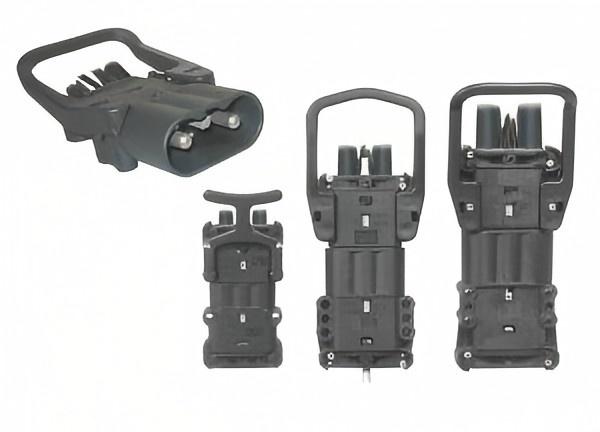

Anderson Euro Battery Connector
Anderson Euro Battery Connectors (EBC) are industrial-grade power connectors designed for high-current applications, compliant with DIN 43589-1 and EN 1175-1 standards. Available in 80A, 160A, and 320A models, they feature voltage keying (color-coded grey, green, and yellow keys) for safe 24–96V DC connections in wet-cell, dry-cell, or universal setups. Built with rugged PBT/PC housings and silver-plated copper contacts, they offer superior resistance to impact, acid, and extreme temperatures (-25°C to +75°C), with IP23 protection. Certified by UL, CSA, and RoHS, EBC connectors excel in material handling, electric vehicles, battery charging, and industrial equipment, ensuring reliable performance in harsh environments. Modular design simplifies assembly and maintenance.
Current Capacity
| Model | Max Current(EN 1175) | Wire Range (Power) |
| EBC80 | 165A(35mm²) | 10-35mm²(8AWG - 2AWG) |
| EBC160 | 225A(50mm²) | 16-50mm²(6AWG - 1/0AWG) |
| EBC320 | 350A(95mm²) | 50-95mm²(1/0AWG - 4/0AWG) |

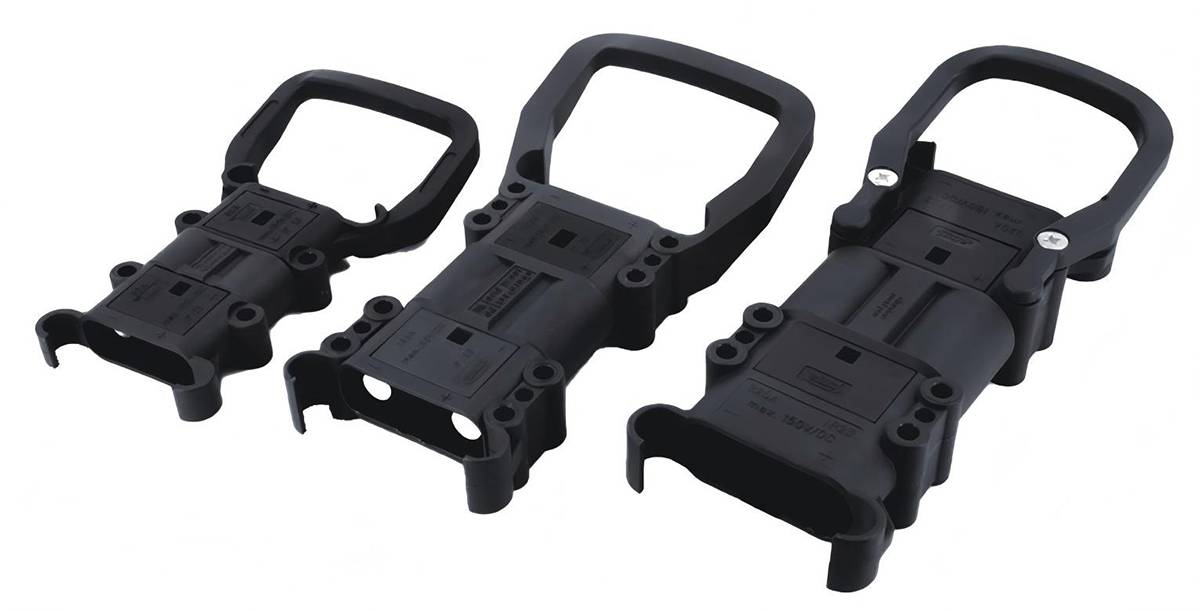

Our replacement Euro Battery Connectors
Designed as a direct replacement for Anderson® connectors, our Euro battery connector features the same size, quality, and seamless compatibility, but with a competitive price and shorter lead time. Crafted from high-quality PP flame-retardant material, it delivers flame, acid, wear, and pressure resistance for reliable performance in harsh environments like Material Handling, Battery Charging, Utility Vehicles, Motive Power, and Sweepers. Engineered to match original specifications, it ensures effortless integration while reducing costs and downtime. Ideal for industrial power and socket systems, this connector combines durability, affordability, and rapid delivery—making it the smart upgrade for demanding applications requiring robust, cost-effective solutions.
Parameters
| Model | DIN80, DIN160, DIN320 |
| Ampere(A) | 80A, 160A, 320A |
| Voltage(V) | 600V |
| Housing Material | PP |
| Contact Material | Pure Copper Plated With Silver |
| Wire Size(AWG) | 10mm²-95mm² |
| Flammability(Class) | UI94 V-0 |
| Certification | CE, Reach, RoHS Compliant |
Connector Size

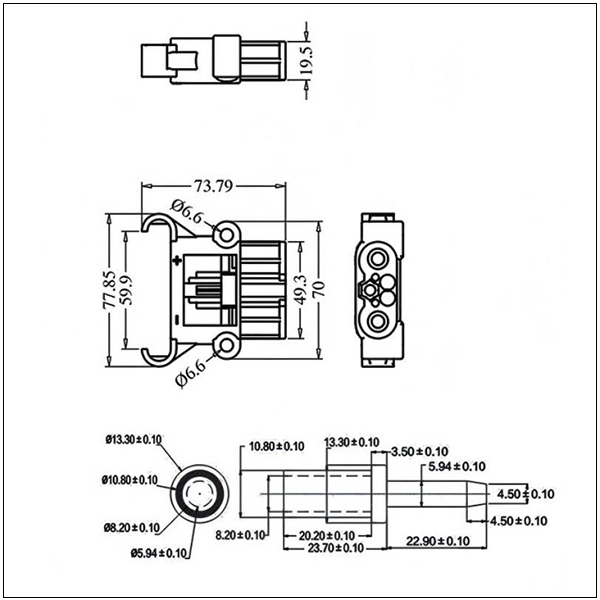

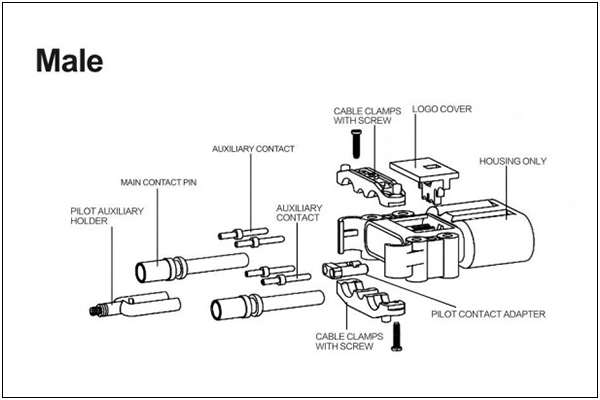

DIN80A Male

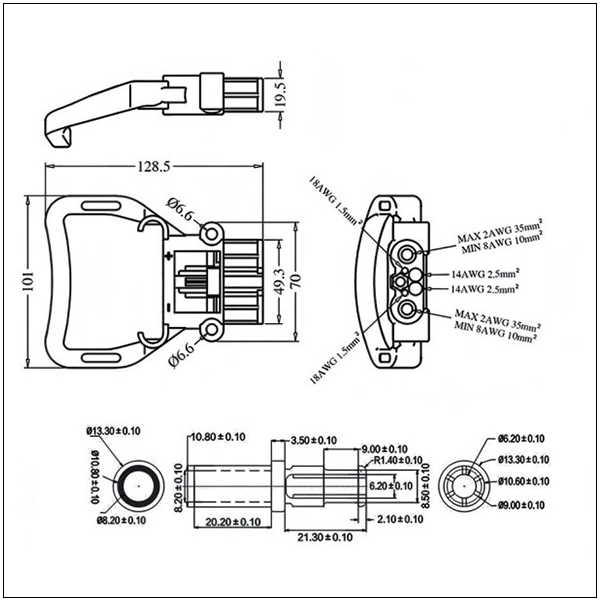

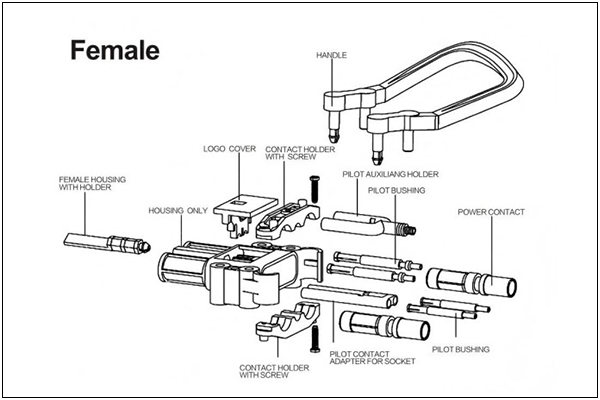

DIN80A Female

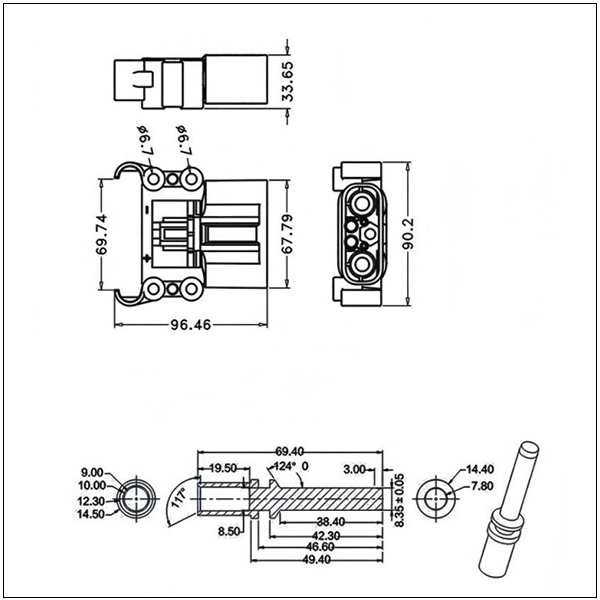

DIN160A Male

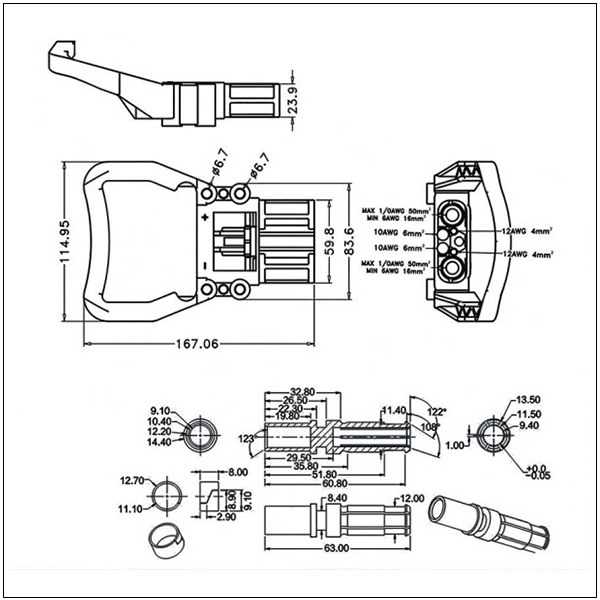

DIN160A Female

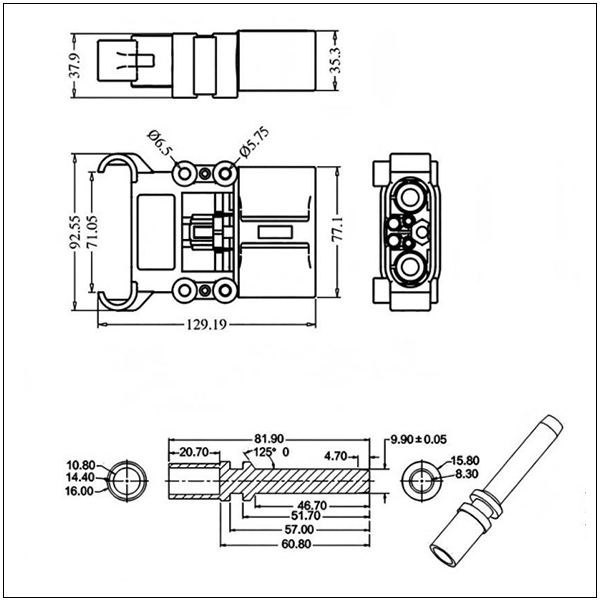

DIN320A Male

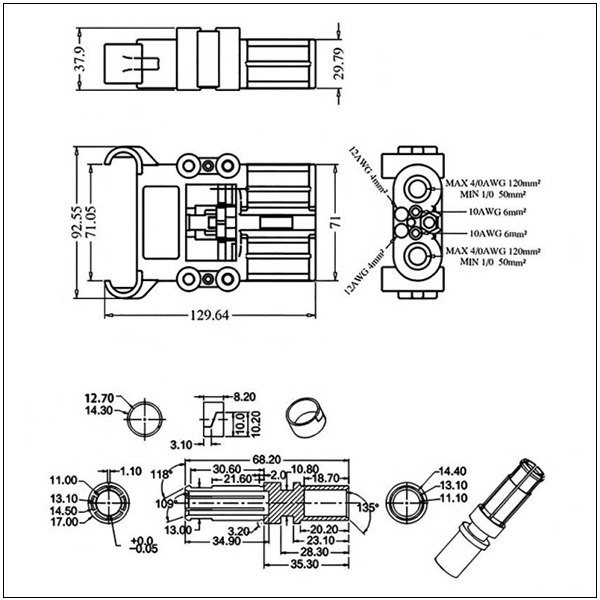

DIN320A Female
Applications
Material Handling
Our Euro Battery Connector Replacement is engineered to withstand the rigorous demands of material handling equipment, including forklifts, automated guided vehicles (AGVs), and warehouse robotics. Its flame-retardant PP housing and acid-resistant design ensure reliable operation in environments exposed to mechanical stress, chemical spills, and temperature fluctuations. Compatible with Anderson® connectors, it delivers seamless integration into power systems for lifts, conveyors, and pallet jacks, reducing downtime and maintenance costs. With superior wear resistance and competitive pricing, this connector optimizes energy transfer in high-cycle applications, making it ideal for logistics centers, manufacturing plants, and distribution hubs seeking durable, cost-effective solutions without compromising safety or performance.
Battery Charging Systems
Designed for industrial battery charging stations, our Euro Battery Connector Replacement ensures safe, efficient power transfer for lead-acid, lithium-ion, and other battery types. Its flame-retardant PP housing and silver-plated contacts minimize resistance, preventing overheating during high-current charging cycles. Fully compatible with Anderson® interfaces, it supports rapid deployment in charging docks for EVs, forklifts, and backup power systems. The acid-resistant construction withstands corrosive environments, while the pressure-resistant design guarantees longevity in high-demand settings. With shorter lead times and cost savings, this connector is a smart choice for facilities requiring reliable, fast-charging infrastructure that aligns with industry safety standards like EN 1175-1.
Utility Vehicles
From airport ground support equipment to golf carts and municipal utility vehicles, our Euro Battery Connector Replacement delivers robust performance in compact, mobile power systems. Its PP housing resists vibrations, moisture, and temperature extremes, ensuring stable connections in outdoor or uneven terrains. Engineered to match Anderson® specifications, it seamlessly integrates into vehicle battery systems, supporting high-current loads (up to 320A) for motors, lifts, and auxiliary devices. The wear-resistant design reduces maintenance frequency, while competitive pricing and faster delivery streamline fleet upgrades. Ideal for agriculture, logistics, and public transport, this connector ensures uninterrupted operation in demanding, mobile applications.
Motive Power Applications
Tailored for industrial motive power systems, our connector excels in heavy-duty applications such as mining equipment, construction machinery, and rail vehicles. The flame-retardant, acid-resistant PP housing protects against sparks, chemical exposure, and mechanical impacts, while its pressure-resistant design maintains integrity under extreme loads. Compatible with Anderson® connectors, it ensures reliable power delivery for traction motors, hydraulic systems, and onboard electronics. With lower costs and rapid availability, it reduces downtime during retrofits or repairs, making it a preferred choice for industries prioritizing safety, durability, and cost efficiency in high-voltage, high-vibration environments.
Sweepers & Cleaning Equipment
Our Euro Battery Connector Replacement is optimized for sweepers, scrubbers, and industrial cleaning machines operating in harsh, debris-filled environments. The PP housing resists abrasion from dust, chemicals, and frequent washdowns, while flame-retardant properties enhance safety near electrical systems. Its acid-resistant contacts prevent corrosion from cleaning agents, ensuring stable power delivery to motors and brushes. Fully compatible with Anderson® models, it simplifies upgrades for OEMs and service teams, offering faster delivery and cost savings. This connector is ideal for municipal, commercial, and industrial cleaning fleets requiring durable, low-maintenance solutions that perform reliably in wet, dusty, or corrosive conditions.
Customize Your Battery Cable
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
