Hirose DF58 Connector, Custom Wire Harness Assembly
Hirose DF58 Connector

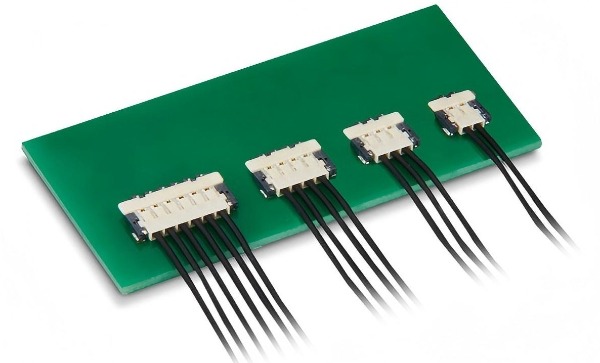

The Hirose DF58 Series offers compact, low-profile wire-to-board connectors with a 1.0mm stacking height, ideal for small devices. Featuring a vertical mating design for easy assembly and a proprietary ViSe Lock mechanism to prevent cable disconnection, it supports high-current applications up to 3.0A (28AWG) through optimized contact resistance. Available in 2, 3, 4, or 6 positions with a 1.2mm pitch, it includes SMT headers and crimp sockets, rated for 100V AC/DC and operating temperatures from -55℃ to 85℃. Constructed with halogen-free, UL94V-0 LCP housings and tin-plated contacts, it ensures reliability in harsh environments. Suitable for compact electronics requiring efficient power delivery, the DF58 combines durability, high current capacity, and space-saving design.
Features
- 1.0mm Height, Wire-to-Board Connectors for Power Supply
- Small-sized, low profile connector
- Leveling of the vertical mating cable
- Proprietary ViSe Lock design
- High current capability up the maximum of 3.0A (2pos. : When 28AWG is used)
- Highly reliable contact design
- Halogen-free
Specifications
| Connector Type | Header, Socket, Contact | Number of Positions | 2, 3, 4, 6 |
| Rated Current | 2.0, 2.5, 3.0A | Mounting Pitch | 1.2 mm |
| Rated Voltage(AC) | AC 100.0V | Mounting Side | Standard on-Board |
| Rated Voltage(DC) | DC100.0V | Mounting Style | SMT |
| Contact Pitch | 1.2 mm | Connector Orientation | Straight |
| Mating/Unmating Cycles | 10 | Contact Plating | Tin |
| Plating Thickness | 1.0μm | Housing Color | Black, Beige |
| Wire Termination Method | Crimping | Recommended Wire Type | Discrete wire |
| Recommended Min.Wire Size (AWG) | 30 | Recommended Max.Wire Size (AWG) | 28 |
| Operating Temperature Min. | -55℃ | Operating Temperature Max. | 85℃ |

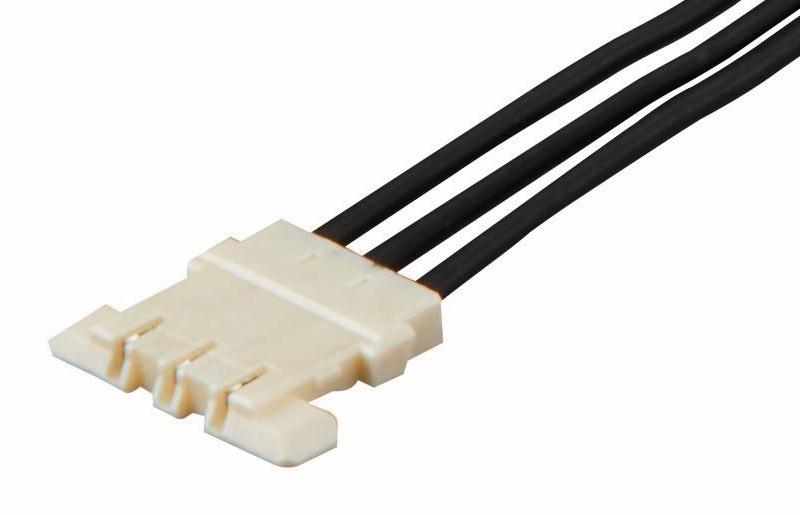

Crimp Socket
| Part No. | HRS No. | No.of contacts |
| DF58-2S-1.2C | 666-1006-0 | 2 |
| DF58-3S-1.2C | 666-1007-0 | 3 |
| DF58-4S-1.2C | 666-1008-0 | 4 |
| DF58-6S-1.2C | 666-1010-0 | 6 |
Applications
- Wearable Devices (e.g., smartwatches, fitness trackers) for compact, reliable power connections.
- Smartphones/Tablets enabling space-efficient internal wire-to-board links.
- Medical Electronics (portable monitors, diagnostic tools) requiring durability and halogen-free safety.
- Automotive Sensors/Control Modules leveraging vibration resistance and wide temperature tolerance.
- Drones/UAVs supporting lightweight designs with secure, high-current connections.
- IoT Devices (smart sensors, hubs) for efficient power in constrained spaces.
- Consumer Electronics (cameras, wireless earbuds) ensuring stable assembly in slim profiles.
- Industrial Robotics/Machinery withstanding harsh environments and mechanical stress.
- Compact Power Supplies (adapters, converters) utilizing 3.0A capacity in minimal footprints.
- Aerospace Systems demanding reliability under extreme conditions and shock resistance.
Support Custom Wire Harness Assembly
- Connectors: 2P to 6P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 200 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
