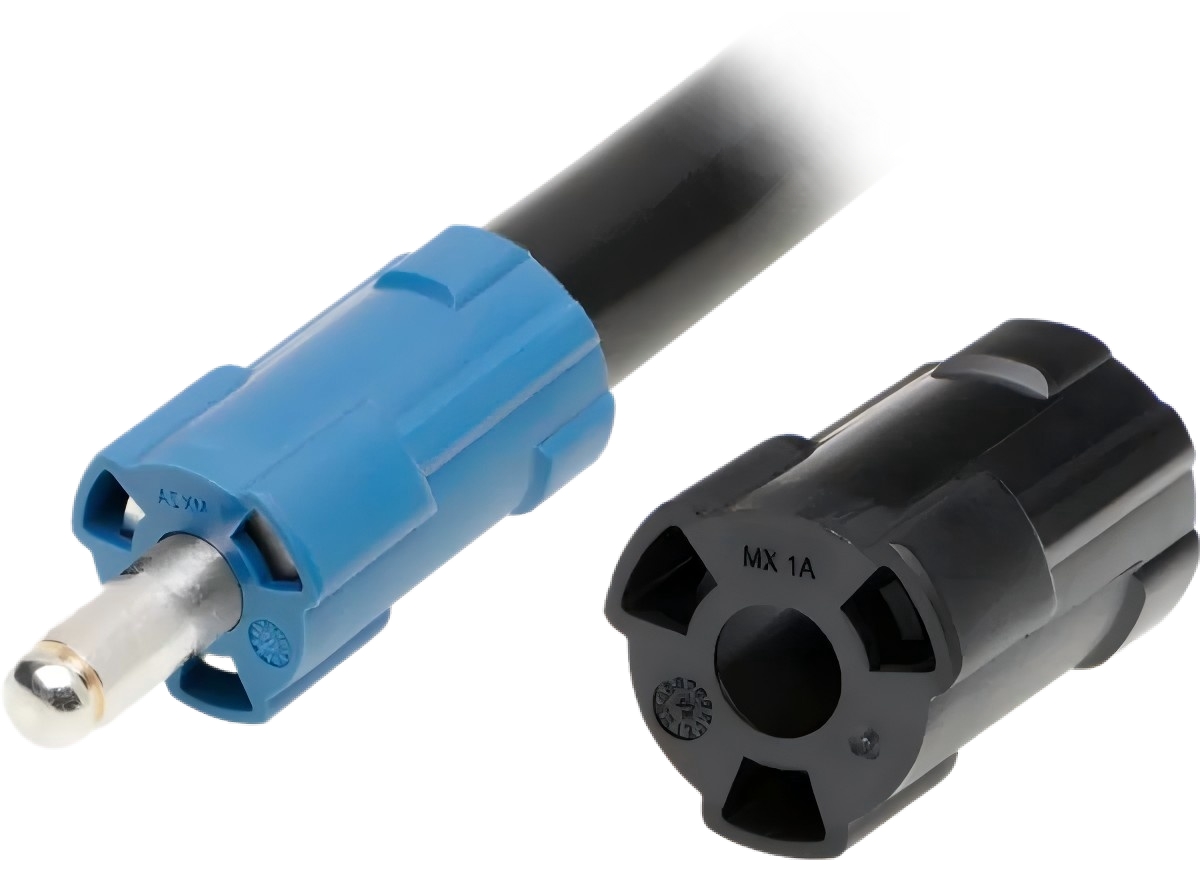

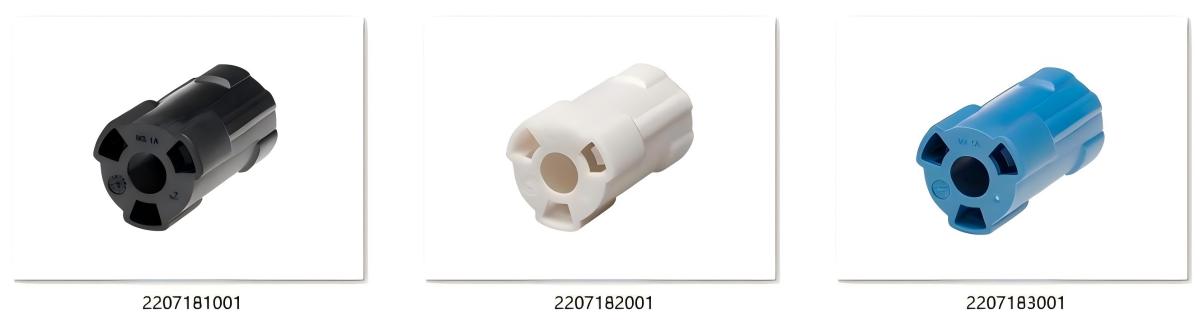

Molex HyperQube 6.00mm Connector

The Molex HyperQube 6.00mm Interconnect System is an advanced high-voltage, high-current connector solution, ideal for applications where space is at a premium and reliable electrical performance is essential. It offers a compact design with high power density, enabling it to handle significant current loads while maintaining low contact resistance, ensuring efficient power transmission. The connector system features a mechanical-keying scheme, which guarantees proper orientation of board-mount receptacles on a PCB or busbar, reducing the risk of incorrect installation. With various crimp contact options, the HyperQube system provides design and manufacturing flexibility, making it adaptable to a range of configurations. Designed for secure connections and ease of use, it supports streamlined installation, making it suitable for use in demanding environments such as data centers, energy storage systems, and industrial automation.

HyperQube Connector Features

• Space-saving design
• Time-saving with accurate mating
• Provides high-power density
• Delivers robust electrical performance
• Eliminates manufacturing issues
• Ensures properly placed and oriented receptacles on PCB or busbar
• Allows design and manufacturing flexibility
• Provides safety for workers
• 35N max mating force
• 4N min unmating force
• 200-cycle mating durability
• 1000V max voltage rating
• 120A max current rating
• 0.2mΩ max contact resistance
• PBT, low-halogen plug and receptacle housing
• Copper alloy crimp contacts
• Aluminum alloy and stainless steel receptacle components
• Gold-plated sockets
• Silver-plated pins
• 2mm max PCB and busbar thickness
• UL 94V-0 flammability rating
• -40°C to +125°C operating temperature range
• RoHS/REACH compliant

HyperQube Connector Specifications Chart

HyperQube Connector Applications

Data Centers

In data centers, the HyperQube connectors are used to support the high-speed, high-density connectivity needs of modern computing infrastructure. They ensure efficient data transmission between servers, switches, and storage units, providing robust performance to handle the massive data loads and uptime demands.

Servers

Servers require reliable and efficient power and data connections to maintain smooth operation. HyperQube connectors are engineered to meet these requirements, offering secure and stable connections that can withstand constant use and high temperatures, which are typical in server environments.

Switches

For network switches, the need for fast, low-latency data transmission is critical. HyperQube connectors deliver high-speed connectivity and durable performance, supporting the high bandwidth and fast response times necessary in network communication equipment.

Energy Storage

In energy storage systems, such as battery packs and backup power solutions, these connectors provide secure and efficient power connections. They are suitable for high-current applications, ensuring stable energy transfer and minimal power loss.

Inverters

Used in solar inverters and other power conversion systems, HyperQube connectors facilitate the safe and efficient transfer of electrical power. Their robust design supports high-voltage and high-current environments, making them ideal for converting DC to AC power in renewable energy setups.

Industrial Automation

In industrial automation systems, reliable connectivity is essential for maintaining seamless communication between various components like sensors, controllers, and actuators. HyperQube connectors support these systems by providing secure and durable connections that can handle the harsh conditions typical of industrial settings, including vibration, temperature extremes, and moisture.

Motors

HyperQube connectors are also used in motor applications, where they provide robust power connections for electric motors. Their design ensures efficient energy transfer, which is vital for the smooth operation of motors in various applications, from factory machinery to electric vehicles.

These examples represent just a few of the common applications for Molex HyperQube 6.00mm Interconnect System Connectors, which are also suitable for other environments requiring high-reliability and high-performance electrical connections.

Support Custom Wire Harness Assembly

• Connector circuits: 1 Pin
• Wire Gauge: 2AWG, 4AWG, 6AWG, depends on real needs
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type: Fully customizable to your specifications.
• Minimum Order: 200 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
