TE IPT-HD Connector, Custom Cable Assembly
IPT-HD Connector
HIVONEX’s IPT-HD Power Bolt connectors provide high-voltage, high-current performance for automotive and industrial applications. Designed for extreme temperatures (-40℃ to +125℃) and high vibrations, they offer low-contact resistance, durable conductor cross-sections (50–95 mm²), and ISO/LV compliance. Ideal for EVs, buses, trucks, and heavy machinery, these connectors ensure reliability in harsh environments with flexible assembly options.
Features
- High-voltage/high-current performance for EVs, MCUs, and industrial machinery.
- Low-contact resistance, stable even under vibration.
- Extreme temperature resistance (-40°C to +125°C).
- Conductor cross-sections: 50, 70, 95 mm² for versatile current handling.
- ISO/LV standards compliance.
- Flexible assembly (integral or separate wiring harnesses).
- Rugged durability against dust, moisture, and mechanical shocks.
- Ideal for EVs, buses, trucks, construction, and agriculture.

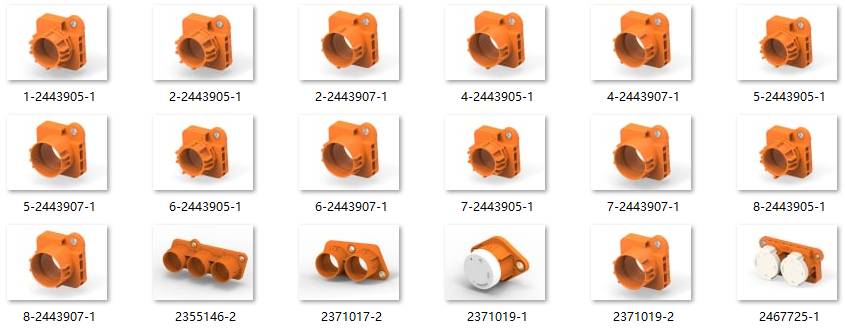

Connector Specifications Chart
| P/N | No. of Position | Descriptions | Connection | Family | Links |
| 5-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-E | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-5-2443905-1.html |
| 2-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-B | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-2-2443907-1.html |
| 1-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-A | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-1-2443905-1.html |
| 4-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-D | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-4-2443905-1.html |
| 8-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-H | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-8-2443905-1.html |
| 2371019-2 | 1 | 1POS, IPT, RING TONGUE HSG ASSY, SLD | Wire-to-Panel | HIVONEX | https://www.te.com/en/product-2371019-2.html |
| 4-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-D | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-4-2443907-1.html |
| 6-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-F | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-6-2443907-1.html |
| 5-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-E | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-5-2443907-1.html |
| 2371019-1 | 1 | 1POS, IPT, RING TONGUE HSG ASSY, SLD | Wire-to-Panel | HIVONEX | https://www.te.com/en/product-2371019-1.html |
| 7-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-G | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-7-2443907-1.html |
| 7-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-G | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-7-2443905-1.html |
| 2-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-B | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-2-2443905-1.html |
| 6-2443905-1 | 1 | PROP, IPT-HD-1P-ASSY-50-95MM2-CODE-F | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-6-2443905-1.html |
| 8-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-H | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-8-2443907-1.html |
| 1-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-A | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-1-2443907-1.html |
| 2467725-1 | 1 | PROP, IPT-HD-2P RING TONGUE, HOUSING ASSY | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-2467725-1.html |
| 3-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-C | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-3-2443907-1.html |
| 6-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-F | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-6-2443907-1.html |
| 5-2443907-1 | 1 | PROP, IPT-HD-1P-ASSY-120 150MM2-CODE-E | Wire-to-Bus Bar | HIVONEX | https://www.te.com/en/product-5-2443907-1.html |
| 2371019-1 | 1 | 1POS, IPT, RING TONGUE HSG ASSY, SLD | Wire-to-Panel | HIVONEX | https://www.te.com/en/product-2371019-1.html |
| 2371017-2 | 2 | 2POS, IPT, RING TONGUE HSG ASSY, SLD | Wire-to-Panel | HIVONEX | https://www.te.com/en/product-2371017-2.html |
| 2355146-2 | 3 | 3POS, IPT, RING TONGUE HSG ASSY, SLD | Wire-to-Panel | HIVONEX | https://www.te.com/en/product-2355146-2.html |
Applications
Electric Vehicles (EVs)
HIVONEX IPT-HD Power Bolt Connectors excel in EV powertrains, delivering high-voltage (up to 95 mm² conductors) and high-current performance critical for battery management systems, motor control units (MCUs), and onboard chargers. Their low-contact resistance ensures efficient energy transfer, while vibration resistance prevents disconnections in high-stress driving conditions. Operating reliably from -40°C to +125°C, they withstand extreme temperatures in EV battery compartments and charging infrastructure. Compliance with ISO/LV standards guarantees safety and interoperability, making them essential for next-gen EVs demanding durability and precision.
Buses & Trucks
These connectors are engineered for heavy-duty commercial vehicles, providing robust power distribution in engines, transmissions, and auxiliary systems. The ruggedized design resists dust, moisture, and mechanical shocks from rough terrain and frequent stops/starts. Flexible assembly options (integral or separate wiring harnesses) simplify retrofits and custom installations. High current capacities (50–95 mm²) support energy-intensive components like hydraulic pumps and cooling systems, while ISO-certified shielding ensures minimal electromagnetic interference (EMI) in densely wired cabins.
Construction & Agricultural Machinery
Built for demanding outdoor environments, IPT-HD connectors endure harsh conditions like mud, water ingress, and extreme temperatures in tractors, excavators, and cranes. Their low-contact resistance maintains reliable performance in hydraulic controls, power tools, and onboard electronics, even during prolonged vibrations. The 50–95 mm² conductor options accommodate high-power tools and machinery, while secure locking mechanisms prevent accidental disconnections. Compliance with LV standards ensures safe operation in explosive or dusty atmospheres common in agricultural settings.
Industrial Systems & Heavy Machinery
In manufacturing and automation, these connectors provide high-speed data and power transmission for robotic arms, conveyor belts, and CNC machines. Their EMI-shielded design ensures signal integrity in electrically noisy environments, while the wide temperature range supports continuous operation in unheated warehouses or overheated production lines. The modular design allows quick maintenance and upgrades, reducing downtime. Ideal for industries prioritizing efficiency and reliability, the IPT-HD series meets evolving demands for smart factories and sustainable industrial solutions.

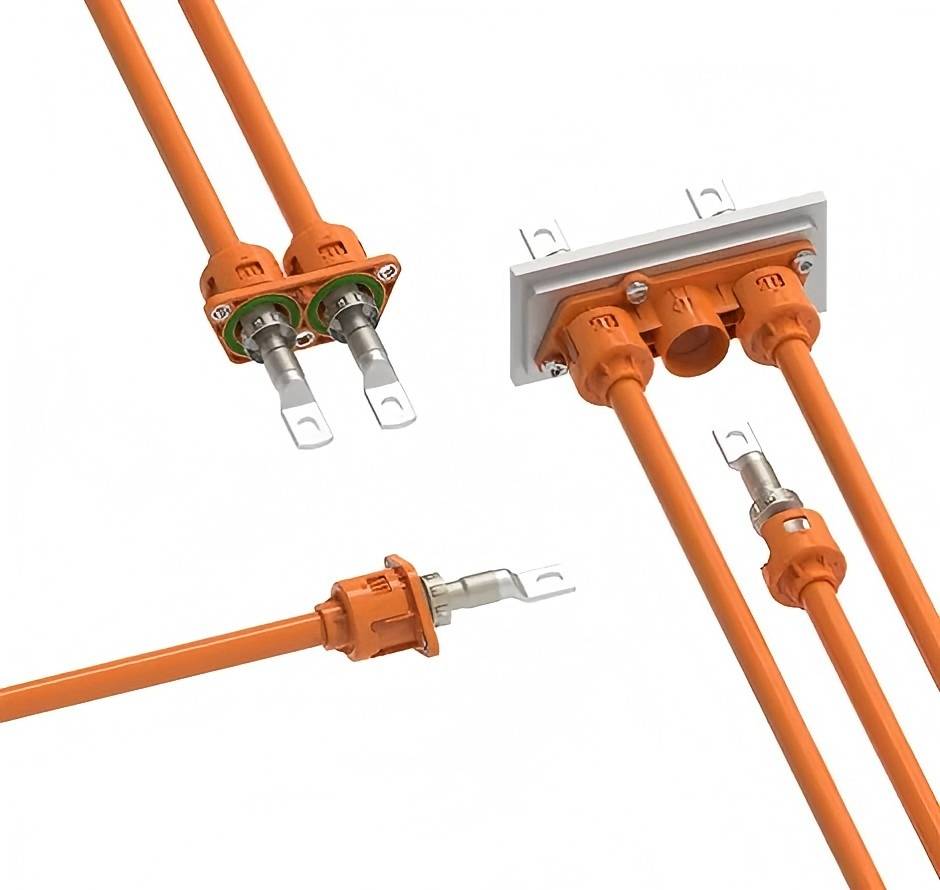

Support Custom Cable Assembly
- Connectors: 1P, 2P, and 3P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
