UL1332 Elecreic Teflon Wire, 300V 200℃ 30 to 10 AWG
UL1332 Teflon Wire
The UL1332 series Teflon wire is a high-performance electrical cable engineered for reliability in extreme conditions. Utilizing FEP (Fluorinated Ethylene Propylene) insulation, it excels in high-temperature environments (up to 200°C+), while offering superior resistance to chemicals, moisture, and abrasion. Widely used in aerospace, automotive, and industrial sectors, it ensures durability and consistent performance in harsh settings. The wire features silver-plated copper conductors for enhanced conductivity and longevity, complying with Underwriters Laboratories (UL) safety and performance standards, including a 300V rating. Its flexibility and solvent resistance make it ideal for tight spaces and corrosive environments, cementing its role in critical applications demanding thermal resilience and chemical stability.
Features
- Temperature Rating: -80℃ ~ 200℃.
- Voltage Rating: 300V.

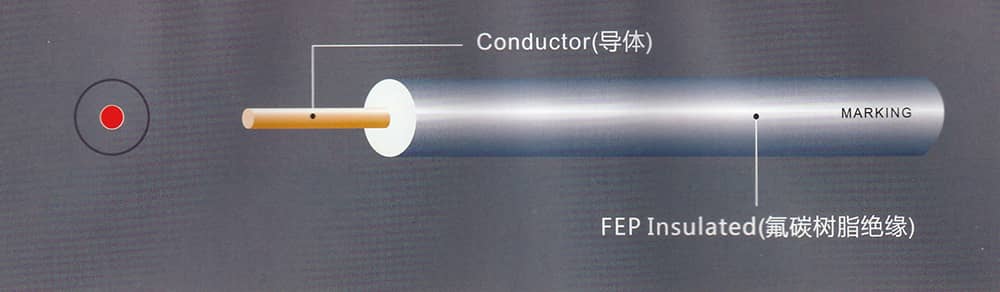

- Conductor: tinned copper, solid or strand
- Insulation: FEP.
- Wire gauge: 30 to 10AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- FEP insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Resitant to heat 200℃, cold -80℃, abrasion chemical solvents, high voltage spikes, oil, etc.
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (2/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 30 | 7/0.10 | 0.30 | 0.33 | 1.00 | 381 | 2000 |
| 28 | 7/0.127 | 0.38 | 0.33 | 1.05 | 239 | 2000 |
| 26 | 7/0.160 | 0.48 | 0.33 | 1.15 | 150 | 2000 |
| 24 | 7/0.20 | 0.60 | 0.33 | 1.30 | 94.2 | 2000 |
| 19/0.12 | 0.33 | 1.30 | 2000 | |||
| 22 | 7/0.25 | 0.75 | 0.33 | 1.45 | 59.4 | 2000 |
| 19/0.15 | 0.33 | 1.45 | 2000 | |||
| 20 | 7/0.32 | 0.95 | 0.33 | 1.65 | 37.6 | 2000 |
| 19/0.19 | 0.33 | 1.65 | 2000 | |||
| 18 | 7/0.39 | 1.18 | 0.33 | 1.90 | 23.9 | 2000 |
| 19/0.235 | 0.33 | 1.90 | 2000 | |||
| 16 | 7/0.50 | 1.52 | 0.33 | 2.30 | 15.1 | 2000 |
| 14 | 19/0.375 | 1.88 | 0.33 | 2.65 | 9.5 | 2000 |
| 12 | 19/0.48 | 2.41 | 0.33 | 3.40 | 6.3 | 2000 |
| 10 | 19/0.60 | 3.02 | 0.33 | 4.10 | 4.2 | 2000 |
Applications
- Aerospace Wiring: Used in aircraft systems for its high-temperature resistance and durability in extreme environments.
- Military Equipment: Deployed in ruggedized electronics and communication systems for chemical and abrasion resistance.
- Automotive Harnesses: Ideal for under-the-hood applications, sensors, and electric vehicles requiring heat and chemical resilience.
- Industrial Machinery: Powers motors, heaters, and automation systems in high-heat manufacturing settings.
- Chemical Processing Plants: Resists corrosive fluids and vapors in instrumentation and control systems.
- Medical Devices: Suitable for sterilizable equipment and imaging systems needing biocompatible, high-temp wiring.
- Power Generation: Used in turbines, generators, and nuclear facilities for thermal stability and voltage compliance.
- Marine Electronics: Protects against moisture and salt in navigation and communication systems on ships.
- High-Temperature Sensors: Integrates into oil/gas drilling tools and furnace monitoring systems.
- Telecommunications: Ensures reliability in base stations and RF amplifiers exposed to outdoor thermal stress.
