UL1617 Elecreic PVC Dual Jacket Wire, 600V 105℃ 16 to 26 AWG
UL1617 Wire

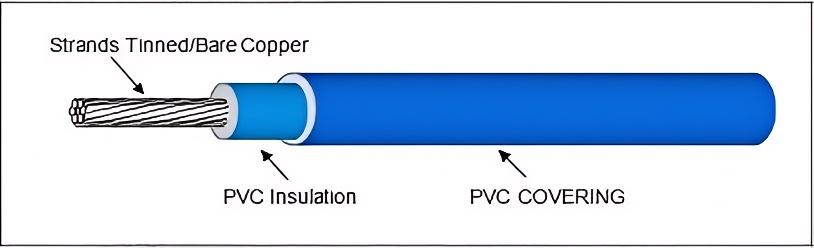

UL1617 is a UL-certified, dual-layer PVC-insulated electrical wire designed for durability and safety in demanding environments. Its inner PVC layer provides optimal electrical insulation, while the outer jacket enhances resistance to abrasion, moisture, chemicals, and UV exposure. Rated for 600V and temperatures up to 105°C, it combines flexibility with flame-retardant properties, meeting UL safety standards. Ideal for industrial machinery, control panels, appliances, and power distribution systems, it ensures reliable performance indoors and outdoors. Available in multiple gauges and colors, this wire prioritizes compliance, longevity, and adaptability for electrical professionals seeking robust, code-compliant solutions.
Features
- Temperature Rating: 105℃.
- Voltage Rating: Rated for 600V.
- Reference Standard: UL758, UL1581
- Insulation: Extruded PVC.
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- PVC insulation comply with RoHS environmental standard
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体 Conductor | 第一层绝缘 Primary Insulation |
第二层绝缘 Secondary Insulation |
Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
||||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 26 | 7/0.160 | 0.48 | 0.76 | 2.1 | 0.4 | 2.90 | 150.00 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.76 | 2.2 | 0.4 | 3.00 | 94.20 | 2001 |
| 22 | 17/0.160 | 0.76 | 0.76 | 2.4 | 0.4 | 3.20 | 59.40 | 2002 |
| 20 | 26/0.160 | 0.94 | 0.76 | 2.6 | 0.4 | 3.40 | 37.60 | 2003 |
| 18 | 41/0.160 | 1.18 | 0.76 | 2.8 | 0.4 | 3.60 | 23.90 | 2004 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.1 | 0.4 | 3.90 | 15.10 | 2005 |
Application
- Industrial Machinery: Used in motor controls, automation systems, and assembly line equipment due to its durability and resistance to abrasion and chemicals.
- Automotive: Employed in vehicle wiring harnesses, sensors, and onboard electrical systems for its flexibility and resistance to heat and vibration.
- HVAC Systems: Ideal for heating, ventilation, and air conditioning units, where temperature resistance and moisture protection are critical.
- Renewable Energy: Utilized in solar panel arrays, wind turbines, and battery storage systems for reliable power transmission in outdoor environments.
- Construction and Building Automation: Installed in lighting systems, security networks, and smart building controls for flame-retardant safety and long-term reliability.
- Appliance Manufacturing: Integrated into household and commercial appliances (e.g., ovens, refrigerators) for its heat resistance and electrical insulation.
- Telecommunications: Supports wiring for data centers, communication towers, and network infrastructure due to its durability and UV resistance.
- Marine and Aerospace: Applied in harsh environments (boats, aircraft) where resistance to moisture, temperature extremes, and mechanical stress is essential.
