UL3173 Halogen-free PE Wire, 600V 125℃ 26 to 9 AWG
UL3173 Halogen-free XLPE Wire
UL3173 Halogen-free Wire is engineered for superior safety and durability in demanding environments. Featuring a cross-linked polyethylene (XLPE) insulation and halogen-free composition, this wire minimizes toxic emissions and corrosive smoke during combustion, enhancing fire safety and environmental compliance. Ideal for automotive, industrial machinery, and power systems, it offers exceptional resistance to heat, chemicals, and abrasion, ensuring reliable performance under extreme conditions. The wire’s flexibility simplifies installation, while adherence to UL standards guarantees global compatibility and quality assurance. Committed to innovation and sustainability, the manufacturer delivers robust, eco-conscious solutions tailored to meet rigorous industry demands and regulatory requirements.
Features
- Temperature Rating: 125℃.
- Voltage Rating: 600V.

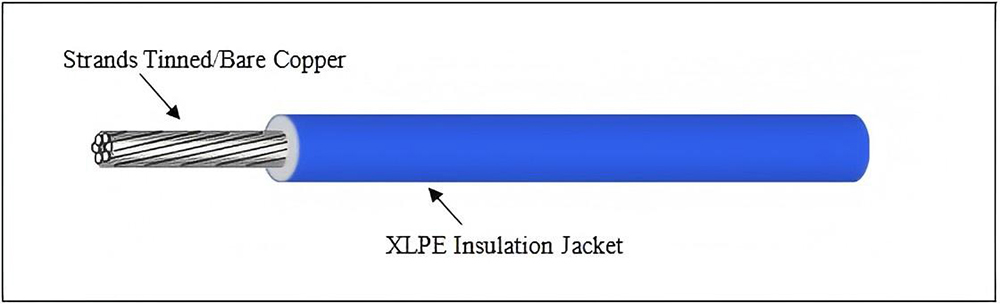

- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 26 to 9AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
Specifications
| 导体Conductor | 绝缘Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 26 | 7/0.160 | 0.48 | 0.76 | 2.10 | 150 | 2000 |
| 24 | 11/0.160 | 0.61 | 0.76 | 2.20 | 94.2 | 2000 |
| 22 | 17/0.160 | 0.76 | 0.76 | 2.40 | 59.4 | 2000 |
| 20 | 26/0.160 | 0.94 | 0.76 | 2.60 | 37.6 | 2000 |
| 18 | 41/0.160 | 1.18 | 0.76 | 2.80 | 23.9 | 2000 |
| 16 | 26/0.254 | 1.49 | 0.76 | 3.10 | 15.1 | 2000 |
| 14 | 41/0.254 | 1.88 | 0.76 | 3.50 | 9.5 | 2000 |
| 12 | 65/0.254 | 2.36 | 0.76 | 4.00 | 6.3 | 2000 |
| 10 | 105/0.254 | 3.38 | 0.76 | 5.00 | 4.2 | 2000 |
Applications
- Automotive Wiring – Used in electric vehicles (EVs) and hybrid cars for high-temperature resistance and fire safety.
- Industrial Machinery – Powers motors, control systems, and equipment requiring chemical and abrasion resistance.
- Renewable Energy Systems – Connects solar panels, wind turbines, and battery storage due to UV and weather resilience.
- Public Transportation – Installed in trains, buses, and subways for low-smoke, non-toxic performance in enclosed spaces.
- Marine Applications – Ideal for shipboard wiring, resistant to saltwater corrosion and harsh marine environments.
- Aerospace – Supports avionics and onboard systems needing lightweight, flame-retardant cabling.
- Data Centers – Ensures reliable power distribution with minimal fire risk in server racks and critical infrastructure.
- Building Automation – Integrates into HVAC, lighting, and security systems for fire-safe, flexible installations.
- Medical Equipment – Used in diagnostic devices and imaging systems requiring stable, non-toxic wiring.
- Underground Mining – Deploys in mining operations for durability against moisture, abrasion, and mechanical stress.
