UL3265 Halogen-free XLPE Wire, 150V 125℃ 32 to 16 AWG
UL3265 Halogen-free Wire

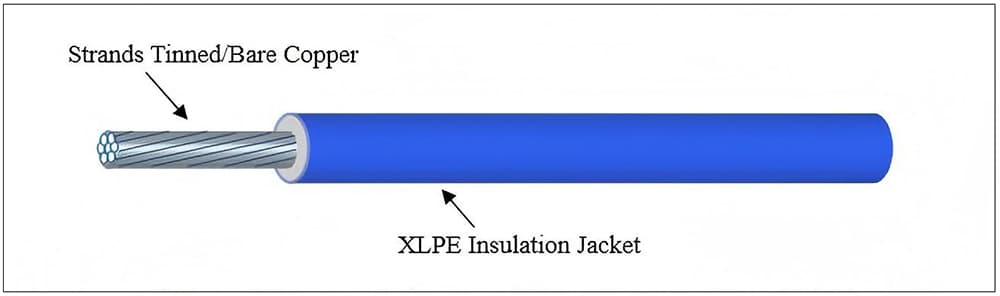

UL Style No. 3265 Halogen-free XLPE Jacket Wire is a high-performance electrical cable designed for safety-critical applications. Featuring a halogen-free cross-linked polyethylene (XLPE) insulation, this wire minimizes toxic smoke and corrosive gas emissions during combustion, enhancing fire safety in confined or high-occupancy environments like commercial buildings, industrial facilities, and transportation systems. The XLPE jacket ensures superior thermal stability, chemical resistance, and durability under extreme temperatures, moisture, and mechanical stress. Compliant with UL standards, it is ideal for power distribution, control circuits, and instrumentation where reliability, environmental safety, and regulatory adherence are paramount. Its robust construction supports long-term performance while prioritizing occupant and infrastructure protection.
Features
- Temperature Rating: 125℃.
- Voltage Rating: 150V.
- Conductor: support bare copper and tinned copper, solid or strand
- Insulation: Halogen-free XLPE.
- Wire gauge: 32 to 16AWG
- Color: red, orange, yellow, green, blue, purple, white, black, brown, pink, gray, etc.
- Reference Standard: UL758, UL1581
- Passes UL VW-1 and FT1 flame test
- Uniform insulation thickness to ensure easy stripping and cutting
32- 16AWG Wire Specifications
| 导体 Conductor | 绝缘 Insulation | Maximum Conductor Resistance 最大导体直流电阻 (Ω/Km,20℃) |
Dielectric Strength 耐压强度 (Vac,1min) |
|||
| 规格 Size (AWG) |
构造 Construction (No/mm) |
外经 Dia (mm) |
厚度 Thickness (mm) |
外经 O.D (mm) |
||
| 32 | 7/0.080 | 0.24 | 0.26 | 0.80 | 596 | 1500 |
| 30 | 7/0.100 | 0.3 | 0.26 | 0.85 | 381 | 1500 |
| 28 | 7/0.127 | 0.38 | 0.26 | 0.90 | 239 | 1500 |
| 26 | 7/0.160 | 0.48 | 0.26 | 1.05 | 150 | 1500 |
| 24 | 11/0.160 | 0.61 | 0.26 | 1.20 | 94.2 | 1500 |
| 22 | 17/0.160 | 0.76 | 0.26 | 1.35 | 59.4 | 1500 |
| 20 | 16/0.160 | 0.94 | 0.26 | 1.55 | 37.6 | 1500 |
| 18 | 41/0.160 | 1.18 | 0.26 | 1.80 | 23.9 | 1500 |
| 16 | 26/0.254 | 1.49 | 0.26 | 2.10 | 15.1 | 1500 |
Applications
- Commercial Building Wiring: Installed in offices, malls, and hotels for fire-safe power and lighting circuits.
- Industrial Automation: Used in control panels and machinery where chemical resistance and thermal stability are critical.
- Public Transportation Systems: Deployed in trains, buses, and subways for low-smoke, non-toxic cabling in confined spaces.
- Renewable Energy Projects: Connects solar panels and wind turbines, enduring UV exposure and harsh weather.
- Marine and Offshore Equipment: Resists saltwater corrosion and moisture in shipboard electrical systems.
- Oil and Gas Facilities: Withstands flammable environments and extreme temperatures in refineries and pipelines.
- Data Centers: Ensures fire safety in server racks and backup power systems to protect critical infrastructure.
- Healthcare Facilities: Safeguards hospitals and labs with minimal toxic emissions during emergencies.
- Tunnels and Underground Structures: Reduces smoke hazards in ventilation, lighting, and emergency systems.
- Elevators and Escalators: Provides durable, heat-resistant wiring for high-rise building vertical transport.
- Mining Operations: Endures abrasive conditions and mechanical stress in underground power distribution.
- Automotive Manufacturing: Powers assembly line robotics and equipment in high-temperature factory settings.
- Aerospace Infrastructure: Supports aviation ground systems, hangars, and control towers with reliable performance.
- Power Generation Plants: Used in turbines, transformers, and switchgear for stable energy distribution.
- Outdoor Lighting and EV Charging Stations: Resists environmental wear in streetlights, parking lots, and EV chargers.
