Winding Pipe, Wire Harness Covering Material

Introduction

The Winding Pipe application in Custom Wire Harness systems employs flexible, spiral-wound tubing to bundle, shield, and organize electrical cables in complex setups. Constructed from resilient materials like Nylon, PE, or Silicone, or thermoplastic, these pipes safeguard wires from abrasion, extreme temperatures, moisture, and chemical exposure while enabling smooth routing through confined or moving parts. Their adaptable design ensures strain relief, reduces tangling, and maintains signal integrity by minimizing electromagnetic interference. Ideal for automotive, aerospace, and industrial machinery, winding pipes simplify installation and upkeep, enhancing durability and safety in high-vibration or harsh environments. By offering customizable sizing and modularity, they optimize space efficiency and ensure reliable performance, making them indispensable for robust, long-lasting wire harness solutions.

Here we are going to introduce four type of materials' corrugated pipe for you.

• Nylon flame-retardant spiral wound pipe
• PE Flame-retardant winding pipe
• PE regular type winding pipe
• Silicone Flame-retardant winding pipe

Nylon Flame-Retardant Spiral Wound Pipe

• Material: Made of eco-friendly nylon flame-retardant material, with a flame retardancy level up to UL94V0, and a temperature resistance range of -40 to 150 degrees.
• Usage: First, fix one end of the starting point with protective tape, then wrap and tighten in a clockwise direction to bundle the wires together.
• Application: It is used to protect wires from wear and tear and for insulation, and can also improve the aesthetic appearance of wire bending.

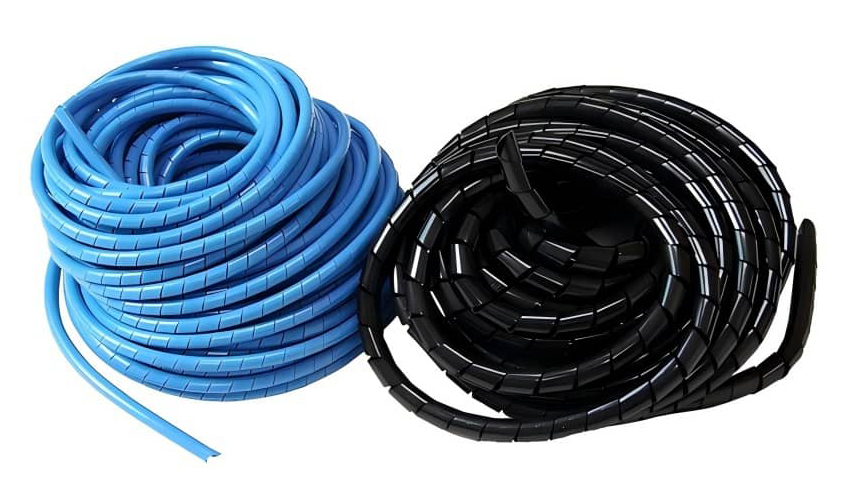

PE Flame-Retardant Winding Pipe

• Material: Made of environmentally friendly PE flame-retardant material, with a flame retardancy level up to UL94V0, and a temperature resistance range of -40 to 80 degrees.
• Usage: First, fix one end of the starting point with protective tape, then wrap and tighten in a clockwise direction to bundle the wires together.
• Application: It is used to protect wires from wear and tear and for insulation, and can also improve the aesthetic appearance of wire bending.

PE Regular Type Winding Pipe

• Material: Made of eco-friendly PE material, with a temperature resistance range of -40 to 80 degrees Celsius.
• Usage: First, fix one end of the starting point with protective tape, then wrap it clockwise and tighten it to bundle the wires together.
• Application: It is used to protect wires from wear and tear and for insulation purposes, and can also improve the aesthetic appearance of bent wires.

Silicone Flame-Retardant winding pipe

• Material: Silicone
• Working temperature: -60°C + 220°C
• Features:
  • good hand feeling,
  • environmental protection,
  • high temperature resistance,
  • anti-aging,
  • tensile strength,
  • high pressure resistance,
  • high insulation,
  • flame resistance.
• Color: natural, milky white, white, translucent, transparent, black, red, green, gray, blue (color can be customized accordingto customerneeds)
• How to use: First fix the starting end with a protective tape, thenwrap it in a clockwise direction to bundle the wire harness.
• Uses: As a protection wire, fiber, not subject to wear andinsulation, and canimprove the beauty of wire bending.
