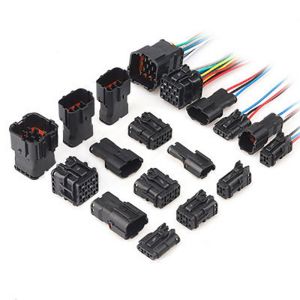

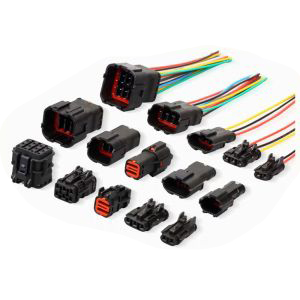

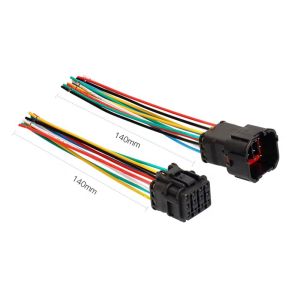

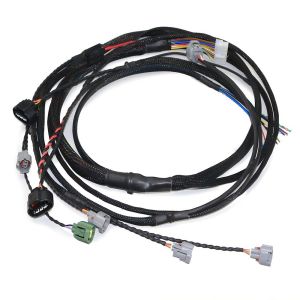

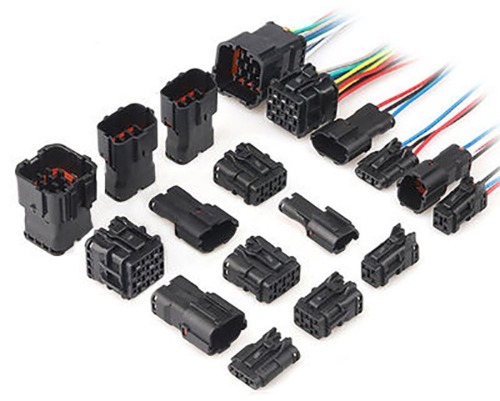

Yazaki SWP Connector, Sealed Feature, Custom Wiring Harness Assembly



This connector is designed to provide a reliable and efficient solution for various applications. Its compact size makes it suitable for tight spaces, while its sealed design ensures waterproof performance. The male terminal has a tab width of 1.8mm (.070 inches), allowing for secure connections.



One of the key features of this connector is its individually sealed concept with the wire seal. This feature enhances the overall waterproof performance, making it ideal for outdoor or harsh environments where moisture or water exposure may occur.



Furthermore, this connector offers versatility in terms of connection options. It can be used in "wire-to-wire" applications, allowing for easy and convenient interconnection between wires. It can also be utilized in "wire to devices" applications, enabling seamless integration with various electronic devices.



The covering wire size range of 0.3 to 2.0 mm² provides flexibility when selecting compatible wires for connection purposes. This allows users to work with different wire sizes without compromising on performance or reliability.







Key Features of SWP Connector:



1. High Durability: SWP connectors are built to withstand tough environments, including high vibration, temperature changes, and moisture. This makes them suitable for automotive and industrial applications.

2. Sealing Capability: These connectors usually come with seals or grommets that provide excellent water and dust resistance, complying with IP ratings such as IP67.

3. Easy Assembly: The SWP connectors are designed for ease of use, with features like easy mating/unmating mechanisms and secure locking systems.

4. Customizability: They are available in various pin configurations and can be customized to fit specific wire sizes and applications.

5. Corrosion Resistance: The materials used in SWP connectors are often corrosion-resistant, ensuring a long service life in outdoor or moisture-prone environments.

6. Wide Range of Applications: SWP connectors are typically used in wiring harnesses for automotive, off-road vehicles, marine equipment, and industrial machinery.





P/N	No. of Pole	Gender	Color/Plating	Type

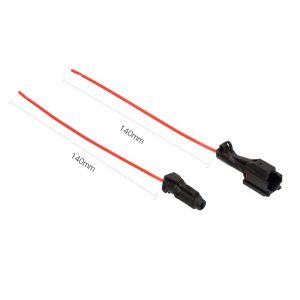

7123-7414-40	1	Female	LIGHT GRAY	Housing
7157-3755-60	1	Shared	GREEN	Dummy plugs
7222-7414-40	1	Male	LIGHT GRAY	Housing
7123-1424-40	2	Female	LIGHT GRAY	Housing
7123-8525-80	2	Female	BROWN	Housing
7157-7813-80	2		BROWN	Holder
7222-1424-40	2	Male	LIGHT GRAY	Housing
7222-8525-80	2	Male	BROWN	Housing
7123-7434-40	3	Female	LIGHT GRAY	Housing
7157-7814-80	3		BROWN	Holder
7222-7434-40	3	Male	LIGHT GRAY	Housing

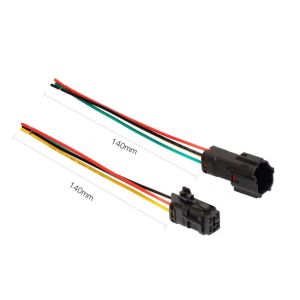

7123-7444-40	4	Female	LIGHT GRAY	Housing
7157-7815-80	4		BROWN	Holder
7222-7444-40	4	Male	LIGHT GRAY	Housing

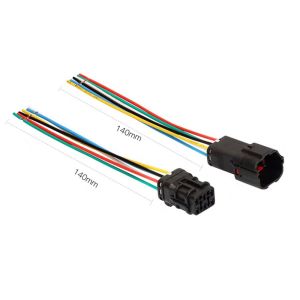

7123-7464-40	6	Female	LIGHT GRAY	Housing
7157-7816-80	6		BROWN	Holder
7222-7464-40	6	Male	LIGHT GRAY	Housing
7123-7484-40	8	Female	LIGHT GRAY	Housing
7123-7485-80	8	Female	BROWN	Housing
7222-7484-40	8	Male	LIGHT GRAY	Housing
7222-7485-80	8	Male	BROWN	Housing
7123-7923-40	12	Female	LIGHT GRAY	Housing
7157-7915-80	12		BROWN	Holder
7222-7923-40	12	Male	LIGHT GRAY	Housing

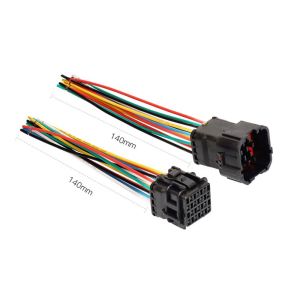

7123-7544-40	14	Female	LIGHT GRAY	Housing
7157-7818-80	14		BROWN	Holder
7222-7544-40	14	Male	LIGHT GRAY	Housing

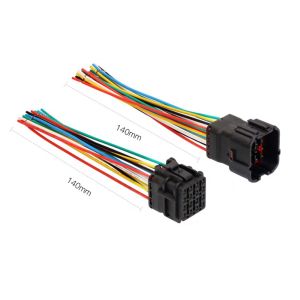

7123-7564-40	16	Female	LIGHT GRAY	Housing
7222-7564-40	16	Male	LIGHT GRAY	Housing
7114-1471	-	Male	Tin Plating	Terminal
7114-1471-08	-	Male	Gold Plating	Terminal
7114-1472	-	Male	Tin Plating	Terminal
7114-1472-08	-	Male	Gold Plating	Terminal
7116-1471	-	Female	Tin Plating	Terminal
7116-1471-08	-	Female	Gold Plating	Terminal
7116-1472	-	Female	Tin Plating	Terminal
7116-1472-08	-	Female	Gold Plating	Terminal
7157-7811-80	-	Shared	BROWN	Wire seals
7157-7812	-	Shared	BLACK	Wire seals
7157-7817-80	-		BROWN	Holder
7157-7897-60	-	Shared	GREEN	Wire seals
7157-7899-90	-	Shared	BLUE	Wire seals
7157-7916-80	-		BROWN	Holder









1. Automotive Industry



• Wiring Harnesses: Used in engine compartments, lighting systems, sensor interfaces, and other areas requiring secure, vibration-resistant connections.
• Power Distribution: Connecting power to electrical systems like alternators, starters, and electronic control units (ECUs).
• Safety Systems: Utilized in airbags, ABS systems, and other safety-critical automotive applications due to their reliability.



2. Industrial Machinery



• Heavy Equipment: Deployed in wiring systems of construction equipment, agricultural machinery, and mining vehicles, where exposure to dust, vibration, and moisture is common.
• Control Systems: Used for connecting sensors, actuators, and control units in automated manufacturing systems, ensuring precise and reliable operations.
• Motors and Drives: SWP connectors are essential for power and signal transmission in motor control applications.



3. Marine Applications

• Boat Wiring: Used in ship and boat electrical systems, particularly in environments exposed to saltwater and humidity.
• Navigation Equipment: SWP connectors ensure stable connections for critical systems like radar, GPS, and communication tools in marine vessels.



4. Aerospace and Defense



• Avionics Systems: Used in aircraft wiring harnesses for applications such as communication, navigation, and engine management systems.
• Defense Equipment: Suitable for military vehicles, drones, and communication systems, offering reliability under extreme conditions like heat, cold, and moisture.



5. Renewable Energy



• Solar Panels: SWP connectors are commonly used in solar energy systems for connecting photovoltaic panels to inverters and control systems.
• Wind Turbines: Reliable connections are needed for wiring systems that operate in harsh outdoor environments, making SWP connectors ideal for these setups.



6. Telecommunication Equipment



• Signal Transmission: SWP connectors are often used in the wiring of signal cables and control units in telecom towers and base stations.
• Power Supply: Critical in connecting power distribution systems for telecommunication infrastructure, ensuring stable and efficient operation.









No. of Position	Gender	EXW Unit Price (USD)	Notes

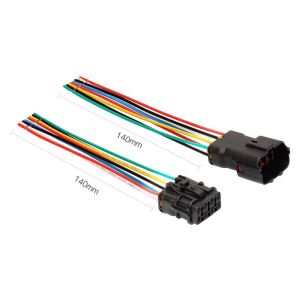

1	Male	0.56	1x12cm wire, 0.5mm²
	Female	0.67	1x12cm wire, 0.5mm²

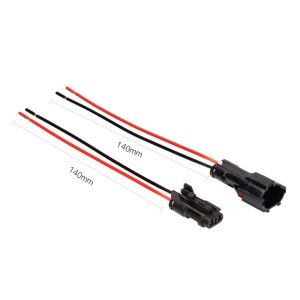

2	Male	0.52	2x12cm wire, 0.5mm²
	Female	0.53	2x12cm wire, 0.5mm²

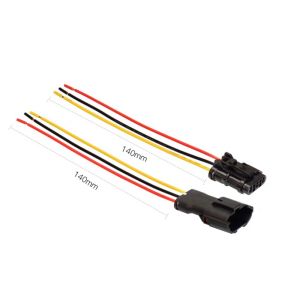

3	Male	0.73	3x12cm wire, 0.5mm²
	Female	0.71	3x12cm wire, 0.5mm²
6	Male	1.11	6x12cm wire, 0.5mm²
	Female	1.14	6x12cm wire, 0.5mm²
8	Male	1.71	8x12cm wire, 0.5mm²
	Female	1.67	8x12cm wire, 0.5mm²



Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
