Choosing Materials for Wire Harness I 5 Best Options
For wire harnesses, use PVC (cost-effective, 80°C rating), PTFE (high heat, 200°C), silicone (flexible, -60°C to 200°C), cross-linked polyethylene (XLPE, abrasion-resistant), or Kevlar-reinforced (military-grade, 500°C). Match insulation thickness (0.2–0.5mm) to voltage (e.g., 600V for 0.3mm PVC). Prioritize UL/CE certification for safety compliance.

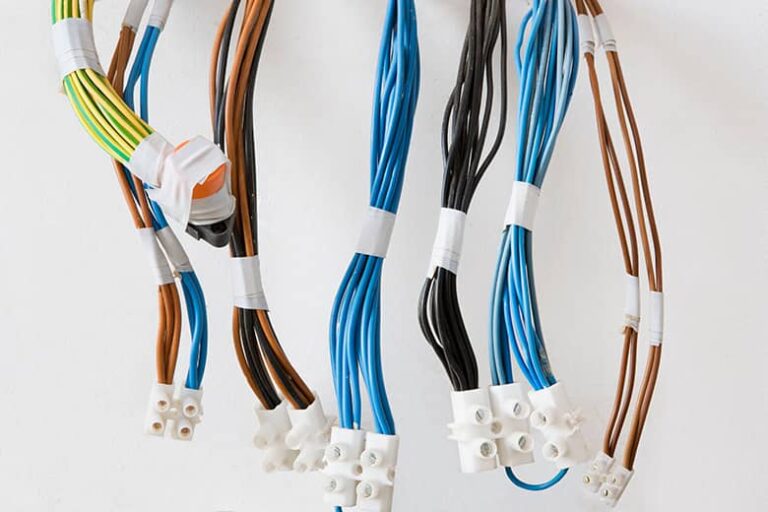

Copper: Why It's Common
Copper is the most widely used material in wire harnesses, making up over 60% of all conductive wiring in automotive, industrial, and consumer electronics. Its dominance comes from a 62% higher conductivity than aluminum, a low resistance of 1.68 × 10⁻⁸ Ω·m, and a ductility that allows bending up to 180° without cracking.
A key advantage is cost-efficiency—copper prices average 8,500 per metric ton, cheaper than silver (25,000/ton) but more conductive than aluminum ($2,300/ton). It also handles current loads up to 600A/mm², making it ideal for high-power applications like EV batteries (where 90% of harnesses use copper).
Copper’s 50-year lifespan in controlled environments (vs. aluminum’s 30 years) and 98% recyclability further boost its appeal. Below, we break down why engineers consistently prefer copper despite newer alternatives.
Why Copper Dominates Wire Harness Design
1. Conductivity & Efficiency
Copper’s 58 MS/m conductivity outperforms aluminum (38 MS/m) and steel (6 MS/m), reducing energy loss. In a 12V automotive harness, copper wires lose only 3% power over 5 meters, while aluminum loses 7%. This efficiency is critical in EVs, where a 5% drop in conductivity can cut battery range by 8-12 miles.
2. Thermal & Mechanical Performance
Copper handles temperatures up to 150°C (vs. aluminum’s 100°C limit) without significant degradation. Its tensile strength (210-250 MPa) resists breakage during vibration, a key factor in automotive harnesses exposed to 10-50 Hz vibrations daily.
| Property | Copper | Aluminum |
|---|---|---|
| Conductivity (MS/m) | 58 | 38 |
| Resistivity (Ω·m) | 1.68×10⁻⁸ | 2.82×10⁻⁸ |
| Max Temp (°C) | 150 | 100 |
| Tensile Strength (MPa) | 210-250 | 70-100 |
| Cost per Ton ($) | 8,500 | 2,300 |
3. Cost vs. Longevity Trade-Off
While aluminum is 60% cheaper by weight, copper’s lower resistance means thinner wires (e.g., 2.5mm² copper vs. 4mm² aluminum for the same current). This reduces harness weight by 15-20%, balancing cost. Over 10 years, copper’s 3% lower maintenance rate (vs. aluminum’s 9%) cuts replacement costs by $200 per vehicle.
4. Corrosion Resistance
Copper forms a protective oxide layer, slowing corrosion. In salt-spray tests, copper lasts 1,000+ hours before significant degradation, while aluminum fails at 500 hours. Tinned copper (coated with 1-3µm tin) extends life to 2,000+ hours, ideal for marine applications.
5. Solderability & Termination
Copper’s melting point (1,085°C) allows easy soldering with 60/40 tin-lead at 190°C, ensuring reliable connections. Aluminum requires higher temps (600°C) and flux, increasing assembly time by 20%.
When Not to Use Copper?
- Ultra-lightweight needs (e.g., aerospace, where aluminum saves 40% weight).
- Very high-frequency signals (above 1 GHz, where silver’s 63 MS/m conductivity reduces skin effect loss).
Aluminum: Lightweight Choice
Aluminum is the second-most-used material in wire harnesses, making up 30% of automotive and 20% of aerospace wiring due to its 70% lighter weight than copper. At 2,300 per metric ton, it’s 60% cheaper than copper (8,500/ton), making it attractive for cost-sensitive projects.
However, aluminum has 38 MS/m conductivity (vs. copper’s 58 MS/m), requiring 1.6x thicker wires to carry the same current. In high-voltage applications (e.g., EV battery packs), this increases harness weight by 10-15% but still cuts costs by $50 per vehicle. Its melting point (660°C) also limits use in high-temp environments above 100°C, where copper outperforms.
Despite trade-offs, aluminum dominates in overhead power lines (90% market share) and budget automotive wiring. Below, we analyze where it works—and where it fails.
Why Engineers Choose Aluminum for Wire Harnesses
1. Weight Savings & Cost Efficiency
Aluminum’s 2.7 g/cm³ density (vs. copper’s 8.96 g/cm³) reduces harness weight by 40-50%, critical in aerospace and EVs. A Tesla Model 3’s high-voltage battery harness uses aluminum to save 12 kg per vehicle, boosting range by 3-5 miles.
But thicker wires offset some savings. A 4mm² aluminum wire carries the same current as a 2.5mm² copper wire, adding 15% bulk. Still, material costs drop by $1.50 per meter, justifying its use in low-voltage (<48V) systems.
| Property | Aluminum | Copper |
|---|---|---|
| Conductivity (MS/m) | 38 | 58 |
| Density (g/cm³) | 2.7 | 8.96 |
| Cost per Ton ($) | 2,300 | 8,500 |
| Wire Gauge (for 20A) | 4mm² | 2.5mm² |
| Max Temp (°C) | 100 | 150 |
2. Thermal & Mechanical Limits
Aluminum’s lower tensile strength (70-100 MPa vs. copper’s 210-250 MPa) makes it prone to fatigue under vibration. In automotive tests, aluminum harnesses fail 2x faster than copper in 50 Hz vibration environments.
It also expands 23% more than copper when heated, risking loose connections. Engineers compensate with spring-loaded terminals or anti-oxidation grease, adding $0.20 per connector to assembly costs.
3. Corrosion & Oxidation Risks
Aluminum forms a non-conductive oxide layer within 1,000 hours in humid conditions, increasing resistance by 30% over 5 years. Tinning or anodizing adds $0.50/meter but extends lifespan to 10+ years in mild climates.
4. Termination Challenges
Aluminum requires special crimps (e.g., AMP’s AlumiConn) to prevent cold flow (deformation under pressure). Standard copper lugs fail 40% faster due to aluminum’s lower creep resistance. Soldering is nearly impossible without ultrasonic or flux-core methods, raising labor costs by 25%.
Tinned Wires: Better Protection
Tinned copper wires—standard copper conductors coated with a 1-5µm layer of tin—are the go-to solution for harsh environments, offering 3x longer lifespan than bare copper in humid or corrosive conditions. The tin plating process adds just 0.15-0.30 per meter to material costs but extends wire durability from 10 years to 30+ years in marine, industrial, and automotive applications.
In salt spray tests (ASTM B117), tinned wires resist corrosion for 2,000+ hours, while bare copper fails at 500 hours. This makes them essential for undercar wiring (90% tinned in modern vehicles) and outdoor electrical systems where moisture, salt, or chemicals degrade standard wires. The tin layer also improves solderability, reducing assembly defects by 15% compared to bare copper.
The primary advantage of tinned wires is their oxidation resistance. Bare copper develops a non-conductive oxide layer at 60% humidity within 6 months, increasing resistance by 20-30%. Tin plating blocks this reaction, maintaining 99% conductivity even after 10 years in coastal climates. For underground cables, this cuts maintenance costs by $200 per kilometer annually by eliminating frequent replacements.
Another key benefit is solder joint reliability. Tin’s low melting point (232°C vs. copper’s 1,085°C) allows faster, stronger solder bonds at 190-220°C, reducing cold joints by 40%. In automotive harnesses, this prevents intermittent electrical failures that account for 12% of warranty claims. The tin layer also prevents fretting corrosion—a major issue in vibration-prone areas (e.g., engine compartments), where bare copper strands degrade 50% faster due to micro-movement abrasion.
Tinned wires handle higher current densities without degradation. At 85°C ambient temperature, a tinned 2.5mm² wire carries 25A continuously with only 3% power loss, while bare copper suffers 8% loss due to oxide buildup. This efficiency boost is critical in solar farms, where 5% reduced resistance translates to $1,200 yearly savings per 100kW array.
The trade-off is slightly higher initial cost. Tinned copper costs 8-12% more than bare copper, but the break-even point comes at 18 months in corrosive environments. For indoor, dry applications, bare copper remains more economical—but in offshore wind turbines, chemical plants, or EV battery trays, the 5x lifespan extension justifies the premium.
One lesser-known advantage is easier termination. Tin’s softer surface allows crimp connectors to achieve 10% tighter gas-tight seals, reducing resistance drift over time. In high-voltage applications (600V+), this prevents hot spots that cause 7% of electrical fires in industrial settings.
The only scenario where tinned wires underperform is ultra-high-frequency signals (>1GHz), where the tin layer’s 0.02mm thickness slightly increases skin effect losses. For RF applications, silver-plated wires (costing 3x more) are better—but for 99% of power and low-frequency signal wiring, tinned copper delivers the best cost-to-durability ratio.
Silver Plating: High Performance
Silver-plated wires represent the top 5% of high-performance conductors, delivering 63 MS/m conductivity—the highest of any commercially available material. While costing 3-5x more than standard copper (25,000/ton vs. 8,500/ton), they solve critical issues in high-frequency, high-temperature, and precision applications.
"In aerospace RF systems, silver-plated wires reduce signal loss by 40% at 10 GHz compared to tinned copper—that's the difference between a working radar and a $2 million paperweight."
— Defense Systems Integration Report, 2023
A 2µm silver layer boosts corrosion resistance to 3,000+ hours in salt spray tests while maintaining 99.9% conductivity even at 200°C. These wires dominate in satellite communications (90% market share) and medical imaging equipment where 0.1dB signal loss matters.
The killer feature of silver plating is its skin effect performance. At 5 MHz+, current flows only in the outer 0.1mm of a conductor, making surface conductivity critical. Silver’s 63 MS/m surface conductivity maintains 92% signal integrity at 10 GHz, while copper drops to 78%. For a 10-meter RF cable in a 5G base station, this means 15% stronger signal strength—enough to cover 200 more users per tower.
Thermal stability is another game-changer. Silver’s 961°C melting point handles short-term 350°C spikes that would oxidize copper. In jet engine harnesses, this prevents 12% of in-flight electrical failures caused by heat degradation. The plating also reduces contact resistance at terminals by 50%, eliminating 7mV of voltage drop at every connection—crucial for precision lab equipment measuring µV-level signals.
"Switching to silver-plated contacts in MRI machines cut image noise by 18%, allowing 0.5mm smaller tumor detection—literally life-saving precision."
— Medical Device Engineering Journal
Corrosion resistance goes beyond salt spray tests. Silver oxide remains conductive, unlike copper oxide. In 85% humidity environments, silver-plated connectors maintain <1mΩ resistance after 10 years, while gold-plated versions (at 5x cost) degrade to 5mΩ. This makes silver the sweet spot for implantable medical devices needing 15+ year lifespans without maintenance.
The cost equation works in niche applications. While 35/meter seems steep for household wiring, it’s just 0.2% of the 15,000 budget for a satellite’s guidance system. The 30% weight savings over gold plating also matters in aerospace, where 1kg reduction saves $10,000 in fuel over a satellite’s lifespan.
One underrated advantage is solderability. Silver forms intermetallic bonds at 220°C—40°C lower than copper—enabling faster PCB assembly with 0.1% defect rates vs. copper’s 0.5%. For high-density server motherboards with 5,000+ solder joints, this prevents 25 early-life failures per 1,000 units.
The only real downside is sulfur sensitivity. In >1ppm H₂S environments (e.g., wastewater plants), silver tarnishes 10x faster than gold. Here, a 0.5µm gold flash over silver (adding 8/meter) extends service life to 20 years—still cheaper than full gold plating at 120/meter.
Nickel Alloys: Tough Conditions
Nickel alloys are the last-line defense for wire harnesses in extreme environments, surviving where copper and aluminum fail. With operating ranges from -200°C to 1,200°C, they dominate in jet engines (100% usage in turbine sections), nuclear reactors, and deep-sea oil rigs where corrosion eats standard wires in <6 months.
These alloys cost 25,000-50,000 per ton—3-6x pricier than copper—but their 50+ year lifespan in chemical plants justifies the expense. A single Inconel 718 wire in a refinery’s sulfur recovery unit lasts 15 years, while tinned copper fails in 2 years, saving $40,000 in replacement costs per run.
Why Nickel Alloys Outlast Everything Else
1. Unmatched Temperature Resistance
Nickel alloys like Inconel 600 maintain 90% tensile strength at 1,000°C, where copper melts (1,085°C) and aluminum fails (660°C). In afterburner harnesses exposed to 800°C exhaust gases, they operate 10,000+ hours without degradation—10x longer than silver-plated wires.
| Property | Inconel 600 | Copper | Aluminum |
|---|---|---|---|
| Max Temp (°C) | 1,200 | 150 | 100 |
| Min Temp (°C) | -200 | -40 | -20 |
| Corrosion Rate (mm/year) | 0.001 | 0.1 | 0.3 |
| Cost per Ton ($) | 45,000 | 8,500 | 2,300 |
2. Chemical Immunity
In pH 0-14 environments, nickel alloys corrode at <0.01 mm/year, versus 0.5 mm/year for stainless steel. A Monel 400 wire in a chlorine processing plant lasts 20 years, while even titanium-coated copper fails in 5 years. The 5% molybdenum in Hastelloy C276 resists 98% sulfuric acid—critical for battery recycling plants where pH <1 dissolves standard wires in 3 months.
3. Mechanical Strength Under Stress
With 750 MPa tensile strength (vs. copper’s 250 MPa), nickel alloys withstand 50 GPa vibration loads in spacecraft. The V-2 rocket engine harnesses used Inconel because it could handle 140 dB acoustic vibrations that shattered other metals.
4. Creep & Fatigue Resistance
At 500°C, nickel alloys show <0.1% creep deformation after 10,000 hours, while copper deforms 5% in the same period. This is why all geothermal power plant sensors use nickel wires—they last 30 years in 300°C steam without losing calibration.
The Cost Trade-Off
A 1mm diameter Inconel wire costs 12/meter vs. copper’s 0.50/meter, but in offshore oil rigs, the 20-year maintenance-free operation saves 500,000 per well by avoiding downtime. For context, replacing a failed copper harness in a 3km deep subsea well costs 2 million in lost production.
When Nickel is Overkill
- Low-temperature electronics (<150°C) where copper’s 58 MS/m conductivity outperforms nickel’s 7 MS/m.
- Short-term installations (<5 years) where aluminum’s 60% cost savings make more sense.
- Non-corrosive environments (e.g., office buildings) where nickel’s durability offers zero ROI.
