How Much Does a Custom Wire Harness Cost | 6 Factors

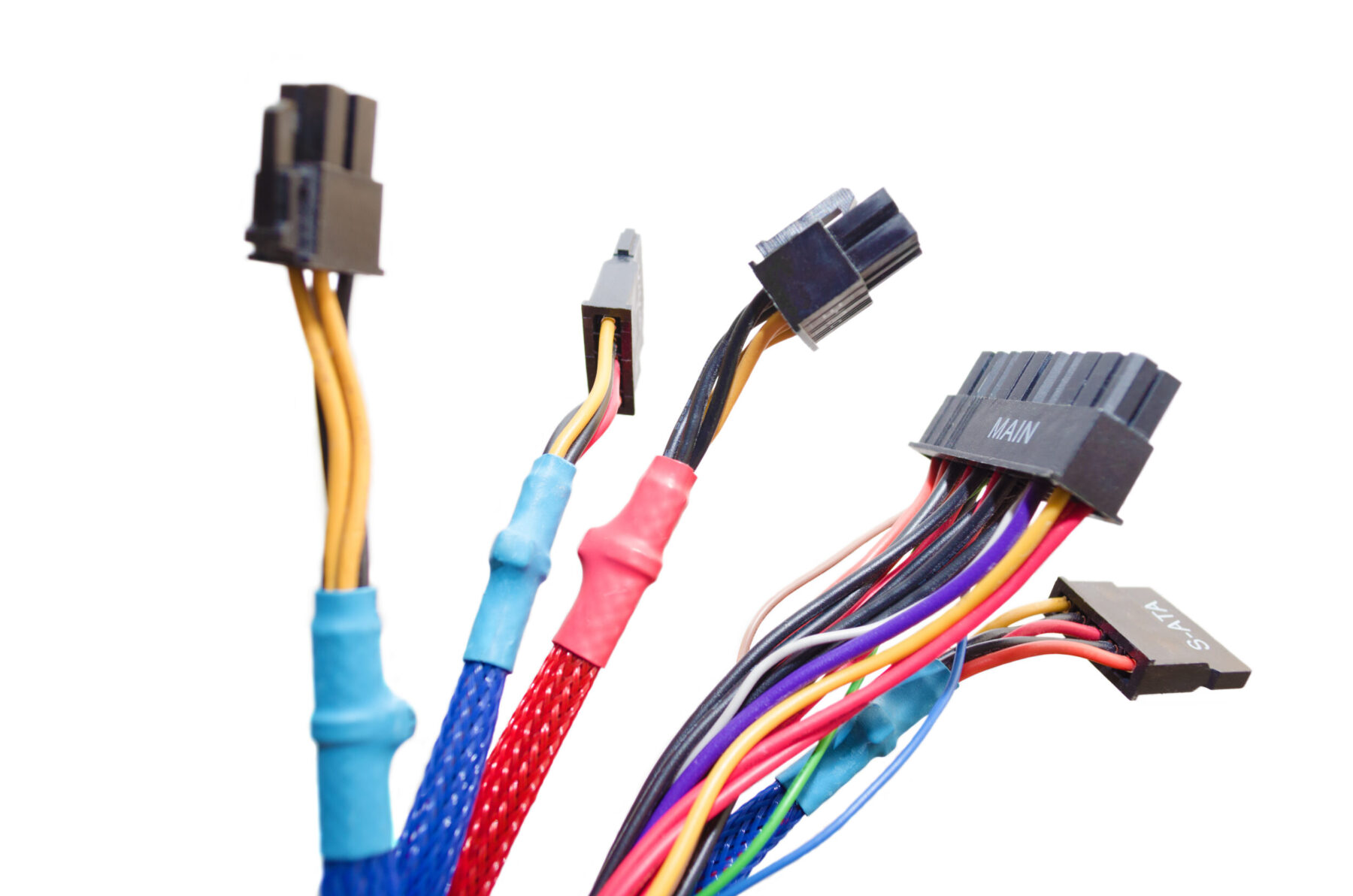

The cost of a custom wire harness typically ranges from 50 to 5,000+, depending on complexity. Key factors include wire gauge (e.g., 22 AWG vs. 10 AWG impacts material costs by 30%), connector types (MIL-SPEC connectors can add 20+ per unit), and labor (automated crimping reduces costs by 15-20%).
Additional expenses stem from testing (EMC/ISO 16750 compliance adds 10-15%), custom tooling (one-time 500-$5k fees), and order volume (1,000+ units often cut per-unit costs by 40%). Lead times (4-12 weeks) also influence pricing.
Wire Type Matters
If you're buying a custom wire harness, the type of wire you choose can swing the price by 30% to 300%. A basic 22 AWG PVC-insulated copper wire might cost 0.10 per foot, while a high-temperature, shielded Teflon-coated version could run 1.50 per foot. The difference isn’t just about material—it affects durability, performance, and even safety. For example, automotive harnesses in engine compartments need 105°C-rated wires (costing 0.25/ft) to handle heat, while industrial robots might require 600V-rated, oil-resistant cables at 0.80/ft.
The conductivity of copper (100% IACS) is the gold standard, but some applications use aluminum (61% IACS), which is 40% cheaper but requires 56% thicker gauges to match current capacity. If your harness carries 10A over 10 feet, a 16 AWG copper wire (resistance: 0.004Ω/ft) loses just 0.4W, whereas an equivalent aluminum wire (14 AWG, 0.006Ω/ft) loses 0.6W—a 50% increase in energy waste.
Shielding adds 15–25% to the cost but cuts EMI interference by 60–90%. A standard unshielded Cat5e cable costs 0.20/ft, but a shielded version (STP) runs 0.30/ft. In medical or military applications, double-shielded wires with drain wires can push costs to $2.00/ft.
Stranded wire (0.15–0.50/ft) is 20% more expensive than solid core but lasts 3–5x longer in flexing applications. A robotic arm moving 500,000 cycles/year will fray solid wire in 6 months, while stranded lasts 3+ years.
Insulation matters too. PVC (0.10–0.30/ft) works for indoor use, but silicone (0.50–1.20/ft) handles -60°C to 200°C. In aerospace, PTFE-insulated wires (1.50–3.00/ft) survive 40,000 hours at 260°C, while cheaper options fail in 1,000 hours.
Voltage drop is another cost driver. If your harness runs 48V at 20A over 50 feet, a 10 AWG copper wire (voltage drop: 2.08V) keeps losses under 4.3%, but a 12 AWG (drop: 3.32V) wastes 6.9%—costing you 50/year in lost power at 0.12/kWh.
Bottom line: Wire type isn’t just about specs—it’s about total cost over 5–10 years. A 0.50/ft wire that lasts 10 years beats a 0.20/ft wire replaced every 2 years.
Connectors Add Cost
A simple 2-pin connector might cost 0.50, but a 48-pin waterproof military-grade version can run 25+. Connectors alone can make up 15–40% of a custom wire harness’s total cost. For example, a basic automotive harness with 10 Deutsch DT connectors adds 12–15, while the same harness using TE Connectivity’s sealed MX150 series jumps to 30–50. If you’re building 1,000 harnesses, that’s a 18,000–35,000 difference—just from connectors.
The price gap comes from materials, complexity, and durability. A standard Nylon 6/6 housing (cost: 0.20–0.80 per connector) works fine for indoor electronics, but PBT or high-temp thermoplastics (cost: 1.50–4.00) are needed for under-hood automotive use. Gold-plated contacts (+20–50% cost) reduce resistance from 5mΩ to 1mΩ, which matters in 10A+ applications where even 0.1V drop can cause issues.
Below is a quick cost comparison for common connector types:
| Connector Type | Pins | Price Range | Key Use Case |
|---|---|---|---|
| JST XH (2.5mm pitch) | 2–10 | 0.10–0.50 | Consumer electronics |
| Molex KK 254 (2.54mm) | 2–24 | 0.30–1.20 | Industrial controls |
| Deutsch DT (sealed) | 2–12 | 1.50–5.00 | Automotive, off-road |
| TE MX150 (IP67) | 4–48 | 2.00–8.00 | Heavy machinery |
| Amphenol MIL-DTL-38999 | 6–128 | 25–150 | Aerospace, defense |
Pin count scales cost non-linearly. A 4-pin Molex connector might be 0.80, but a 24-pin version isn’t 6x more—it’s 4.50 (5.6x) due to larger housings and assembly complexity.
Sealing adds 30–100%. A standard Molex Mini-Fit Jr. (unsealed) costs 0.70, but the IP67-rated version is 1.40. For outdoor LED lighting harnesses, that’s a $700 difference per 1,000 units.
Termination method matters too. Crimp-style connectors (0.20–1.00 each) are cheaper than solder cups (+15–30% cost), but require 2,000–10,000 crimping tools. If you’re making 50,000 harnesses, the tool pays for itself in 6–12 months, but for 100 units, hand-soldering is cheaper.
High-cycle connectors (50,000+ mates) cost 2–3x more but last 10x longer in robotics. A 0.50 connector failing after 5,000 cycles means replacing a 200 servo cable every 6 months, while a $1.50 Omron or Hirose part lasts 5+ years.
Voltage/current ratings affect price. A 250V-rated connector (e.g., JST RCY) costs 30% less than a 600V-rated alternative (e.g., TE AMP SuperSeal), even with the same pin count. If your harness runs 48V at 5A, don’t overspend on 600V/30A parts.
Custom keying or colors add 5–20%. A standard black M12 connector is 3.50, but a custom blue one with a unique key costs 4.20. For 10,000 units, that’s $7,000 extra—only worth it if you need anti-mismating.
Labor Time Impact
Labor isn’t just an add-on cost—it can double the price of a wire harness. A simple 10-wire automotive harness with basic crimping takes 15–20 minutes to assemble at 25/hour labor rates, adding 6–8 to the cost. But if that same harness needs soldered connections, custom sleeving, and testing, assembly time jumps to 45–60 minutes, pushing labor costs to 19–25 per unit. For a production run of 1,000 harnesses, that’s a 13,000–$17,000 difference just in labor.
The biggest time sinks come from wire prep, termination, and quality checks. Stripping and tinning 100 wires takes 30% longer than using pre-stripped wires (which cost 5–10% more). A harness with 50 crimps can be assembled in 25 minutes with an automated crimper (0.02 per crimp), but hand-crimping the same harness takes 50+ minutes (0.08 per crimp).
Here’s how labor time breaks down for different harness types:
| Harness Type | Wire Count | Terminations | Labor Time | Labor Cost ($25/hr) |
|---|---|---|---|---|
| Basic automotive (crimp) | 12 | 24 | 20 min | $8.33 |
| Industrial control (solder) | 20 | 40 | 50 min | $20.83 |
| Medical device (shielded) | 8 | 16 | 35 min | $14.58 |
| Aerospace (mil-spec) | 50+ | 100+ | 2.5 hrs | $62.50 |
Complexity multiplies labor. A 4-wire fan harness with 8 crimps takes 8 minutes (3.33), but adding braided shielding, heat shrink, and strain relief turns it into a 25-minute (10.42) job.
Testing adds 10–30% more time. Continuity checks take 2–5 minutes per harness, but hi-pot testing (1,000V DC for 60 sec) adds 8–12 minutes. If you’re making 500 harnesses, that’s 67–100 extra labor hours (1,675–2,500).
Geography changes costs drastically. Labor in the U.S. runs 20–35/hour, while Mexico is 8–12/hour, and China 4–7/hour. But shipping and tariffs eat 15–25% of offshore savings. A 10 harness made in China becomes 14 after logistics—still cheaper than a $22 U.S.-made version, but with 4–6 week lead times.
Automation cuts labor by 50–80%. A 50,000 automated crimping machine processes 400 terminations/hour vs. 120/hour manually. For 50,000 harnesses/year, the machine pays for itself in 8 months, dropping per-unit labor from 5 to $1.20.
Rework kills efficiency. If 5% of harnesses fail QC, fixing each one takes 70% of original build time. A 30-minute harness with a 5% defect rate adds 1.05 minutes per unit—costing $2,625 extra per 50,000 units.
Quantity Changes Price
Ordering 10 wire harnesses might cost 85 each, but bumping that to 500 units drops the price to 52—a 39% discount. That’s because setup costs (engineering, tooling, programming) get spread across more units. For example, a 1,200 setup fee adds 120 per harness at 10 pieces, but just $2.40 per harness at 500 pieces.
"The sweet spot for bulk discounts usually kicks in at 250–500 units. Below that, you're paying mostly for labor. Above 1,000, material costs dominate."
Wire costs drop 15–30% at 1,000+ units. Suppliers buy spools in 500kg lots at 3.20/kg vs. 50kg lots at 4.80/kg. If your harness uses 2kg of wire, that’s 6.40 vs. 9.60—a 3.20 savings per unit that adds up to 3,200 per 1,000 harnesses.
Connectors get cheaper in bulk too. A Molex KK 254 connector costs 0.80 each at 100 pieces, but 0.55 at 1,000+. For a harness with 20 connectors, that’s 16 vs. 11—saving $5,000 on a 1,000-unit order.
Labor efficiency improves with volume. The first 100 harnesses might take 30 minutes each as workers learn the process. By unit 500, time drops to 18 minutes—a 40% reduction. At 25/hour labor, that cuts 6.25 per harness, saving $6,250 over 1,000 units.
Tooling amortization matters. A 8,000 custom crimping die seems expensive for 100 harnesses (80 each), but at 10,000 units, it’s just 0.80 per harness. If the die lasts 50,000 cycles, the per-unit cost bottoms out at 0.16.
Minimum order quantities (MOQs) create price cliffs. Some mills only sell wire in 250kg increments, so ordering 200kg costs 5.10/kg, but 250kg drops to 4.30/kg. That extra 50kg you didn’t need still saves 0.80/kg on the entire order—200 net savings.
Shipping costs per unit plummet. Air-freighting 50 harnesses costs 18 per unit, but sea shipping 1,000 is 2.10 per unit. Even with 8-week lead times, the 15.90 savings per harness means 15,900 stays in your budget.
Payment terms loosen with quantity. For 50 harnesses, suppliers demand 100% upfront. At 500+, they’ll accept 50% deposit, freeing 12,500 in cash flow for a 50/harness order.
Scrap rates stabilize after 300 units. Early production might see 8% waste from learning curves, but by unit 300, it levels at 2%. On 60 materials per harness, that’s 4.80 vs. 1.20 in waste costs—another 3,600 saved per 1,000.
Testing Requirements Vary
A basic continuity test costs 0.50 per harness and takes 90 seconds, but full MIL-STD-883 compliance can run 85+ per unit with 45 minutes of testing. The gap comes from equipment, labor, and failure rates. For example, automotive harnesses typically need 5-10 test points checked at 12V/1A, while medical devices require hi-pot tests at 1,500V AC with leakage current below 10µA—adding $12-18 per unit in specialized equipment time.
Sample rates change costs dramatically. Testing 100% of units in a 1,000-piece batch adds 8 labor hours at 25/hour (200 total), while AQL Level II sampling (315 units) cuts that to 2.5 hours (62.50). But the math shifts when failures occur: if your process has a 2% defect rate, 100% testing catches 20 bad harnesses, while sampling misses 6 of them. At 250 per field failure, sampling’s 137.50 labor savings could cost 1,500 in warranty claims.
Environmental testing multiplies expenses. A 24-hour thermal cycle test (-40°C to 125°C) costs 120 per harness in chamber time, while salt spray testing runs 65 per day per unit. For aerospace harnesses needing 500 hours of combined environmental tests, that’s 7,800 in validation costs before production even starts. Medical cables requiring ISO 10993 biocompatibility tests add 3,200 per material variant.
"One medical OEM reduced testing costs 40% by qualifying their harness vendor’s in-house ISO 17025 lab instead of using third-party facilities charging $185/hour."
Automated vs. manual testing splits at ~300 units. A 15,000 automated test rig checks 120 harnesses/hour (0.21 per test), while manual testing handles 25/hour (1.00 per test). The breakeven comes at 19,000 units—below that, manual is cheaper; above it, automation saves 15,000 annually for every 10,000 harnesses.
Voltage thresholds affect time. Checking for opens/shorts at 5V DC takes 3 seconds per point, but 500V dielectric tests require 60 seconds of ramp-up and stabilization. A 50-point harness thus needs 2.5 minutes for basic checks vs. 50 minutes for full safety validation.
Data recording adds 15-20% time. Simply passing/failing tests takes 45 seconds, but logging actual resistance values (±5% tolerance) for all 30 wires extends this to 55 seconds. For 10,000 harnesses, that’s 28 extra labor hours ($700) to create traceability records.
False failure rates waste money. Poor probe contact causes 3-7% of units to fail initial testing unnecessarily. At 2 per retest, this costs 600-1,400 per 10,000 harnesses. Gold-plated test fixtures ($1,200 upgrade) reduce this to 0.5%, paying for themselves after 8,000 units.
Standards dictate rigor. An IPC/WHMA-A-620 Class 1 harness (general electronics) requires 3 test points, while Class 3 (military/aerospace) mandates 100% of connections be verified. The latter adds 22 minutes of labor—translating to 9.17 per harness at 25/hour rates.
Burn-in testing reveals infant mortality. Running harnesses at 125% rated current for 4 hours catches 92% of early failures, but consumes 3.20 per unit in electricity and floor space. For consumer products with 0.5% failure rates, this isn’t justified, but for satellite harnesses with 250,000 replacement costs, it’s essential.
Shipping and Handling
Shipping a single wire harness via overnight air can cost 38, while bulk ocean freight for 1,000 units averages 1.20 per harness—a 97% price difference. But the real costs hide in packaging, insurance, and delays. A standard 24"x12"x6" corrugated box holds 10 harnesses at 2.10 per box, but if your connectors need anti-static foam inserts, that jumps to 4.50 per box. For a 500-unit order, that’s $1,200 extra just in packaging.
Here’s how shipping methods compare for a 20lb carton of wire harnesses:
| Method | Cost | Transit Time | Damage Rate | Best For |
|---|---|---|---|---|
| Overnight Air | $38 | 1 day | 0.1% | Emergency replacements |
| 3-Day Ground | $14 | 3 days | 0.3% | Urgent domestic orders |
| LTL Freight | $6.50 | 5 days | 1.2% | 50+ lbs palletized |
| Ocean Container | $1.20 | 28 days | 0.8% | 1,000+ units, no rush |
Weight breaks save 15-30%. Shipping 48 lbs via FedEx Ground costs 19, but at 50 lbs (the next pricing tier), it drops to 16. That 2 lb difference saves 16%—worth adding filler material to hit thresholds.
Palletization cuts damage by 60%. Loose cartons have a 1.5% damage rate versus 0.6% when strapped to pallets. For 1,000 harnesses at 85 each, proper palletizing prevents 765 in losses—more than covering the $50 pallet fee.
Humidity control adds cost but prevents corrosion. Including silica gel desiccant packets (0.15 per unit) in overseas shipments reduces moisture-related connector corrosion from 3% to 0.2%. For gold-plated contacts (2.50 each), that’s $7,500 saved per 1,000 harnesses.
Dimensional weight pricing penalizes bulky items. A lightweight but large 36"x24"x12" box of coiled harnesses might be charged for 80 lbs despite weighing only 28 lbs physically. Switching to compact packaging shrinks the billable weight to 35 lbs, saving 56% on shipping.
Insurance thresholds matter. Carriers automatically cover only 100 per package—a problem when shipping 950 pallets of medical-grade harnesses. Paying 8 extra per pallet for full coverage prevents eating 850 losses on the 0.4% of shipments that vanish.
Cross-border fees add 12-25%. A 10,000 harness shipment to Canada incurs 1,200 in duties/taxes (12% HST), while Mexico’s 16% VAT tacks on $1,600. Using bonded warehouses near borders can defer these costs until delivery.
Lead time flexibility saves 18-34%. Offering carriers a 5-day pickup window instead of demanding next-day service cuts air freight from 3.20/lb to 2.10/lb. For 2,000 lbs of aerospace harnesses, that’s $2,200 back in your budget.
