Can We Use a Bigger Wire to Repair a Wiring Harness?

Generally, Yes, but it depends.

When repairing or patching a wiring harness, one common question that arises is whether it’s acceptable to use a larger wire gauge than the original. The short answer is yes, in most cases, using a bigger wire gauge is not only safe but can also be beneficial. However, there are several factors to consider before making this decision, including terminal compatibility, space constraints, and the specific requirements of the electrical system. Let's explore this topic in more detail.

Why Using a Bigger Wire Gauge Can Be Safe?

The primary advantage of using a larger wire gauge is its ability to handle higher current loads without overheating. Electrical wires are designed to carry a specific amount of current, and if a wire is too small for the load it’s carrying, it can overheat, potentially leading to insulation damage, short circuits, or even fires. By replacing a damaged or undersized wire with a larger gauge, you effectively increase its current-carrying capacity, reducing the risk of overheating and improving overall safety.

For example, if a wire in your harness has failed due to excessive current, replacing it with a thicker wire can prevent the issue from recurring. This is especially important in high-current applications, such as automotive, industrial, or power distribution systems.

Key Considerations When Using a Bigger Wire

While using a larger wire gauge is generally safe, there are some important factors to keep in mind:

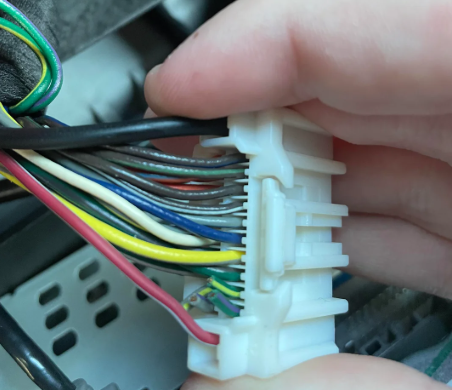

Terminal Compatibility

One of the most critical considerations is whether the terminals in your wiring harness can accommodate the larger wire. Terminals are designed to fit specific wire gauges, and using a wire that’s too large may make it difficult or impossible to properly crimp or connect the terminal. This can result in a poor electrical connection, which can be just as problematic as using an undersized wire.

To address this, you’ll need to identify the brand and part number of the terminals used in your harness. Once you have this information, you can determine whether compatible terminals are available for the larger wire gauge. If not, you may need to replace the terminals or use adapters to ensure a secure connection.

Space Constraints

Wiring harnesses are often designed with limited space in mind, and the original wires are chosen to fit neatly within the harness. Using a larger wire gauge may make the harness bulkier and more difficult to route, especially in tight spaces. This can lead to installation challenges and may require modifications to the harness or surrounding components.

Electrical System Requirements

While a larger wire can handle more current, it’s important to ensure that the rest of the electrical system is compatible. For instance, if the wire is connected to a fuse, relay, or connector that’s rated for a specific current, you’ll need to verify that these components can handle the increased capacity. Upgrading the wire without considering the rest of the system could lead to other components failing.

When You Can Use a Bigger Wire Without Worrying About Terminals

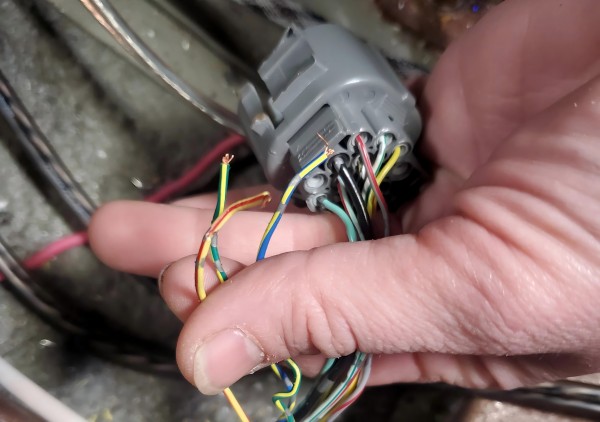

If you’re simply cutting out a damaged section of wire and splicing in a replacement, you may not need to worry about terminal compatibility.

In this case, you can use a larger wire gauge to ensure a safe and reliable repair.

Be sure to use proper splicing techniques, such as soldering or using heat-shrink butt connectors, to maintain a strong and durable connection.
