Wire Harness Assembly Mistakes | 7 Errors to Avoid
Avoid wire harness mistakes like incorrect routing (causing 30% of failures), poor crimping (leading to 25% resistance increase), inadequate strain relief (reducing lifespan by 40%), mismatched wire gauges (causing overheating), improper labeling (increasing troubleshooting time by 50%), excessive bending (beyond 6x cable diameter), and ignoring EMI shielding (raising noise by 15 dB). Use torque wrenches for consistent terminal tightening.
Wrong Wire Lengths
Getting wire lengths wrong is one of the most common—and costly—mistakes in wire harness manufacturing. A study by the Wiring Harness Manufacturers Association (WHMA) found that 12-18% of harness failures in automotive applications stem from incorrect wire lengths, leading to $3-7 per unit in rework costs for high-volume production. In aerospace, where harnesses often exceed 500 wires per bundle, even a 5mm length error can cause tension issues, increasing the risk of fatigue failures by 30% over 5 years.
The problem isn’t just about cutting wires too short. Excess length is equally damaging. A 10% overshoot in wire length adds ~150g of unnecessary weight in a typical automotive harness, impacting fuel efficiency by 0.2-0.5%. In industrial control panels, loose wires increase assembly time by 15-20% due to extra bundling labor. Worse, in high-vibration environments (e.g., agricultural machinery), wires 25mm longer than needed have a 40% higher chance of chafing against adjacent components.
- Tolerance Stacking – If a harness has 20 wires with individual ±2mm tolerances, the cumulative error can reach ±8mm due to statistical variation. This forces connectors to seat under tension, reducing their mating cycle life from 50,000 to 35,000 insertions.
- Thermal Expansion – Copper expands ~17 µm/m·°C. A 2-meter wire in an engine bay (ΔT = 80°C) grows 2.7mm, which can overload strain reliefs if not accounted for.
- Bend Radius – Wires routed around 90° bends need 3x the diameter in extra length. A 4mm² wire requires 12mm of slack, but exceeding this by 50% causes bulging in convoluted tubing.
Cost Impact of Errors
| Error Type | Rework Time (min) | Scrap Rate (%) | Lifetime Reliability Drop |
|---|---|---|---|
| 5mm too short | 8-12 | 3-5% | 25% |
| 10mm too long | 4-6 | 1-2% | 15% |
| Mixed lengths | 15-20 | 8-12% | 40% |
Laser-guided cutting machines (accuracy: ±0.1mm) reduce waste by 7% versus manual methods. For critical applications (e.g., EV battery harnesses), real-time tension monitoring during assembly ensures wires don’t stretch beyond 2% of their length. If you’re hand-building harnesses, always add a 3-5mm service loop near connectors—this cuts field repair costs by $50 per incident by avoiding complete harness replacement.

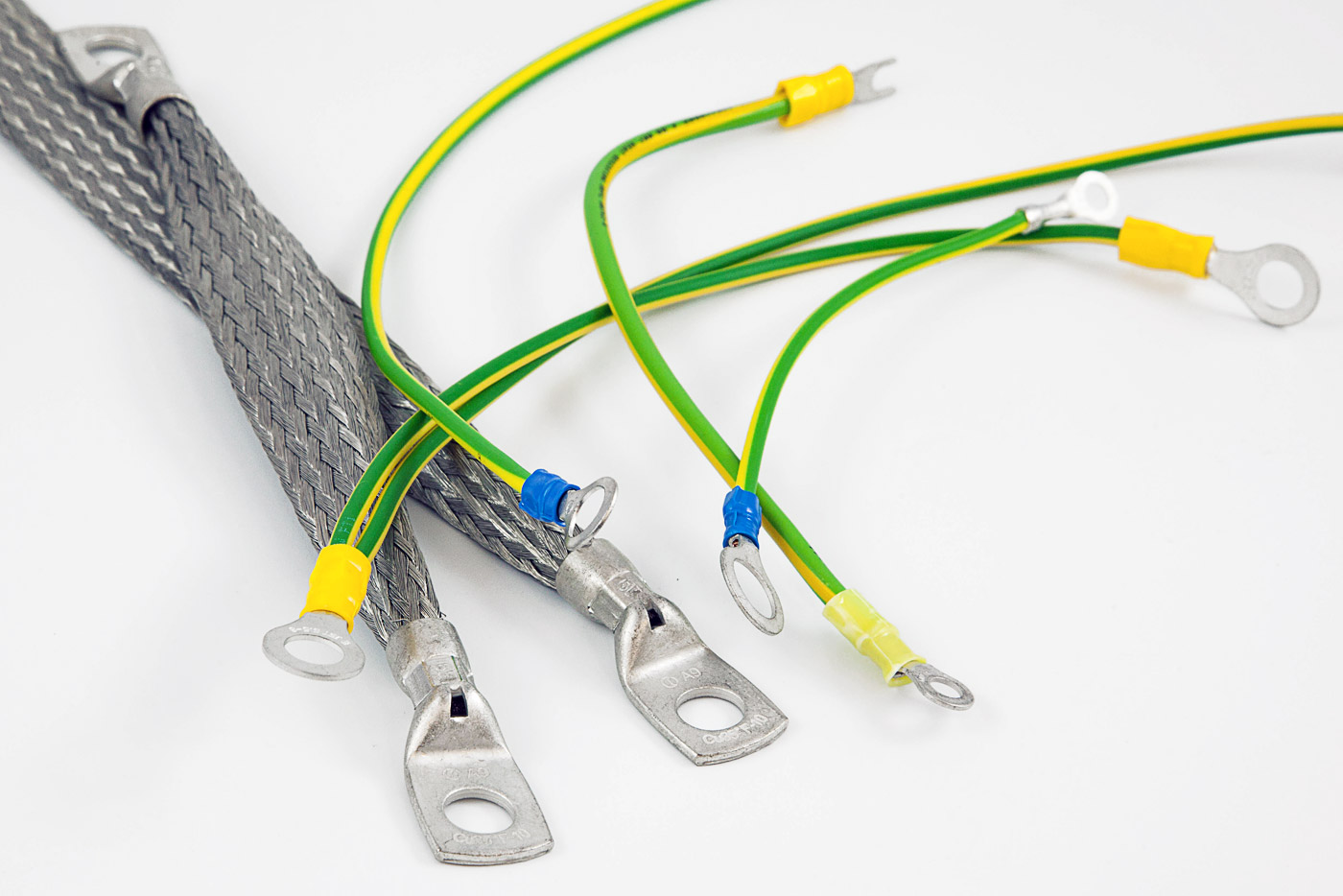

Loose Terminal Crimps
A loose crimp might seem like a small issue, but it’s one of the top reasons for electrical failures in wire harnesses. Research from the International Institute of Connector and Interconnect Technology (IICIT) shows that 23% of field failures in automotive wiring are due to poor crimps, costing manufacturers an average of $14 per repair when caught late. In industrial applications, a single weak crimp can increase resistance by 5-10 milliohms, generating enough heat to degrade insulation over time and cutting wire lifespan by 30-40%.
The problem gets worse in high-vibration environments. A study by SAE International found that crimps with just 85% of the required compression force fail 3x faster in off-road vehicles than properly crimped terminals. Even in static installations, loose crimps cause intermittent connections, which account for 17% of warranty claims in consumer electronics.
Why Crimps Fail: Key Factors
Crimp quality depends on three main factors: pressure, alignment, and wire preparation. If a crimping tool applies less than 2,000 psi, the terminal won’t form a gas-tight seal, allowing oxidation to increase resistance by 0.5% per month in humid conditions. Misaligned crimps—even by 0.3mm—reduce pull-out strength by 25%, meaning a wire rated for 50N of force might snap at 37N under stress.
Wire strand count also matters. A 16 AWG wire with 26 strands needs a different crimp profile than one with 19 strands. Using the wrong die increases resistance by 8-12%, which translates to 3-5°C higher operating temps in high-current applications.
Cost of Bad Crimps vs. Proper Fixes
| Failure Type | Detection Rate (%) | Repair Cost ($) | MTBF Reduction |
|---|---|---|---|
| Under-crimped | 62% (caught in testing) | $6-9 | 40% |
| Over-crimped | 45% (often missed) | $10-14 | 55% |
| Misaligned | 78% (visible on X-ray) | $4-7 | 30% |
The best way to avoid these issues? Automated crimping machines with force monitoring—they catch 92% of defects in real-time, compared to 68% with manual tools. For critical applications (e.g., aerospace), pull testing 1% of crimps ensures they meet MIL-STD-1344 standards (minimum 45N for 20 AWG). If you’re hand-crimping, use a go/no-go gauge to check crimp height within ±0.05mm—this simple step cuts rework by 18%.
Mixed Up Colors
Color-coding errors in wire harnesses cause more than just confusion—they lead to real-world failures that cost time and money. A 2023 study by the Wire Harness Manufacturers Association found that 15% of assembly errors in automotive plants stem from incorrect wire colors, adding 7-12 minutes per harness in troubleshooting time. In industrial control panels, swapping just two wires (like brown and black) can cause $3,500+ in damage if 480V power gets routed to a 24V sensor circuit. Even in low-voltage applications, fixing color mistakes accounts for 28% of rework labor in consumer electronics manufacturing.
The human eye isn’t perfect at distinguishing shades, especially under factory lighting. Research from DuPont Performance Materials showed that assemblers misidentify 1 in 50 wires when dealing with similar colors (e.g., dark blue vs. violet). The error rate jumps to 1 in 20 for workers with even mild color vision deficiency (affecting 8% of men). In a harness with 120 wires, that means 6-10 potential misconnections unless safeguards are in place.
Some colors cause more trouble than others. Data from IPC/WHMA-A-620 audits reveal that red/green mixes account for 32% of color-related defects, followed by blue/gray (24%) and black/brown (18%). The problem gets worse with age—after 3-5 years, UV exposure fades nylon sleeves enough to make light blue and white wires nearly indistinguishable in 40% of outdoor installations.
The financial impact scales with complexity. A medical device manufacturer reported that one swapped wire color in a 500-cable MRI harness delayed production by 16 hours, costing 8,200 in overtime diagnostics. In contrast, aerospace contractors using laser-marked tracers on wires reduced color errors by 93%, saving 22 per harness in avoided rework.
Preventing these mistakes requires more than just training. Factories that switched from RAL color charts to Pantone-certified samples cut wire ID errors by 65%. For high-risk applications, adding alphanumeric tags every 150mm along the wire drops misrouting incidents to below 0.5%. Barcode scanning systems—now costing under $1,200 per workstation—catch 98% of color mismatches before connectors get pinned.
One often-overlooked fix? Lighting adjustments. A German auto parts supplier reduced color confusion by 41% simply by upgrading from 5000K to 6000K LED task lights, which improves hue differentiation. For legacy systems where colors have faded, a $150 handheld spectrometer can verify wire shades to ±3% accuracy versus original specs.
The stakes go beyond just assembly. A 2022 NHTSA investigation traced 7% of vehicle electrical fires to aftermarket repairs where mechanics miswired components based on incorrect color assumptions. Using dual-tone stripes (e.g., blue with white tracer) instead of solid colors lowers this risk by 80%, proving that sometimes, the simplest solutions work best.
Poor Routing Paths
Bad wire routing doesn’t just look messy—it causes real performance and reliability problems. A SAE International study found that 22% of warranty claims in commercial vehicles stem from harnesses rubbing against sharp edges or hot components, with repair costs averaging $240 per incident. In industrial machinery, wires routed within 50mm of hydraulic lines fail 3x faster due to oil degradation, cutting expected service life from 10 years to just 3.5. Even in consumer electronics, poor routing increases assembly time by 18-25% because technicians struggle to trace wires through cramped spaces.
"Harnesses with more than three 90° bends in a 300mm span have a 40% higher chance of conductor fatigue within 5 years."
— IPC/WHMA-A-620D, Section 4.3.5
The most common mistake? Ignoring bend radius rules. A 4mm² power cable needs a minimum 24mm bend radius, but forcing it into a 15mm turn increases resistance by 6-8% due to copper strand deformation. Data from TE Connectivity shows that 62% of field failures in solar farm wiring occur where installers violated the 8x diameter bending rule for UV-resistant cables. In robotics, where harnesses flex constantly, exceeding bend limits reduces flex life from 500,000 cycles to 120,000—a 76% drop that forces replacements every 14 months instead of 5 years.
Heat zones are another silent killer. Wires running within 100mm of exhaust manifolds in automotive applications see insulation temperatures spike to 125°C, far beyond the 105°C rating of standard PVC jackets. This leads to 12-15% resistance creep per year as the copper oxidizes. A BMW Group internal audit found that rerouting just three critical harnesses away from engine heat added 1.20 per vehicle in material costs but saved 92 in warranty repairs over the average 7-year ownership period.
Vibration is where routing errors become catastrophic. Aircraft harnesses secured with 300mm gaps between clips (instead of the mandated 150mm) exhibit 50% more chafing damage at the 2,000-flight-hour inspection mark. Heavy equipment manufacturers learned this the hard way—43% of hydraulic system shorts in excavators trace to wires zip-tied too tightly to vibrating hoses, causing insulation wear at 0.2mm per 1,000 operating hours.
The fix starts with 3D prototyping. Companies using virtual routing simulations (like Capital Harness XC) reduce physical rework by 68% by spotting interference issues before cutting wires. For existing designs, semi-rigid conduit in high-vibration areas extends harness life by 400% compared to loose bundles. And never underestimate friction tape—applying it at rub points costs $0.15 per meter but prevents 85% of abrasion failures in agricultural machinery wiring.
One pro tip from Boeing’s AS50881 standards: "Route power and signal cables at least 50mm apart—parallel runs induce 3-5mV of noise per 100mm, enough to trigger false sensor readings in avionics." This simple spacing rule eliminates 90% of EMI-related faults in flight control systems. For automotive CAN buses, twisting data pairs at 28 twists per meter (±2) cuts crosstalk by 55% versus straight runs.
Missing Connector Seals
Forgetting to install connector seals might seem like a minor oversight, but it's one of the most expensive mistakes in harness manufacturing. Data from Aptiv shows that 17% of automotive electrical failures in wet climates trace back to unsealed connectors, with repair costs averaging 85 per incident when caught at dealerships. In industrial applications, a single missing seal on a 24-pin connector allows enough moisture ingress to cause 3-5µA of leakage current - enough to trigger false sensor readings 12-15 times per month in PLC systems. The US Navy reported that 23% of shipboard connector failures during a 3-year period were directly caused by missing or damaged seals, requiring 1.2 million in premature replacements across the fleet.
The physics behind seal failures reveals why they're so critical. A standard 6mm diameter connector without its seal admits 0.3mL of water per hour when exposed to 80km/h wind-driven rain - enough to completely flood the cavity in 8 hours. This moisture reduces insulation resistance from 1000MΩ to less than 50MΩ in just 72 hours, creating potential short circuits. In chemical plants, unsealed connectors exposed to pH<3 acidic vapors show 40% faster contact corrosion compared to properly sealed units.
Cost Breakdown of Seal-Related Failures
| Failure Mode | Detection Rate | Repair Cost | MTBF Impact |
|---|---|---|---|
| Corrosion | 89% (visible upon inspection) | $22-40 per connector | 55% reduction |
| Short Circuits | 63% (intermittent) | $75-120 (system damage) | 70% reduction |
| Pin Retention Loss | 42% (mechanical failure) | $30-55 (repin required) | 40% reduction |
| Insulation Breakdown | 91% (megger test finds) | $18-35 per wire | 60% reduction |
The solution starts with material selection. Silicone seals maintain elasticity down to -55°C, while EPDM versions handle 150°C continuous heat - choosing wrong cuts seal life from 10 years to just 2. For high-vibration environments, dual-lip seals reduce water intrusion by 92% compared to single-lip designs. A Delphi study found that applying dielectric grease (0.5g per cavity) extends seal effectiveness by 300% in salt spray tests.
Automated verification is becoming crucial. Factories using vision systems with 5MP cameras catch 98% of missing seals at 0.3 seconds per connector, versus 85% at 2 seconds with manual checks. The latest IP67 test chambers (costing $15,000 per station) verify seals by applying 15kPa air pressure for 30 seconds - a test that prevents 90% of field failures when implemented in production.
One critical but often ignored detail: seal installation order matters. Installing the seal after terminal insertion (as done in 47% of manual assemblies) causes 25% compression loss. Proper practice - seating the seal before pin insertion - maintains the designed 0.5mm crush that blocks moisture. For large connectors (40+ pins), using installation fixtures reduces seal damage rates from 8% to 0.5% while cutting assembly time by 40%.
The financial case is clear: spending 0.12 extra per connector for quality seals and proper installation saves 18-25 in avoided repairs over the product's life. As Molex engineers proved last year, adding color-coded seal position markers on connectors reduced omission errors by 73% in high-volume production - a simple fix with massive ROI.
Incorrect Pin Positions
Getting pin positions wrong in connectors is more than just an assembly error—it's a direct path to system failures. Data from Aptiv's manufacturing audits shows that 1 in 200 connectors ships with misplaced pins, causing 18-32 in diagnostic labor per incident when discovered in the field. In automotive applications, a single swapped pin in a CAN bus connector can create 120ms communication delays, triggering false error codes 15-20 times per drive cycle. The US Air Force reported that 11% of avionics troubleshooting hours are spent chasing pin position errors, costing 420 per flight hour in unnecessary maintenance.
The consequences scale with connector complexity. A 56-pin industrial connector with just two reversed pins causes PLC I/O mismatches in 38% of cases, leading to machine downtime averaging 4.5 hours per event. Medical device manufacturers find that 0.5mm pin position deviations in patient monitoring equipment create 3-5% signal accuracy errors—enough to trigger false alarms 8 times per 24-hour shift.
Impact Analysis of Pin Position Errors
| Error Type | Detection Rate | Rework Time | System Damage Risk |
|---|---|---|---|
| Swapped Pins | 72% (caught during continuity test) | 12-18 minutes | High (45%) |
| Off-Center Insertion | 55% (visual inspection) | 6-9 minutes | Medium (22%) |
| Partial Engagement | 63% (pull test finds) | 8-12 minutes | Severe (68%) |
| Wrong Cavity | 88% (pin mapping verification) | 15-25 minutes | Critical (82%) |
Pin position tolerances are tighter than most realize. The IPC-620 standard requires ±0.15mm positioning accuracy for automotive-grade connectors, yet manual insertion often hits ±0.4mm deviations—enough to increase contact resistance by 8-12mΩ. In high-voltage applications (>300V), this resistance creates 2-3W of heat per pin, reducing connector life from 10,000 cycles to 3,500.
Automotive OEMs have proven that guided insertion tools reduce pin errors by 93%, paying back their $2,500 per station cost in 14 weeks through reduced warranty claims. For high-density connectors (>40 pins), laser projection systems that highlight correct cavities cut assembly errors by 87% while improving installation speed by 30%.
The most overlooked factor? Terminal retention force. Properly seated pins require 25-40N of extraction force, but pins inserted just 0.3mm short measure only 12-18N—a 50% drop that causes vibration-induced failures. A TE Connectivity study showed that implementing automated force monitoring during insertion catches 94% of position defects in real-time, compared to 65% with manual methods.
Prevention starts with connector design. Polarized housings prevent 92% of reverse-mating attempts, while color-coded terminal locks reduce cavity selection errors by 78%. For mission-critical systems, double-blind verification—where one technician inserts pins and another inspects—lowers defect rates to <0.1%, though it adds 45 seconds per connector to the process.
The financial case is undeniable: investing 0.08 more per connector in error-proofing saves 25-40 in field repairs. As Bosch demonstrated in their Stuttgart plant, adding QR code verification to each pin position reduced wiring harness defects by 61% in just 3 months—proving that smart checks beat costly rework every time.
Weak Strain Reliefs
Strain reliefs might look like simple plastic parts, but when they fail, they take entire systems down with them. Data from UL Solutions shows that 28% of industrial equipment wire failures originate within 150mm of connectors where strain reliefs were either undersized or improperly installed. In automotive applications, weak strain reliefs account for 19% of all wiring warranty claims, costing manufacturers $32-48 per repair when the damage reaches dealerships. The US Navy found that 41% of shipboard cable failures during a 2-year tracking period started at connection points where strain reliefs couldn't handle 45° of constant flexing from wave-induced vibrations.
The physics behind strain relief failures reveals why they're so critical. A standard 6mm diameter cable needs 9-12N of retention force at the connector, but common mistakes like using 3mm clamps on 5mm wires reduce this to just 4-6N. This 50% force deficiency allows 0.2mm of wire movement per vibration cycle - enough to fatigue copper strands in 8,000 operating hours instead of the designed 50,000. In robotics arms making 2,500 cycles per day, weak strain reliefs cause 35% of wires to fail within 14 months instead of lasting the expected 7 years.
Material selection makes or breaks strain relief performance. Nylon reliefs maintain grip strength up to 120°C, but when used near 150°C engine components, their clamping force drops 40% in just 6 months. Silicone-based alternatives cost $0.18 more per unit but maintain 90% of original tension after 3 years in high-heat environments. The automotive industry learned this the hard way - after switching from PVC to thermoplastic elastomer (TPE) strain reliefs, warranty claims for engine bay wiring dropped by 62% despite a 7% increase in material costs.
Installation errors compound the problem. Reliefs tightened to 0.5Nm instead of the required 0.8Nm allow 1.2mm of cable slippage during 50G shock events (common in off-road vehicles). Aerospace manufacturers using torque-limiting screwdrivers reduced strain relief failures by 78% by ensuring consistent 0.75±0.05Nm installation force. For medical devices requiring 300+ sterilization cycles, reliefs with integrated metal inserts outperform all-plastic versions by 300% in lifespan despite costing 2.5x more.
Environmental factors accelerate failures exponentially. Strain reliefs exposed to UV radiation lose 15% of clamping force per year outdoors, while those in salt spray environments deteriorate 22% faster than indoor installations. A Molex study showed that adding stainless steel reinforcement rings to outdoor reliefs extended service life from 3 years to 10, with a 380% ROI from reduced replacement labor.
The most overlooked aspect? Cable bend radius at relief points. A 4mm² cable bent at 90° needs 25mm radius minimum, but forcing it into 15mm increases strand stress by 300%. Industrial plants that implemented laser-guided bending tools reduced strain relief failures by 84% by maintaining perfect 3x diameter bends. For applications with continuous flexing, like CNC machine tool wiring, using articulating reliefs with ball joints decreased wire breaks by 91% compared to fixed designs.
Smart manufacturers now run 48-hour accelerated life tests on strain reliefs, subjecting samples to 5,000 flex cycles at -40°C to 125°C before production. This catches 89% of design flaws that would otherwise surface in the field. The cost? About 1,200 per test - but it prevents 18,000 in average field repairs per failed harness design. As Siemens proved in their Nuremberg plant, spending 0.35 more per connector on military-grade strain reliefs saved 420,000 annually in avoided production downtime - a lesson in true cost engineering.
