D-sub Cable 9Pin Male to Male, Male to Female, Female to Female Cable
- DB9 Male to Male Cable
- DB9 Male to Female Cable
- DB9 Female to Female Cable
- Custom Wire length and gauge
- Support Black, Blue, Red, and White
Introduction
The D-Sub 9-pin connector cable, a staple in serial communications (RS-232), links devices like computers, printers, PLCs, and legacy industrial equipment. Featuring a robust D-shaped metal shield, these cables ensure reliable data transfer via 9 contacts and support Male-to-Male (DTE-DCE), Male-to-Female (adapters/extenders), or Female-to-Female (port converters) configurations. Custom options include wire gauges (22–28 AWG) for voltage and current needs, lengths (0.3–15 m), and shielded jackets for EMI resistance. Available in Black, Blue, Red, or White for easy identification, they’re ideal for embedded systems, point-of-sale devices, CNC machinery, and retro computing. Durability is enhanced with gold-plated contacts and molded strain relief.
We Support
- DB9 Male to Male Cable
- DB9 Male to Female Cable
- DB9 Female to Female Cable
- Custom Wire length and gauge
- Support Black, Blue, Red, and White
Type

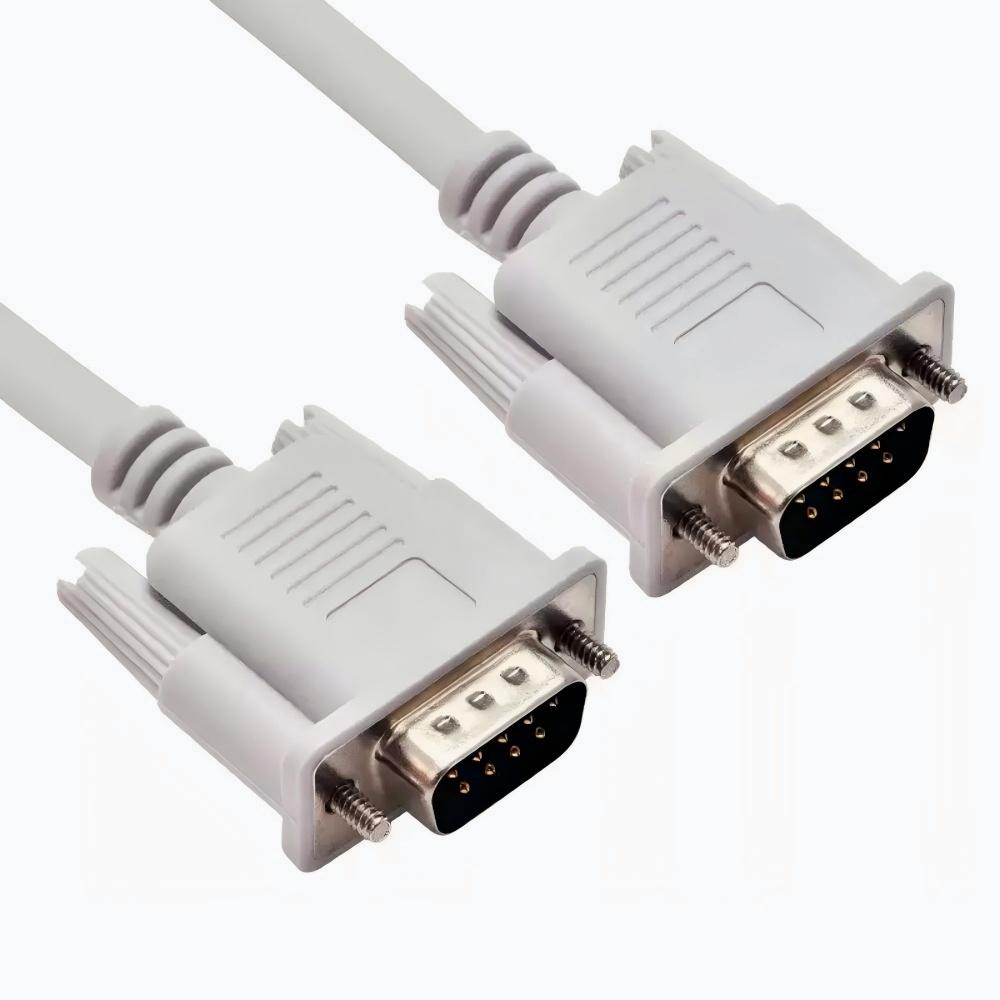

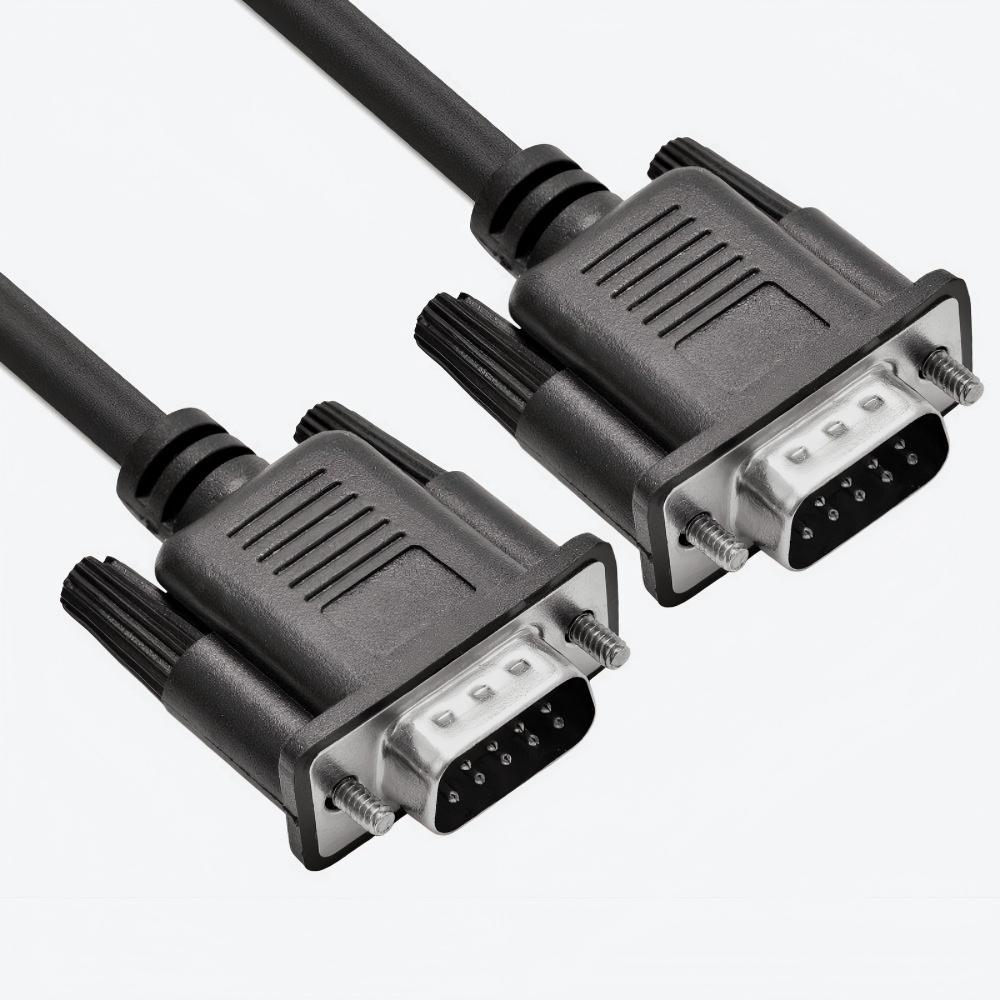

DB 9P male to male cable Black

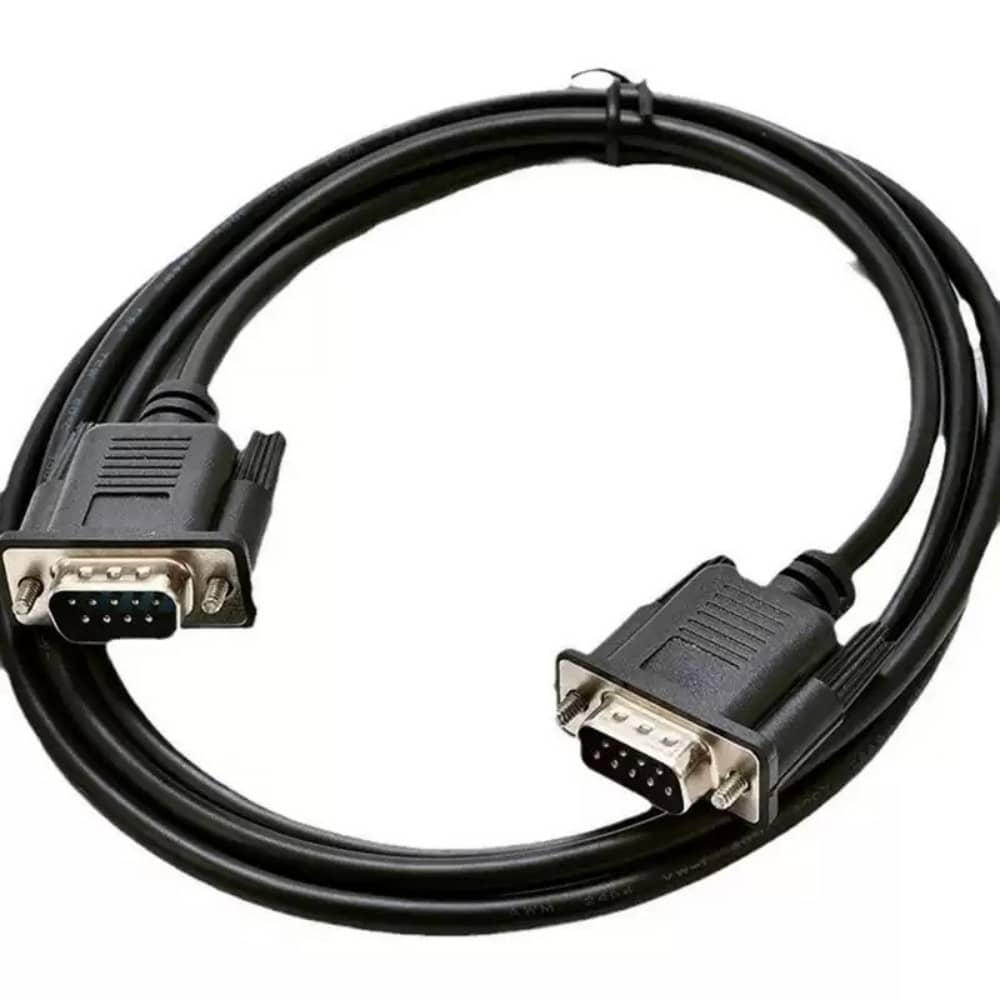

DB 9P male to male cable White

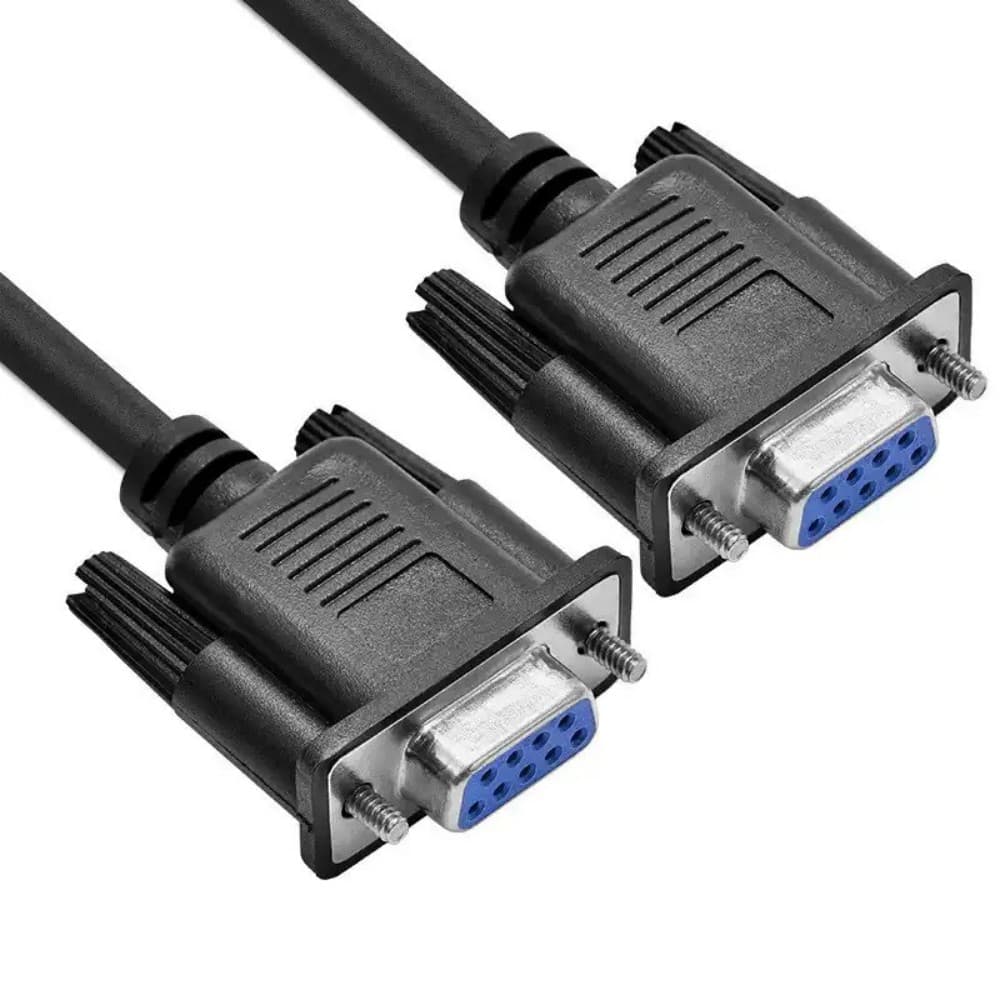

DB9 female to female cable Black

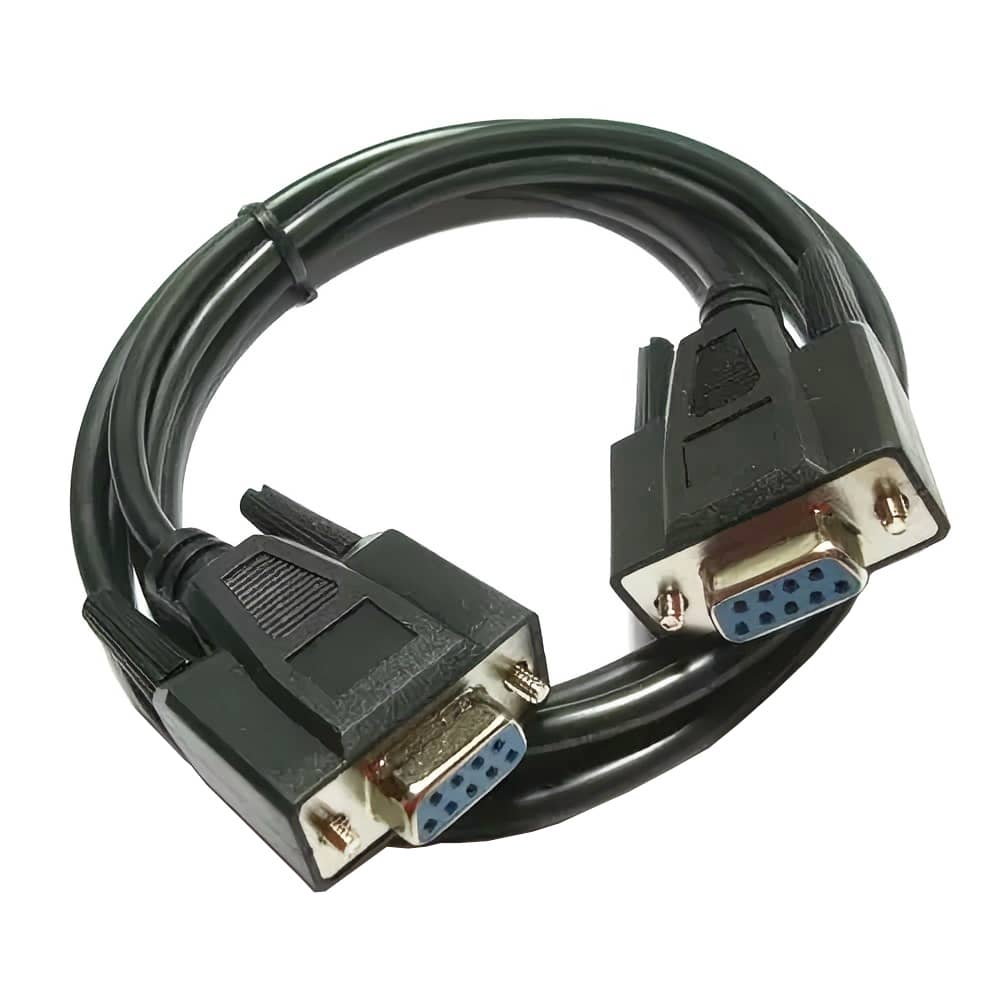

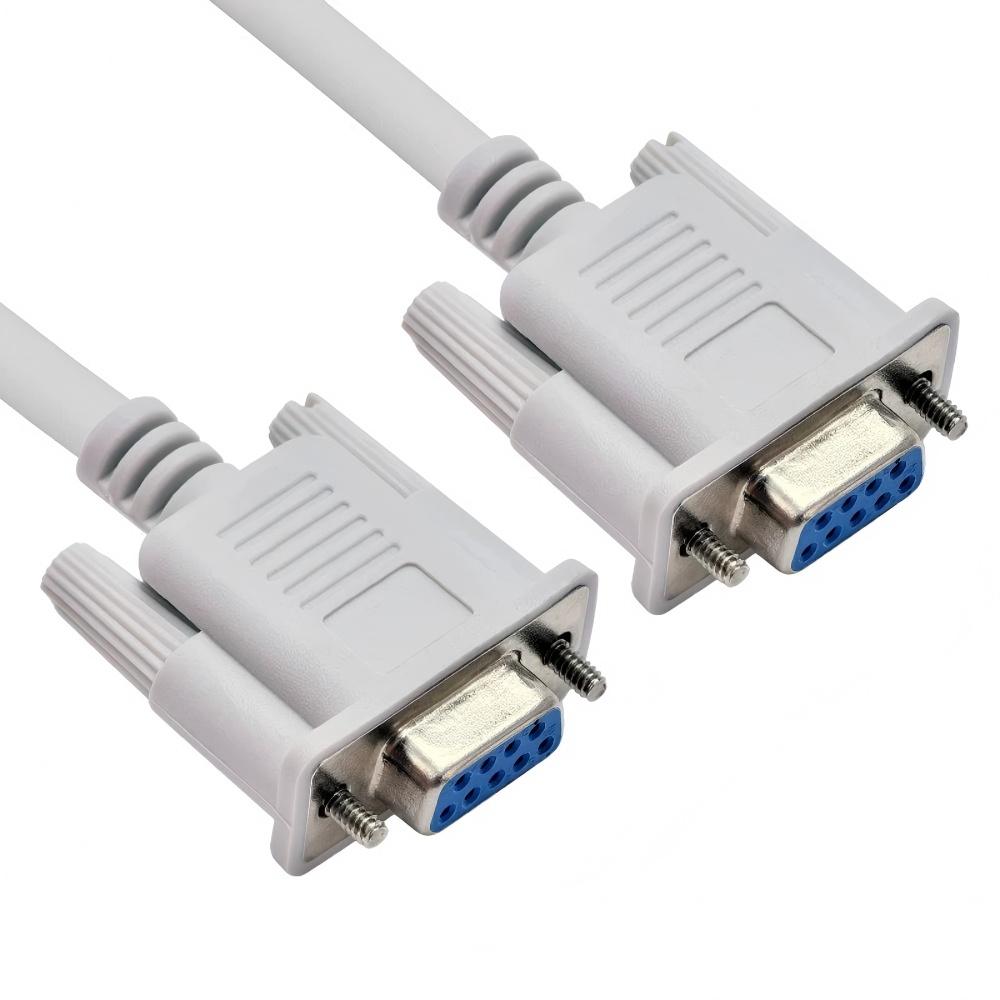

DB9 female to female cable white

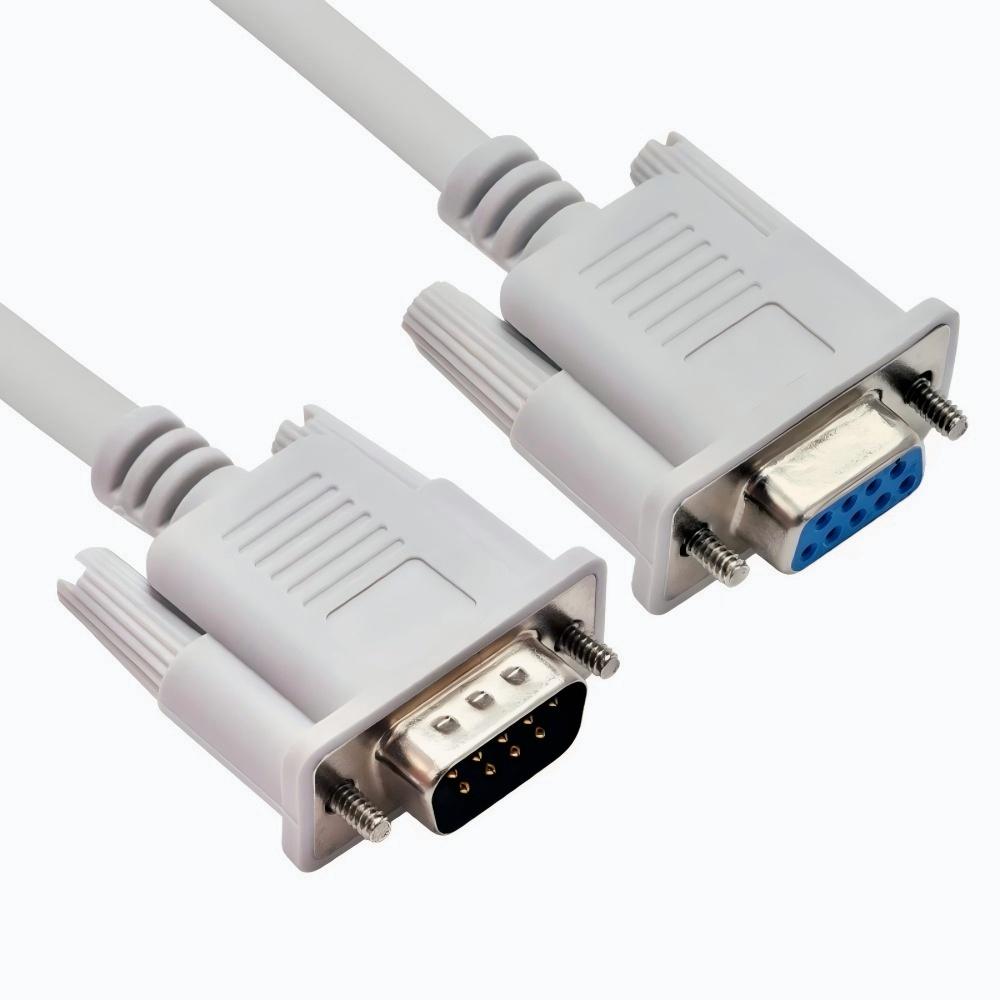

D-sub 9P male to female cable Black
D-sub 9P male to female cable white

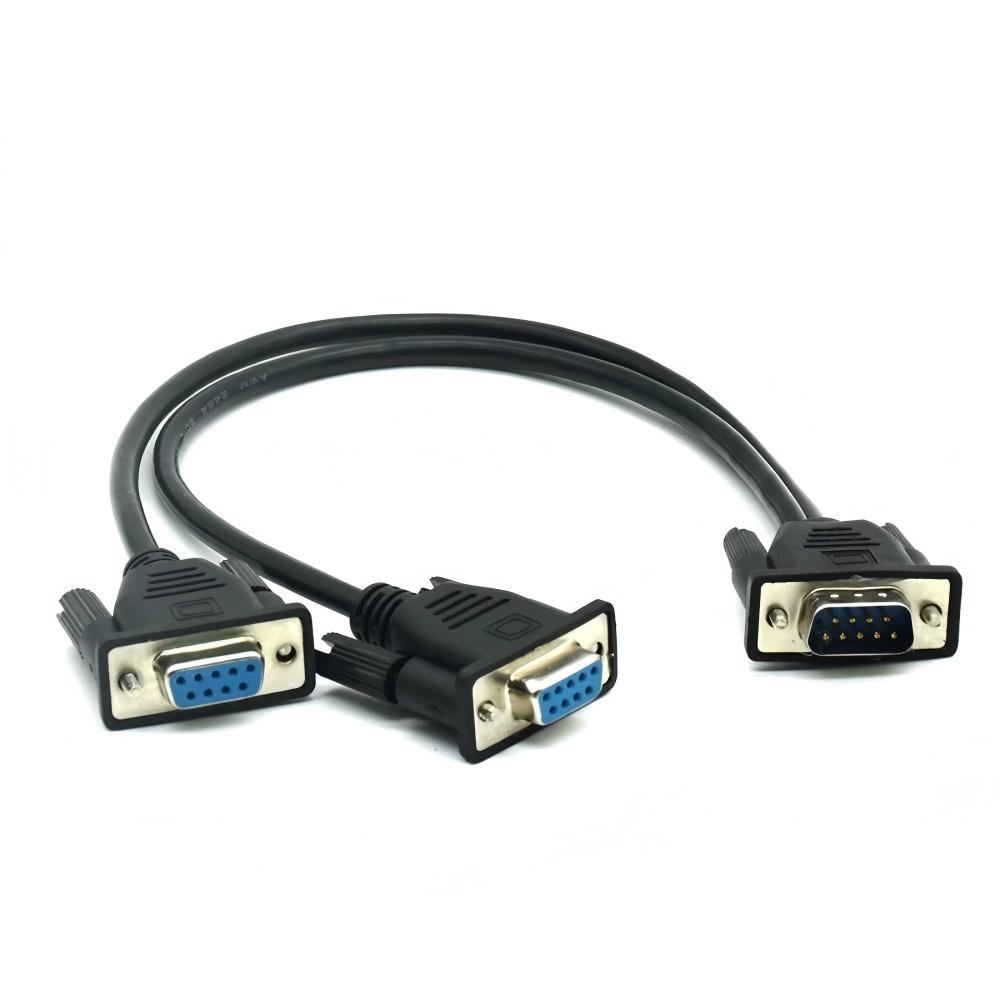

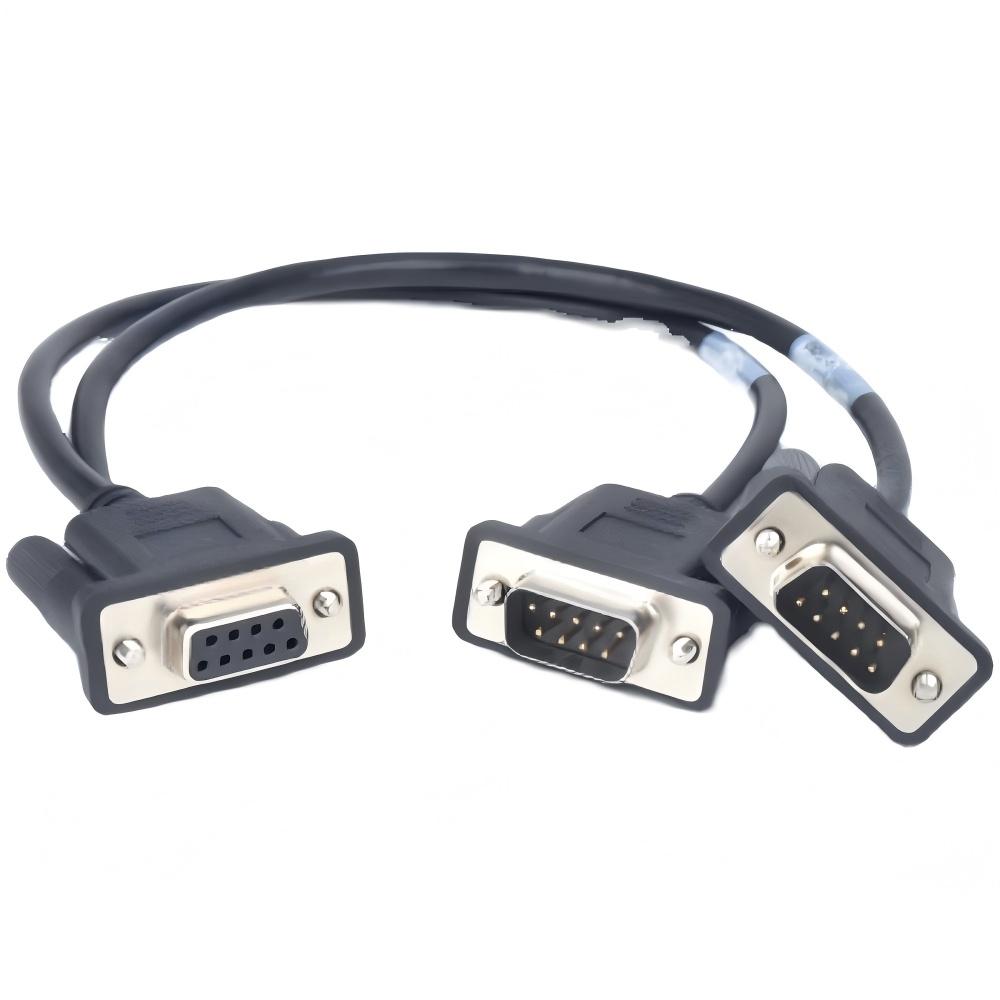

DB9 cable 1 male to 2 female
DB9 cable 1 female to 2 male
Wiring Diagram
| End 1 (Pin) | Signal Name | Wire Color | End 2 (Pin) |
| 1 | DCD | Black | 1 |
| 2 | RxD | Brown | 2 |
| 3 | TxD | Red | 3 |
| 4 | DTR | Orange | 4 |
| 5 | GND | Yellow | 5 |
| 6 | DSR | Green | 6 |
| 7 | RTS | Blue | 7 |
| 8 | CTS | Purple | 8 |
| 9 | RI | Gray | 9 |
Note:
- Wiring diagrams are 1 to 1, and also support any custom wiring diagram;
- Signal names are based on the RS-232 standard;
- Wire colors are illustrative (follow your cable's color code).
Applications
DB9 Male-to-Male Cable
- PC-to-External Modem: Connecting dial-up modems to computers.
- Industrial PLC Programming: Linking laptops to PLCs (e.g., Allen-Bradley/Siemens).
- CNC Machine Control: Transmitting G-code from control PCs to milling machines.
- POS System Setup: Interfacing cash registers with receipt printers (e.g., Epson TM series).
- Legacy GPS Data Transfer: Fetching location data from marine/aviation GPS units.
- SCADA Sensor Integration: Connecting environmental sensors to monitoring PCs.
- Serial Scale/Weighbridge Systems: Transmitting weight data to inventory software.
- Vintage Synthesizer Control: Syncing MIDI hardware via serial adapters.
- Medical Device Firmware Updates: Updating patient monitors or infusion pumps.
- Retro Gaming Consoles: Linking Sega Saturn/Atari ST for multiplayer.
DB9 Male-to-Female Cable
- Serial Port Extension: Lengthening short device cables (e.g., barcode scanners).
- Router/Network Console Access: Accessing Cisco/HP switch console ports.
- Legacy Keyboard/Mouse Adapters: Connecting Sun Microsystems/IBM PS/2 peripherals.
- Industrial Camera Control: PTZ camera pan/tilt adjustments via serial commands.
- Test Equipment Connectivity: Extending connections to oscilloscopes or logic analyzers.
- KVM Switch Integration: Managing server racks with serial-based KVMs.
- Robotics Teach Pendant Links: Extending programming ports on robot arms.
- OBD-II Vehicle Diagnostics: Interfacing with car ECUs via serial adapters.
- Solar Inverter Monitoring: Connecting inverters to data loggers.
- Retro PC Peripherals: Linking IBM Model M keyboards to modern serial adapters.
DB9 Female-to-Female Cable
- DTE-to-DTE Null Modem: Direct PC-to-PC file transfer (e.g., Laplink legacy).
- Serial Hub Patching: Cross-connecting ports in serial patch panels.
- PBX Phone System Wiring: Interfacing telecom switches with voicemail systems.
- Legacy Plotter/Printer Chains: Daisy-chaining HP plotters.
- Industrial Device Networking: Building RS-485 networks with modbus RTUs.
- Cisco Router Stacking: Directly linking console ports for cluster management.
- Vintage Computer Links: Connecting Apple II/Commodore via null-modem.
- SCADA Master-Slave Setup: Joining RTUs to control centers.
- Serial-Powered Device Integration: Bridging uninterruptible power supplies (UPS).
- Retro Arcade Machine Comm: Networking arcade boards for tournaments.
Customize Your D-sub Cable
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
