How to Choose Right Connector for Light Wire Harness

Introduction

Automotive lighting wire harnesses are critical pathways for power and control signals to various lights, including demanding headlights (low/high beam), auxiliary spot lights and fog lights, essential tail lights (brake, turn, running), interior dome/map/courtesy lights, and modern daytime running lights (DRLs). Each application presents unique challenges based on location (exposed engine bay/underbody vs. protected interior), environmental exposure (water, dust, temperature extremes, vibration, chemicals), electrical load, and accessibility requirements. Choosing the correct connector for these harnesses is crucial for ensuring reliable operation, long-term durability, safety, and ease of service throughout the vehicle's lifespan, particularly in often harsh conditions.

Key Considerations When Choosing a Lighting Wire Harness Connector

Voltage Rating

Connectors must be rated for voltages significantly higher than the system's nominal voltage (e.g., 12V or 24V). This accounts for voltage spikes (like load dumps when turning off inductive components). Choose a connector rated at least 50% higher than the nominal system voltage (e.g., 18V minimum for 12V systems, 36V for 24V systems). Insufficient voltage rating can lead to arcing, insulation breakdown, and short circuits.

Current Rating

The total current (in Amps) that the connector contacts are designed to carry continuously must exceed the combined peak current draw of the lighting circuit it serves (e.g., high beam headlights and DRLs). Undersizing can lead to overheating, terminal degradation, melting, and an increased risk of fire.

Wire Gauge Compatibility

Connector contacts (terminals) are specifically sized to accept a certain range of wire gauges (e.g., 16-20 AWG, 14-18 AWG). The wire used in the harness MUST match the terminal size. Forcing a larger wire into a small terminal can damage the crimp barrel, while using a smaller wire in a large terminal creates a poor, high-resistance connection prone to failure.

Sourcing & Availability

Opt for connectors that are commonly stocked by major automotive distributors and harness shops, ensuring replacements are readily available if needed during assembly or future repairs. Proprietary or obscure connectors can cause significant delays and increase costs.

Popular Connectors for Automotive Lighting Harnesses

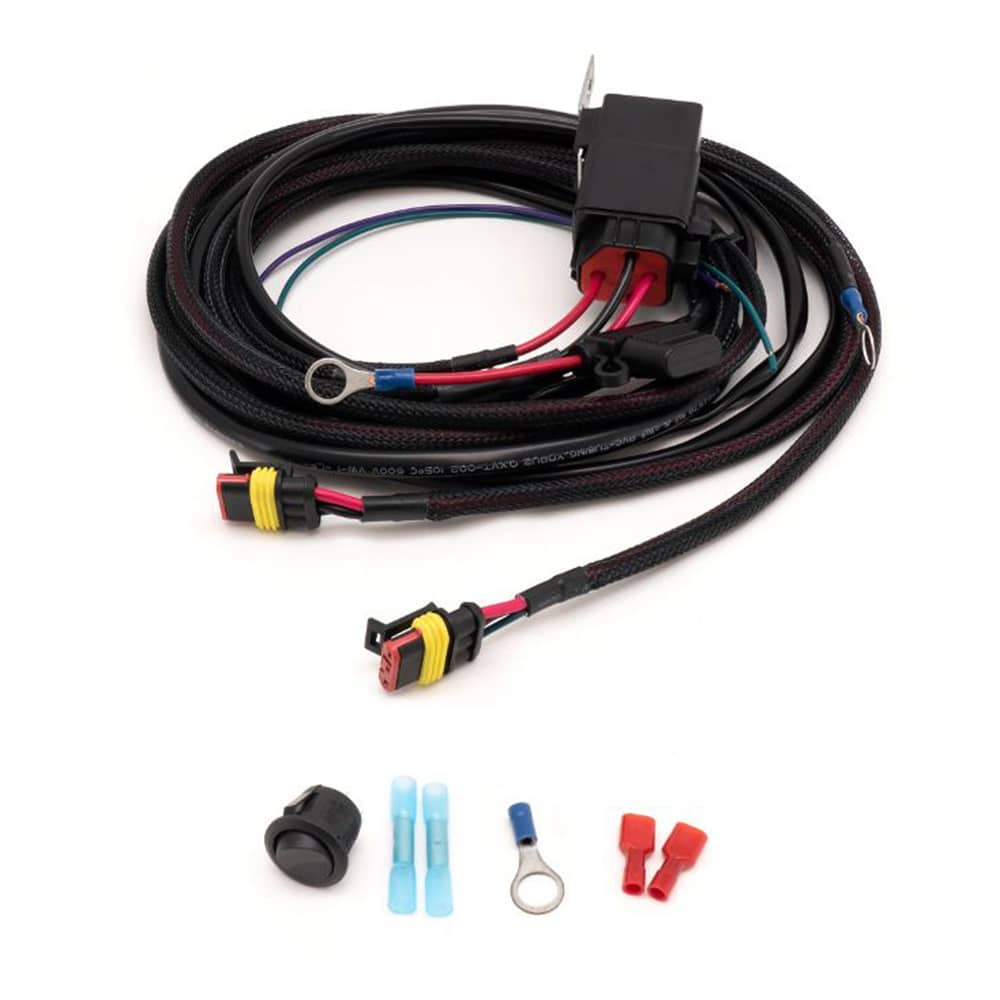

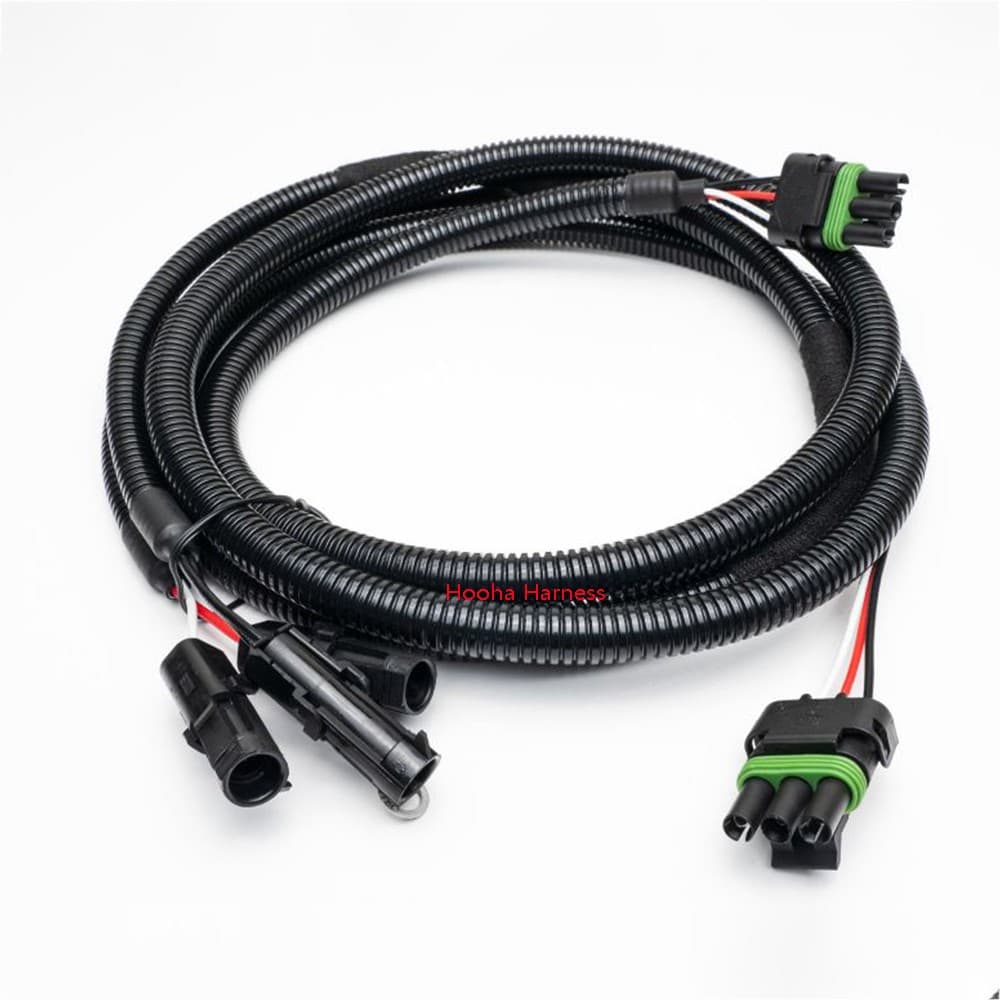

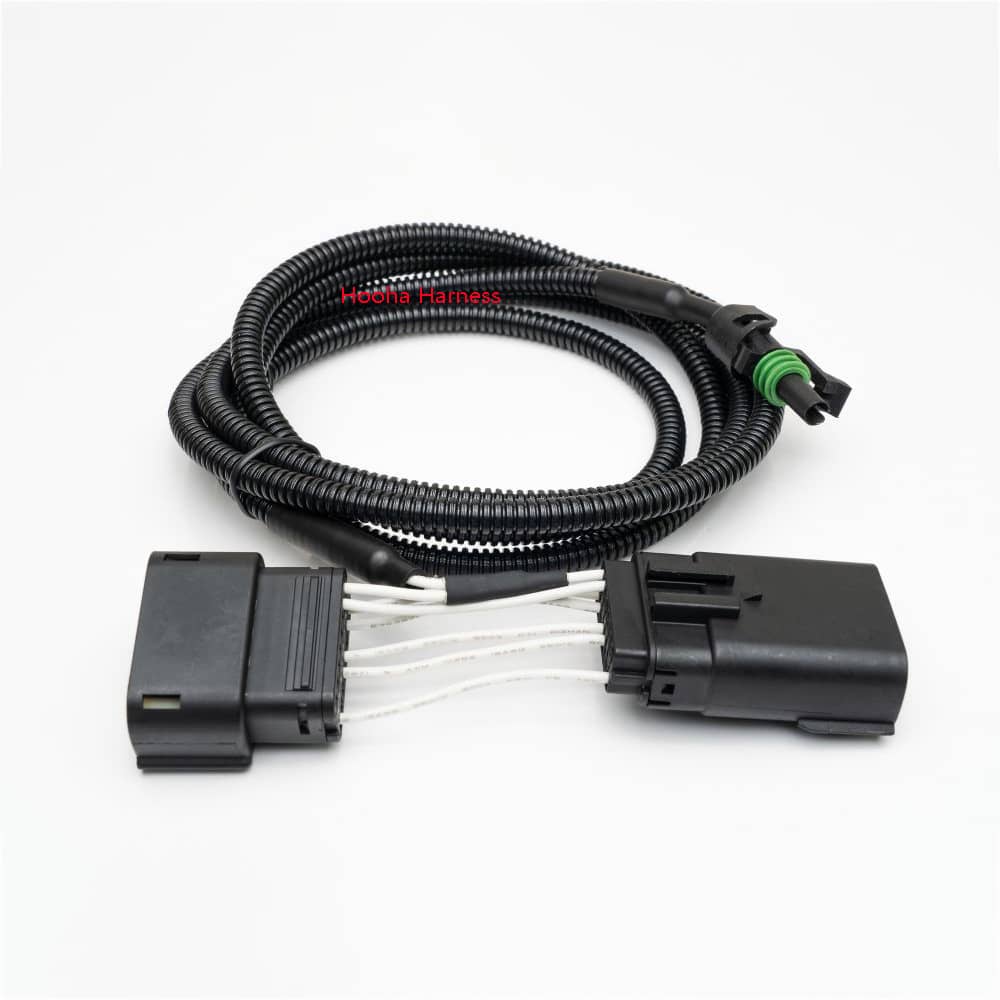

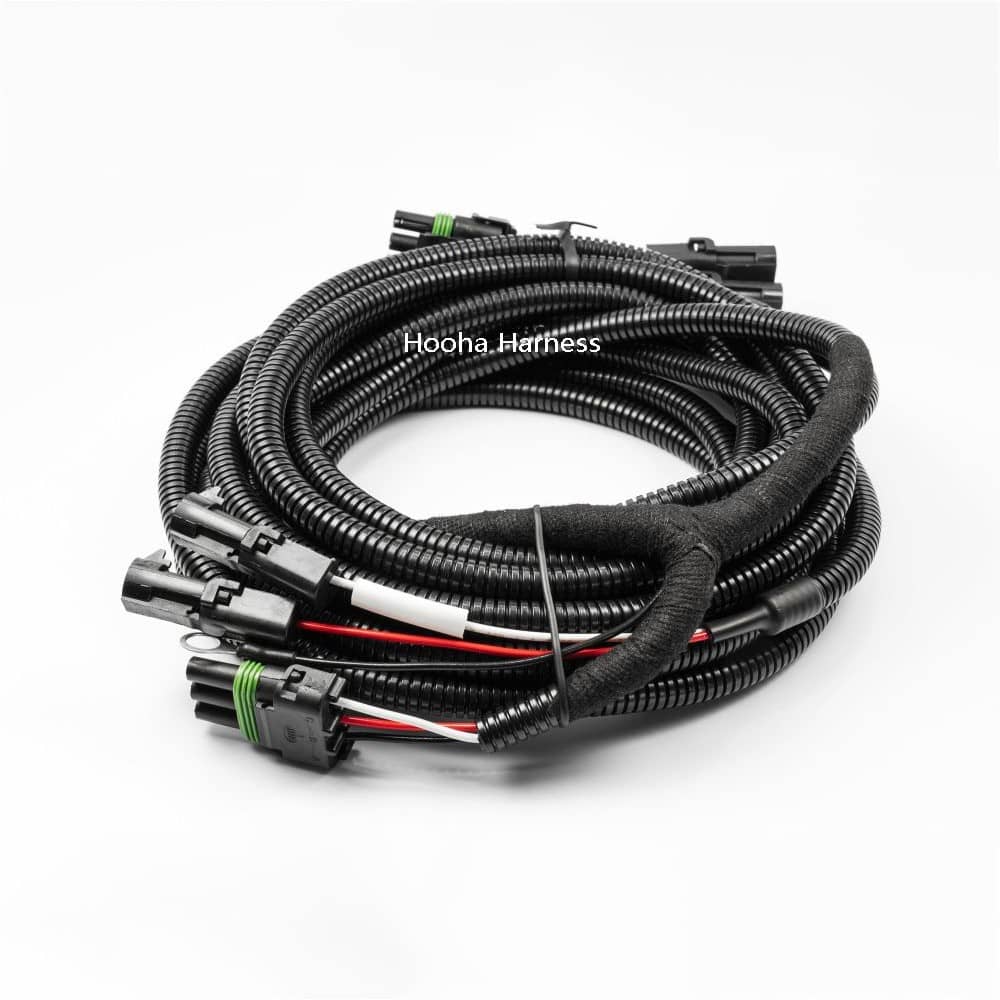

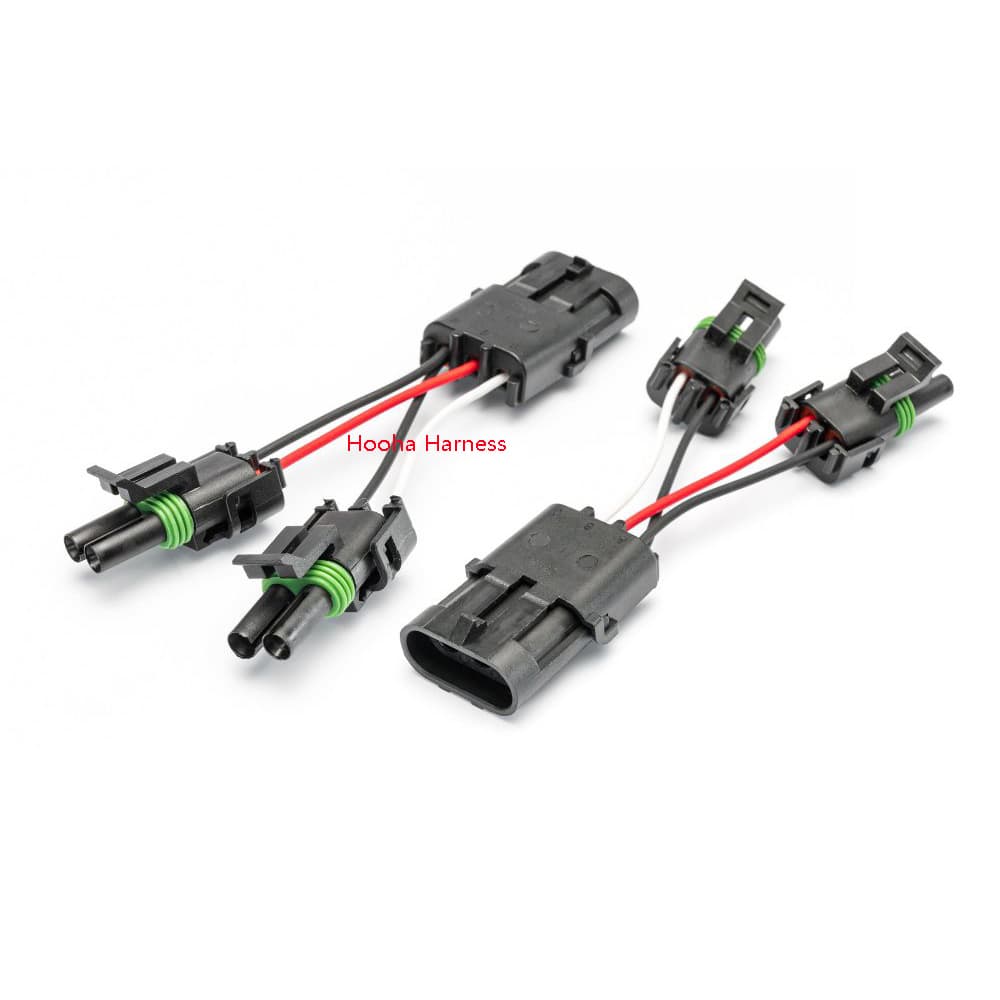

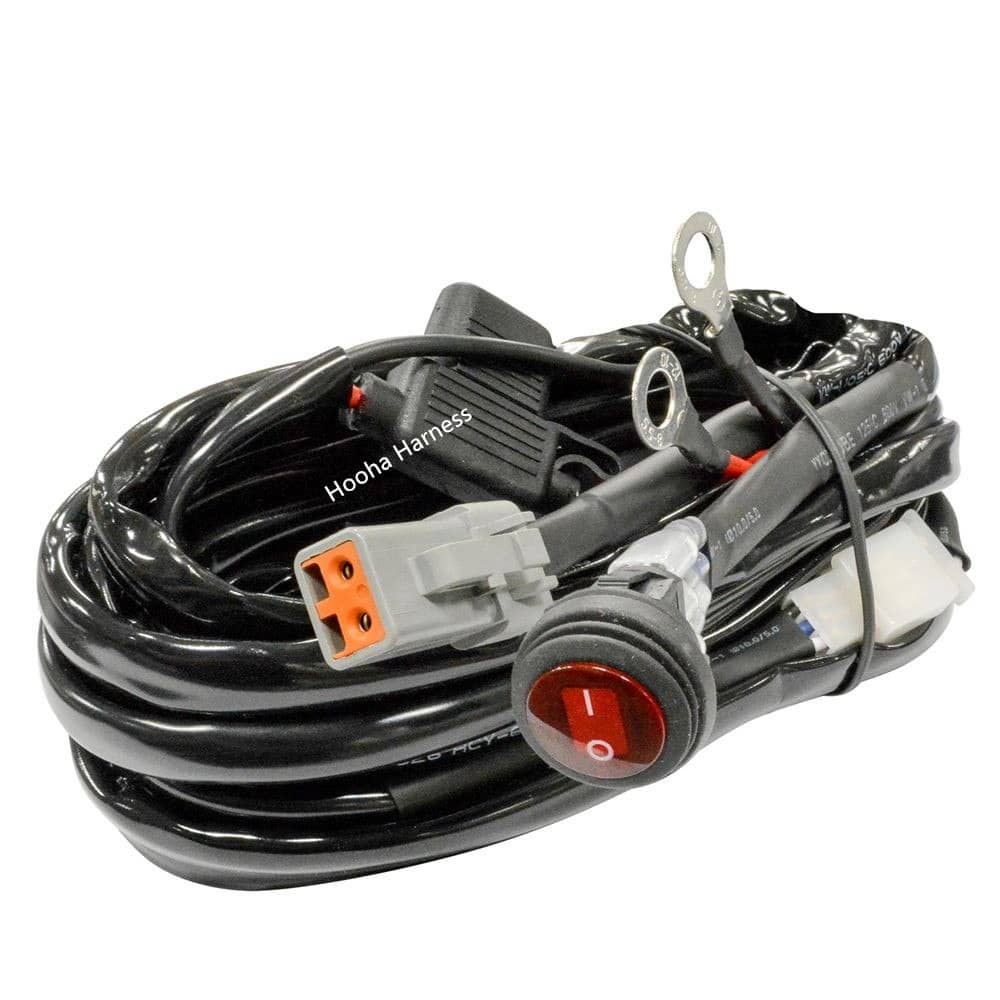

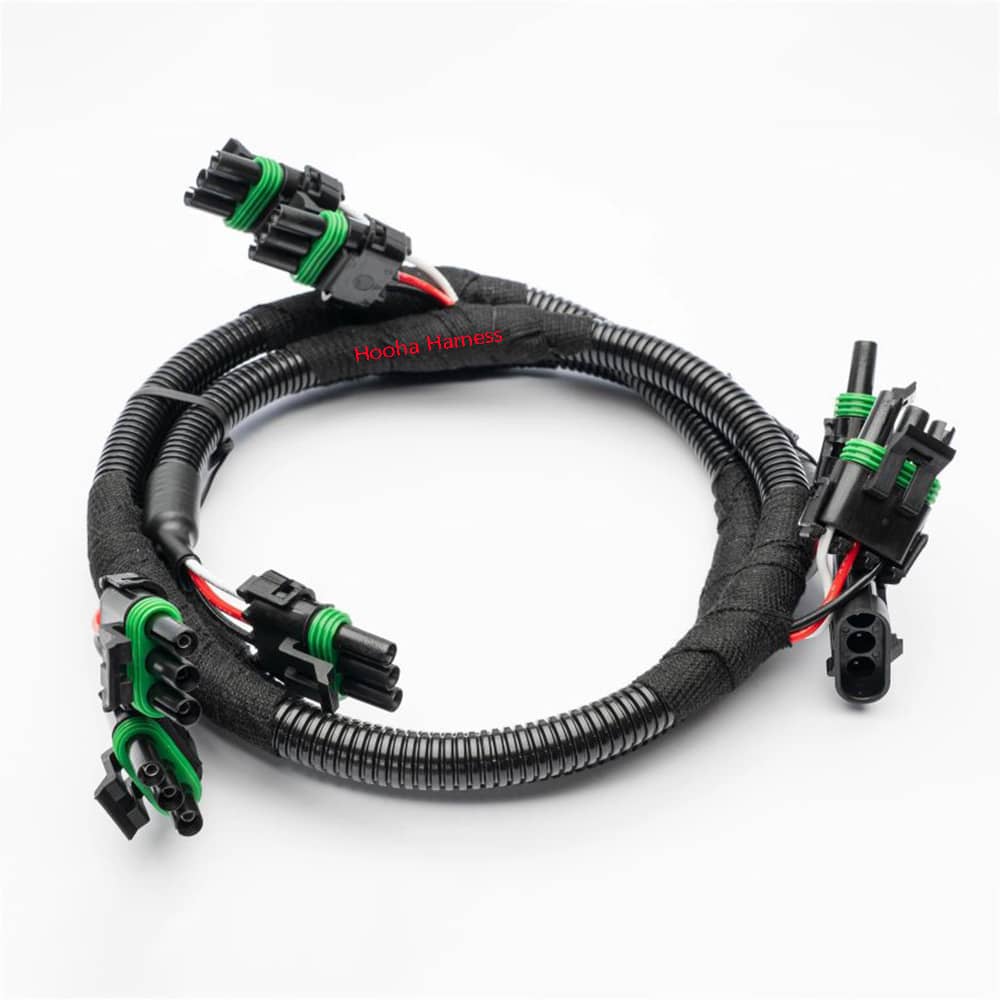

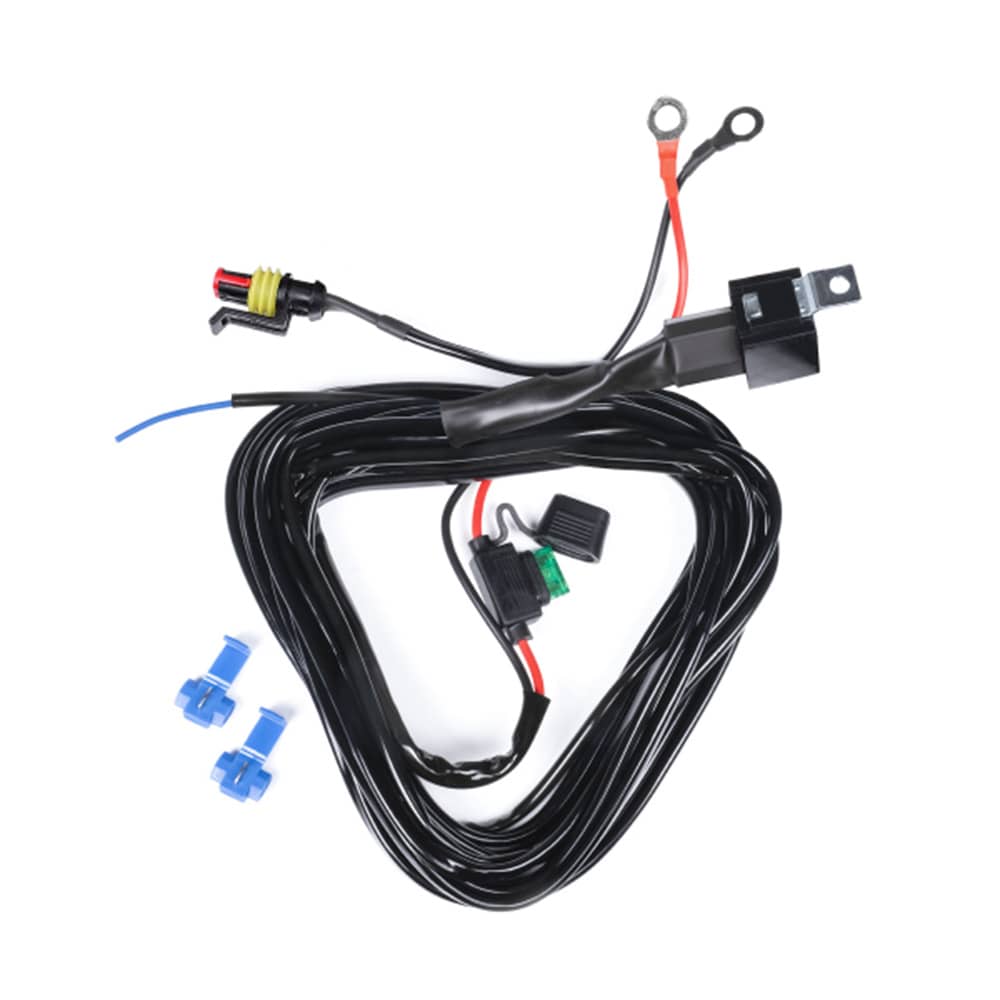

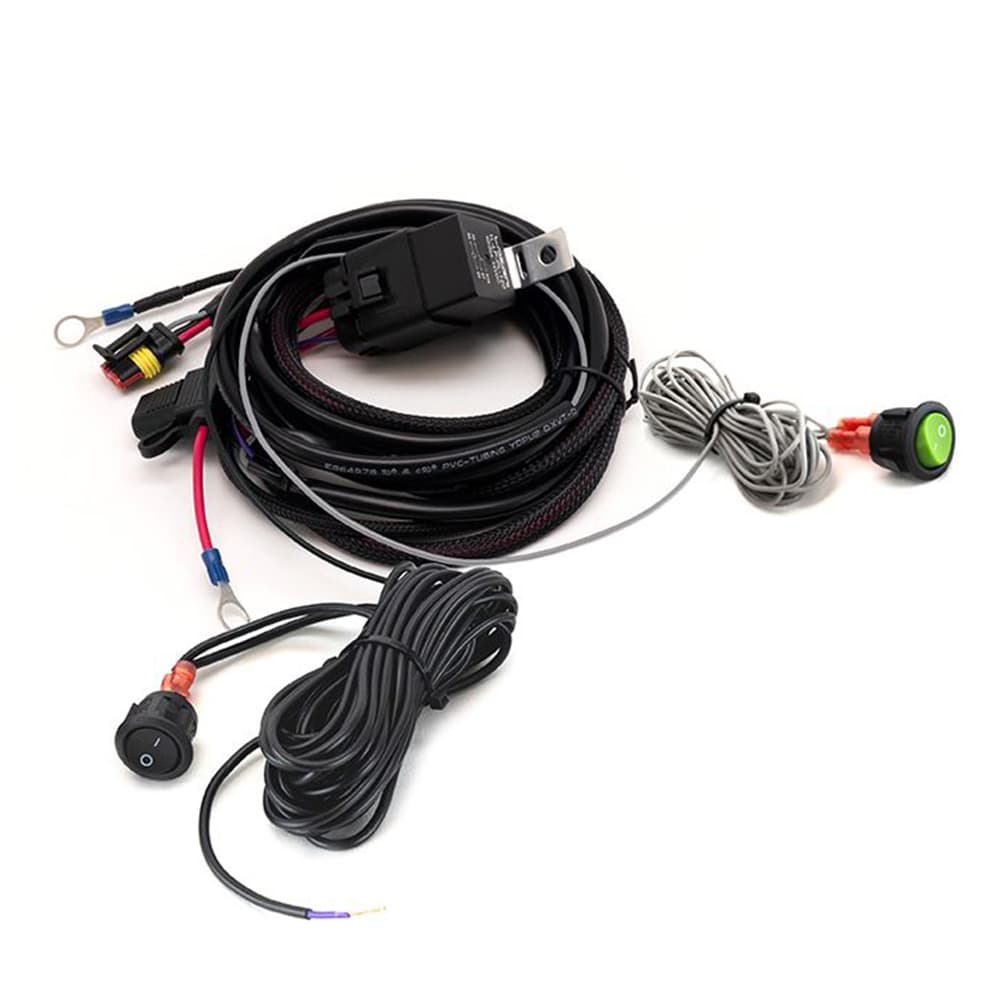

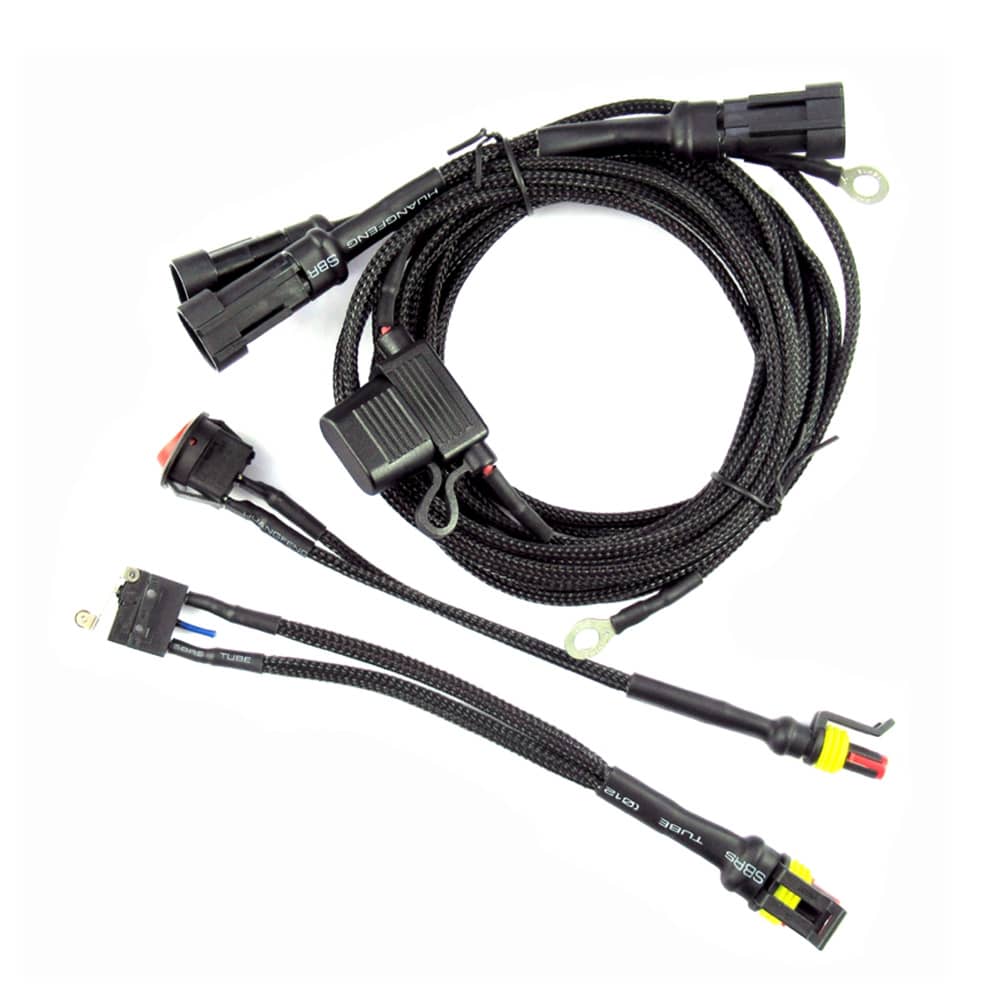

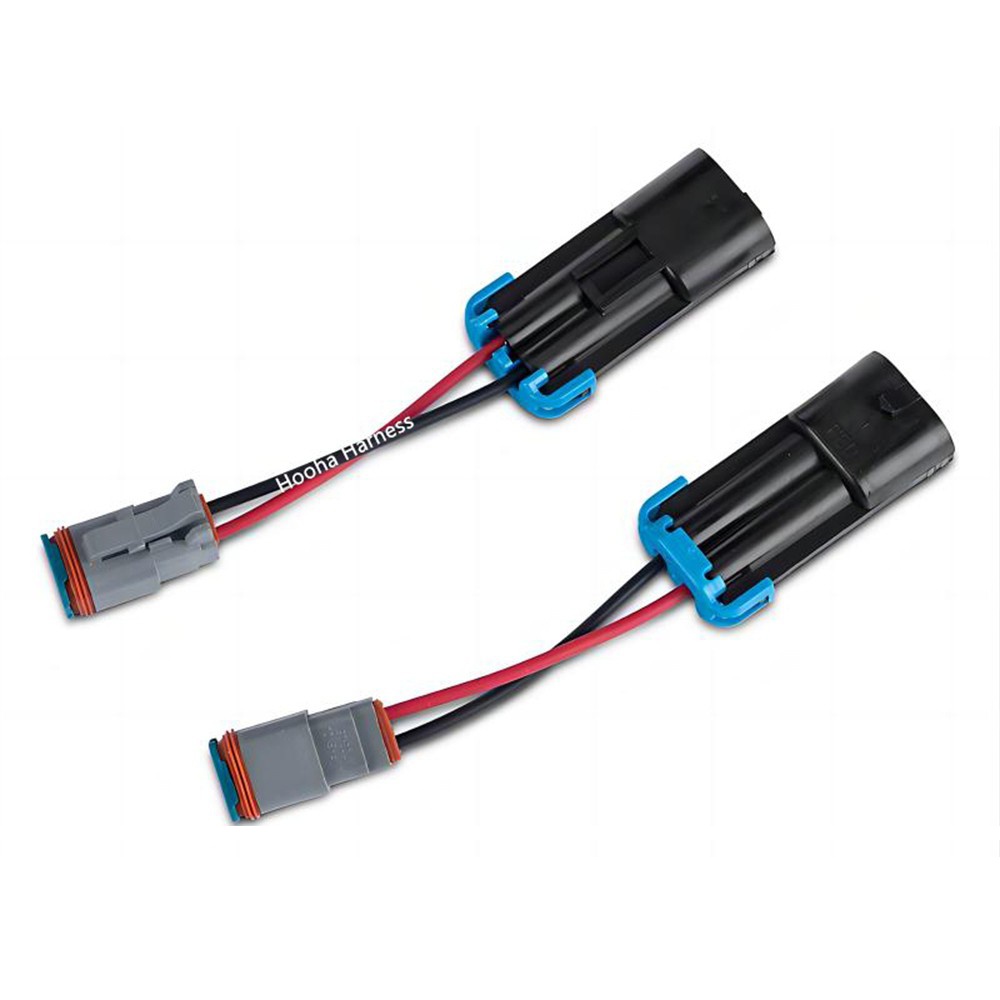

TE Connectivity AMP SuperSeal 1.5 Series

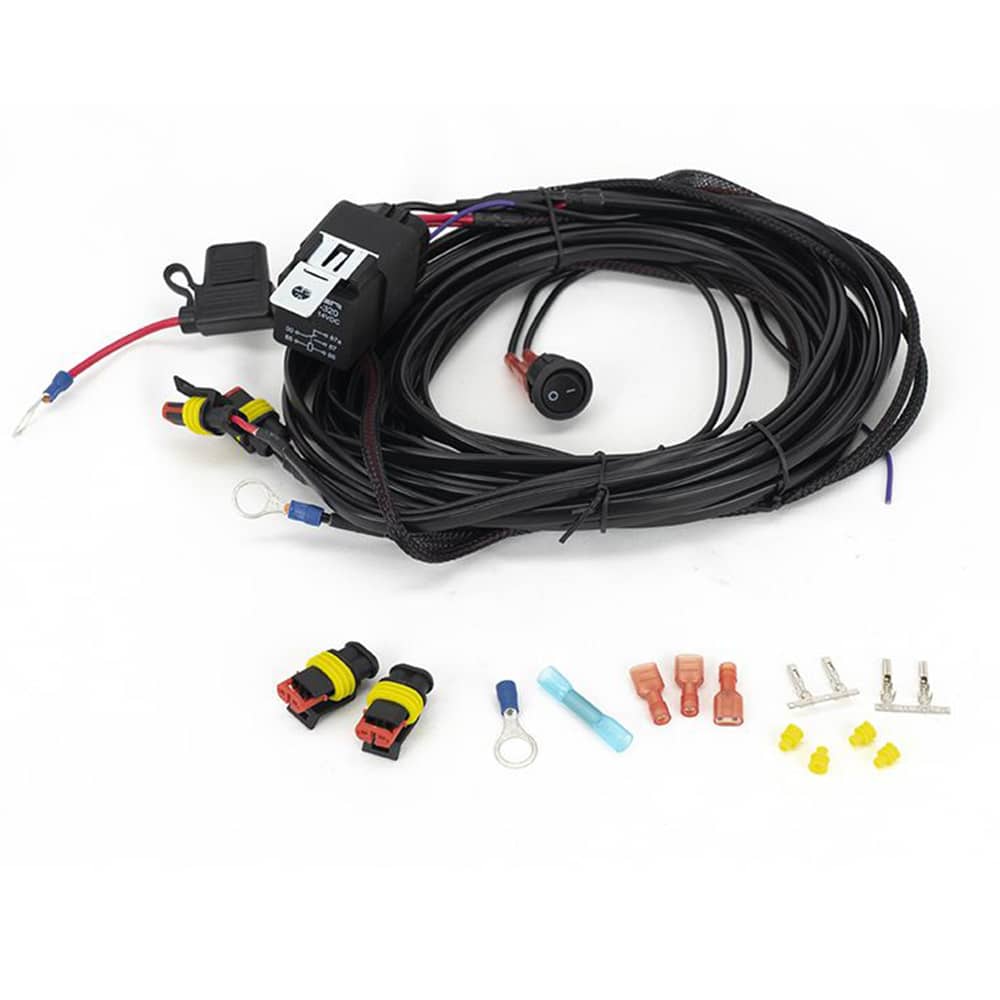

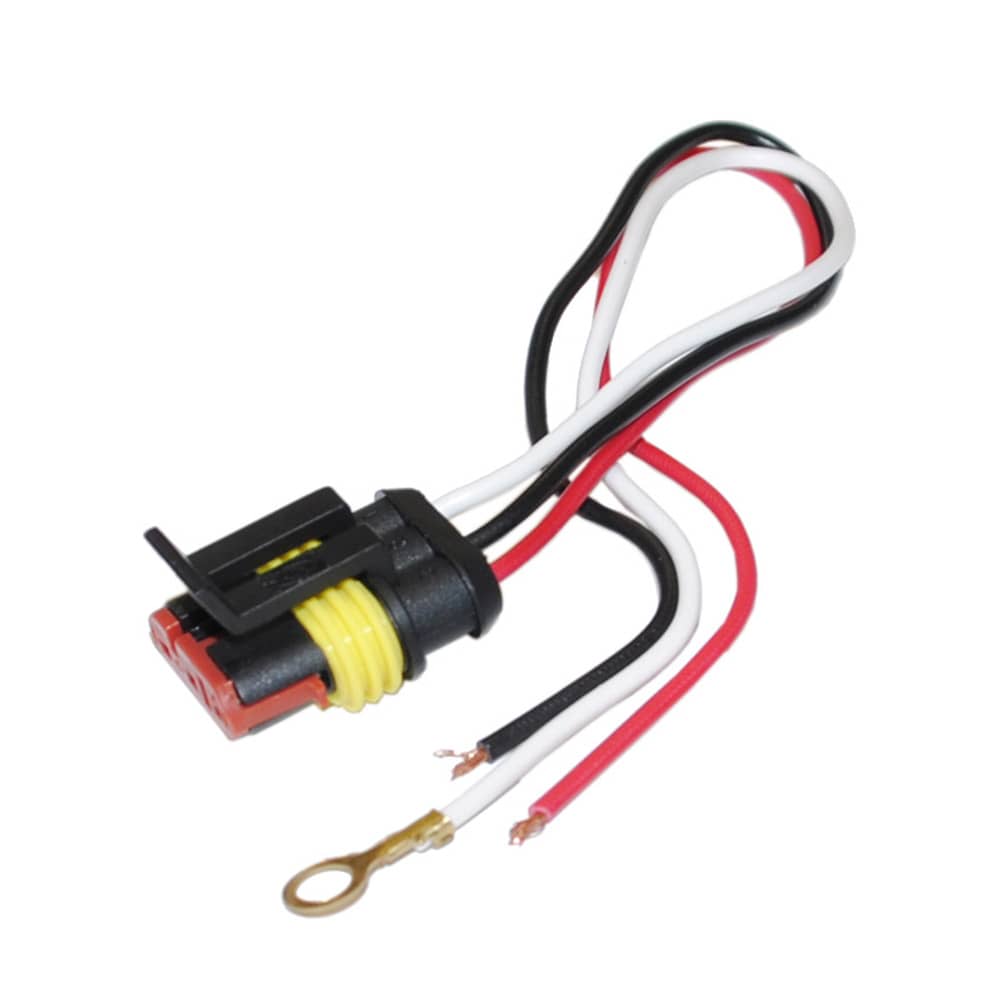

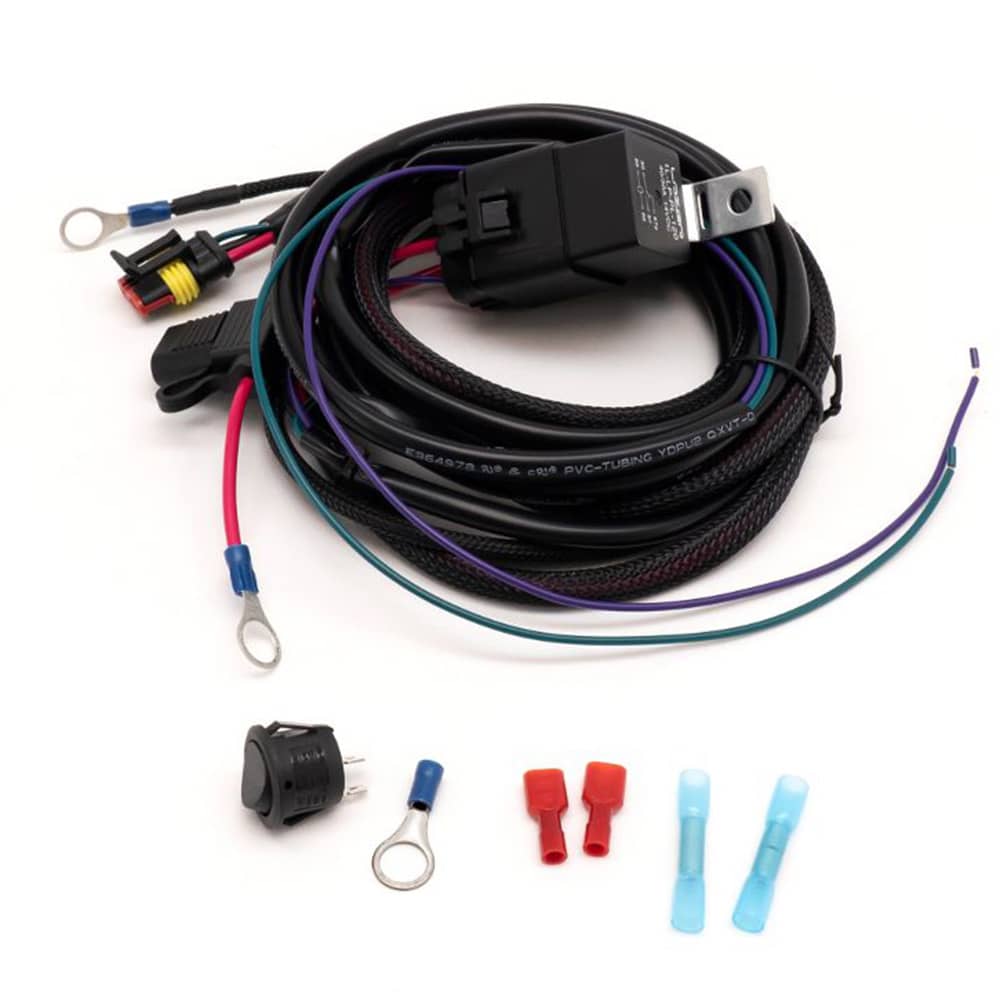

Designed specifically for demanding automotive and outdoor applications, the AMP SuperSeal 1.5 Series provides robust sealing (IP67/IP69K rating) against water, dust, and chemicals, making it ideal for exterior lighting applications such as headlights, fog lights, and taillights. Its compact size, positive terminal locking, and blind mating capability facilitate efficient assembly. Available in 1 to 12 cavity configurations, it supports wire sizes typically from 20 AWG up to 14 AWG (depending on terminal), handles common automotive voltages (up to 48V), and offers current ratings suitable for most lighting circuits (up to 13A per pin). Its polarized housings prevent mis-mating.

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

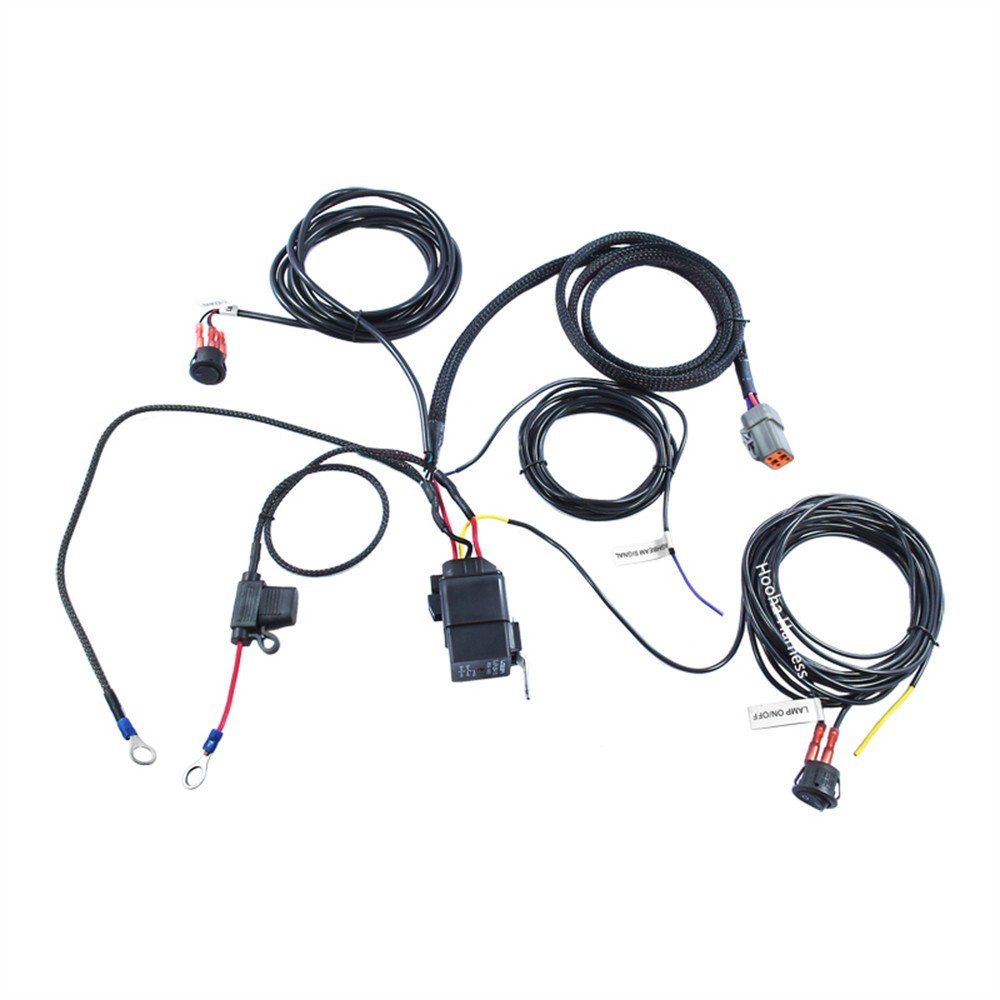

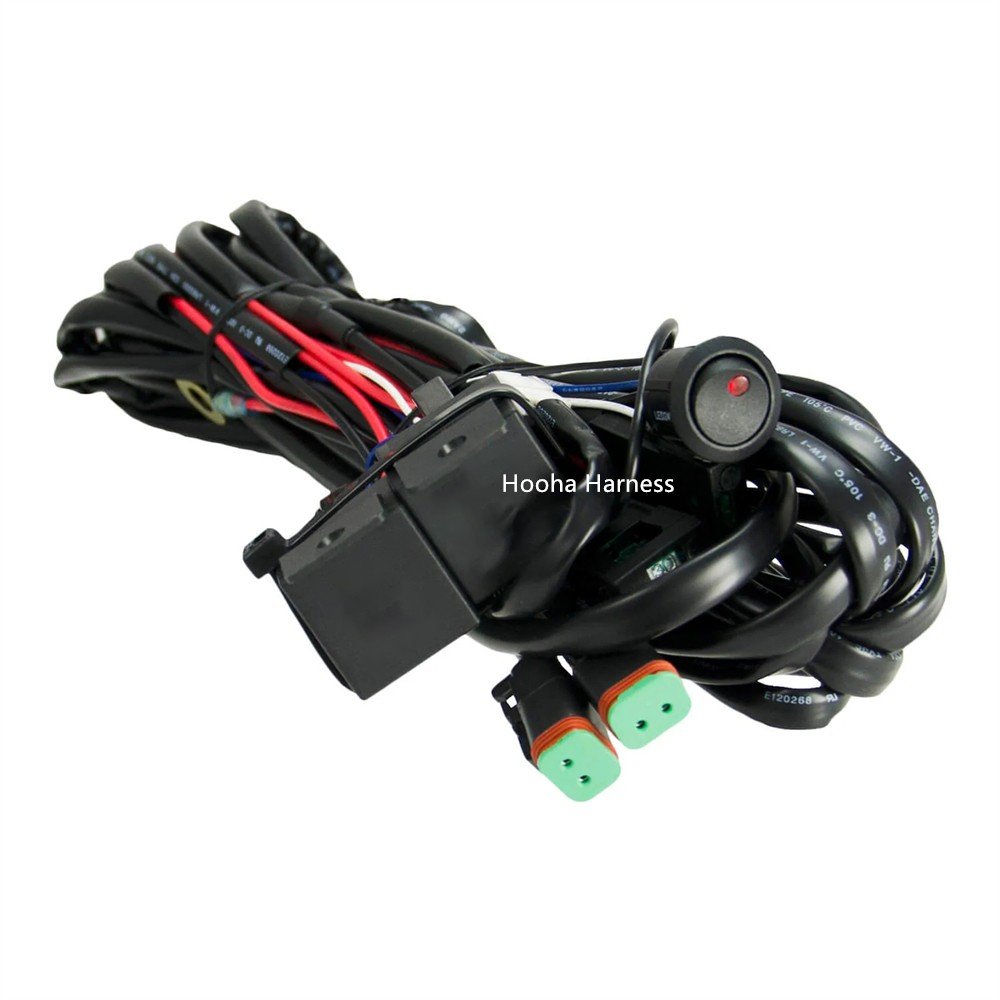

Deutsch Connectors (DT Series)

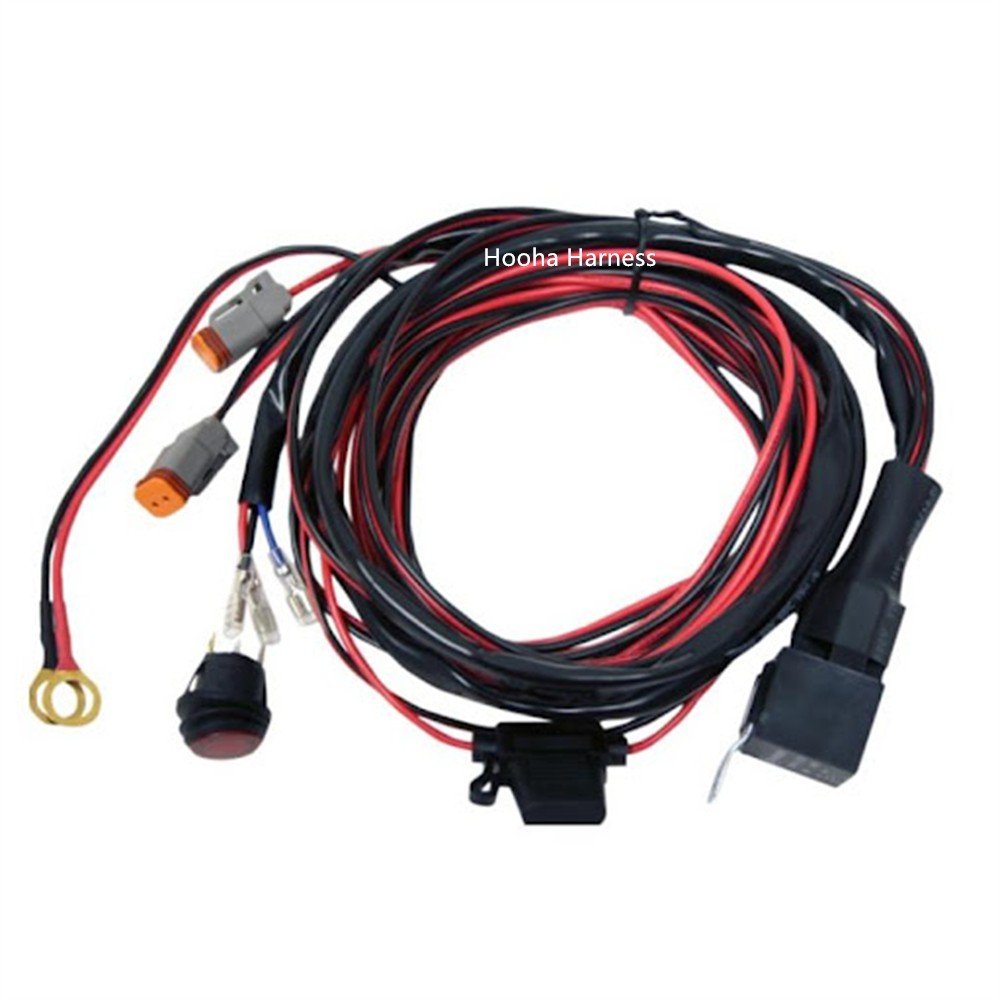

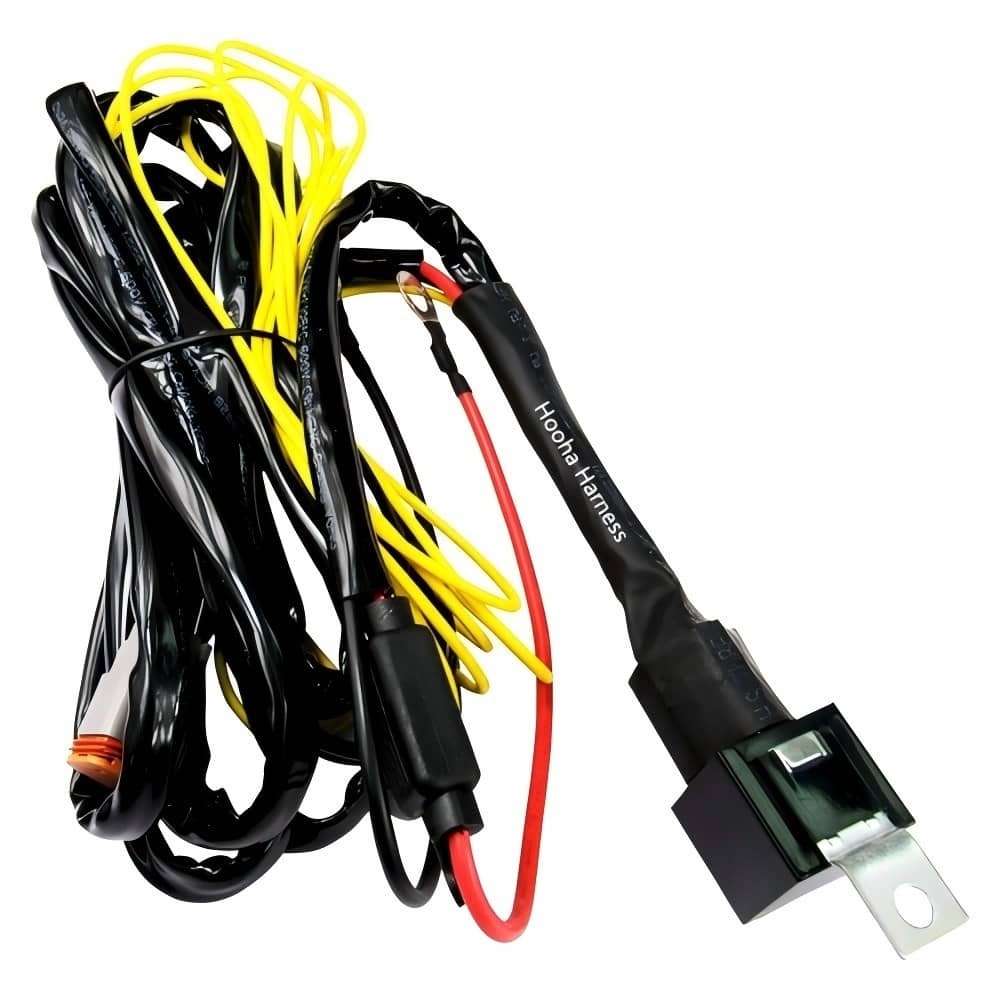

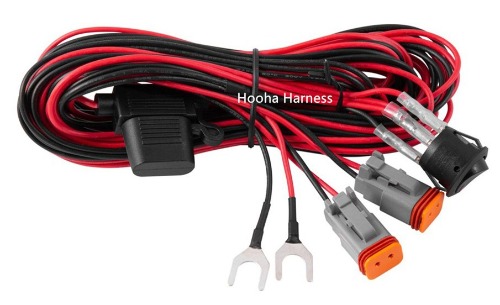

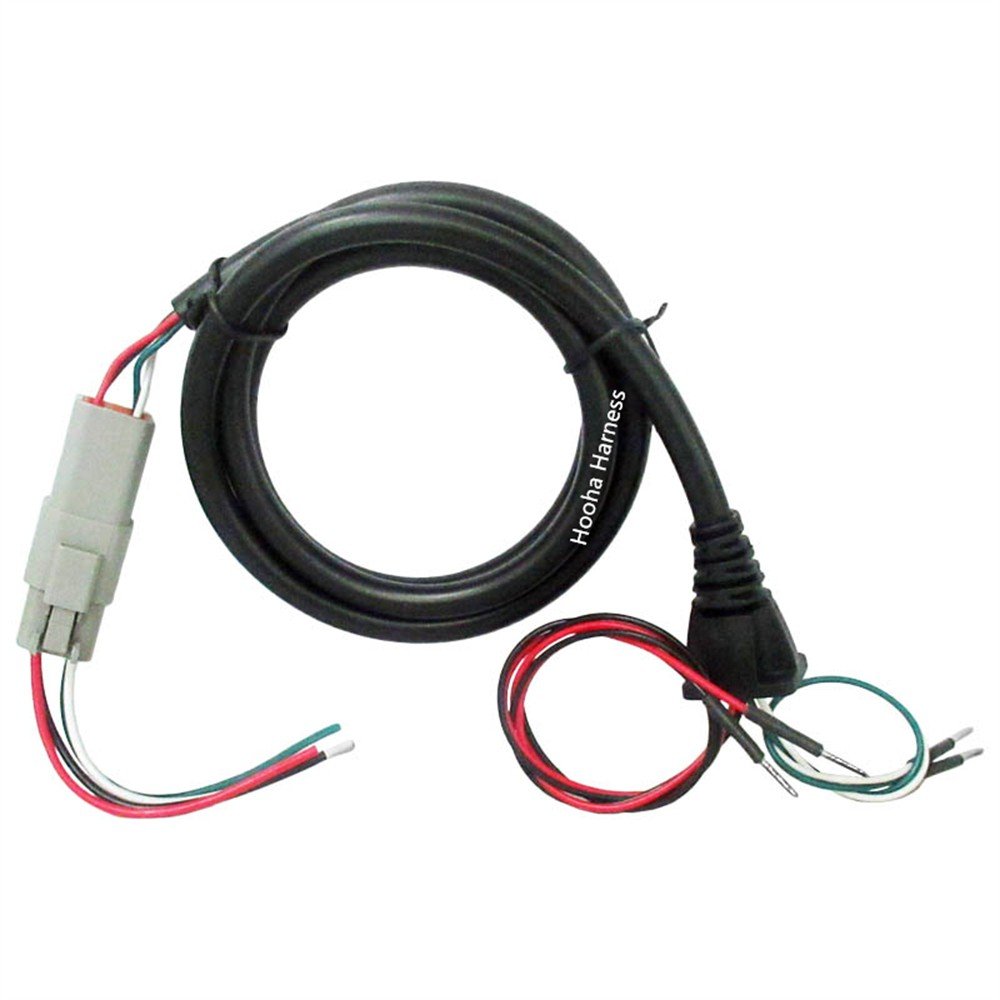

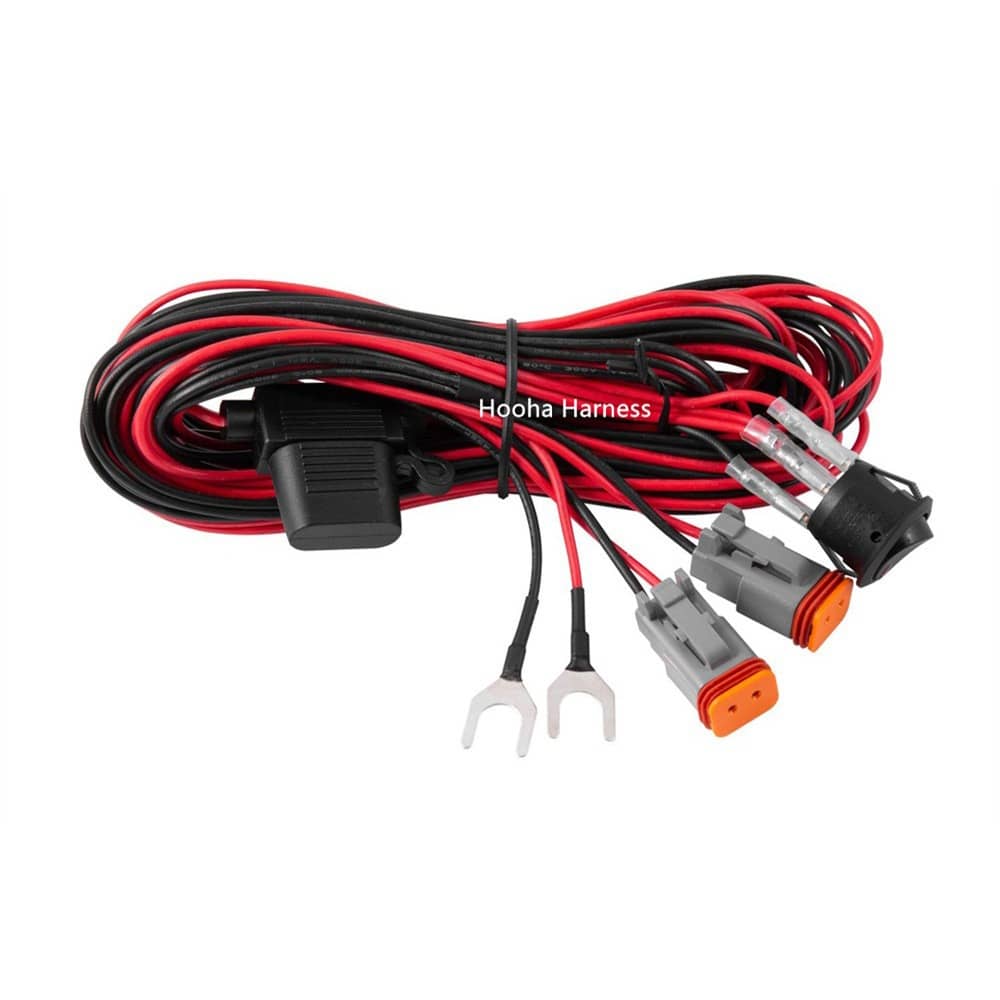

Renowned for their military-grade durability and reliability, Deutsch DT connectors are a top choice for high-vibration, high-reliability applications, including off-road lighting (such as spotlights) and commercial vehicle lighting. Featuring a robust metal-to-metal coupling ring lock and high-quality seals (typically IP67 rated), they excel in harsh environments. Available in 2 to 12 pins, DT terminals accommodate wires ranging from 22 AWG to 12 AWG (DTM series), offering very high current ratings (e.g., 13A-23A per pin) and capable of handling high voltages. While often slightly larger and more expensive than alternatives like SuperSeal, their legendary reliability justifies the cost in critical applications.

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

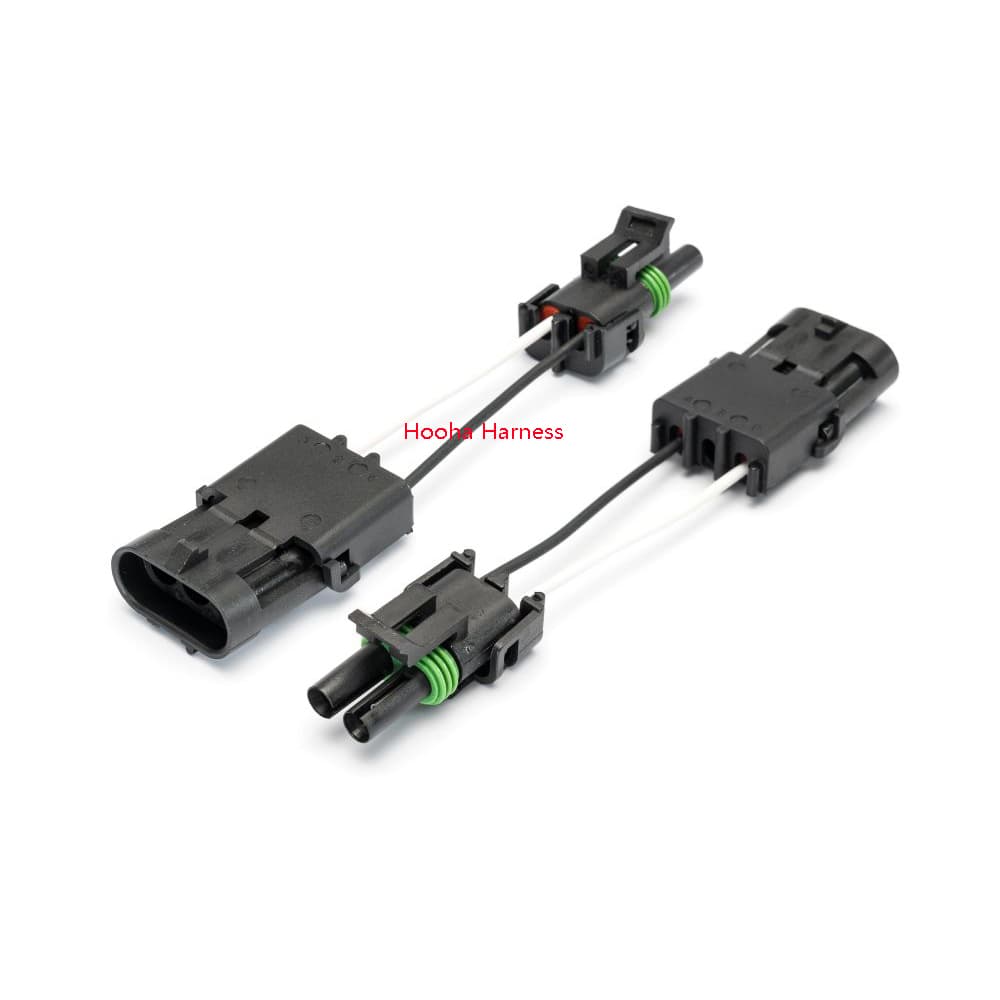

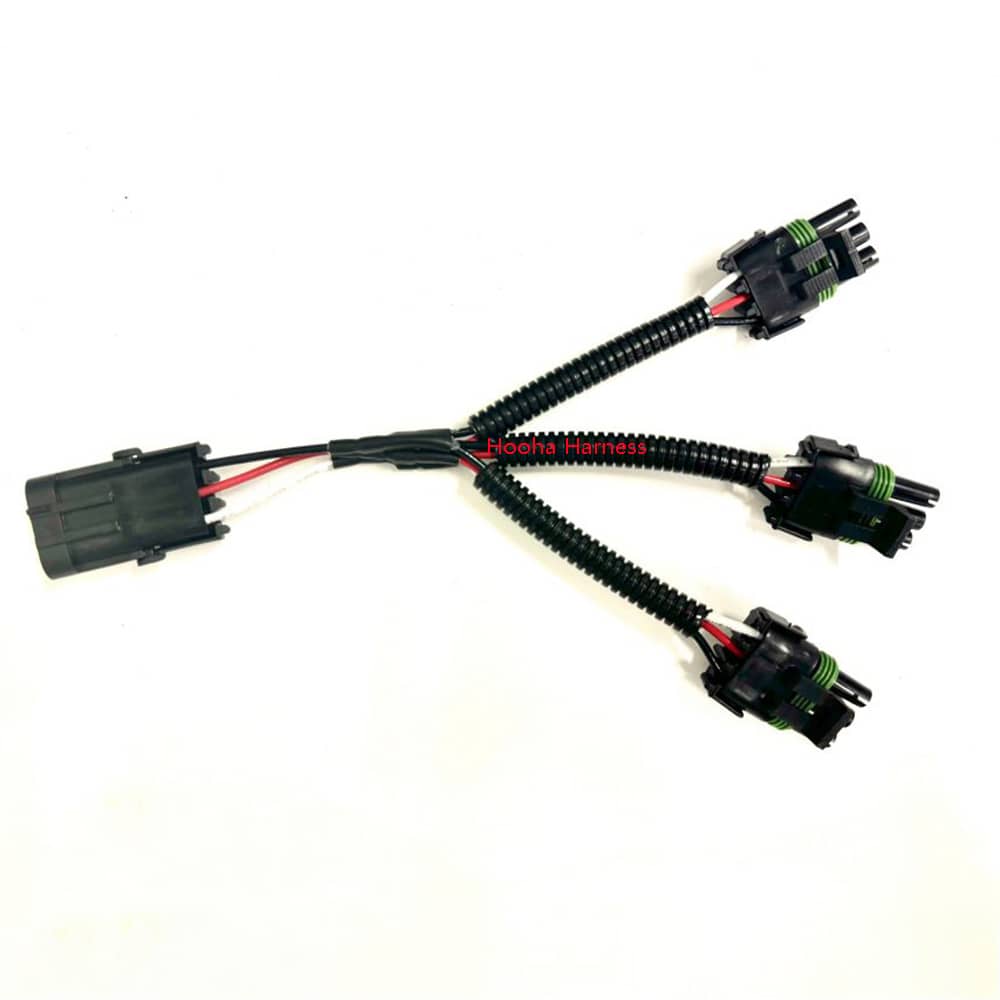

Aptiv (formerly Delphi) Weather-Pack Connectors

Weather-Pack connectors provide a cost-effective and reliable sealed solution (IP67 rating) for many automotive lighting applications where extreme pressures aren't required, such as interior lighting circuits or less exposed auxiliary lights. They feature a simple "push-lock" design with cavity plugs and silicone seals that compress during mating. Common in 1 to 12 pin configurations, they handle standard automotive voltages and support wire gauges typically ranging from 22 AWG up to 14 AWG, with current ratings suitable for most lighting loads (approx. 12A per 16-14 AWG contact). Their wide availability and affordability make them a popular choice.

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Light Wire Harness

Quick Disconnect (QD) Terminals (Tab & Receptacle)

Simple and widely used, QD terminals (male tab and female receptacles, often insulated) are common solutions for individual bulb sockets or simple in-line connections, especially for interior lights or easily accessible points. They offer tool-less connection and disconnection but lack inherent sealing. They are rated for specific wire gauges (e.g., 22-16 AWG, 16-14 AWG) and moderate currents (often 10A-15A). While convenient and inexpensive, their unsealed nature limits use to protected environments.

Summary

Selecting the optimal connector for an automotive lighting wire harness requires a careful assessment of both the electrical requirements and the environmental conditions specific to the application. Critical electrical factors include the maximum system voltage and ensuring the connector's voltage rating provides a sufficient safety margin to prevent breakdown. Equally vital is matching the connector's current rating per terminal to the circuit's peak current draw to avoid overheating failures. Ensuring perfect compatibility between the wire gauge used in the harness and the terminal size within the connector is non-negotiable for a reliable, low-resistance connection. Finally, practical considerations such as sourcing availability favor well-established brands like TE's AMP SuperSeal 1.5, Deutsch DT, and Aptiv's Weather-Pack, which offer cost-effective logistics and serviceability.

Popular choices each have distinct strengths: The AMP SuperSeal 1.5 excels as a compact, sealed solution for demanding exterior lighting with its excellent ingress protection and ease of assembly. The Deutsch DT series offers unparalleled durability and higher power capacity, making it ideal for severe-duty applications such as off-road spotlights and demanding environments. Aptiv Weather-Pack provides a reliable, sealed option at a lower cost point, making it suitable for protected applications. Simple, Quick-Disconnect terminals are suitable only for interior lights or easily accessible, dry locations due to their lack of sealing. Prioritizing connectors rated for higher environmental protection (e.g., IP67/IP69K) and verifying compatibility with crimping tools and processes ensures the lighting harness delivers long-term, safe, and trouble-free performance under the hood, on the road, or within the cabin.
