Introduction

TE Connectivity has developed the AMP SUPERSEAL 1.5 series connector family to meet the increasing requirements for reliability and waterproofness. AMP SUPERSEAL 1.5 series connector exceeds the requirements prescribed by IP 67 according to IEC 60529 and DIN 40050-9 standards and has applications in automotive, agriculture, and industrial machinery. For sensor application, the AMP SUPERSEAL 1.5 series Connector system is qualified as well.

Features

Compact system minimizes packaging requirements
Sealing reliability proven under harsh conditions
Designed for ease of manual harness assembly, engine mounting, and under-hood environments
Wire-to-Wire (1.5 mm) and ECU applications, under hood or any location where sealing is required
Suitable for automotive, truck, bus, or off-road vehicles

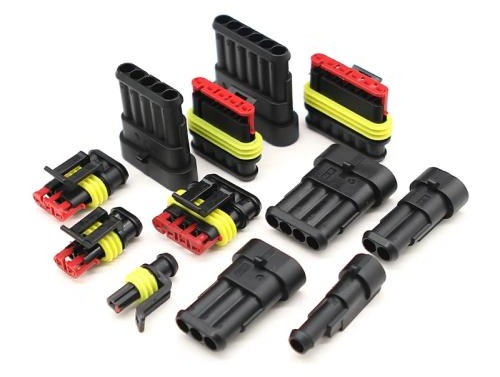

Connector Part Number Lists

Product Description	Part Number	Connector System	Number of Positions	Connector & Housing Type	Sealable	Primary Product Color	Contact Current Rating (Max)
AMP SUPERSEAL 1.5 SERIES 1P PLUG ASS'Y	1-282079-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	1	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 1P PL	282079-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	1	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 1P CA	282103-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	1	Housing for Male Terminals	Yes	Black	14 A
SUPERSEAL 2 POS. TAB HOUSING (CLOSED CAV	1745022-1	Wire-to-Wire	2	Housing for Male Terminals	No	Orange	14 A
AMP SUPERSEAL 1.5 SERIES 2P PL	282080-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 2P PL	282080-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	Yes	Gray	14 A
AMP SUPERSEAL 1.5 SERIES 2P PL	282080-3	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	Yes	Green	14 A
AMP SUPERSEAL 1.5 SERIES 2P CA	282104-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Male Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 2P CA	282104-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	Yes	Gray	14 A
AMP SUPERSEAL 1.5 SERIES 2P CA	282104-3	Wire-to-Board, Wire-to-Device, Wire-to-Wire	2	Housing for Female Terminals	Yes	Green	14 A
3 POS. TAB ASSY AMP SUPERSEAL 1.5 SRS.	1745082-1	Wire-to-Board, Wire-to-Wire	3	Housing for Male Terminals	No	Natural	14 A
3 POS. PLUG ASSY AMP SUPERSEAL 1.5 SRS	1745083-1	Wire-to-Board, Wire-to-Wire	3	Housing for Female Terminals	Yes	Natural	14 A
AMP SUPERSEAL 1.5 SERIES 3P PL	282087-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	3	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 3P PL	282087-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	3	Housing for Female Terminals	Yes	Gray	14 A
AMP SUPERSEAL 1.5 SERIES 3P CA	282105-1	Wire-to-Wire	3	Housing for Male Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 3P PL	284073-1	Wire-to-Wire	3	Housing for Female Terminals	Yes	Black
4W SUPERSEAL 1,5 SR.FEM ASSY(C	1745101-1	Wire-to-Board, Wire-to-Wire	4	Housing for Female Terminals	Yes	Orange	14 A
AMP SUPERSEAL 1.5 SERIES 4P PL	282088-1	Wire-to-Wire	4	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 4P PL	282088-2	Wire-to-Board, Wire-to-Device, Wire-to-Wire	4	Housing for Female Terminals	Yes	Gray	14 A
4P PLUG CONNECTOR	282088-3	Wire-to-Board, Wire-to-Device, Wire-to-Wire	4	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 4P CA	282106-1	Wire-to-Wire	4	Housing for Male Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 4P CA	282106-2	Wire-to-Wire	4	Housing for Male Terminals	Yes	Gray	14 A
AMP SUPERSEAL 1.5 SERIES 5P PL	282089-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	5	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 5P CA	282107-1	Wire-to-Wire	5	Housing for Male Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 6P PL	282090-1	Wire-to-Board, Wire-to-Device, Wire-to-Wire	6	Housing for Female Terminals	Yes	Black	14 A
AMP SUPERSEAL 1.5 SERIES 6P CA	282108-1	Wire-to-Wire	6	Housing for Male Terminals	Yes	Black	14 A
PLUG HOUSING 18P B KIT	8-1447231-1	Wire-to-Board, Wire-to-Device	18	Housing for Female Terminals	Yes	Gray

AMP Superseal 1.5mm Connector applications

1. Automotive Industry

Engine Management Systems: These connectors connect various sensors (such as temperature, pressure, and oxygen) to the vehicle's engine control unit (ECU).
Lighting Systems: Used in headlight, taillight, and indicator systems due to their durability and reliability in different weather conditions.
Fuel Systems: Often used in fuel injection systems and fuel pump connections.
Transmission Systems: Connectors are used in automatic and manual transmissions to ensure secure, reliable connections.

2. Marine Applications

Navigation Systems: Used in connecting GPS, sonar, and other navigational aids.
Lighting and Instrumentation: Applied in marine lighting systems and dashboard instrumentation.
Engine Control: Connectors are used in marine engine control systems due to their ability to withstand moisture and saline environments.

3. Agricultural Machinery

Tractors and Harvesters: Used in various control systems, including engine management and hydraulic systems.
Sprayers and Seeders: Applied in the control units of sprayers, seeders, and other field equipment.

4. Industrial Equipment

Heavy Machinery: Utilized in construction and mining equipment for connecting sensors, actuators, and control units.
Automation Systems: Used in factory automation for connecting different control modules, sensors, and actuators.

5. Motorcycles and Power Sports

Motorcycle Electrical Systems: Used for connecting sensors, ignition systems, and lighting systems.
ATVs and Snowmobiles: Applied in the electrical systems of ATVs, snowmobiles, and other powersports vehicles.

6. Renewable Energy Systems

Solar Power Systems: Used in solar panel connections and inverters due to their ability to withstand outdoor conditions.
Wind Turbines: Employed in the control systems of wind turbines, where reliable and weatherproof connections are critical.

7. Consumer Electronics

Outdoor Equipment: Used in products like outdoor cameras, weather stations, and other electronics that require protection against environmental factors.

The AMP Superseal 1.5mm connector is favored in these applications due to its compact size, water and dust resistance (IP67 rating), and robust design, which ensures a secure and reliable connection in demanding environments.

Custom Wire Harness Cases

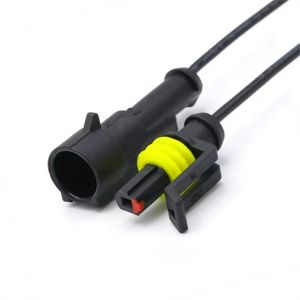

282103-1, 282089-2

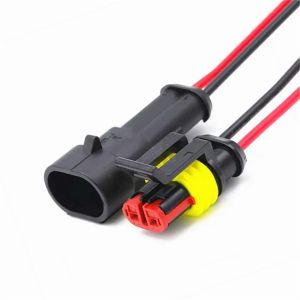

282080-1, 282104-1

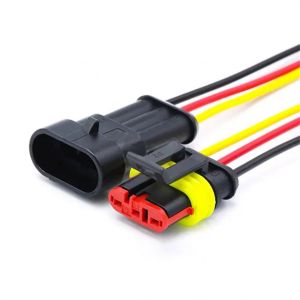

282087-1, 282105-1

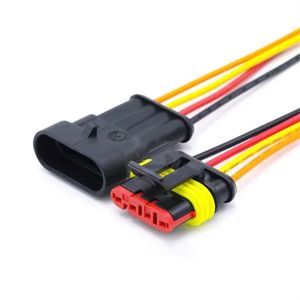

282088-1, 282106-1

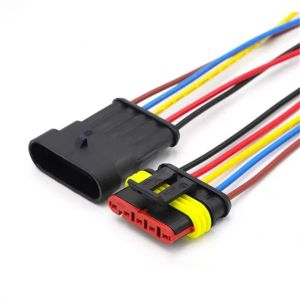

282107-1, 282089-1

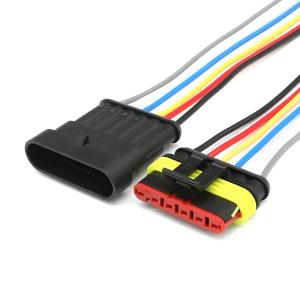

282108-1, 282090-1

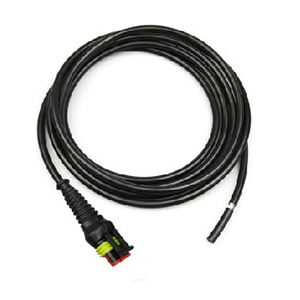

AMP Superseal connector 3p Wiring

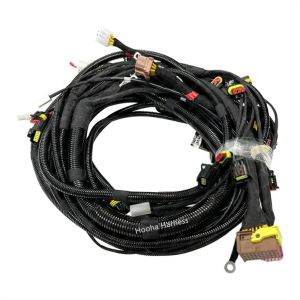

auto electrical harness

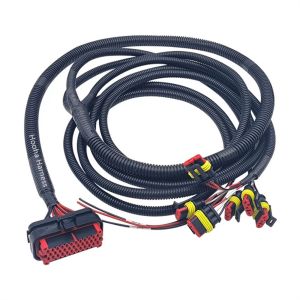

auto electrical wiring

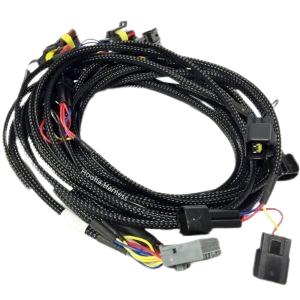

auto wiring harness

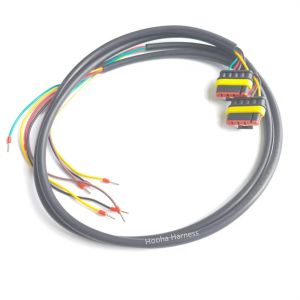

automotive wire harness

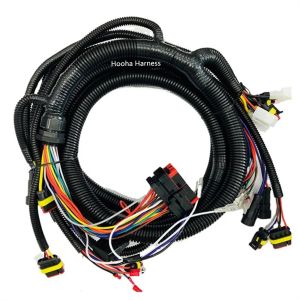

car wiring harness

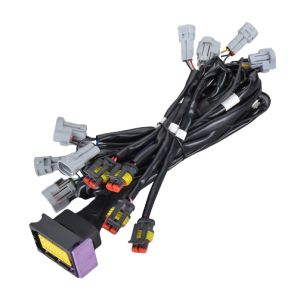

ECU wire harness

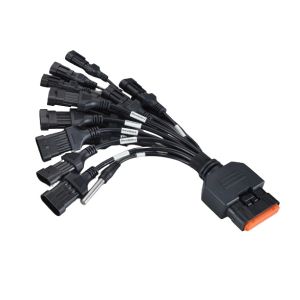

Overmold cable assembly

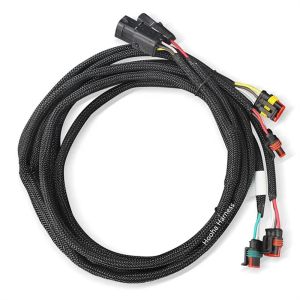

Wire harness assembly

How to customize your superseal 1.5 connector wire harness?

Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
