Deutsch DT connector, DT Cable Assembly

DT Series Connectors

Deutsch Connector Performance Specs

• Temperature: Operating at temperatures -55°C to +125°C
• Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
• Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
• Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.
• Insulation Resistance: 1000 megohms minimum at 25°C.
• Immersion: IP68 rating
• Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
• Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 volts AC.
• Thermal Cycle: No cracking, chipping, or leaking after 20 test cycles from -55°C to +125°C.

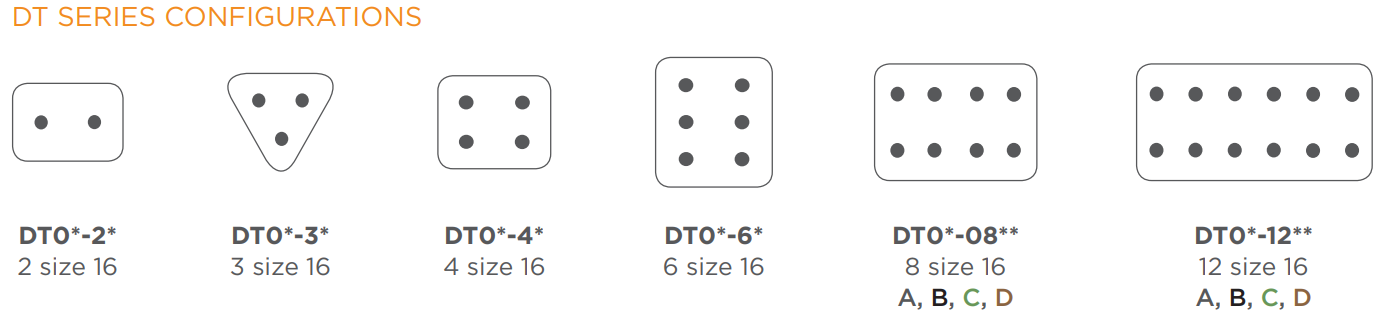

Deutsch DT Connector Part Number

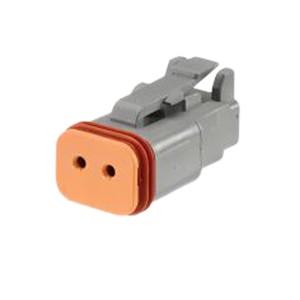

2P 2Pin 2Way 2-hole 2-cavity

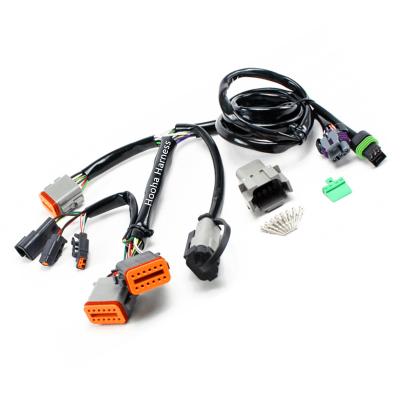

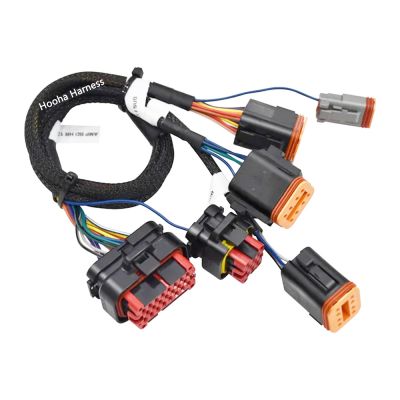

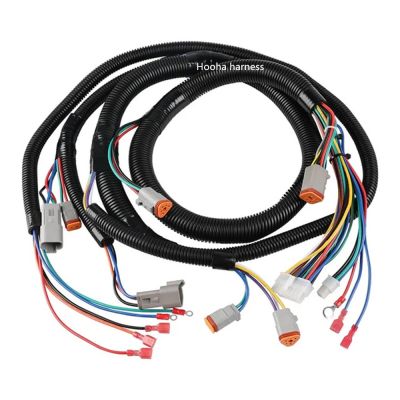

Support Custom Wire Harness Assembly

• Connectors: All Deutsch DT Series Connectors.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 100 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
