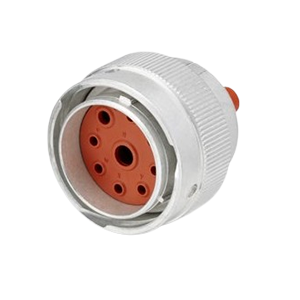

Deutsch HD30 Connectors (18, 19, 20, 21Pin), Custom Cable Assembly
Part 1
- 6P 6Pin 6Way 6-hole 6-cavity
- 8P 8Pin 8Way 8-hole 8-cavity
- 9P 9Pin 9Way 9-hole 9-cavity
- 14P 14Pin 14Way 14-hole 14-cavity
- 16P 16Pin 16Way 16-hole 16-cavity
Part 2
- 18P 18Pin 18Way 18-hole 18-cavity
- 19P 19Pin 19Way 19-hole 19-cavity
- 20P 20Pin 20Way 20-hole 20-cavity
- 21P 21Pin 21Way 21-hole 21-cavity
Part 3
- 23P 23Pin 23Way 23-hole 23-cavity
- 29P 29Pin 29Way 29-hole 29-cavity
- 31P 31Pin 31Way 31-hole 31-cavity
- 33P 33Pin 33Way 33-hole 33-cavity
- 35P 35Pin 35Way 35-hole 35-cavity
- 47P 47Pin 47Way 47-hole 47-cavity
| Product Description | Part Number | Number of Positions | Contact Current Rating (Max) |
| REC, 18P, AL, E, 8/12/16, P | HD34-24-18PE | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, 8/12/16, P | HD34-24-18PN | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, CBLCLMPBT, DR, 8/12/16, P, MC | HD34-24-18PN-059 | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, THD ADPT DRAIN, 8/12/16, P | HD34-24-18PN-072 | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, E, 8/12/16, S | HD34-24-18SE | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, E, CBLCLMPBT, DR, 8/12/16, S, MC | HD34-24-18SE-059 | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, 8/12/16, S | HD34-24-18SN | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, CBLCLMPBT, DR, 8/12/16, S, MC | HD34-24-18SN-059 | 18 | 13 A, 25 A, 60 A |
| REC, 18P, AL, N, THDADPT, DRAIN, 8/12/16, S | HD34-24-18SN-072 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, E, CBLCLMPBT, DR, 8/12/16, P, MC | HD36-24-18PE-059 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, 8/12/16, P | HD36-24-18PN | 18 | 13 A, 25 A, 60 A |
| PLG, 8P, AL, N, CBLCLMPBT, DR, 8/12/16, P, MC | HD36-24-18PN-059 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, THD ADPT DRAIN, 8/12/16, P | HD36-24-18PN-072 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, CBLCLMPBT, NODR, 8/12/16, P, MC | HD36-24-18PN-L006 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, E, 8/12/16, S | HD36-24-18SE | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, E, CBLCLMPBT, DR, 8/12/16, S, MC | HD36-24-18SE-059 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, 8/12/16, S | HD36-24-18SN | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, CBLCLMPBT, DR, 8/12/16, S, MC | HD36-24-18SN-059 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, THD ADPT DRAIN, 8/12/16, S | HD36-24-18SN-072 | 18 | 13 A, 25 A, 60 A |
| PLG, 18P, AL, N, CBLCLMPBT, NODR, 8/12/16, S, MC | HD36-24-18SN-L006 | 18 | 13 A, 25 A, 60 A |
| BR AWY PL ASM, MC | HDB36-24-18PN-059 | 18 | 13 A, 25 A, 60 A |
| REC, 19P, AL, E, 12/16, P | HD34-24-19PE | 19 | 13 A, 25 A |
| REC, 19P, AL, E, CBL CLMPBT, DRAIN, 12/16, P, MC | HD34-24-19PE-059 | 19 | 13 A, 25 A |
| REC, 19P, AL, E, THD ADPT, DRAIN, 12/16, P | HD34-24-19PE-072 | 19 | 13 A, 25 A |
| REC, 19P, AL, N, 12/16, P | HD34-24-19PN | 19 | 13 A, 25 A |
| REC, 19P, AL, N, CBLCLMP BT, DRAIN, 12/16, P, MC | HD34-24-19PN-059 | 19 | 13 A, 25 A |
| REC, 19P, AL, N, THD ADPT, DRAIN, 12/16, P | HD34-24-19PN-072 | 19 | 13 A, 25 A |
| REC, 19P, AL, E, 12/16, S | HD34-24-19SE | 19 | 13 A, 25 A |
| REC, 19P, AL, E, CBLCLMP BT, DRAIN, 12/16, S, MC | HD34-24-19SE-059 | 19 | 13 A, 25 A |
| REC, 19P, AL, N, 12/16, S | HD34-24-19SN | 19 | 13 A, 25 A |
| REC, 19P, AL, N, CBLCLMP BT, DRAIN, 12/16, S, MC | HD34-24-19SN-059 | 19 | 13 A, 25 A |
| REC, 19P, AL, N, THD ADPT, DRAIN, 12/16, S | HD34-24-19SN-072 | 19 | 13 A, 25 A |
| REC, 19P, AL, N THD ADPT NODRAIN, 12/16, S | HD34-24-19SN-L005 | 19 | 13 A, 25 A |
| PLG, 19P, AL, E, 12/16, P | HD36-24-19PE | 19 | 13 A, 25 A |
| PLG, 19P, AL, E, CBLCLMP BT, DRAIN, 12/16, P, MC | HD36-24-19PE-059 | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, 12/16, P | HD36-24-19PN | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, CBLCLMP BT, DRAIN, 12/16, P, MC | HD36-24-19PN-059 | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, THD ADPT, DRAIN, 12/16, P | HD36-24-19PN-072 | 19 | 13 A, 25 A |
| PLG, 19P, AL, E, 12/16, S | HD36-24-19SE | 19 | 13 A, 25 A |
| PLG, 19P, AL, E, CBLCLMP BT, DRAIN, 12/16, S, MC | HD36-24-19SE-059 | 19 | 13 A, 25 A |
| PLG, 19P, AL, E, THD ADPT, DRAIN, 12/16, S | HD36-24-19SE-072 | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, 12/16, S | HD36-24-19SN | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, CBLCLMP BT, DRAIN, 12/16, S, MC | HD36-24-19SN-059 | 19 | 13 A, 25 A |
| PLG, 19P, AL, N, THD ADPT, DRAIN, 12/16, S | HD36-24-19SN-072 | 19 | 13 A, 25 A |
| PLG, 19P, AL, N THD ADPT NODRAIN, 12/16, S | HD36-24-19SN-L005 | 19 | 13 A, 25 A |
| REC, 20P, AL, N, 16/20, P | HD34-18-20PN | 20 | 7.5 A, 13 A |
| REC, 20P, AL, N, CBLCLMP BT, DRAIN, 16/20, P, MC | HD34-18-20PN-059 | 20 | 7.5 A, 13 A |
| REC, 20P, AL, N, 16/20, S | HD34-18-20SN | 20 | 7.5 A, 13 A |
| REC, 20P, AL, N, CBLCLMP BT, DRAIN, 16/20, S, MC | HD34-18-20SN-059 | 20 | 7.5 A, 13 A |
| REC, 20P, AL, N, THD ADPT, DRAIN, 16/20, S | HD34-18-20SN-072 | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, 16/20, P | HD36-18-20PN | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, CBLCLMP BT, DRAIN, 16/20, P, MC | HD36-18-20PN-059 | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, THD ADPT, DRAIN, 16/20, P | HD36-18-20PN-072 | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, 16/20, S | HD36-18-20SN | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, CBLCLMP BT, DRAIN, 16/20, S, MC | HD36-18-20SN-059 | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, THD ADPT, DRAIN, 16/20, S | HD36-18-20SN-072 | 20 | 7.5 A, 13 A |
| PLG, 20P, AL, N, THD ADPT, NODRAIN, 16, S | HD36-18-20SN-L005 | 20 | 7.5 A, 13 A |
| REC, 21P, AL, N, 20, P | HD34-18-21PN | 21 | 7.5 A |
| REC, 21P, AL, N, CBL CLMP BT, DRAIN, 20, P, MC | HD34-18-21PN-059 | 21 | 7.5 A |
| REC, 21P, AL, N, THD ADPT, DRAIN, 20, P | HD34-18-21PN-072 | 21 | 7.5 A |
| REC, 21P, AL, N, 20, S | HD34-18-21SN | 21 | 7.5 A |
| REC, 21P, AL, N, CBL CLMP BT, DRAIN, 20, S, MC | HD34-18-21SN-059 | 21 | 7.5 A |
| REC, 21P, AL, E, 12/16, P | HD34-24-21PE | 21 | 13 A, 25 A |
| REC, 21P, AL, E, CBLCLMP BT, DRAIN, 12/16, P, MC | HD34-24-21PE-059 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, THD ADPT DRAIN, 12/16, P | HD34-24-21PE-072 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, CUSTOM, 12/16, P | HD34-24-21PE-L072 | 21 | 13 A, 25 A |
| REC, 21P, AL, N, 12/16, P | HD34-24-21PN | 21 | 13 A, 25 A |
| REC, 21P, AL, N, CBLCLMP BT, DRAIN, 12/16, P, MC | HD34-24-21PN-059 | 21 | 13 A, 25 A |
| REC, 21P, AL, N, THD ADPT DRAIN, 12/16, P | HD34-24-21PN-072 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, 12/16, S | HD34-24-21SE | 21 | 13 A, 25 A |
| REC, 21P, AL, E, CBLCLMP BT, DRAIN, 12/16, S, MC | HD34-24-21SE-059 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, THD ADPT DRAIN, 12/16, S | HD34-24-21SE-072 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, THDADPT, NODRAIN, 12/16, S | HD34-24-21SE-L005 | 21 | 13 A, 25 A |
| REC, 21P, AL, E, CBLCLMPBT, NODR, 12/16, S, MC | HD34-24-21SE-L006 | 21 | 13 A, 25 A |
| REC, 21P, AL, N, 12/16, S | HD34-24-21SN | 21 | 13 A, 25 A |
| REC, 21P, AL, N, CBLCLMP BT, DRAIN, 12/16, S, MC | HD34-24-21SN-059 | 21 | 13 A, 25 A |
| REC, 21P, AL, N, THDADPT, NODRAIN, 12/16, S | HD34-24-21SN-L005 | 21 | 13 A, 25 A |
| REC, 21P, AL, N, CBLCLMPBT, NODR, 12/16, S, MC | HD34-24-21SN-L006 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, 20, P | HD36-18-21PN | 21 | 7.5 A |
| PLG, 21P, AL, N, CBL CLMP BT, DRAIN, 20, P, MC | HD36-18-21PN-059 | 21 | 7.5 A |
| PLG, 21P, AL, N, 20, S | HD36-18-21SN | 21 | 7.5 A |
| PLG, 21P, AL, N, CBL CLMP BT, DRAIN, 20, S, MC | HD36-18-21SN-059 | 21 | 7.5 A |
| PLG, 21P, AL, E, 12/16, P | HD36-24-21PE | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, CBLCLMP BT, DR, 12/16, P, MC | HD36-24-21PE-059 | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, THD ADPT DRAIN, 12/16, P | HD36-24-21PE-072 | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, THDADPT, NODRAIN, 12/16, P | HD36-24-21PE-L005 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, 12/16, P | HD36-24-21PN | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, CBLCLMP BT, DRAIN, 12/16, P, MC | HD36-24-21PN-059 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, THD ADPT DRAIN, 12/16, P | HD36-24-21PN-072 | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, 12/16, S | HD36-24-21SE | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, CBLCLMP BT, DRAIN, 12/16, S, MC | HD36-24-21SE-059 | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, THD ADPT DRAIN, 12/16, S | HD36-24-21SE-072 | 21 | 13 A, 25 A |
| PLG, 21P, AL, E, THDADPT, NODRAIN, 12/16, S | HD36-24-21SE-L005 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, 12/16, S | HD36-24-21SN | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, CBLCLMPBT, DRAIN, 12/16, S, MC | HD36-24-21SN-059 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, THD ADPT DRAIN, 12/16, S | HD36-24-21SN-072 | 21 | 13 A, 25 A |
| PLG, 21P, AL, N, THDADPT, NODRAIN, 12/16, S | HD36-24-21SN-L005 | 21 | 13 A, 25 A |
| BR AWY PL ASM, MC | HDB36-24-21SN-059 | 21 | 13 A, 25 A |
If you want to find these connectors' specs, then search TE's official website by using the correct part number and download the specs. you will get the exact info.
If you want to buy Deutsch HD30 connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, wire harness assembly services, contact us to get a free quote.
