Deutsch HD30 Connectors (23, 29, 31, 33, 35, 47Pin), Custom Cable Assembly

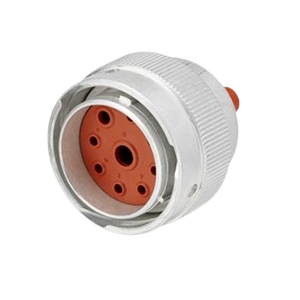

HD30 connector



Part 1



Part 2



Part 3

  • 23P 23Pin 23Way 23-hole 23-cavity
  • 29P 29Pin 29Way 29-hole 29-cavity
  • 31P 31Pin 31Way 31-hole 31-cavity
  • 33P 33Pin 33Way 33-hole 33-cavity
  • 35P 35Pin 35Way 35-hole 35-cavity
  • 47P 47Pin 47Way 47-hole 47-cavity



Product Description Part Number Number of Positions Contact Current Rating (Max)
REC, 23P, AL, E, 16, P HD34-24-23PE 23 13 A
REC, 23P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD34-24-23PE-059 23 13 A
REC, 23P, AL, E, THD ADPT DRAIN, 16, P HD34-24-23PE-072 23 13 A
REC, 23P, AL, E, THD ADPT, NODRAIN, 16, P HD34-24-23PE-L005 23 13 A
REC, 23P, AL, E, CBL CLMP, NO DRAIN, 16, P, MC HD34-24-23PE-L006 23 13 A
REC, 23P, AL, N, 16, P HD34-24-23PN 23 13 A
REC, 23P, AL, N, CBL CLMP BT, DRAIN, 16, P, MC HD34-24-23PN-059 23 13 A
REC, 23P, AL, N, THD ADPT DRAIN, 16, P HD34-24-23PN-072 23 13 A
REC, 23P, AL, T, 16, P HD34-24-23PT 23 13 A
REC, 23P, AL, T, CBL CLMP BT, DRAIN, 16, P, MC HD34-24-23PT-059 23 13 A
REC, 23P, AL, E, 16, S HD34-24-23SE 23 13 A
REC, 23P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD34-24-23SE-059 23 13 A
REC, 23P, AL, E, THD ADPT DRAIN, 16, S HD34-24-23SE-072 23 13 A
REC, 23P, AL, E, THD ADPT, NODRAIN, 16, S HD34-24-23SE-L005 23 13 A
REC, 23P, AL, E, CBL CLMP, NO DRAIN, 16, S, MC HD34-24-23SE-L006 23 13 A
REC, 23P, AL, N, 16, S HD34-24-23SN 23 13 A
REC, 23P, AL, N, CBL CLMP BT, DRAIN, 16, S, MC HD34-24-23SN-059 23 13 A
REC, 23P, AL, N, THD ADPT DRAIN, 16, S HD34-24-23SN-072 23 13 A
REC, 23P, AL, N, THD ADPT, NODRAIN, 16, S HD34-24-23SN-L005 23 13 A
REC, 23P, AL, T, 16, S HD34-24-23ST 23 13 A
REC, 23P, AL, T, CBL CLMP BT, DRAIN, 16, S, MC HD34-24-23ST-059 23 13 A
PLG, 23P, AL, E, 16, P HD36-24-23PE 23 13 A
PLG, 23P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD36-24-23PE-059 23 13 A
PLG, 23P, AL, E, THD ADPT DRAIN, 16, P HD36-24-23PE-072 23 13 A
PLG, 23P, AL, E, THD ADPT, NODRAIN, 16, P HD36-24-23PE-L005 23 13 A
PLG, 23P, AL, E, CBL CLMP, NODRAIN, 16, P, MC HD36-24-23PE-L006 23 13 A
PLG, 23P, AL, N, 16, P HD36-24-23PN 23 13 A
PLG, 23P, AL, N, CBL CLMP BT, DRAIN, 16, P, MC HD36-24-23PN-059 23 13 A
PLG, 23P, AL, N, THD ADPT DRAIN, 16, P HD36-24-23PN-072 23 13 A
PLG, 23P, AL, T, 16, P HD36-24-23PT 23 13 A
PLG, 23P, AL, T, CBL CLMP BT, DRAIN, 16, P, MC HD36-24-23PT-059 23 13 A
PLG, 23P, AL, E, 16, S HD36-24-23SE 23 13 A
PLG, 23P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD36-24-23SE-059 23 13 A
PLG, 23P, AL, E, THD ADPT DRAIN, 16, S HD36-24-23SE-072 23 13 A
PLG, 23P, AL, E, THD ADPT, NODRAIN, 16, S HD36-24-23SE-L005 23 13 A
PLG, 23P, AL, E, CBL CLMP, NO DRAIN, 16, S, MC HD36-24-23SE-L006 23 13 A
PLG, 23P, AL, N, 16, S HD36-24-23SN 23 13 A
PLG, 23P, AL, N, CBL CLMP BT, DRAIN, 16, S, MC HD36-24-23SN-059 23 13 A
PLG, 23P, AL, N, THD ADPT DRAIN, 16, S HD36-24-23SN-072 23 13 A
PLG, 23P, AL, N, THD ADPT, NODRAIN, 16, S HD36-24-23SN-L005 23 13 A
PLG, 23P, AL, T, 16, S HD36-24-23ST 23 13 A
PLG, 23P, AL, T, CBL CLMP BT, DRAIN, 16, S, MC HD36-24-23ST-059 23 13 A
PLG, 23P, AL, T, THD ADPT DRAIN, 16, S HD36-24-23ST-072 23 13 A
PLG, 23P, AL, T, CBL CLMP, NO DRAIN, 16, S, MC HD36-24-23ST-L006 23 13 A
REC, 29P, AL, E, 12/16/20, P HD34-24-29PE 29 7.5 A, 13 A, 25 A
REC, 29P, AL, E, CBLCLMPBT, DR, 12/16/20, P, MC HD34-24-29PE-059 29 7.5 A, 13 A, 25 A
REC, 29P, AL, E, THDADPTDRAIN, 12/16/20, P HD34-24-29PE-072 29 7.5 A, 13 A, 25 A
REC, 29P, AL, E, 12/16/20, S HD34-24-29SE 29 7.5 A, 13 A, 25 A
REC, 29P, AL, E, CBLCLMPBT, DR, 12/16/20, S, MC HD34-24-29SE-059 29 7.5 A, 13 A, 25 A
REC, 29P, AL, E, THDADPTDRAIN, 12/16/20, S HD34-24-29SE-072 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, 12/16/20, P HD36-24-29PE 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, CBLCLMPBT, DR, 12/16/20, P, MC HD36-24-29PE-059 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, THDADPTDRAIN, 12/16/20, P HD36-24-29PE-072 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, THDADPT, NODRAIN, 12/16/20, P HD36-24-29PE-L005 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, 12/16/20, S HD36-24-29SE 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, CBLCLMPBT, DR, 12/16/20, S, MC HD36-24-29SE-059 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, THDADPTDRAIN, 12/16/20, S HD36-24-29SE-072 29 7.5 A, 13 A, 25 A
PLG, 29P, AL, E, THDADPT, NODRAIN, 12/16/20, S HD36-24-29SE-L005 29 7.5 A, 13 A, 25 A
REC, 31P, AL, E, 16, P HD34-24-31PE 31 13 A
REC, 31P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD34-24-31PE-059 31 13 A
REC, 31P, AL, E, THD ADPT, DRAIN, 16, P HD34-24-31PE-072 31 13 A
REC, 31P, AL, T, 16, P HD34-24-31PT 31 13 A
REC, 31P, AL, T, CBL CLMP BT, DRAIN, 16, P, MC HD34-24-31PT-059 31 13 A
REC, 31P, AL, T, THD ADPT, DRAIN, 16, P HD34-24-31PT-072 31 13 A
REC, 31P, AL, T, CUSTOM MOUNT, 16, P HD34-24-31PT-B019 31 13 A
REC, 31P, AL, T, THD ADPT, NO DRAIN, 16, P HD34-24-31PT-L005 31 13 A
REC, 31P, AL, T, CBLCLMPBT, NODRAIN, 16, P, MC HD34-24-31PT-L006 31 13 A
REC, 31P, AL, E, 16, S HD34-24-31SE 31 13 A
REC, 31P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD34-24-31SE-059 31 13 A
REC, 31P, AL, E, THD ADPT, DRAIN, 16, S HD34-24-31SE-072 31 13 A
REC, 31P, AL, E, THD ADPT, NO DRAIN, 16, S HD34-24-31SE-L005 31 13 A
REC, 31P, AL, E, CBLCLMPBT, NODRAIN, 16, S, MC HD34-24-31SE-L006 31 13 A
REC, 31P, AL, T, 16, S HD34-24-31ST 31 13 A
REC, 31P, AL, T, CBL CLMP BT, DRAIN, 16, S, MC HD34-24-31ST-059 31 13 A
REC, 31P, AL, T, THD ADPT, DRAIN, 16, S HD34-24-31ST-072 31 13 A
REC, 31P, AL, T, THD ADPT, NO DRAIN, 16, S HD34-24-31ST-L005 31 13 A
PLG, 31P, AL, E, 16, P HD36-24-31PE 31 13 A
PLG, 31P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD36-24-31PE-059 31 13 A
PLG, 31P, AL, E, THD ADPT, DRAIN, 16, P HD36-24-31PE-072 31 13 A
PLG, 31P, AL, E, CBLCLMPBT, NODRAIN, 16, P, MC HD36-24-31PE-L006 31 13 A
PLG, 31P, AL, T, 16, P HD36-24-31PT 31 13 A
PLG, 1P, L, T, CBL CLMP BT, DRAIN, 16, P, MC HD36-24-31PT-059 31 13 A
PLG, 31P, AL, T, THD ADPT, DRAIN, 16, P HD36-24-31PT-072 31 13 A
PLG, 31P, AL, T, THD ADPT, NO DRAIN, 16, P HD36-24-31PT-L005 31 13 A
PLG, 31P, AL, T, CBLCLMPBT, NODRAIN, 16, P, MC HD36-24-31PT-L006 31 13 A
PLG, 31P, AL, E, 16, S HD36-24-31SE 31 13 A
PLG, 31P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD36-24-31SE-059 31 13 A
PLG, 31P, AL, E, THD ADPT, DRAIN, 16, S HD36-24-31SE-072 31 13 A
PLG, 31P, AL, E, THD ADPT, NO DRAIN, 16, S HD36-24-31SE-L005 31 13 A
PLG, 31P, AL, T, 16, S HD36-24-31ST 31 13 A
PLG, 31P, AL, T, CBL CLMP BT, DRAIN, 16, S, MC HD36-24-31ST-059 31 13 A
PLG, 31P, AL, T, THD ADPT, DRAIN, 16, S HD36-24-31ST-072 31 13 A
PLG, 31P, AL, T, CUSTOM MOUNT, 16, P HD36-24-31ST-B019 31 13 A
PLG, 31P, AL, T, THD ADPT, NO DRAIN, 16, S HD36-24-31ST-L005 31 13 A
BR AWY PL ASM, MC HDB36-24-31SE-059 31 13 A
REC, 33P, AL, N, 20, P HD34-24-33PN 33 7.5 A
REC, 33P, AL, N, CBL CLMP BT, DRAIN, 20, P, MC HD34-24-33PN-059 33 7.5 A
REC, 33P, AL, N, THD ADPT DRAIN, 20, P HD34-24-33PN-072 33 7.5 A
REC, 33P, AL, N, 20, S HD34-24-33SN 33 7.5 A
REC, 33P, AL, N, CBL CLMP BT, DRAIN, 20, S, MC HD34-24-33SN-059 33 7.5 A
PLG, 33P, AL, N, 20, P HD36-24-33PN 33 7.5 A
PLG, 33P, AL, N, CBL CLMP BT, DRAIN, 20, P, MC HD36-24-33PN-059 33 7.5 A
PLG, 33P, AL, N, THD ADPT DRAIN, 20, P HD36-24-33PN-072 33 7.5 A
PLG, 33P, AL, N, THD ADPT, NO DRAIN, 20, P HD36-24-33PN-L005 33 7.5 A
PLG, 33P, AL, N, 20, S HD36-24-33SN 33 7.5 A
PLG, 33P, AL, N, CBL CLMP BT, DRAIN, 20, S, MC HD36-24-33SN-059 33 7.5 A
PLG, 33P, AL, N, THD ADPT DRAIN, 20, S HD36-24-33SN-072 33 7.5 A
PLG, 33P, AL, N, THD ADPT, NO DRAIN, 20, S HD36-24-33SN-L005 33 7.5 A
REC, 35P, AL, N, 16/20, P HD34-24-35PN 35 7.5 A, 13 A
REC, 35P, AL, N, CBLCLMPBT, DRAIN, 16/20, P, MC HD34-24-35PN-059 35 7.5 A, 13 A
REC, 35P, AL, N, 16/20, S HD34-24-35SN 35 7.5 A, 13 A
REC, 35P, AL, N, CBLCLMPBT, DRAIN, 16/20, S, MC HD34-24-35SN-059 35 7.5 A, 13 A
REC, 35P, AL, N, THD ADPT DRAIN, 16/20, S HD34-24-35SN-072 35 7.5 A, 13 A
PLG, 35P, AL, N, 16/20, P HD36-24-35PN 35 7.5 A, 13 A
PLG, 35P, AL, N, CBLCLMPBT, DRAIN, 16/20, P, MC HD36-24-35PN-059 35 7.5 A, 13 A
PLG, 35P, AL, N, 16/20, S HD36-24-35SN 35 7.5 A, 13 A
PLG, 35P, AL, N, CBLCLMPBT, DRAIN, 16/20, S, MC HD36-24-35SN-059 35 7.5 A, 13 A
PLG, 35P, AL, N, THD ADPT DRAIN, 16/20, S HD36-24-35SN-072 35 7.5 A, 13 A
REC, 47P, AL, E, 16/20, P HD34-24-47PE 47 7.5 A, 13 A
REC, 47P, AL, E, CBLCLMPBT, DRAIN, 16/20, P, MC HD34-24-47PE-059 47 7.5 A, 13 A
REC, 47P, AL, E, THD ADPT DRAIN, 16/20, P HD34-24-47PE-072 47 7.5 A, 13 A
REC, 47P, AL, E, 16/20, S HD34-24-47SE 47 7.5 A, 13 A
REC, 47P, AL, E, CBLCLMPBT, DRAIN, 16/20, S, MC HD34-24-47SE-059 47 7.5 A, 13 A
REC, 47P, AL, E, THD ADPT DRAIN, 16/20, S HD34-24-47SE-072 47 7.5 A, 13 A
PLG, 47P, AL, E, 16/20, P HD36-24-47PE 47 7.5 A, 13 A
PLG, 47P, AL, E, CBLCLMPBT, DRAIN, 16/20, P, MC HD36-24-47PE-059 47 7.5 A, 13 A
PLG, 47P, AL, E, THD ADPT DRAIN, 16/20, P HD36-24-47PE-072 47 7.5 A, 13 A
PLG, 47P, AL, E, THDADPT, NODRAIN, 16/20, P HD36-24-47PE-L005 47 7.5 A, 13 A
PLG, 47P, AL, E, 16/20, S HD36-24-47SE 47 7.5 A, 13 A
PLG, 47P, AL, E, CBLCLMPBT, DRAIN, 16/20, S, MC HD36-24-47SE-059 47 7.5 A, 13 A
PLG, 47P, AL, E, THD ADPT DRAIN, 16/20, S HD36-24-47SE-072 47 7.5 A, 13 A
PLG, 47P, AL, E, THDADPT, NODRAIN, 16/20, S HD36-24-47SE-L005 47 7.5 A, 13 A





If you want to find these connectors' specs, then search TE's official website by using the correct part number and download the specs. you will get the exact info.



If you want to buy Deutsch HD30 connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, wire harness assembly services,  contact us to get a free quote.
