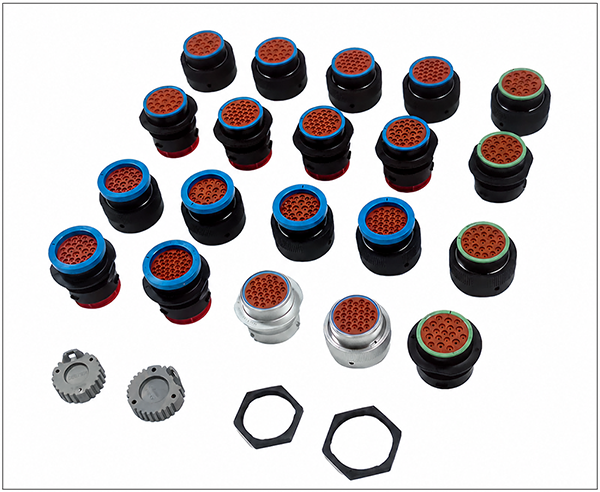

Deutsch HD30 Connectors (6, 8, 9, 14, 16Pin), Custom Cable Assembly

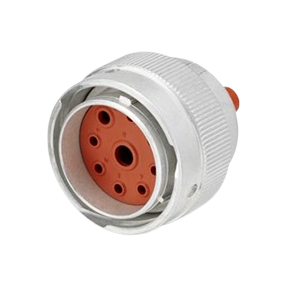

HD30 connector



Part 1

  • 6P 6Pin 6Way 6-hole 6-cavity
  • 8P 8Pin 8Way 8-hole 8-cavity
  • 9P 9Pin 9Way 9-hole 9-cavity
  • 14P 14Pin 14Way 14-hole 14-cavity
  • 16P 16Pin 16Way 16-hole 16-cavity



Part 2



Part 3





Product Description Part Number Number of Positions Contact Current Rating (Max)
REC, 6P, AL, N, 4/16, P HD34-18-6PN 6 13 A, 100 A
REC, 6P, AL, N, CBL CLMP BT, DRAIN, 4/16, P, MC HD34-18-6PN-059 6 13 A, 100 A
REC, 6P, AL, N, 1256 BLKD, 4, P HD34-18-6PN-C030 6 100 A
REC, 6P, AL, N, 4/16, S HD34-18-6SN 6 13 A, 100 A
REC, 6P, AL, N, CBL CLMP BT, DRAIN, 4/16, S, MC HD34-18-6SN-059 6 13 A, 100 A
PLG, 6P, AL, N, 4/16, P HD36-18-6PN 6 13 A, 100 A
PLG, 6P, AL, N, CBL CLMP BT, DRAIN, 4/16, P, MC HD36-18-6PN-059 6 13 A, 100 A
PLG, 6P, AL, N, 4/16, S HD36-18-6SN 6 13 A, 100 A
PLG, 6P, AL, N, CBL CLMP BT, DRAIN, 4/16, S, MC HD36-18-6SN-059 6 13 A, 100 A
PLG, 6P, AL, N, THD ADPT, DRAIN, 4/16, S HD36-18-6SN-072 6 13 A, 100 A
PLG, 6P, AL, N, 1256 BLKD, 4, S HD36-18-6SN-C030 6 100 A
PLG, 6P, AL, N, CBLCLMPBT, DR, 1256BLKD, 4, S, MC HD3618-6SNC030-059 6 13 A, 100 A
REC, 8P, AL, E, 12, P HD34-18-8PE 8 25 A
REC, 8P, AL, N, 12, P HD34-18-8PN 8 25 A
REC, 8P, AL, N, CBL CLMP BT, DRAIN, 12, P, MC HD34-18-8PN-059 8 25 A
REC, 8P, AL, N, THD ADPT, DRAIN, 12, P HD34-18-8PN-072 8 25 A
REC, 8P, AL, E, 12, S HD34-18-8SE 8 25 A
REC, 8P, AL, N, 12, S HD34-18-8SN 8 25 A
REC, 8P, AL, N, THD ADPT, NODRAIN, 12, S HD34-18-8SN-L005 8 25 A
PLG, 8P, AL, E, 12, P HD36-18-8PE 8 25 A
PLG, 8P, AL, E, CBL CLMP BT, DRAIN, 12, P, MC HD36-18-8PE-059 8 25 A
PLG, 8P, AL, N, 12, P HD36-18-8PN 8 25 A
PLG, 8P, AL, N, CBL CLMP BT, DRAIN, 12, P, MC HD36-18-8PN-059 8 25 A
PLG, 8P, AL, E, 12, S HD36-18-8SE 8 25 A
PLG, 8P, AL, E, THD ADPT, DRAIN, 12, S HD36-18-8SE-072 8 25 A
PLG, 8P, AL, N, 12, S HD36-18-8SN 8 25 A
PLG, 8P, AL, N, CBL CLMP BT, DRAIN, 12, S, MC HD36-18-8SN-059 8 25 A
PLG, 8P, AL, N, THD ADPT, DRAIN, 12, S HD36-18-8SN-072 8 25 A
PLG, 8P, AL, N, CBL CLMP BT, NODRAIN, 12, S, MC HD36-18-8SN-L006 8 25 A
REC, 9P, AL, E, 8/12/16, P HD34-24-91PE 9 13 A, 25 A, 60 A
REC, 9P, AL, E, CBLCLMPBT, DRAIN, 8/12/16, P, MC HD34-24-91PE-059 9 13 A, 25 A, 60 A
REC, 9P, AL, E, THD ADPT DRAIN, 8/12/16, P HD34-24-91PE-072 9 13 A, 25 A, 60 A
REC, 9P, AL, N, 8/12/16, P HD34-24-91PN 9 13 A, 25 A, 60 A
REC, 9P, AL, N, CBLCLMPBT, DRAIN, 8/12/16, P, MC HD34-24-91PN-059 9 13 A, 25 A, 60 A
REC, 9P, AL, N, THD ADPT DRAIN, 8/12/16, P HD34-24-91PN-072 9 13 A, 25 A, 60 A
REC, 9P, AL, N, 4/8/12, P HD34-24-9PN 9 25 A, 60 A, 100 A
REC, 9P, AL, N, CBLCLMPBT, DRAIN, 4/8/12, P, MC HD34-24-9PN-059 9 25 A, 60 A, 100 A
REC, 9P, AL, N, 4/8/12, S HD34-24-9SN 9 25 A, 60 A, 100 A
REC, 9P, AL, N, CBLCLMPBT, DRAIN, 4/8/12, S, MC HD34-24-9SN-059 9 25 A, 60 A, 100 A
REC, 9P, AL, N, THD ADPT DRAIN, 4/8/12, S HD34-24-9SN-072 9 25 A, 60 A, 100 A
REC, 9P, AL, N, THDADPT, NODRAIN, 4/8/12, S HD34-24-9SN-L005 9 25 A, 60 A, 100 A
REC, 9P, AL, N, CBL CLMP, NODRAIN, 4/8/12, S, MC HD34-24-9SN-L006 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, 4, 5 JUMPER, 8/12/16, S HD36-24-91SN 9 13 A, 25 A, 60 A
PLG, 9P, AL, N, CBLCLMPBT, DRAIN, 8/12/16, S, MC HD36-24-91SN-059 9 13 A, 25 A, 60 A
PLG, 9P, AL, N, 4/8/12, P HD36-24-9PN 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, CBLCLMPBT, DRAIN, 4/8/12, P, MC HD36-24-9PN-059 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, THD ADPT DRAIN, 4/8/12, P HD36-24-9PN-072 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, CBL CLMP, NODRAIN, 4/8/12, P, MC HD36-24-9PN-L006 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, 4/8/12, S HD36-24-9SN 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, CBLCLMPBT, DRAIN, 4/8/12, S, MC HD36-24-9SN-059 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, THD ADPT DRAIN, 4/8/12, S HD36-24-9SN-072 9 25 A, 60 A, 100 A
PLG, 9P, AL, N, THDADPT, NODRAIN, 4/8/12, S HD36-24-9SN-L005 9 25 A, 60 A, 100 A
BR AWY PL ASM, MC HDB36-24-91SE-059 9 13 A, 25 A, 60 A
BR AWY PL ASM, MC HDB36-24-91SN-059 9 13 A, 25 A, 60 A
REC, 14P, AL, E, 16, P HD34-18-14PE 14 13 A
REC, 14P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD34-18-14PE-059 14 13 A
REC, 14P, AL, E, THD ADPT, DRAIN, 16, P HD34-18-14PE-072 14 13 A
REC, 14P, AL, N, 16, P HD34-18-14PN 14 13 A
REC, 14P, AL, N, CBL CLMP BT, DRAIN, 16, P, MC HD34-18-14PN-059 14 13 A
REC, 14P, AL, N, THD ADPT, DRAIN, 16, P HD34-18-14PN-072 14 13 A
REC, 14P, AL, N, THD ADPT, NODRAIN, 16, P HD34-18-14PN-L005 14 13 A
REC, 14P, AL, N, CBL CLMP BT, NODRAIN, 16, P, MC HD34-18-14PN-L006 14 13 A
REC, 14P, AL, T, 16, P HD34-18-14PT 14 13 A
REC, 14P, AL, T, CBL CLMP BT, DRAIN, 16, P, MC HD34-18-14PT-059 14 13 A
REC, 14P, AL, E, 16, S HD34-18-14SE 14 13 A
REC, 14P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD34-18-14SE-059 14 13 A
REC, 14P, AL, E, THD ADPT, DRAIN, 16, S HD34-18-14SE-072 14 13 A
REC, 14P, AL, E, CBL CLMP BT, NODRAIN, 16, S, MC HD34-18-14SE-L006 14 13 A
REC, 14P, AL, N, 16, S HD34-18-14SN 14 13 A
REC, 14P, AL, N, CBL CLMP BT, DRAIN, 16, S, MC HD34-18-14SN-059 14 13 A
REC, 14P, AL, N, THD ADPT, NODRAIN, 16, S HD34-18-14SN-L005 14 13 A
REC, 14P, AL, N, CBL CLMP BT, NODRAIN, 16, S, MC HD34-18-14SN-L006 14 13 A
REC, 14P, AL, E, 4/12/16, P HD34-24-14PE 14 13 A, 25 A, 100 A
REC, 14P, AL, N, 4/12/16, P HD34-24-14PN 14 13 A, 25 A, 100 A
REC, 14P, AL, N, CBL CLMP BT, DR, 4/12/16, P, MC HD34-24-14PN-059 14 13 A, 25 A, 100 A
REC, 14P, AL, N, 4/12/16, S HD34-24-14SN 14 13 A, 25 A, 100 A
REC, 14P, AL, N, CBLCLMPBT, DR, 4/12/16, S, MC HD34-24-14SN-059 14 13 A, 25 A, 100 A
REC, 14P, AL, N, CBLCLMPBT, NODR, 4/12/16, S, MC HD34-24-14SN-L006 14 13 A, 25 A, 100 A
PLG, 14P, AL, E, 16, P HD36-18-14PE 14 13 A
PLG, 14P, AL, E, CBL CLMP BT, DRAIN, 16, P, MC HD36-18-14PE-059 14 13 A
PLG, 14P, AL, E, THD ADPT, DRAIN, 16, P HD36-18-14PE-072 14 13 A
PLG, 14P, AL, E, CBL CLMP BT, NODRAIN, 16, P, MC HD36-18-14PE-L006 14 13 A
PLG, 14P, AL, N, 16, P HD36-18-14PN 14 13 A
PLG, 14P, AL, N, CBL CLMP BT, DRAIN, 16, P, MC HD36-18-14PN-059 14 13 A
PLG, 14P, AL, N, THD ADPT, DRAIN, 16, P HD36-18-14PN-072 14 13 A
PLG, 14P, AL, E, 16, S HD36-18-14SE 14 13 A
PLG, 14P, AL, E, CBL CLMP BT, DRAIN, 16, S, MC HD36-18-14SE-059 14 13 A
PLG, 14P, AL, E, THD ADPT, DRAIN, 16, S HD36-18-14SE-072 14 13 A
PLG, 14P, AL, E, THD ADPT, NODRAIN, 16, S HD36-18-14SE-L005 14 13 A
PLG, 14P, AL, E, CBL CLMP BT, NODRAIN, 16, S, MC HD36-18-14SE-L006 14 13 A
PLG, 14P, AL, N, 16, S HD36-18-14SN 14 13 A
PLG, 14P, AL, N, CBL CLMP BT, DRAIN, 16, S, MC HD36-18-14SN-059 14 13 A
PLG, 14P, AL, N, THD ADPT, DRAIN, 16, S HD36-18-14SN-072 14 13 A
PLG, 14P, AL, N, CBL CLMP BT, NODRAIN, 16, S, MC HD36-18-14SN-L006 14 13 A
PLG, 14P, AL, T, 16, S HD36-18-14ST 14 13 A
PLG, 14P, AL, T, CBL CLMP BT, DRAIN, 16, S, MC HD36-18-14ST-059 14 13 A
PLG, 14P, AL, N, 4/12/16, P HD36-24-14PN 14 13 A, 25 A, 100 A
PLG, 14P, AL, E, 4/12/16, S HD36-24-14SE 14 13 A, 25 A, 100 A
PLG, 14P, AL, N, 4/12/16, S HD36-24-14SN 14 13 A, 25 A, 100 A
PLG, 14P, AL, N, CBL CLMP BT, DR, 4/12/16, S, MC HD36-24-14SN-059 14 13 A, 25 A, 100 A
PLG, 14P, AL, N, THD ADPT DRAIN, 4/12/16, S HD36-24-14SN-072 14 13 A, 25 A, 100 A
BR AWY PL ASM, MC HDB36-18-14SN-059 14 13 A
REC, 16P, AL, E, 12, P HD34-24-16PE 16 25 A
REC, 16P, AL, E, CBL CLMP BT, DRAIN, 12, P, MC HD34-24-16PE-059 16 25 A
REC, 16P, AL, E, THD ADPT, DRAIN, 12, P HD34-24-16PE-072 16 25 A
REC, 16P, AL, N, 12, P HD34-24-16PN 16 25 A
REC, 16P, AL, N, CBL CLMP BT, DRAIN, 12, P, MC HD34-24-16PN-059 16 25 A
REC, 16P, AL, N, THD ADPT, DRAIN, 12, P HD34-24-16PN-072 16 25 A
REC, 16P, AL, N, 12, S HD34-24-16SN 16 25 A
REC, 16P, AL, N, CBL CLMP BT, DRAIN, 12, S, MC HD34-24-16SN-059 16 25 A
REC, 16P, AL, N, THD ADPT, DRAIN, 12, S HD34-24-16SN-072 16 25 A
REC, 16P, AL, N, THD ADPT, NODRAIN, 12, S HD34-24-16SN-L005 16 25 A
REC, 16P, AL, N, CBL CLMP BT, NODRAIN, 12, S, MC HD34-24-16SN-L006 16 25 A
PLG, 16P, AL, E, 12, P HD36-24-16PE 16 25 A
PLG, 16P, AL, E, CBL CLMP BT, NODRAIN, 12, P, MC HD36-24-16PE-L006 16 25 A
PLG, 16P, AL, N, 12, P HD36-24-16PN 16 25 A
PLG, 16P, AL, N, CBL CLMP BT, DRAIN, 12, P, MC HD36-24-16PN-059 16 25 A
PLG, 16P, AL, N, THD ADPT, DRAIN, 12, P HD36-24-16PN-072 16 25 A
PLG, 16P, AL, N, CBL CLMP BT, NODRAIN, 12, P, MC HD36-24-16PN-L006 16 25 A
PLG, 16P, AL, E, 12, S HD36-24-16SE 16 25 A
PLG, 16P, AL, E, CBL CLMP BT, DRAIN, 12, S, MC HD36-24-16SE-059 16 25 A
PLG, 16P, AL, E, THD ADPT, DRAIN, 12, S HD36-24-16SE-072 16 25 A
PLG, 16P, AL, E, THD ADPT, NODRAIN, 12, S HD36-24-16SE-L005 16 25 A
PLG, 16P, AL, N, 12, S HD36-24-16SN 16 25 A
PLG, 16P, AL, N, CBL CLMP BT, DRAIN, 12, S, MC HD36-24-16SN-059 16 25 A
PLG, 16P, AL, N, THD ADPT, DRAIN, 12, S HD36-24-16SN-072 16 25 A
PLG, 16P, AL, N, THD ADPT, NODRAIN, 12, S HD36-24-16SN-L005 16 25 A
PLG, 16P, AL, N, CBL CLMP BT, NODRAIN, 12, S, MC HD36-24-16SN-L006 16 25 A





If you want to find these connectors' specs, then search TE's official website by using the correct part number and download the specs. you will get the exact info.



If you want to buy Deutsch HD30 connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, wire harness assembly services, contact us to get a free quote.
