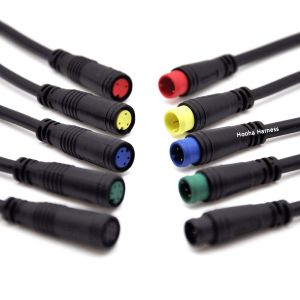

What is Julet Connector?
The Julet (or Juliet) Connector company primarily specializes in waterproof connectors for electric bikes, offering tight and secure connections that are resistant to water. There are various types available based on the number of pins, but they all share a similar appearance and can be easily connected or disconnected.
Julet Connector Features
Connection Reliability:
it offers a secure and stable connection method. With precision engineering, the connectors ensure a tight fit, minimizing the risk of accidental disconnections. This is crucial in applications where continuous and uninterrupted signal or power transmission is essential.
Superior Contact Performance:
These connectors have low contact resistance, enabling efficient transfer of electrical signals or power. This results in minimal signal loss and power wastage, enhancing the overall performance of the connected devices or systems.
Excellent Insulation:
Juliet connectors provide high insulation resistance, preventing electrical shorts and leakage. This is especially important in environments where there is a risk of moisture, dust, or other contaminants that could compromise the insulation.
Durability and Longevity:
Constructed with high-quality materials, these connectors are designed to withstand harsh conditions. They can endure multiple insertions and removals without significant wear and tear, ensuring a long service life.
Versatile Design:
The connectors come in a variety of sizes and shapes to meet different application requirements. Whether it's for small electronic devices or large industrial systems, there is likely a Juliet connector that can fit the bill.
Signal Transmission Quality:
For connectors used in signal transmission applications, the Juliet connector offers excellent bandwidth and frequency response. This ensures high-quality signal transfer, making them suitable for advanced communication and electronics systems.
Ease of Installation and Maintenance:
Juliet connectors are designed for easy installation and removal. Their user-friendly design simplifies the process of connecting and disconnecting, reducing downtime during maintenance or upgrades.
Julet Connector Types and Specs

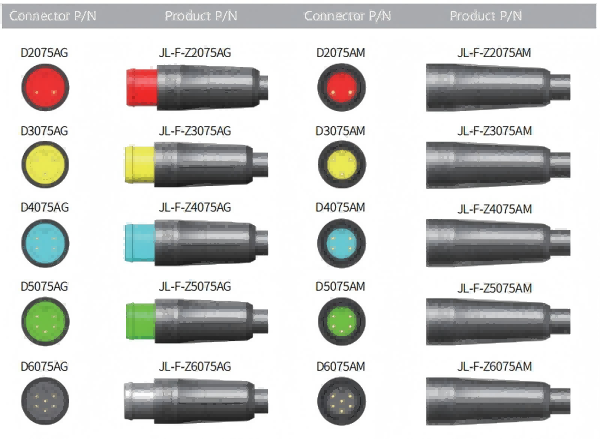

>>> Mini 2-6 core 2075-6075 core signal connector <<<
- Temperature range: -20℃~+85℃
- Rated voltage: 200V AC
- Rated current: 2A (specific situation depends on the cable provided)
- Contact resistance: ≤ 20m Ω
- Insulation resistance: should be ≥ 20M Ω under normal and humid conditions
- Withstand voltage: AC 250V 50Hz for one minute without breakdown or flashover phenomenon
- Contact: Copper alloy tin plating/gold plating
- Protection level: IP67
- Pulling force: 40N-80N
- Mechanical life: 200 times
- Maximum outer diameter: 7.5mm
- Wire specification: 0.14mm²- 0.2mm²
____________________________________________________

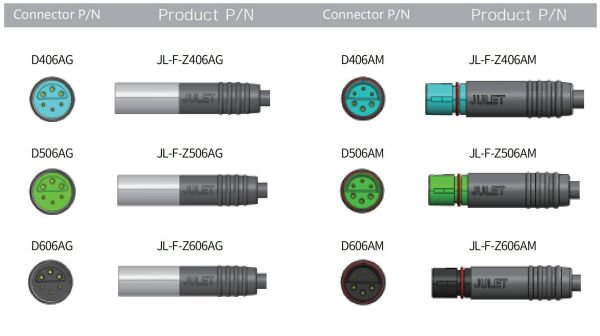

>>> Dioecious 4,5,6 core small mini signal waterproof connector<<<
- Temperature range: -20℃~+85℃
- Rated voltage: 200V AC
- Rated current: 2A (specific situation depends on the cable provided)
- Contact resistance: ≤ 20m Ω
- Insulation resistance: should be ≥ 20M Ω under normal and humid conditions
- Withstand voltage: AC 250V 50Hz for one minute without breakdown or flashover phenomenon
- Contact: Copper alloy tin plating/gold plating
- Protection level: IP67
- Mechanical life: 200 times
- Maximum outer diameter: 6mm
- Wire specification: 0.12mm²
____________________________________________________

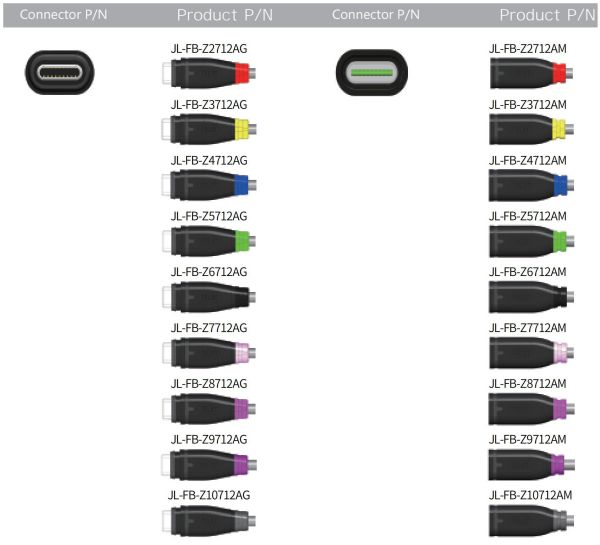

>>> Type-C signal 2-10 core connector <<<
- Temperature range: -20℃~+85℃
- Rated voltage: 200V AC
- Rated current: 2A (specific situation depends on the cable provided)
- Contact resistance: ≤ 20m Ω
- Insulation resistance: should be ≥ 20M Ω under normal and humid conditions
- Withstand voltage: AC 250V 50Hz for one minute without breakdown or flashover phenomenon
- Contact: Copper alloy tin plating/gold plating
- Protection level: IP67
- Pulling force: 40N-80N
- Mechanical life: 200 times
- Maximum outer diameter: 12.4mm
- Wire specification: 0.12mm²
____________________________________________________

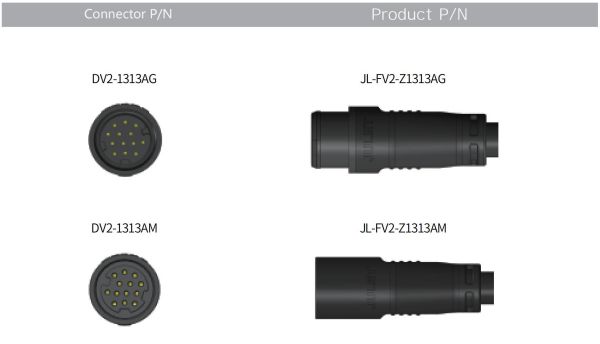

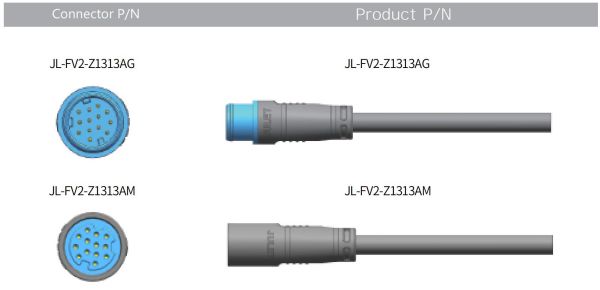

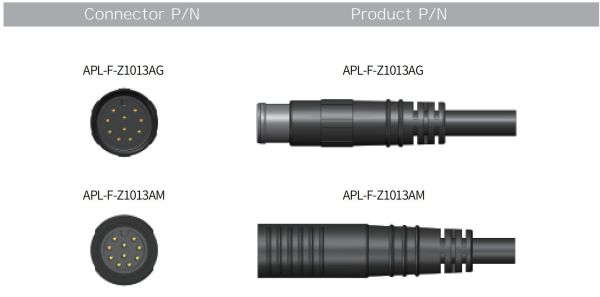

>>> Mini 13 core waterproof connector <<<
- Temperature range: -40℃~+85℃
- Rated voltage: 200V AC
- Rated current: 3A (specific situation depends on the cable provided)
- Contact resistance: ≤ 20m Ω
- Insulation resistance: should be ≥ 20M Ω under normal and humid conditions
- Withstand voltage: AC 250V 50Hz for one minute without breakdown or flashover phenomenon
- Contact: Copper alloy tin plating/gold plating
- Protection level: IP66
- Pulling force: 40N --80N
- Mechanical life: 200 times
- Maximum outer diameter: 13.4mm
- Wire specification: 0.14mm²- 0.2mm²
____________________________________________________

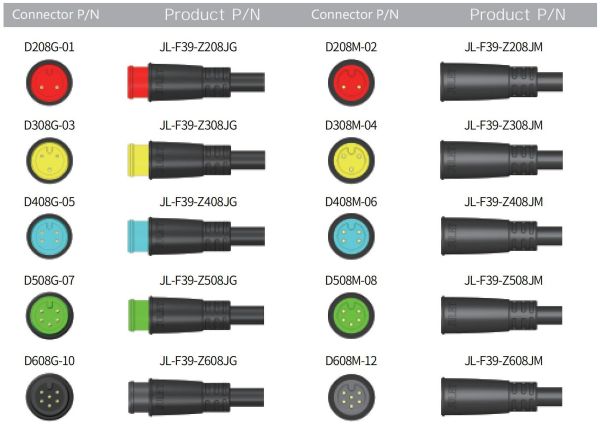

>>> Mini in-line 2,3,4,5,6-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：8.5mm
- Overall Length：39mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

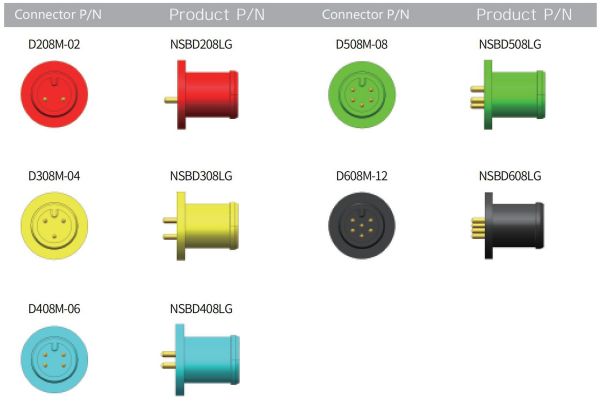

>>> Small mini straight in type 2, 3, 4, 5, 6-pin board end waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：10.2mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

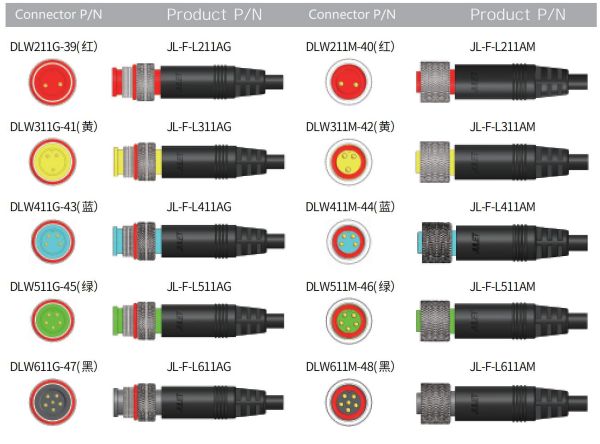

>>> threaded in-line 2, 3, 4, 5, 6-pin waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Application Lifetime：200times
- Max Outside Diameter：10.5mm
- Overall Length：75mm
- The Wire Standards for Selected：0.14mm²- 0.2mm²
____________________________________________________

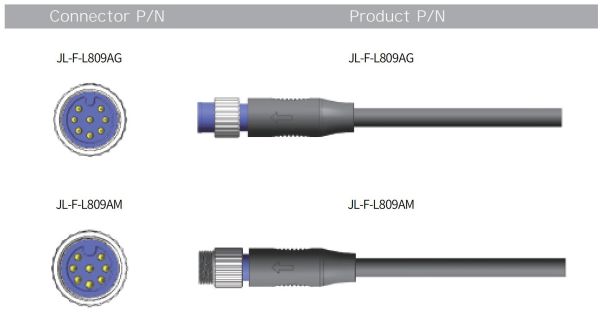

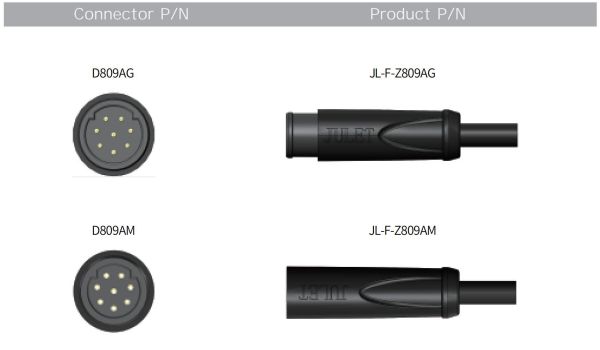

>>>In-line 8-pin waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：9mm
- Overall Length：55mm
- The Wire Standards for Selected：0.14mm²- 0.2mm²
____________________________________________________

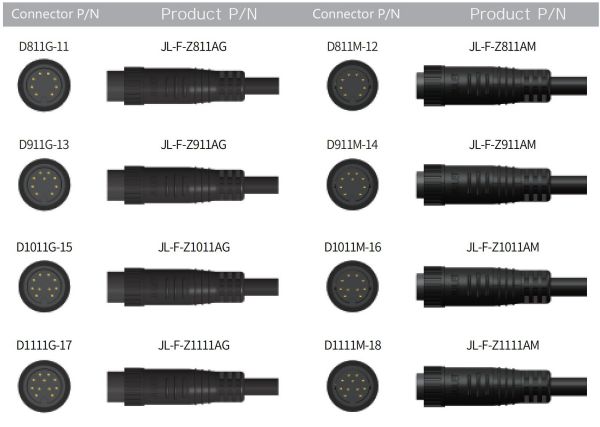

>>> Generation 1 in-line 8,9,10,11-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：11mm
- Overall Length：70mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

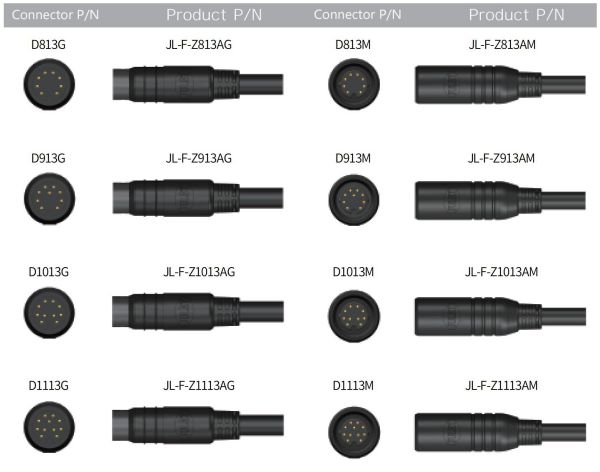

>>> Generation 2 in-line 8,9,10,11-pins waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：13mm
- Overall Length：58mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

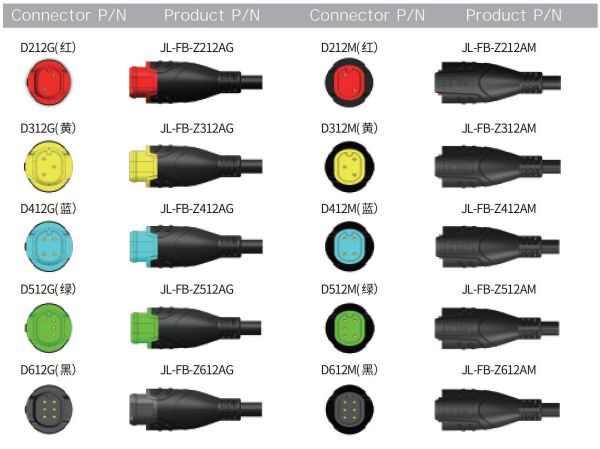

>>>Flat 2, 3, 4, 5, 6-pin in-line waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：12mm
- Overall Length：57mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

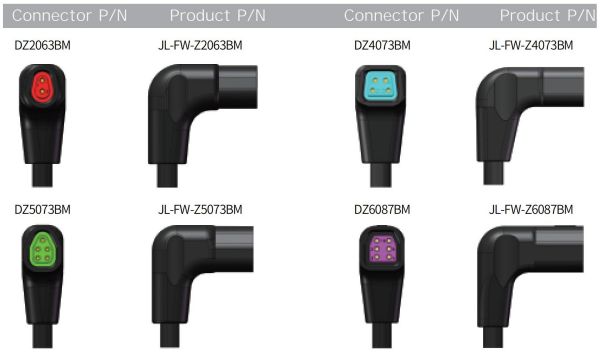

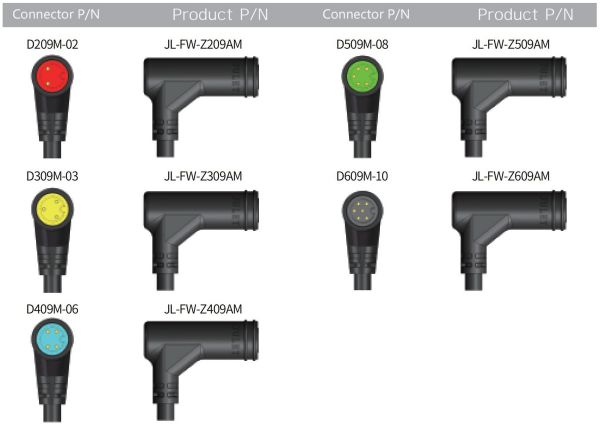

>>>Special shaped 2,4,5,6-pins elbow waterproof connector<<<
- Temperature range: - 40℃～ + 85℃
- Rated voltage: 200V AC
- Rated current: 3A （based on the cables selected）
- Contact resistance: ≤ 20m Ω
- Insulation resistance: ≥ 20m Ω under normal and wet conditions
- Withstand voltage: AC 250V, 50 Hz, no breakdown or flashover for one minute
- Contact: Copper alloy tin plating/gold plating
- Waterproof level: IP67
- Drawing force: 40n -- 80N
- Mechanical life: 200 times
- Maximum outer diameter: 18.5mm（2）,17.6mm（4）,19.5mm（5）,19mm（6）
- Conductor specification: 0.12mm²- 0.2mm²
____________________________________________________

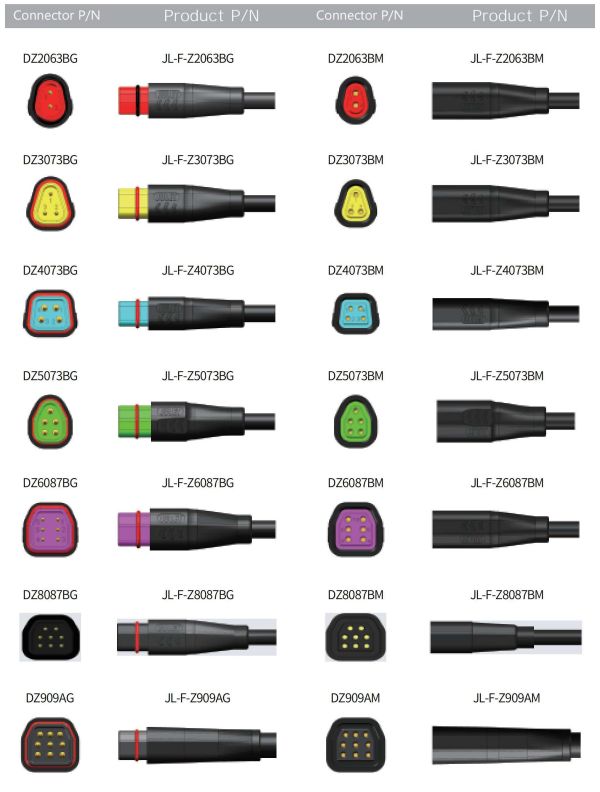

>>> special-shaped 2,3,4,5,6,8,9-pins waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：7.9mm(2), 8.5mm(3, 4, 5, 6), 8.7mm(8, 9)
- Overall Length：47.8mm(2, 3, 4, 5, 6), 59mm(8, 9)
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

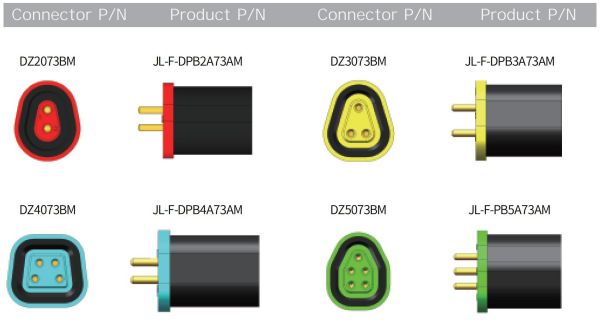

>>> Special shaped 2,3,4,5-pins plate end waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：7.2mm(2), 8.3mm(3), 9.15mm(4), 8.3mm(5)
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

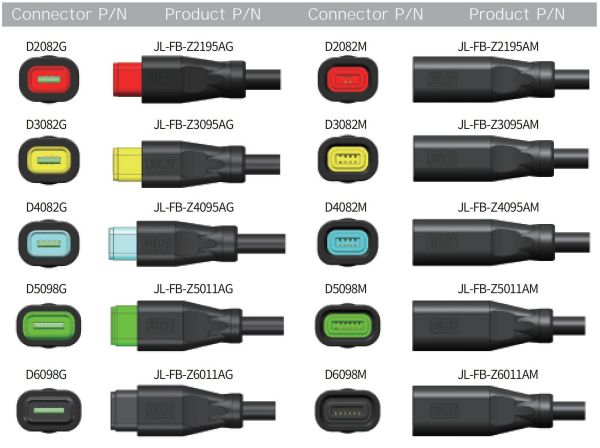

>>> Forward and backward insertion 2,3,4,5,6-pins connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：9.45mm(2、3、4), 11mm(5、6)
- Overall Length：59mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

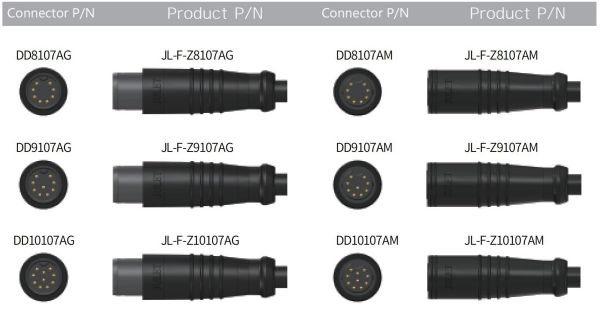

>>> In line Mini 8,9,10-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current：3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：30N--60N(2), 40N--80N(8, 9, 10)
- Application Lifetime：200times
- Max Outside Diameter：5.8mm（2），10.7mm（8, 9, 10）
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

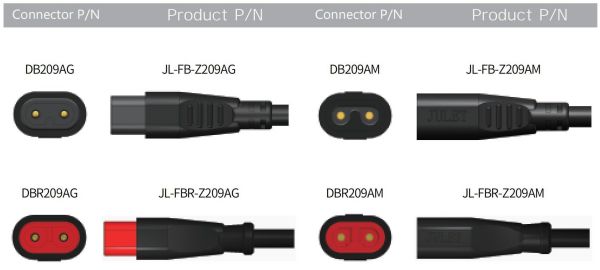

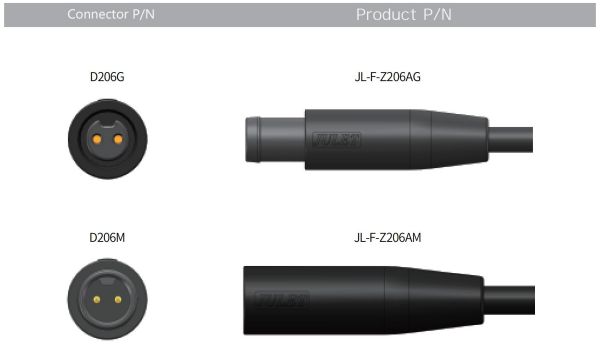

>>> In line flat Mini 2-pin waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：9mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

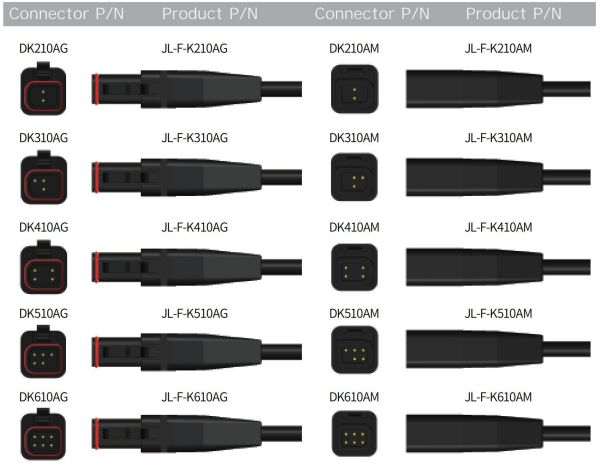

>>> Single clip Mini 2,3,4,5,6-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：≥80N
- Application Lifetime：200times
- Max Outside Diameter：10mm
- The Wire Standards for Selected：0.2mm²- 0.3mm²
____________________________________________________
>>> Mini 10-pin waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：12.7mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

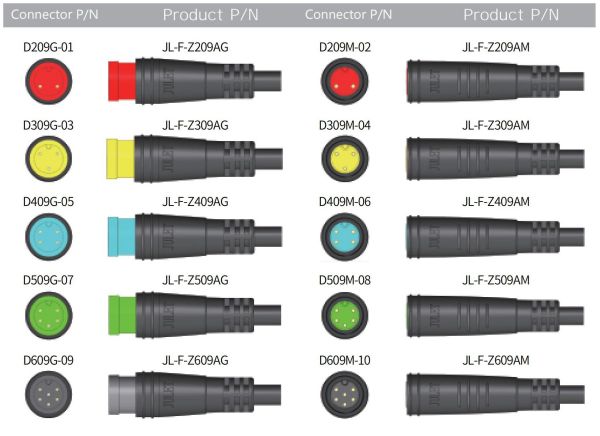

>>>Generation 1 in-line 2,3,4,5,6-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Withstand Voltage： AC 250V 50Hz without a dielectric puncture or flashover over 1 minute
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：9.6mm
- Overall Length：58mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________
>>> Generation 1 in-line elbow 2,3,4,5,6-pins waterproof connector <<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Withstand Voltage： AC 250V 50Hz without a dielectric puncture or flashover over 1 minute
- Waterproof level： IP66
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：19.5mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________
>>>Generation 2 in-line 2,3,4,5,6-pins waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：8.8mm
- Overall Length：70mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

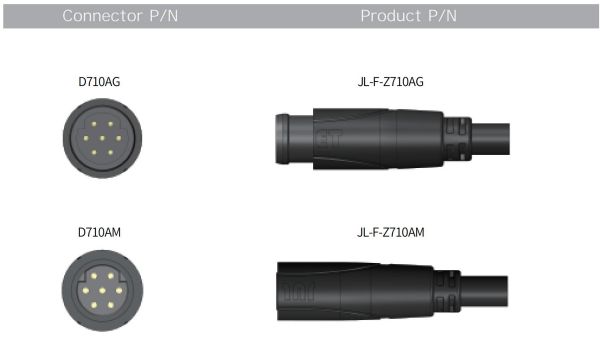

>>>7-pins in-line waterproof connector<<<
- Working Temperature：-40℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：9.7mm
- Overall Length：56mm
- The Wire Standards for Selected：0.12mm²- 0.2mm²
____________________________________________________

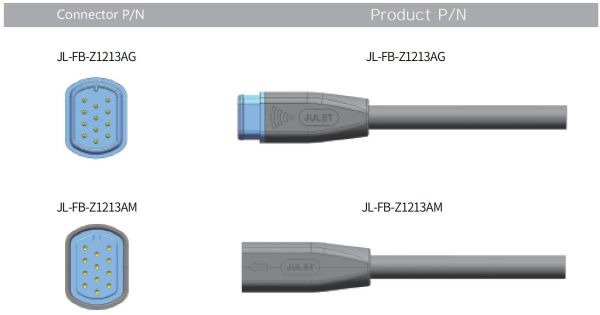

>>> Flat 12 core signal connector<<<
- Working Temperature：-20℃～ +85℃
- Rated Voltage：200V AC
- Rated Current：3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：13mm
- The Wire Standards for Selected：0.2mm²
____________________________________________________
>>>13 core signal connector <<<
- Working Temperature：-20℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：40N--80N
- Application Lifetime：200times
- Max Outside Diameter：13.4mm
- The Wire Standards for Selected：0.2mm²
____________________________________________________
>>>Thread 8-core signal connector<<<
- Working Temperature：-20℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：/
- Application Lifetime：200times
- Max Outside Diameter：9mm
- The Wire Standards for Selected：0.2mm²
____________________________________________________
>>> Thread 2-6 core signal connector <<<
- working Temperature：-20℃～ +85℃
- Rated Voltage：200V AC
- Rated Current： 3A（basis on the cables selected）
- Contact Resistance：≤20mΩ
- Insulation Resistance：≥20MΩ（under ordinary conditions or in humid environment）
- Withstand Voltage： AC 250V 50Hz without dielectric puncture or flashover over 1 minute
- Interface Material： Gold-plated Copper Alloy/Tin-plated Copper Alloy
- Waterproof level： IP67
- Drawing Force：/
- Application Lifetime：200times
- Max Outside Diameter：8.8mm
- The Wire Standards for Selected：0.2mm²
____________________________________________________
>>>Inline mini 2-core waterproof connector<<<
- Temperature range: -40℃~+85℃
- Rated voltage: 200V AC
- Rated current: 1.5A (specific situation depends on the cable provided)
- Contact resistance: ≤ 20m Ω
- Insulation resistance: should be ≥ 20M Ω under normal and humid conditions
- Withstand voltage: AC 250V 50Hz for one minute without breakdown or flashover phenomenon
- Contact: Copper alloy tin plating/gold plating
- Protection level: IP67
- Pulling force: 30N-60N
- Mechanical life: 200 times
- Maximum outer diameter: 5.8mm
- Wire specification: 0.12mm²
____________________________________________________
Contact us for free of connector size
We Support Custom Cable Harness Assembly
2P Male and Female Cable
3 Pin Male Cable Waterproof Connector
3pin 1 to 2 cable
3pin extension cable
4 Pin Male to female cable
5 Pin Male and Female Connector
5 Pin Male to female cable
6P Connector cable
6-Pin Male to Female Extension Cable
Ebike Battery Connector Wire Harness
Ebike waterproof connector cable
Electric bike 1 to 4 cable

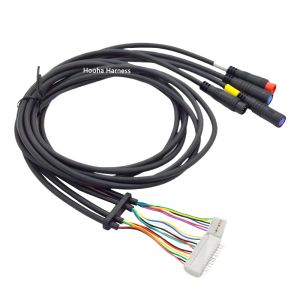

electric bike wiring harness
Julet 5P waterproof connector to JST GH 5Pin cable
Julet 5Pin waterproof connector to JST XH 5 Pin cable
How to customize your cable harness?
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
