What is XT Connector?

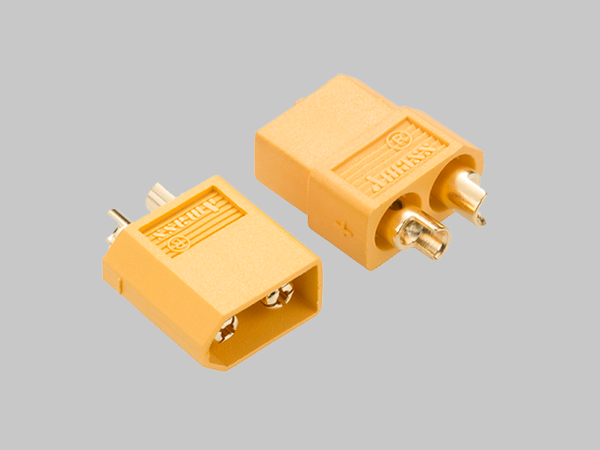

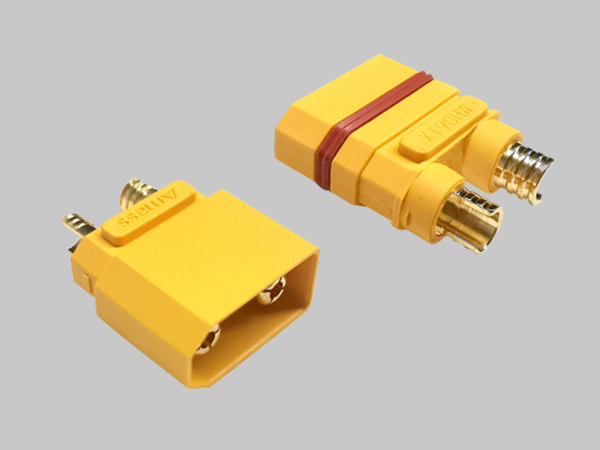

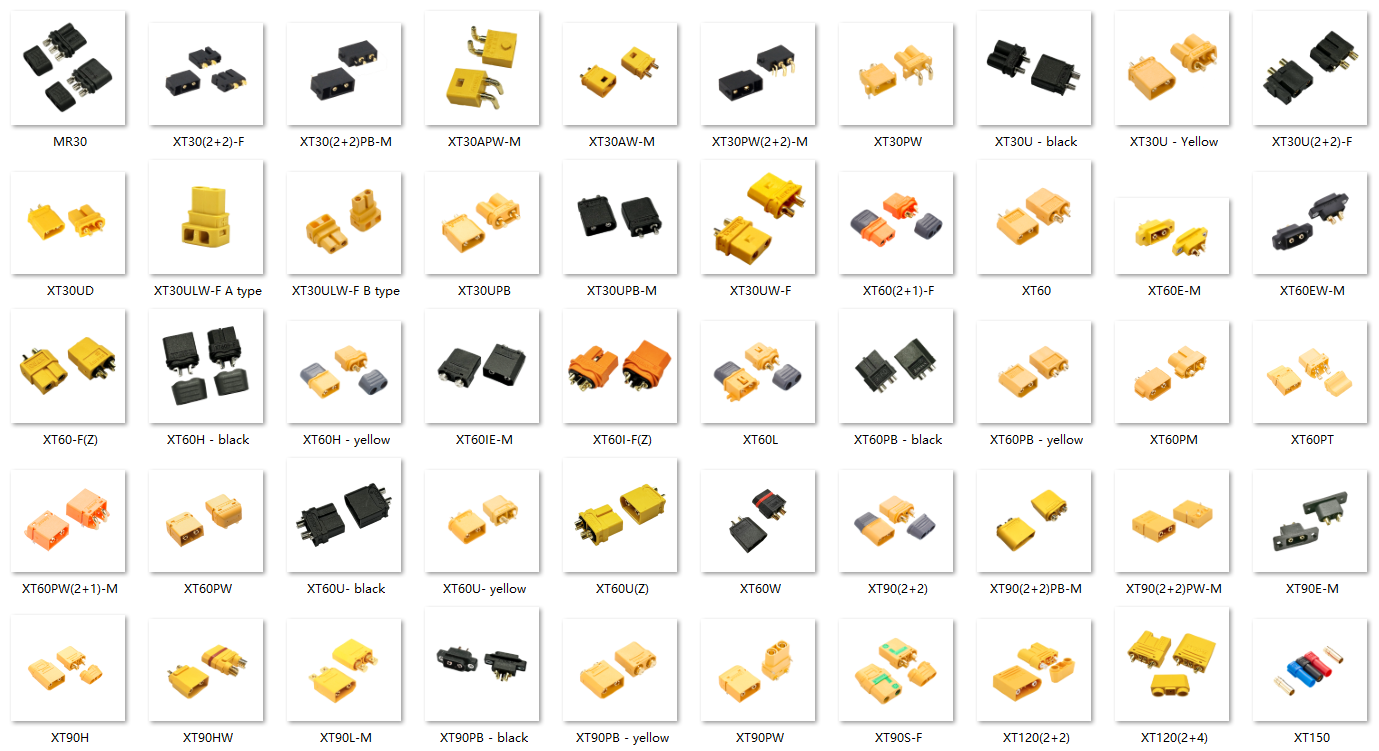

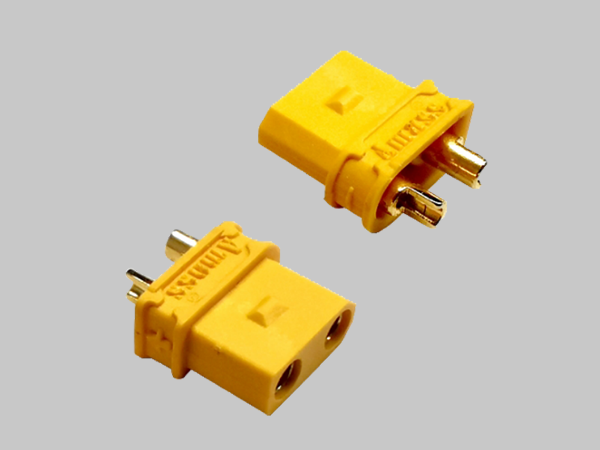

XT connectors are a widely recognized family of high-current DC power connectors, initially developed by Amass Electronics, designed to meet the demanding power transmission needs of lithium battery applications. Characterized by their robust construction, featuring gold-plated brass pins and a high-temperature nylon housing, these connectors are engineered for high conductivity, corrosion resistance, and durability. A key safety feature is their polarized, asymmetrical design, which prevents reverse-polarity connections, making them a reliable choice for high-power applications. The series includes various models denoted by numbers that approximate their current-handling capacity in amps, such as the compact XT30 (15-30A), the versatile and very popular XT60 (30-60A), and the high-power XT90 (up to 90A). Primarily used in remote-controlled (RC) hobbies, drones, and portable power stations, XT connectors provide efficient and secure power links for battery packs, electronic speed controllers (ESCs), and motors, ensuring optimal performance by minimizing voltage drop and power loss through their low contact resistance. Their combination of safety, reliability, and high performance has established them as a standard in high-performance model sports and portable energy solutions.

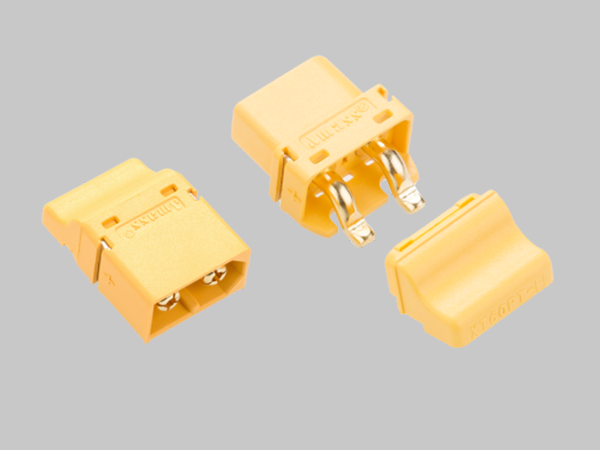

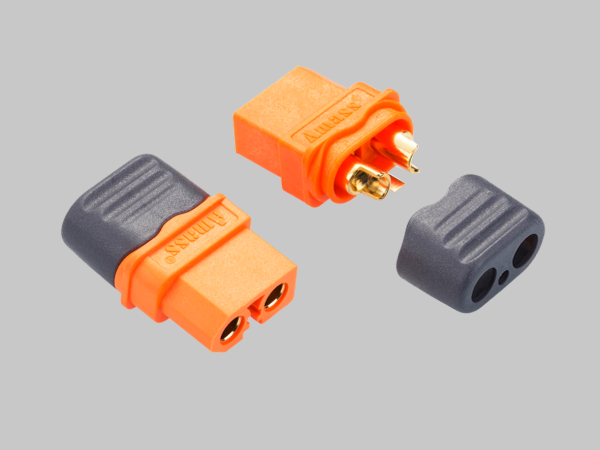

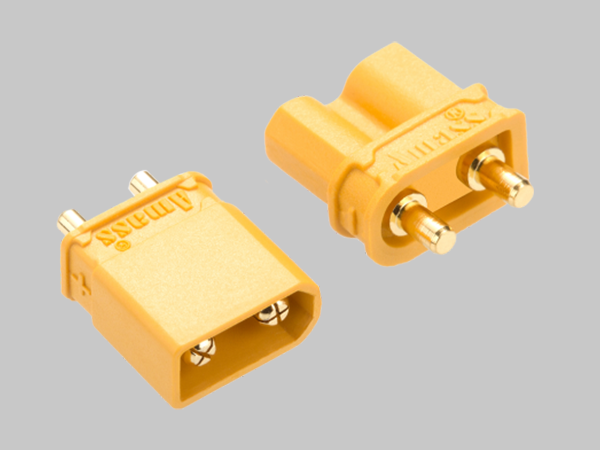

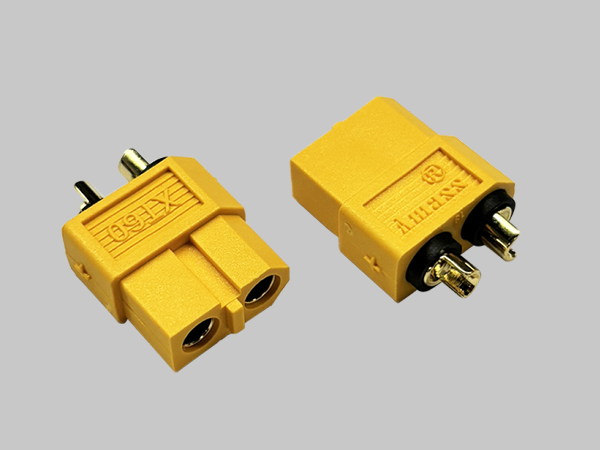

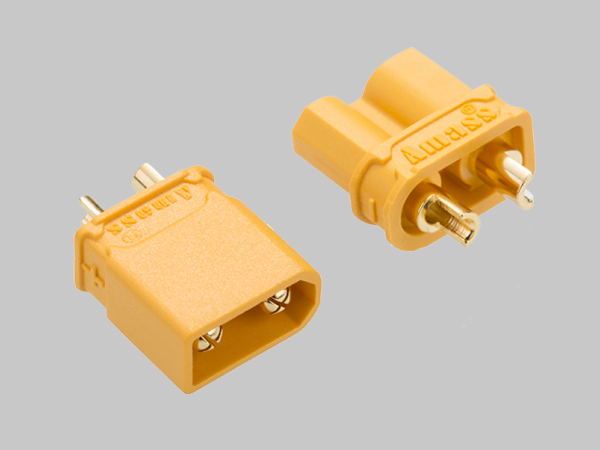

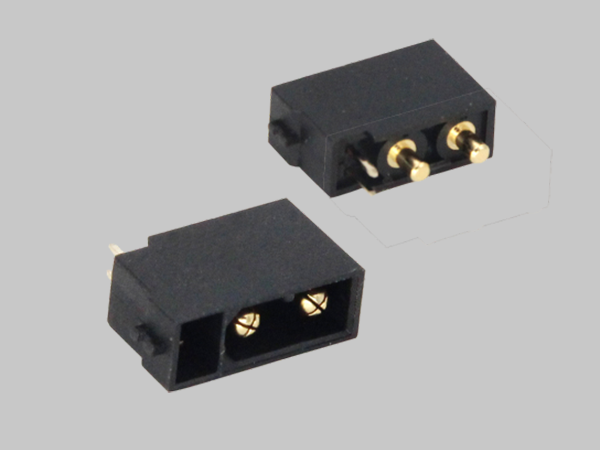

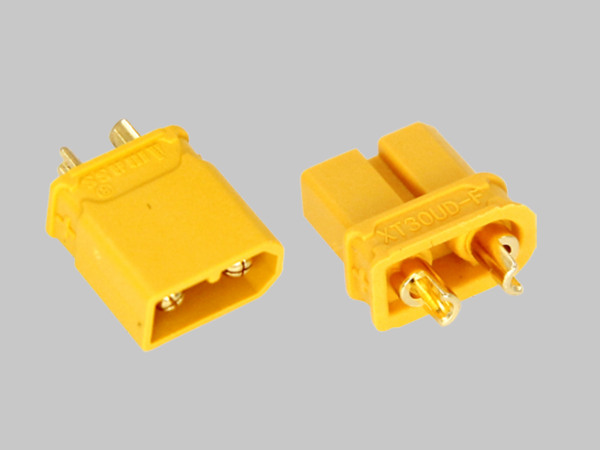

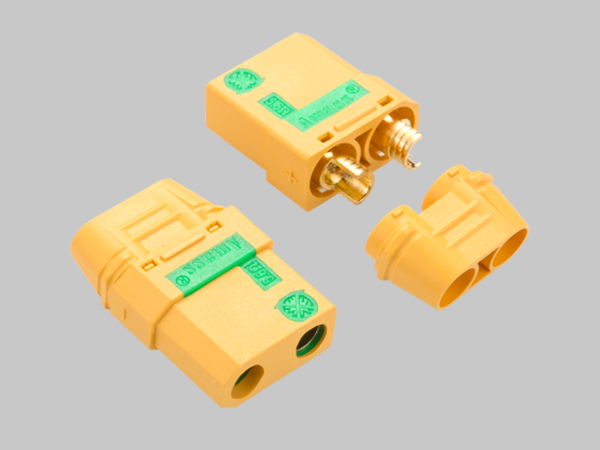

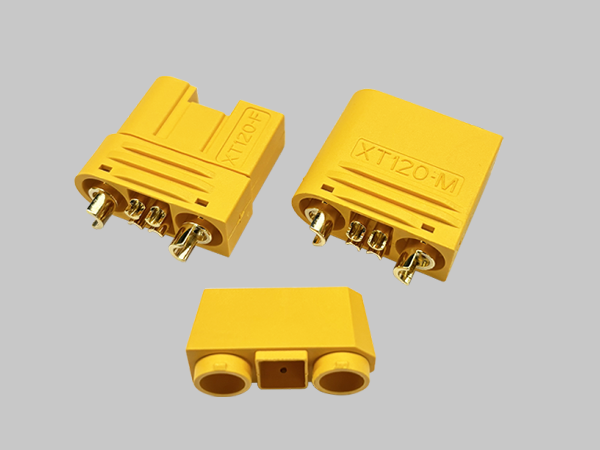

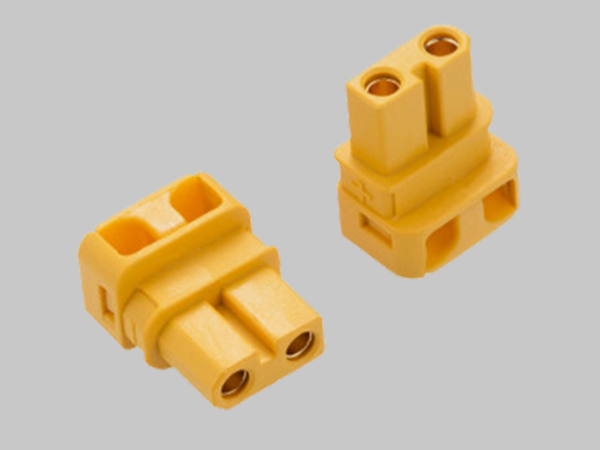

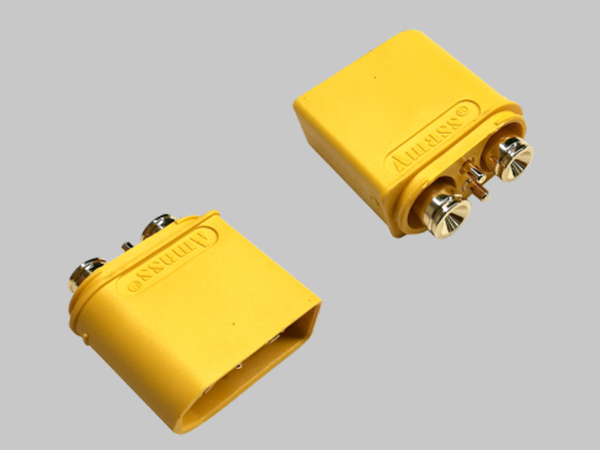

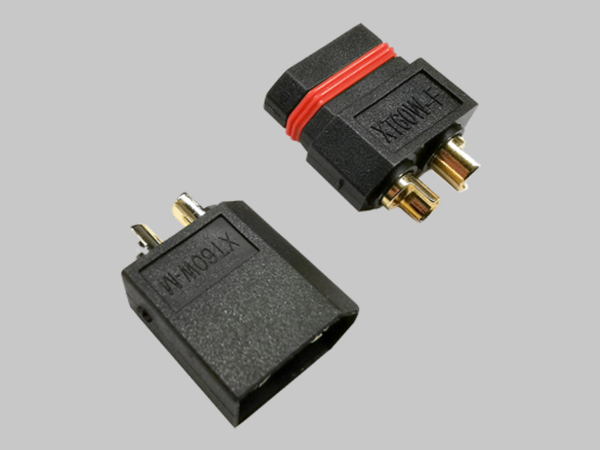

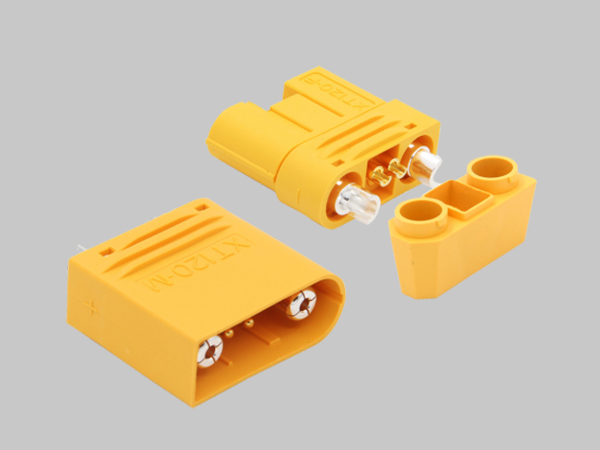

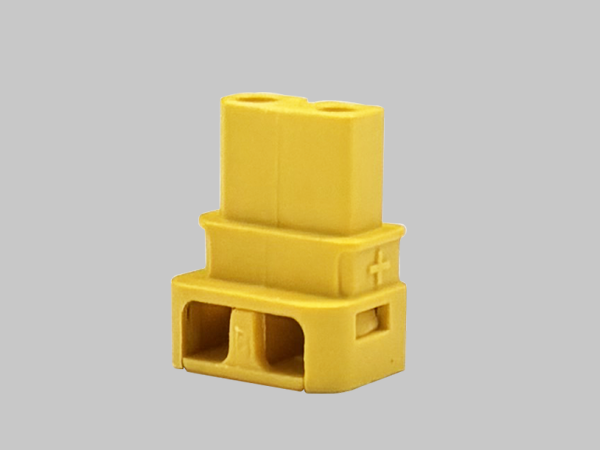

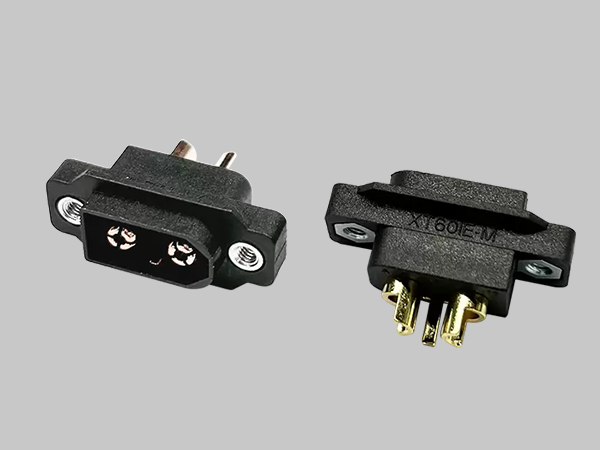

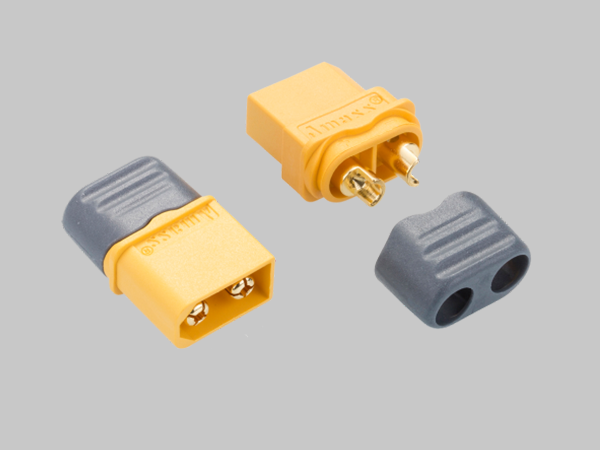

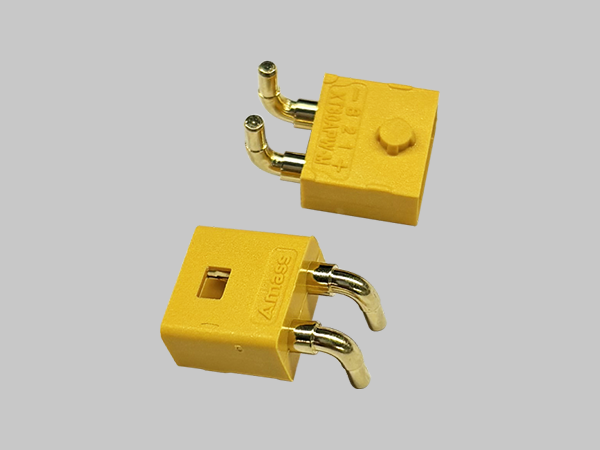

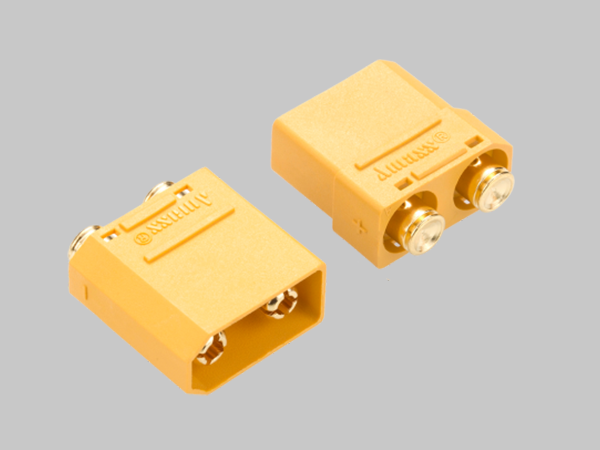

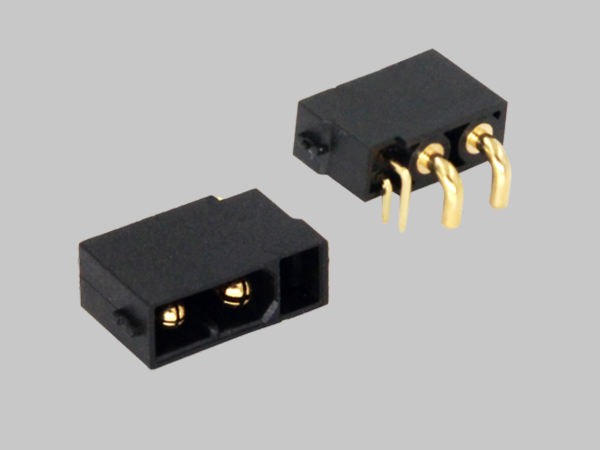

Connector Specifications

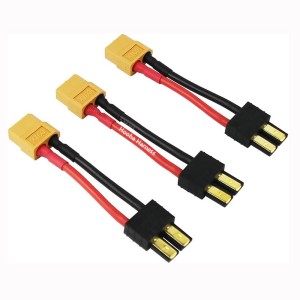

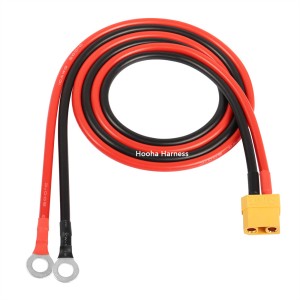

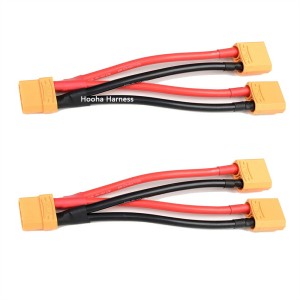

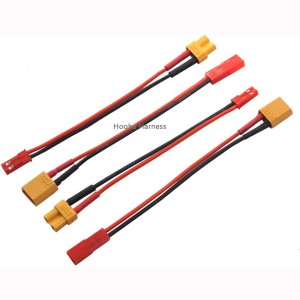

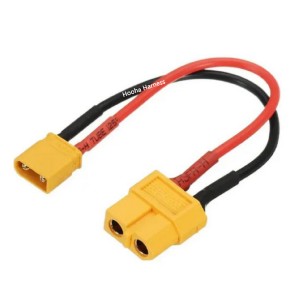

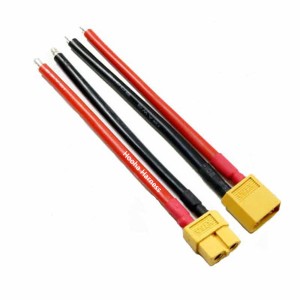

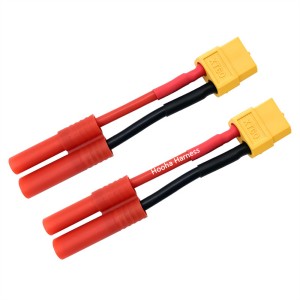

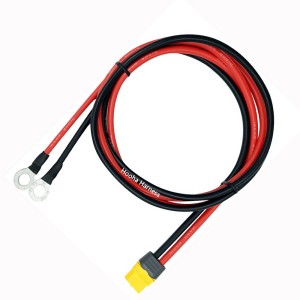

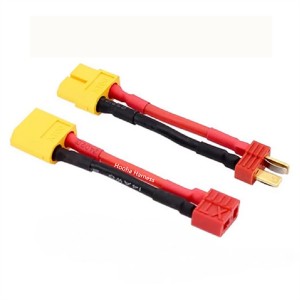

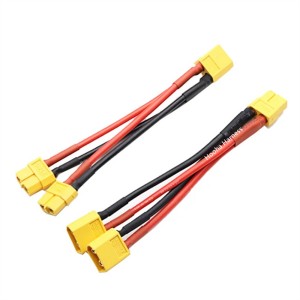

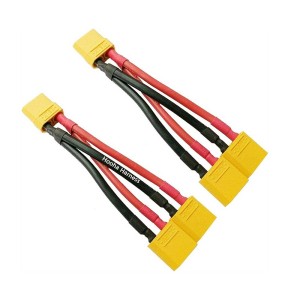

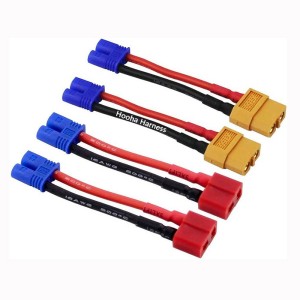

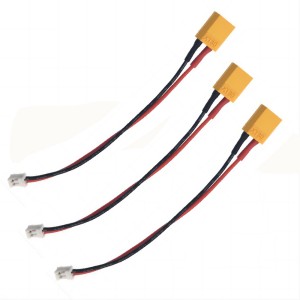

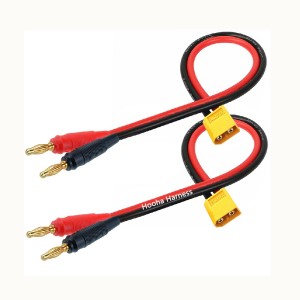

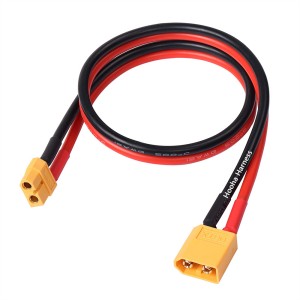

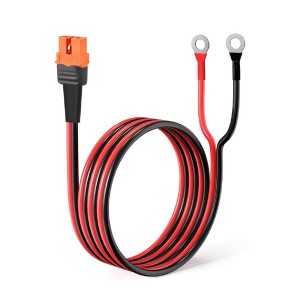

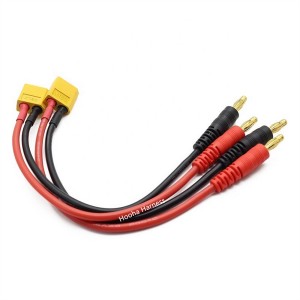

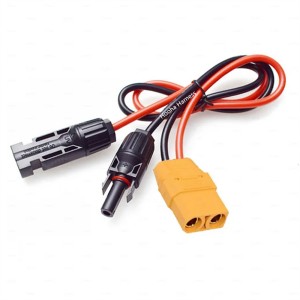

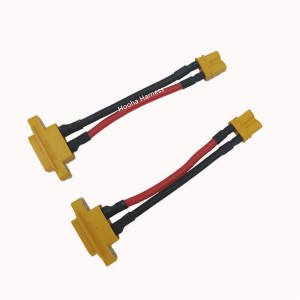

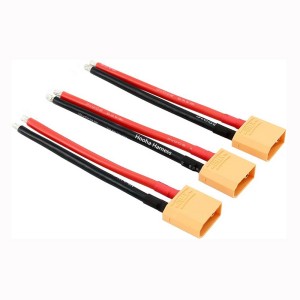

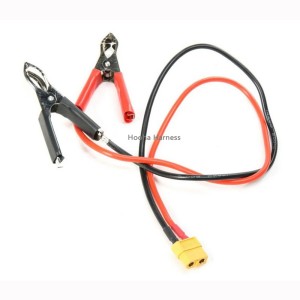

XT Connector Battery Cable Cases







Support Custom Cable Harness Assembly



• Connectors: Amass XT Series Connectors.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 100 pieces per order.





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
