What is Yeonho Connector?
Yeonho Electric is a prominent South Korean manufacturer offering a comprehensive portfolio of electronic connectors. Its product range is systematically organized into several key categories to meet diverse industry needs. These include Board-to-Board connectors in various pitches (1mm to 2.54mm), FFC/FPC connectors for flexible circuits, and a wide array of Wire-to-Board solutions with pitches spanning from 1mm to 18mm. The company also produces specific I/O and Wire-to-Wire connectors.
Renowned for reliability, these components are engineered for applications across industrial automation, consumer electronics, and control systems, providing essential interfaces for PCBs, cables, and sensitive electronic components. Yeonho Electric serves as a vital provider of connectivity solutions for modern technology.

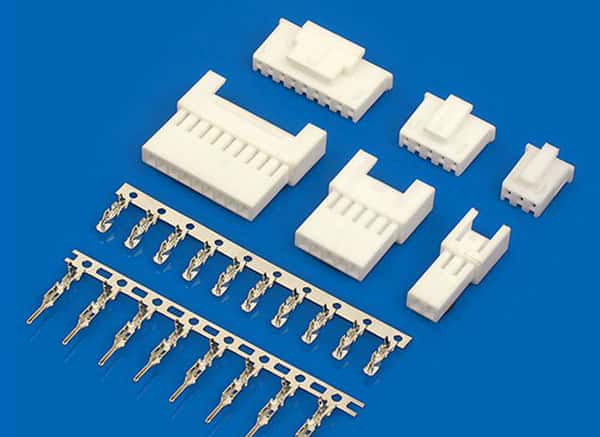

Yeonho Connector types
- Board-to-Board Connectors: Offered in various pitches (1mm, 2mm, 2.54mm, etc.) for connecting printed circuit boards (PCBs) within devices.
- FFC/FPC Connectors: Designed for flexible flat cables (FFC) and flexible printed circuits (FPC), with pitches like 0.5mm and 1mm, commonly used in compact electronics.
- I/O Connectors: This category includes the well-known models for input/output interfaces, available in 0.5mm and 2mm pitches.
- Wire-to-Board Connectors: This is a wide range, with numerous pitch options from 1mm to 18mm, providing solutions for connecting wires to PCBs across various equipment.
- Wire-to-Wire Connectors: Used for connecting wires to wires, available in 2mm, 2.5mm, and 3.96mm pitches.
Wire to Board Connector Features
Yeonho's Wire-to-Board connectors are engineered to provide a critical, reliable interface between discrete wires and a printed circuit board (PCB), serving as a fundamental component in the internal electrical architecture of countless electronic devices. A key characteristic of this extensive product line is the remarkable range of available pitches, spanning from a fine 1.0mm for high-density signal transmission to a robust 18.0mm for higher power applications, providing designers with exceptional flexibility. These connectors are designed for reliability and ease of assembly, typically featuring crimp-style terminations that ensure a secure, gas-tight connection on the wire side, which is then inserted into a plastic housing that offers polarization to prevent incorrect mating. The housings often incorporate positive locking latches and connector position assurance (CPA) clips to prevent accidental disconnection caused by vibration or shock, which is crucial in demanding environments such as automotive, industrial automation, and consumer appliances. Constructed from high-temperature resistant plastics, they can withstand the heat of soldering processes and ensure stable performance. Ultimately, Yeonho's Wire-to-Board solutions provide a versatile, durable, and space-efficient method for integrating power and signal lines into electronic systems, from complex control panels and robotics to everyday office equipment and home appliances.
Wire to Wire Connector Features
Yeonho's Wire-to-Wire connectors are specifically designed to create secure, in-line connections between individual wires or cable harnesses, enabling the extension, branching, or modular interconnection of wiring assemblies without the need for permanent soldering or splicing. These connectors simplify the manufacturing and maintenance of complex wiring systems by allowing for pre-assembled harnesses that can be easily connected and disconnected. Available in standard pitches such as 2.0mm, 2.5mm, and 3.96mm, they are built for durability, often featuring a robust locking mechanism—such as a strong snap-in latch or a screw-type lock for larger pitches—that ensures the connection remains intact even under significant stress or vibration, making them ideal for applications in automotive systems, industrial machinery, and heavy equipment. The housings are engineered with polarization features to prevent mis-mating and may offer environmental sealing on select models to protect against moisture and contaminants. By providing a reliable and reusable interface, Wire-to-Wire connectors facilitate modular design, ease of service, and efficient field repairs, proving essential in applications ranging from vehicle wiring harnesses and factory automation to agricultural machinery and power supply units where modularity and serviceability are paramount.
Wire to Board Connector Lists
- Search Your P/N by using Ctrl + F
| Pitch | Series | Positions | Connector Type | ||||
| Housing | Vertical Socket | Horizontal Socket | |||||
| 1.0 mm | 10035-HNND | 6 | 10035HS-H06C | 10035WS-H06D | // | // | 10035WR-H06D |
| 1.0 mm | 10 | 10035HS-H10C | 10035WS-H10D | // | // | 10035WR-H10D | |
| 1.0 mm | 6 | 10035HS-H06G | 10035WS-H06D | // | // | 10035WR-H06D | |
| 1.0 mm | 10 | 10035HS-H10G | 10035WS-H10D | // | // | 10035WR-H10D | |
| 1.25 mm | 12505-NN | 2 | 12505HS-02 | 12505WS-02 | // | // | 12505WR-02 |
| 1.25 mm | 4 | 12505HS-04 | 12505WS-04 | // | // | 12505WR-04 | |
| 1.25 mm | 5 | 12505HS-05 | 12505WS-05 | // | // | 12505WR-05 | |
| 1.25 mm | 6 | 12505HS-06 | 12505WS-06 | // | // | 12505WR-06 | |
| 1.25 mm | 8 | 12505HS-08 | 12505WS-08 | // | // | 12505WR-08 | |
| 1.25 mm | 10 | 12505HS-10 | 12505WS-10 | // | // | 12505WR-10 | |
| 1.25 mm | 12 | 12505HS-12 | 12505WS-12 | // | // | 12505WR-12 | |
| 1.25 mm | 14 | 12505HS-14 | 12505WS-14 | // | // | 12505WR-14 | |
| 1.25 mm | 16 | 12505HS-16 | 12505WS-16 | // | // | 12505WR-16 | |
| 1.25 mm | 12507-HNNG | 2 | 12507HS-H02G1 | 12507WS-H02G | // | // | 12507WR-H02G |
| 1.25 mm | 4 | 12507HS-H04G1 | 12507WS-H04G | // | // | 12507WR-H04G | |
| 1.25 mm | 6 | 12507HS-H06G1 | 12507WS-H06G | // | // | 12507WR-H06G | |
| 1.25 mm | 8 | 12507HS-H08G1 | 12507WS-H08G | // | // | 12507WR-H08G | |
| 1.25 mm | 10 | 12507HS-H10G1 | 12507WS-H10G | // | // | 12507WR-H10G | |
| 1.25 mm | 12 | 12507HS-H12G1 | 12507WS-H12G | // | // | 12507WR-H12G | |
| 1.25 mm | 14 | 12507HS-H14G1 | 12507WS-H14G | // | // | 12507WR-H14G | |
| 1.25 mm | 16 | 12507HS-H16G1 | 12507WS-H16G | // | // | 12507WR-H16G | |
| 1.25 mm | 18 | 12507HS-H18G1 | 12507WS-H18G | // | // | 12507WR-H18G | |
| 1.25 mm | 20 | 12507HS-H20G1 | 12507WS-H20G | // | // | 12507WR-H20G | |
| 1.25 mm | 12512-NNB | 2 | 12505HS-02 | 12512WS-02B | // | // | 12512WR-02B |
| 1.25 mm | 4 | 12505HS-04 | 12512WS-04B | // | // | 12512WR-04B | |
| 1.25 mm | 5 | 12505HS-05 | 12512WS-05B | // | // | 12512WR-05B | |
| 1.25 mm | 6 | 12505HS-06 | 12512WS-06B | // | // | 12512WR-06B | |
| 1.25 mm | 8 | 12505HS-08 | 12512WS-08B | // | // | 12512WR-08B | |
| 1.25 mm | 10 | 12505HS-10 | 12512WS-10B | // | // | 12512WR-10B | |
| 1.25 mm | 12 | 12505HS-12 | 12512WS-12B | // | // | 12512WR-12B | |
| 1.25 mm | 14 | 12505HS-14 | 12512WS-14B | // | // | 12512WR-14B | |
| 1.25 mm | 16 | 12505HS-16 | 12512WS-16B | // | // | 12512WR-16B | |
| 1.25 mm | 12513-NN | 2 | 12513HS-02 | // | // | // | 12513WR-02 |
| 1.25 mm | 4 | 12513HS-04 | // | // | // | 12513WR-04 | |
| 1.25 mm | 6 | 12513HS-06 | // | // | // | 12513WR-06 | |
| 1.25 mm | 8 | 12513HS-08 | // | // | // | 12513WR-08 | |
| 1.25 mm | 10 | 12513HS-10 | // | // | // | 12513WR-06 | |
| 1.25 mm | 12 | 12513HS-12 | // | // | // | 12513WR-08 | |
| 1.25 mm | 14 | 12513HS-14 | // | // | // | 12513WR-14 | |
| 1.5 mm | 15001-NNC | 2 | 15001HS-02 | 15001WS-02C | // | // | 15001WR-02 |
| 1.5 mm | 4 | 15001HS-04 | 15001WS-04C | // | // | 15001WR-04 | |
| 1.5 mm | 6 | 15001HS-06 | 15001WS-06C | // | // | 15001WR-06 | |
| 1.5 mm | 80 | 15001HS-08 | 15001WS-08C | // | // | 15001WR-08 | |
| 1.5 mm | 10 | 15001HS-10 | 15001WS-10C | // | // | 15001WR-10 | |
| 1.5 mm | 12 | 15001HS-12 | 15001WS-12C | // | // | 15001WR-12 | |
| 1.5 mm | 14 | 15001HS-14 | 15001WS-14C | // | // | 15001WR-14 | |
| 1.5 mm | 16 | 15001HS-16 | 15001WS-16C | // | // | 15001WR-16 | |
| 2.0 mm | 20003WS-HNN | 18 | 20003HS-18 | 20003WS-H18 | 20003WS-H18B | 20003WS-H18 | // |
| 2.0 mm | 20 | 20003HS-20 | 20003WS-H20 | 20003WS-H20B | 20003WS-H20 | // | |
| 2.0 mm | 22 | 20003HS-22 | 20003WS-H22 | 20003WS-H22B | 20003WS-H22 | // | |
| 2.0 mm | 24 | 20003HS-24 | 20003WS-H24 | 20003WS-H24B | 20003WS-H24 | // | |
| 2.0 mm | 26 | 20003HS-26 | 20003WS-H26 | 20003WS-H26B | 20003WS-H26 | // | |
| 2.0 mm | 28 | 20003HS-28 | 20003WS-H28 | 20003WS-H28B | 20003WS-H28 | // | |
| 2.0 mm | 20010-NN | 2 | 20010HS-02 | 20010WS-02 | // | // | 20010WR-02 |
| 2.0 mm | 4 | 20010HS-04 | 20010WS-04 | // | // | 20010WR-04 | |
| 2.0 mm | 6 | 20010HS-06 | 20010WS-06 | // | // | 20010WR-06 | |
| 2.0 mm | 8 | 20010HS-08 | 20010WS-08 | // | // | 20010WR-08 | |
| 2.0 mm | 10 | 20010HS-10 | 20010WS-10 | // | // | 20010WR-10 | |
| 2.0 mm | 12 | 20010HS-12 | 20010WS-12 | // | // | 20010WR-12 | |
| 2.0 mm | 14 | 20010HS-14 | 20010WS-14 | // | // | 20010WR-14 | |
| 2.0 mm | 16 | 20010HS-16 | 20010WS-16 | // | // | 20010WR-16 | |
| 2.0 mm | 20017-NN | 2 | 20017HS-02 | 20017WS-02A00 | // | // | 20017WR-02A00 |
| 2.0 mm | 4 | 20017HS-04 | 20017WS-04A00 | // | // | 20017WR-04A00 | |
| 2.0 mm | 6 | 20017HS-06 | 20017WS-06A00 | // | // | 20017WR-06A00 | |
| 2.0 mm | 8 | 20017HS-08 | 20017WS-08A00 | // | // | 20017WR-08A00 | |
| 2.0 mm | 10 | 20017HS-10 | 20017WS-10A00 | // | // | 20017WR-10A00 | |
| 2.0 mm | 12 | 20017HS-12 | 20017WS-12A00 | // | // | 20017WR-12A00 | |
| 2.0 mm | 14 | 20017HS-14 | 20017WS-14A00 | // | // | 20017WR-14A00 | |
| 2.0 mm | 16 | 20017HS-16 | 20017WS-16A00 | // | // | 20017WR-16A00 | |
| 2.0 mm | 20022-NN | 2 | 20022HS-02 | 20022WS-02C | // | // | 20022WR-02 |
| 2.0 mm | 4 | 20022HS-04 | 20022WS-04C | // | // | 20022WR-04 | |
| 2.0 mm | 6 | 20022HS-06 | 20022WS-06C | // | // | 20022WR-06 | |
| 2.0 mm | 8 | 20022HS-08 | 20022WS-08C | // | // | 20022WR-08 | |
| 2.0 mm | 10 | 20022HS-10 | 20022WS-10C | // | // | 20022WR-10 | |
| 2.0 mm | 12 | 20022HS-12 | 20022WS-12C | // | // | 20022WR-12 | |
| 2.0 mm | 14 | 20022HS-14 | 20022WS-14C | // | // | 20022WR-14 | |
| 2.0 mm | 16 | 20022HS-16 | 20022WS-16C | // | // | 20022WR-16 | |
| 2.0 mm | 18 | 20022HS-18 | 20022WS-18C | // | // | 20022WR-18 | |
| 2.0 mm | 20037-HNN | 2 | SMH200-02 | // | // | // | 20037WR-H02 |
| 2.0 mm | 4 | SMH200-04 | // | // | // | 20037WR-H04 | |
| 2.0 mm | 6 | SMH200-06 | // | // | // | 20037WR-H06 | |
| 2.0 mm | 8 | SMH200-08 | // | // | // | 20037WR-H08 | |
| 2.0 mm | 10 | SMH200-10 | // | // | // | 20037WR-H10 | |
| 2.0 mm | 12 | SMH200-12 | // | // | // | 20037WR-H12 | |
| 2.0 mm | 14 | SMH200-14 | // | // | // | 20037WR-H14 | |
| 2.0 mm | 16 | SMH200-16 | // | // | // | 20037WR-H16 | |
| 2.0 mm | 18 | SMH200-18 | // | // | // | 20037WR-H18 | |
| 2.0 mm | 20071-HNNE1 | 2 | 20071HR-H02E | 20071WS-H02E1 | // | // | 20071WR-H02E1 |
| 2.0 mm | 3 | 20071HR-H03E | 20071WS-H03E1 | // | // | 20071WR-H03E1 | |
| 2.0 mm | 4 | 20071HR-H04E | 20071WS-H04E1 | // | // | 20071WR-H04E1 | |
| 2.0 mm | 5 | 20071HR-H05E | 20071WS-H05E1 | // | // | 20071WR-H05E1 | |
| 2.0 mm | 6 | 20071HR-H06E | 20071WS-H06E1 | // | // | 20071WR-H06E1 | |
| 2.0 mm | 8 | 20071HR-H08E | 20071WS-H08E1 | // | // | 20071WR-H08E1 | |
| 2.0 mm | 9 | 20071HR-H09E | 20071WS-H09E1 | // | // | 20071WR-H09E1 | |
| 2.0 mm | 10 | 20071HR-H10E | 20071WS-H10E1 | // | // | 20071WR-H10E1 | |
| 2.0 mm | 12 | 20071HR-H12E | 20071WS-H12E1 | // | // | 20071WR-H12E1 | |
| 2.0 mm | SMAW200-HNNS5K | 10 | SMH250-H10S4 | SMW200-H10S5K | // | // | SMAW200-H10S5K |
| 2.0 mm | 12 | SMH250-H12S4 | SMW200-H12S5K | // | // | SMAW200-H12S5K | |
| 2.0 mm | 14 | SMH250-H14S4 | SMW200-H14S5K | // | // | SMAW200-H14S5K | |
| 2.0 mm | 16 | SMH250-H16S4 | SMW200-H16S5K | // | // | SMAW200-H16S5K | |
| 2.0 mm | 18 | SMH250-H18S4 | SMW200-H18S5K | // | // | SMAW200-H18S5K | |
| 2.0 mm | 20 | SMH250-H20S4 | SMW200-H20S5K | // | // | SMAW200-H20S5K | |
| 2.0 mm | 22 | SMH250-H22S4 | SMW200-H22S5K | // | // | SMAW200-H22S5K | |
| 2.0 mm | 24 | SMH250-H24S4 | SMW200-H22S5K | // | // | SMAW200-H22S5K | |
| 2.0 mm | 26 | SMH250-H26S4 | SMW200-H22S5K | // | // | SMAW200-H22S5K | |
| 2.0 mm | 28 | SMH250-H28S4 | SMW200-H22 S5K | // | // | SMAW200-H22S5K | |
| 2.0 mm | 30 | SMH250-H30S4 | SMW200-H22 S5K | // | // | SMAW200-H22S5K | |
| 2.0 mm | SMAW200-NN | 2 | SMH200-02 | SMW200-02 | // | // | SMAW200-02 |
| 2.0 mm | 4 | SMH200-04 | SMW200-04 | // | // | SMAW200-04 | |
| 2.0 mm | 6 | SMH200-06 | SMW200-06 | // | // | SMAW200-06 | |
| 2.0 mm | 8 | SMH200-08 | SMW200-08 | // | // | SMAW200-08 | |
| 2.0 mm | 10 | SMH200-10 | SMW200-10 | // | // | SMAW200-10 | |
| 2.0 mm | 12 | SMH200-12 | SMW200-12 | // | // | SMAW200-12 | |
| 2.0 mm | 14 | SMH200-14 | SMW200-14 | // | // | SMAW200-14 | |
| 2.0 mm | 16 | SMH200-16 | SMW200-16 | // | // | SMAW200-16 | |
| 2.0 mm | 2 | SMH200-H02H3 | SMW200-02 | // | // | SMAW200-02 | |
| 2.0 mm | 4 | SMH200-H04H3 | SMW200-04 | // | // | SMAW200-04 | |
| 2.0 mm | 6 | SMH200-H06H3 | SMW200-06 | // | // | SMAW200-06 | |
| 2.0 mm | 8 | SMH200-H08H3 | SMW200-08 | // | // | SMAW200-08 | |
| 2.0 mm | 10 | SMH200-H10H3 | SMW200-10 | // | // | SMAW200-10 | |
| 2.0 mm | 12 | SMH200-H12H3 | SMW200-12 | // | // | SMAW200-12 | |
| 2.0 mm | 14 | SMH200-H14H3 | SMW200-14 | // | // | SMAW200-14 | |
| 2.0 mm | 16 | SMH200-H16H3 | SMW200-16 | // | // | SMAW200-16 | |

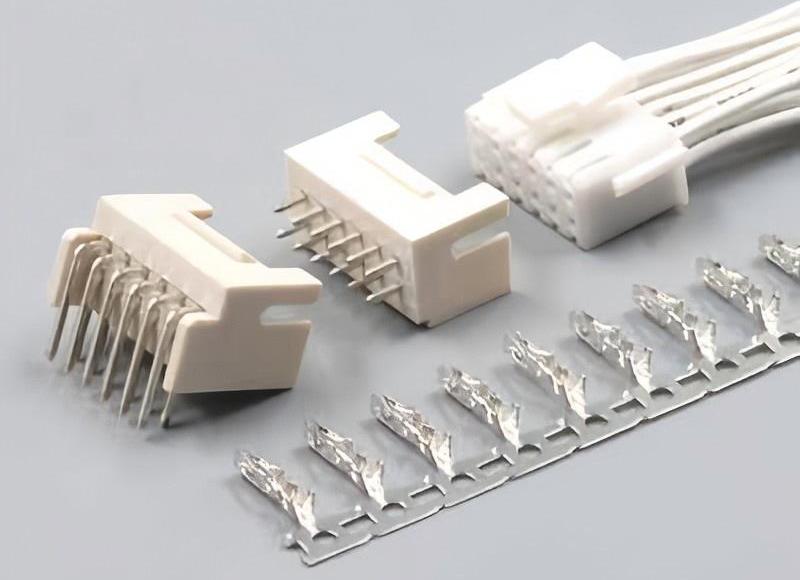

| 2.0 mm | SMAW200-NNC | 12 | SMH200-12C | SMW200-12C | // | // | SMAW200-12C |
| 2.0 mm | 14 | SMH200-14C | SMW200-14C | // | // | SMAW200-14C | |
| 2.0 mm | 16 | SMH200-16C | SMW200-16C | // | // | SMAW200-16C | |
| 2.0 mm | 20 | SMH200-20C | SMW200-20C | // | // | SMAW200-20C | |
| 2.0 mm | 22 | SMH200-22C | SMW200-22C | // | // | SMAW200-22C | |
| 2.0 mm | 24 | SMH200-24C | SMW200-24C | // | // | SMAW200-24C | |
| 2.0 mm | 26 | SMH200-26C | SMW200-26C | // | // | SMAW200-26C | |
| 2.0 mm | 28 | SMH200-28C | SMW200-28C | // | // | SMAW200-28C | |
| 2.0 mm | 30 | SMH200-30C | SMW200-30C | // | // | SMAW200-30C | |
| 2.0 mm | 32 | SMH200-32C | SMW200-32C | // | // | SMAW200-32C | |
| 2.0 mm | 34 | SMH200-34C | SMW200-34C | // | // | SMAW200-34C | |
| 2.0 mm | 36 | SMH200-36C | SMW200-36C | // | // | SMAW200-36C | |
| 2.0 mm | 40 | SMH200-40C | SMW200-40C | // | // | SMAW200-40C | |
| 2.0 mm | SMW200-HNNG | 2 | SMH200-02 | SMW200-H02G | SMW200-H02G3 | // | // |
| 2.0 mm | 4 | SMH200－04 | SMW200-H04G | SMW200-H04G3 | // | // | |
| 2.0 mm | 6 | SMH200-06 | SMW200-H06G | SMW200-H06G3 | // | // | |
| 2.0 mm | 8 | SMH200-08 | SMW200-H08G | SMW200-H08G3 | // | // | |
| 2.0 mm | 10 | SMH200-10 | SMW200-H10G | SMW200-H10G3 | // | // | |
| 2.0 mm | 12 | SMH200-12 | SMW200-H12G | SMW200-H12G3 | // | // | |
| 2.0 mm | 14 | SMH200-14 | SMW200-H14G | SMW200-H14G3 | // | // | |
| 2.0 mm | 16 | SMH200-15 | SMW200-H16G | SMW200-H16G3 | // | // | |
| 2.0 mm | SMW200-HNNQ | 2 | SMH200-02 | SMW200-H02Q | // | // | // |
| 2.0 mm | 4 | SMH200-04 | SMW200-H04Q | // | // | // | |
| 2.0 mm | 6 | SMH200-06 | SMW200-H06Q | // | // | // | |
| 2.0 mm | 8 | SMH200-08 | SMW200-H08Q | // | // | // | |
| 2.0 mm | 10 | SMH200-10 | SMW200-H10Q | // | // | // | |
| 2.0 mm | 12 | SMH200-12 | SMW200-H12Q | // | // | // | |
| 2.0 mm | 14 | SMH200-14 | SMW200-H14Q | // | // | // | |
| 2.0 mm | 16 | SMH200-16 | SMW200-H16Q | // | // | // | |
| 2.0 mm | YDAW200-NN | 4 | YDH200-04S | YDW200-04 | // | // | YDAW200-04 |
| 2.0 mm | 6 | YDH200-06S | YDW200-06 | // | // | YDAW200-06 | |
| 2.0 mm | 8 | YDH200-08S | YDW200-08 | // | // | YDAW200-08 | |
| 2.0 mm | 10 | YDH200-10S | YDW200-10 | // | // | YDAW200-10 | |
| 2.0 mm | 12 | YDH200-12S | YDW200-12 | // | // | YDAW200-12 | |
| 2.0 mm | 14 | YDH200-14S | YDW200-14 | // | // | YDAW200-14 | |
| 2.0 mm | 16 | YDH200-16S | YDW200-16 | // | // | YDAW200-16 | |
| 2.0 mm | 18 | YDH200-18S | YDW200-18 | // | // | YDAW200-18 | |
| 2.0 mm | 20 | YDH200-20S | YDW200-20 | // | // | YDAW200-20 | |
| 2.0 mm | 22 | YDH200-22S | YDW200-22 | // | // | YDAW200-22 | |
| 2.0 mm | 24 | YDH200-26S | YDW200-26 | // | // | YDAW200-26 | |
| 2.0 mm | 26 | YDH200-26S | YDW200-26 | // | // | YDAW200-26 | |
| 2.0 mm | 28 | YDH200-28S | YDW200-28 | // | // | YDAW200-28 | |
| 2.0 mm | 30 | YDH200-30S | YDW200-30 | // | // | YDAW200-30 | |
| 2.0 mm | 32 | YDH200-32S | YDW200-32 | // | // | YDAW200-32 | |
| 2.5mm | 25086-HNN | 4 | 25086HS-H04 | 25086WS-H04 | // | // | 25086WR-H04 |
| 2.5mm | 6 | 25086HS-H06 | // | // | 25086WR-H06 | ||
| 2.5mm | SMAW250-NN | 2 | SMH250-02 | SMW250-02 | SMW250-02D | // | SMAW250-02 |
| 2.5mm | 4 | SMH250-04 | SMW250-04 | SMW250-04D | // | SMAW250-04 | |
| 2.5mm | 6 | SMH250-06 | SMW250-06 | SMW250-06D | // | SMAW250-06 | |
| 2.5mm | 80 | SMH250-08 | SMW250-08 | SMW250-08D | // | SMAW250-08 | |
| 2.5mm | 10 | SMH250-10 | SMW250-10 | SMW250-10D | // | SMAW250-10 | |
| 2.5mm | 12 | SMH250-12 | SMW250-12 | SMW250-12D | // | SMAW250-12 | |
| 2.5mm | 14 | SMH250-14 | SMW250-14 | SMW250-14D | // | SMAW250-14 | |
| 2.5mm | 16 | SMH250-16 | SMW250-16 | SMW250-16D | // | SMAW250-16 | |
| 2.5mm | 2 | SMH250-02L | SMW250-02 | SMW250-02D | // | SMAW250-02 | |
| 2.5mm | 4 | SMH250-04L | SMW250-04 | SMW250-04D | // | SMAW250-04 | |
| 2.5mm | 6 | SMH250-06L | SMW250-06 | SMW250-06D | // | SMAW250-06 | |
| 2.5mm | 80 | SMH250-08L | SMW250-08 | SMW250-08D | // | SMAW250-08 | |
| 2.5mm | 10 | SMH250-10L | SMW250-10 | SMW250-10D | // | SMAW250-10 | |
| 2.5mm | 12 | SMH250-12L | SMW250-12 | SMW250-12D | // | SMAW250-12 | |
| 2.5mm | 14 | SMH250-14L | SMW250-14 | SMW250-14D | // | SMAW250-14 | |
| 2.5mm | 16 | SMH250-16L | SMW250-16 | SMW250-16D | // | SMAW250-16 | |
| 2.5mm | SMAW250-NNS5 | 8 | SMH250-H08S4 | // | // | // | SMAW250-H08S5 |
| 2.5mm | 10 | SMH250-H10S4 | // | // | // | SMAW250-H10S5 | |
| 2.5mm | 12 | SMH250-H12S4 | // | // | // | SMAW250-H12S5 | |
| 2.5mm | 14 | SMH250-H14S4 | // | // | // | SMAW250-H14S5 | |
| 2.5mm | 16 | SMH250-H16S4 | // | // | // | SMAW250-H16S5 | |
| 2.5mm | 18 | SMH250-H18S4 | // | // | // | SMAW250-H18S5 | |
| 2.5mm | 20 | SMH250-H20S4 | // | // | // | SMAW250-H20S5 | |
| 2.5mm | 22 | SMH250-H22S4 | // | // | // | SMAW250-H22S5 | |
| 2.5mm | 24 | SMH250-H24S4 | // | // | // | SMAW250-H24S5 | |
| 2.5mm | 26 | SMH250-H26S4 | // | // | // | SMAW250-H26S5 | |
| 2.5mm | 30 | SMH250-H30S4 | // | // | // | SMAW250-H30S5 | |
| 2.5mm | SMAW250-NNV | 14 | SMH250-14V | SMW250-14V | // | // | SMAW250-14V |
| 2.5mm | 16 | SMH250-16V | SMW250-16V | // | // | SMAW250-16V | |
| 2.5mm | 20 | SMH250-20V | SMW250-20V | // | // | SMAW250-20V | |
| 2.5mm | 24 | SMH250-24V | SMW250-24V | // | // | SMAW250-24V | |
| 2.5mm | 26 | SMH250-26V | SMW250-26V | // | // | SMAW250-26V | |
| 2.5mm | 28 | SMH250-28V | SMW250-28V | // | // | SMAW250-28V | |
| 2.5mm | SMW250-H12W | 12 | SMH250-H12W | SMW250-H12W | // | // | // |
| 2.5mm | SMW250-NNIS | 4 | SMH250-04I | SMW250-04IS | // | // | // |
| 2.5mm | 6 | SMH250-06I | SMW250-06IS | // | // | // | |
| 2.5mm | 8 | SMH250-08I | SMW250-08IS | // | // | // | |
| 2.5mm | 10 | SMH250-101 | SMW250-10IS | // | // | // | |
| 2.5mm | 12 | SMH250-121 | SMW250-12IS | // | // | // | |
| 2.5mm | 14 | SMH250-14I | SMW250-14IS | // | // | // | |
| 2.5mm | 16 | SMH250-16I | SMW250-16IS | // | // | // | |
| 2.5mm | YMAW025-NNR | 2 | YMH025-02R | YMW025-02R | // | // | YMAW025-02R |
| 2.5mm | 4 | YMH025-04R | YMW025-04R | // | // | YMAW025-04R | |
| 2.5mm | 6 | YMH025-06R | YMW025-06R | // | // | YMAW025-06R | |
| 2.5mm | 80 | YMH025-08R | YMW025-08R | // | // | YMAW025-08R | |
| 2.5mm | 10 | YMH025-10R | YMW025-10R | // | // | YMAW025-10R | |
| 2.5mm | 12 | YMH025-12R | YMW025-12R | // | // | YMAW025-12R | |
| 2.5mm | 14 | YMH025-14R | YMW025-14R | // | // | YMAW025-14R | |
| 2.5mm | 16 | YMH025-16R | YMW025-16R | // | // | YMAW025-16R | |
| 3.5mm | 35001WR-NNL | 2 | 35001HS-02L | 35001WR-02L | // | // | // |
| 3.5mm | 4 | 35001HS-04L | 35001WR-04L | // | // | // | |
| 3.96mm | YH396-NNV | 2 | YH396-02V | YW396-02F | YW396-02G | YW396-02V | YAW396-02V |
| 3.96mm | 4 | YH396-04V | YW396-04F | YW396-04G | YW396-04V | YAW396-04V | |
| 3.96mm | 6 | YH396-06V | YW396-06F | YW396-06G | YW396-06V | YAW396-06V | |
| 3.96mm | 8 | YH396-08V | YW396-08F | YW396-08G | YW396-08V | YAW396-08V | |
| 3.96mm | 10 | YH396-10V | YW396-10F | YW396-10G | YW396-10V | YAW396-10V | |
| 3.96mm | 12 | YH396-12V | YW396-12F | YW396-12G | YW396-12V | YAW396-12V | |
| 3.96mm | 14 | YH396-14V | YW396-14F | YW396-14G | YW396-14V | YAW396-14V | |
| 3.96mm | 16 | YH396-16V | YW396-16F | YW396-16G | YW396-16V | YAW396-16V | |
| 3.96mm | 2 | YH396-02VR | YW396-02F | YW396-02G | YW396-02V | YAW396-02V | |
| 3.96mm | 4 | YH396-04VR | YW396-04F | YW396-04G | YW396-04V | YAW396-04V | |
| 3.96mm | 6 | YH396-06VR | YW396-06F | YW396-06G | YW396-06V | YAW396-06V | |
| 3.96mm | 8 | YH396-08VR | YW396-08F | YW396-08G | YW396-08V | YAW396-08V | |
| 3.96mm | 10 | YH396-10VR | YW396-10F | YW396-10G | YW396-10V | YAW396-10V | |
| 3.96mm | 12 | YH396-12VR | YW396-12F | YW396-12G | YW396-12V | YAW396-12V | |
| 3.96mm | 14 | YH396-14VR | YW396-14F | YW396-14G | YW396-14V | YAW396-14V | |
| 3.96mm | 16 | YH396-16VR | YW396-16F | YW396-16G | YW396-16V | YAW396-16V | |
| 3.96mm | YW396-NNB | 2 | YH396-02B | YW396-02B | // | // | // |
| 3.96mm | 4 | YH396-04B | YW396-04B | // | // | // | |
| 3.96mm | 6 | YH396-06B | YW396-06B | // | // | // | |
| 3.96mm | 8 | YH396-08B | YW396-08B | // | // | // | |
| 3.96mm | 10 | YH396-10B | YW396-10B | // | // | // | |
| 3.96mm | 12 | YH396-12B | YW396-12B | // | // | // | |
| 3.96mm | 14 | YH396-14B | YW396-14B | // | // | // | |
| 3.96mm | 16 | YH396-16B | YW396-16B | // | // | // | |
| 4.0mm | YW500-NNC | 4 | YH500-04C | YW500-04C | // | // | // |
| 4.0mm | 6 | YH500-06C | YW500-06C | // | // | // | |
| 4.2mm | SMAW420-NN | 2 | SMH420-02 | SMW420-02 | // | // | SMAW420-02 |
| 4.2mm | 4 | SMH420-04 | SMW420-04 | // | // | SMAW420-04 | |
| 4.2mm | 6 | SMH420-06 | SMW420-06 | // | // | SMAW420-06 | |
| 4.2mm | 8 | SMH420-08 | SMW420-08 | // | // | SMAW420-08 | |
| 4.2mm | 10 | SMH420-10 | SMW420-10 | // | // | SMAW420-10 | |
| 4.2mm | 12 | SMH420-12 | SMW420-12 | // | // | SMAW420-12 | |
| 4.2mm | 14 | SMH420-14 | SMW420-14 | // | // | SMAW420-14 | |
| 4.2mm | 16 | SMH420-16 | SMW420-16 | // | // | SMAW420-16 | |
| 4.2mm | 18 | SMH420-18 | SMW420-18 | // | // | SMAW420-18 | |
| 4.2mm | 20 | SMH420-20 | SMW420-20 | // | // | SMAW420-20 | |
| 5.0mm | YW500-HNN | 2 | YH500-HNNE | YW500-HNNE1 | // | // | // |
| 5.5mm | 55001-NN | 2 | 55001HS-02 | 55001WS-02 | // | // | // |
| 5.5mm | 3 | 55001HS-03 | 55001WS-03 | // | // | // | |
| 5.5mm | 4 | 55001HS-04 | 55001WS-04 | // | // | // | |
| 5.5mm | 5 | 55001HS-05 | 55001WS-05 | // | // | // | |
| 6.5mm | 65001WS-12 | 12 | 65001HS-12 | 65001WS-12 | // | // | // |
| 7.0mm | 70001-04A | 4 | 70001HS-04A | 70001WS-04A | // | // | // |
| 8.0mm | YDW236-NN | 1 | YDH236-01 | YDW236-01 | // | // | // |
| 8.0mm | 2 | YDH236-02 | YDW236-02 | // | // | // | |
| 18.0mm | 90011-H03D | 3 | 90011HS-H03D | 90011WR-H03AD1 | // | // | // |
Wire to Wire Connector Lists
- Search Your P/N by using Ctrl + F
| Pitch | Series | Positions | Connector Type | |
| Housing (male) | Housing (female) | |||
| 2.0mm | SMH200-HNN | 2 | SMH200-H02H3 | SMH200-H02PR |
| 2.0mm | 4 | SMH200-H04H3 | SMH200-H04PR | |
| 2.0mm | 6 | SMH200-H06H3 | SMH200-H06PR | |
| 2.0mm | 8 | SMH200-H08H3 | SMH200-H08PR | |
| 2.0mm | 10 | SMH200-H10H3 | SMH200-H10PR | |
| 2.0mm | 12 | SMH200-H12H3 | SMH200-H12PR | |
| 2.0mm | 14 | SMH200-H14H3 | SMH200-H14PR | |
| 2.0mm | 16 | SMH200-H16H3 | SMH200-H16PR | |
| 2.0mm | SMH200-NN | 2 | SMH200-02 | SMH200-02PL |
| 2.0mm | 4 | SMH200-04 | SMH200-04PL | |
| 2.0mm | 6 | SMH200-06 | SMH200-06PL | |
| 2.0mm | 8 | SMH200-08 | SMH200-08PL | |
| 2.0mm | 10 | SMH200-10 | SMH200-10PL | |
| 2.0mm | 12 | SMH200-12 | SMH200-12PL | |
| 2.0mm | 14 | SMH200-14 | SMH200-14PL | |
| 2.0mm | 16 | SMH200-16 | SMH200-16PL | |
| 2.5mm | 25045HP-NNA | 2 | SMH250-02L | 25045HP-02A |
| 2.5mm | 4 | SMH250-04L | 25045HP-04A | |
| 2.5mm | 6 | SMH250-06L | 25045HP-06A | |
| 2.5mm | 8 | SMH250-08L | 25045HP-08A | |
| 2.5mm | 10 | SMH250-10L | 25045HP-10A | |
| 2.5mm | 12 | SMH250-12L | 25045HP-12A | |
| 2.5mm | 14 | SMH250-14L | 25045HP-14A | |
| 2.5mm | 16 | SMH250-16L | 25045HP-16A | |
| 2.5mm | SMP250-NN | 2 | SMH250-02 | SMP250-02 |
| 2.5mm | 4 | SMH250-04 | SMP250-04 | |
| 2.5mm | 6 | SMH250-06 | SMP250-06 | |
| 2.5mm | 8 | SMH250-08 | SMP250-08 | |
| 2.5mm | 10 | SMH250-10 | SMP250-10 | |
| 2.5mm | 12 | SMH250-12 | SMP250-12 | |
| 2.5mm | 14 | SMH250-14 | SMP250-14 | |
| 2.5mm | 16 | SMH250-16 | SMP250-16 | |
| 3.96mm | YH396-HNN | 2 | YH396-02VR | YH396-H02PL |
| 3.96mm | 4 | YH396-04VR | YH396-H04PL | |
| 3.96mm | 6 | YH396-06VR | YH396-H06PL | |
| 3.96mm | 8 | YH396-08VR | YH396-H08PL | |
| 3.96mm | 10 | YH396-10VR | YH396-H10PL | |
| 3.96mm | 12 | YH396-12VR | YH396-H12PL | |
| 3.96mm | 14 | YH396-14VR | YH396-H14PL | |
| 3.96mm | 16 | YH396-16VR | YH396-H16PL | |
Contact us for more specs.
Support Custom Wiring Harness Assembly
- Connector: Wire to Wire, Wire to Board all series
- Wire gauge: according to your needs, or based on the terminal crimp range
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
