AMP MCP Connector, Custom Wire Harness Assembly

AMP MCP Connector

The AMP MCP Connector, part of TE Connectivity's product line, is a high-performance electrical connector designed for demanding applications. Known for its multi-channel power and signal capabilities, it supports high current and voltage requirements in a compact, space-saving design. Built for durability, it withstands harsh environments, including vibration, shock, and extreme temperatures. Its secure locking mechanism ensures reliable connections, while its versatility allows for various configurations to meet diverse needs. Widely used in automotive, industrial, renewable energy, and aerospace, the AMP MCP Connector offers a robust, efficient solution for power distribution and signal transmission in critical applications.

Features

• High Current Capacity: Designed to carry high currents, making them suitable for power distribution applications.
• Multi-Channel Design: Supports multiple power and signal channels in a single connector, reducing the need for multiple connectors and saving space.
• Robust Construction: Built to withstand harsh environments, including exposure to vibration, shock, and extreme temperatures.
• Secure Locking Mechanism: Features a reliable locking system to ensure a secure connection, preventing accidental disconnection.
• Versatility: Available in various configurations, including different pin counts, sizes, and orientations, to meet diverse application requirements.
• Ease of Installation: Designed for easy assembly and disassembly, often featuring tool-less or simple tooling requirements.
• Compliance with Standards: Meets industry standards for performance, safety, and reliability.

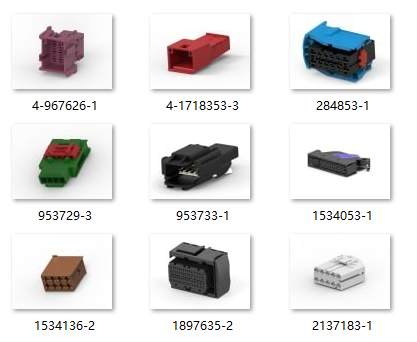

Connector List (Sort by the No. of Positions):

Applications

1. Automotive

AMP MCP connectors are critical in electric and hybrid vehicles (EVs/HEVs), where they manage high-current power distribution between batteries, motors, and charging systems. Their robust design ensures reliable performance in high-vibration environments, such as battery packs and onboard chargers. These connectors also support fast-charging infrastructure by handling elevated voltage levels (e.g., 800V systems) while maintaining safety and thermal stability. With compact, modular configurations, they reduce wiring complexity in space-constrained automotive architectures, making them ideal for next-generation EVs and autonomous driving systems.

2. Industrial Machinery

In heavy machinery and automation, AMP MCP connectors deliver power and signal integration for motors, sensors, and control units. Their rugged construction withstands extreme conditions like dust, moisture, and mechanical stress in mining, construction, or manufacturing equipment. For automated production lines, these connectors enable quick, tool-less mating to reduce downtime during maintenance. They also support high-power hydraulic systems and robotics, ensuring uninterrupted operation in environments where reliability and durability are non-negotiable.

3. Renewable Energy

AMP MCP connectors are vital in solar farms and wind turbines, where they connect photovoltaic panels, inverters, and energy storage systems. Designed to endure outdoor exposure, they resist UV radiation, temperature fluctuations, and corrosion. In wind turbines, they handle dynamic power loads from generators and ensure stable transmission in nacelles exposed to vibration and humidity. Their modularity simplifies installation in large-scale renewable projects, while their high-current capacity minimizes energy loss, optimizing efficiency in green energy systems.

4. Telecommunications

For 5G networks and data centers, AMP MCP connectors provide reliable power distribution to base stations, servers, and backup systems. They ensure uninterrupted connectivity by supporting high-density power and signal lines in compact tower equipment or server racks. Their secure locking mechanisms prevent disconnections in high-traffic environments, while their EMI shielding protects sensitive data transmission. These connectors are also used in fiber-optic infrastructure, enabling scalable solutions for evolving telecom demands.

5. Aerospace and Defense

In avionics, satellites, and military systems, AMP MCP connectors meet stringent requirements for shock, vibration, and extreme temperatures. They power navigation systems, radar, and communication modules in aircraft, while their lightweight design aligns with aerospace weight constraints. For defense applications, they ensure mission-critical reliability in armored vehicles, drones, and naval systems, even in combat conditions. Compliant with MIL-SPEC and aerospace standards, these connectors guarantee performance in the harshest environments, from deep space to desert terrains.

Support Custom Wire Harness Assembly

• Connectors: 1P to 60P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
