TE/AMP MCP Sealed Connector, Wire Harness Manufacturer in China

Introduction



The AMP MCP connector system offers receptacle and tab housings that can withstand water and extreme vibrations. It's designed for electronic and electrical applications in motor vehicles, where long-term vibrations and mechanical stress may affect the contact system quality. You can choose from sealed or unsealed versions, including hybrid options compatible with other TE Connectivity connector systems like MCON or MQS for signal and power contacts.

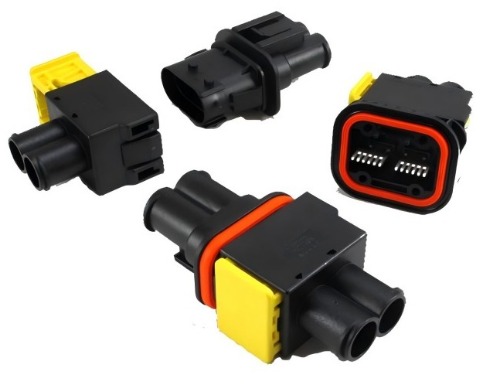

AMP MCP Sealed Connector





Features



  • CPA (Connector Position Assurance) capability for reliability and security
  • High vibration level supported
  • Small connectors with integral latches
  • Large connectors with lever locks
  • Integrated secondary locking device delivered in pre-locked position
  • Wire-to-wire, wire-to-board and wire-to-device sealed and unsealed connectors
  • The design incorporates mechanical polarization
  • Available in multiple position combinations for 1 up to 100
  • Hybrid versions compatible with MCON and MQS for signal and power contacts
  • Color keying available to prevent improper mating





Connector Part Number Lists





Product Description Part Number Connector System Number of Positions Connector & Housing Type Sealable Number of Rows Primary Product Color
Plug Assembly,  Sealed,  1 Posn,  2098198-5 Wire-to-Board,  Wire-to-Device 1 Housing for Female Terminals Yes 1 Black
MCP2, 8BU-GEH ASSY2P 1-1355200-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
2 POS HSG AMP MCP 2.8 ASSY 1-1718624-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
2POS, CE, PIN HSG, 16,  DT,  CODE A, ASSY, SLD 1-2297507-1 Wire-to-Wire 2 Housing for Male Terminals Yes 1 Gray
2 POS. CONN. FOR SPARK COIL 1-284556-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
ASSY,  PLUG,  2P SEALED,  2.8 MCP 1326455-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
2POS, AMP MCP 9.5, REC HSG ASSY, SLD 1355328-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
FLA-STE-GEH9, 5MM 2P 1394026-1 Wire-to-Wire 2 Housing for Male Terminals Yes 1 Black
FLA-STE-GEH9, 5MM 2P 1394026-2 Wire-to-Wire 2 Housing for Male Terminals No 1 Black
MCP2, 8BU-GEH ASSY2P 2-1355200-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Natural
MCP2, 8REC HSG ASY2P 2-1355200-2 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
2POS 2.8MM SENSOR PLUG ASSY 2050046-3   2 Plug Yes 1 Brown
2.8MM SEALED 2P PLUG ASSEMBLY 2066034-1   2 Housing for Female Terminals Yes 1 Black
2.8MM SLD 2P PLUG ASSEMBLY 2066034-2 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
MCP2, 8BU-GEH ASSY2P 3-1355200-1 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Blue
2POS, AMP MCP2.8, SOCK HSG, CODE C, ASSY, SLD 3-1718624-2 Wire-to-Wire 2 Housing for Female Terminals Yes 1 Black
2.8MM SLD 2P CAP HSG 936462-2 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 2 Housing for Female Terminals No 1 Black
3 POS CONNECTOR FOR INJECTION 1-284425-1 Wire-to-Wire 3 Housing for Female Terminals Yes 1 Black
3 POS CONNECTOR FOR INJECTION 1-284425-3 Wire-to-Device 3 Housing for Female Terminals Yes 1 Gray
3POS, AMP MCP1.5K, REC HSG, ASSY 1823679-1 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 3 Housing for Female Terminals Yes 1 Black
2, 8MM FLA-STE-GEH3P 2-968977-9 Wire-to-Wire 3 Housing for Male Terminals No 1 Gray
3 POS CONNECTOR FOR INJECTION 284425-1 Wire-to-Wire 3 Housing for Female Terminals Yes 1 Black
2.8MM SLD 3P PLUG ASSY-RAIL 936061-2 Wire-to-Board,  Wire-to-Device 3   Yes 1 Black
4POS, AMP MCP1.5K, PLUG HSG, ASSY 1-1563305-4 Wire-to-Wire 4 Housing for Female Terminals Yes 1 Gray
REC. HSG., 4POSN., RAD.SEAL, AMP MCP2.8K 1-1718562-1 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 4 Housing for Female Terminals Yes 1 Black
AMP MCP 2.8 HSG. 4POS., ASS'Y 1-1718628-1 Wire-to-Wire 4 Housing for Female Terminals Yes 1 Black
TAB HOUSING 2.8 4P, RD 1534159-1 Wire-to-Wire 4 Housing for Male Terminals No 1 Black
4POS, AMP MCP1.5K, REC HSG, ASSY 1563689-1 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 4 Housing for Female Terminals Yes 1 Black
REC. HSG., 4POSN., RAD.SEAL, AMP MCP2.8K 1718562-1 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 4 Housing for Female Terminals Yes 1 Black
MCP 2.8 8/4P PLUG HSG S-BLU/D 3-2109442-9 Wire-to-Wire 4 Housing for Female Terminals No 1 Light Blue
MCP-E SLD 4P PLUG ASSY BLK 936254-2 Wire-to-Wire 4 Housing for Female Terminals Yes 2 Black
MCP-E SLD 4P CAP ASSY BLK 936293-2 Wire-to-Wire 4 Housing for Male Terminals No 2 Black
5POS, AMP MCP1.5K, REC. HSG 6-2137400-2 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 5 Housing for Female Terminals Yes 1 Gray
5POS, AMP MCP1.5K, REC. HSG 6-2137400-8 Wire-to-Board,  Wire-to-Device,  Wire-to-Wire 5 Housing for Female Terminals Yes 1 Black
5POS, AMP MCP1.5K, REC. HSG 6-2278090-1 Wire-to-Wire 5 Housing for Female Terminals Yes 1 Gray
2.8MM SLD 5P PLUG ASSY 936062-1 Wire-to-Board,  Wire-to-Device 5   Yes 1 Black
2.8MM SLD 5P PLUG ASSY GRY 936062-3 Wire-to-Wire 5 Housing for Female Terminals Yes 1 Black
5/4W MCP RCPT HSG ASSY 953600-1 Wire-to-Wire 5 Housing for Female Terminals Yes 1 Black
AMP MCP 2.8K - REC. HOUSING 1745078-1 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Gray
AMP MCP 2.8K - REC. ASSY 1745078-2 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Black
6POS, AMP MCP1.5K, REC HSG, CODA 1823467-1 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Black
6POS, AMP MCP1.5K, REC HSG, CODB 1823467-2 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Brown
6POS, AMP MCP1.5K, REC HSG, CODC 1823467-3 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Red
6POS, AMP MCP1.5K, REC HSG, CODD 1823467-4 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Orange
6POS, AMP MCP1.5K, REC HSG, CODE 1823467-5 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Blue
6POS, AMP MCP1.5K, REC HSG, CODF 1823467-6 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 White
6POS, AMP MCP1.5K, REC HSG, CODH 1823467-8 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Gray
6POS, AMP MCP 1.5K, REC HSG, ASSY, SLD 1823467-9 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Gray
6POS, AMP MCP 1.5K, REC HSG, ASSY, SLD 2-1823467-6 Wire-to-Wire 6 Housing for Female Terminals Yes 2 White
MCP 2.8 8/6P PLUG ASSY B-GRY/C 2-2109441-5 Wire-to-Board,  Wire-to-Device 6 Housing for Female Terminals Yes 2 Gray
6POS, AMP MCP 1.5K, REC HSG, ASSY, SLD 4-1823467-8 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Gray
6POS, AMP MCP1.5K, REC HSG, ASSY, SLD 5-1823467-8 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Gray
MCP-E SLD 6P PLUG ASSY BLK 936257-2 Wire-to-Wire 6 Housing for Female Terminals Yes 2 Black
MCP-E SLD 6P CAP ASSY BLK 936294-2 Wire-to-Wire 6 Housing for Male Terminals Yes 2 Black
MCP-E SLD 6P CAP ASSY GRY 936294-3 Wire-to-Wire 6 Housing for Male Terminals Yes 2 Gray
2.8MM SLD 6P PLUG ASSY 936394-2 Wire-to-Wire 6 Housing for Female Terminals Yes 1 Black
MCP 2.8 8P PLUG ASSY B-GRY/C 2-2109441-3   8 Housing for Female Terminals Yes 2 Light Gray
MCP 2.8 8P PLUG ASSY BLK/A 2109441-2 Wire-to-Board 8 Housing for Female Terminals Yes 2 Black
MCP 2.8 8/4P PLUG ASSY BLK/A 2109441-4 Wire-to-Board,  Wire-to-Device 8 Housing for Female Terminals Yes 2 Black
MCP 2.8 8P PLUG ASSY S-BLU/D 3-2109441-8   8 Housing for Female Terminals Yes 2 Light Blue
9W SEALED CONNECTOR FOR MCP CONTACT 1801286-1 Wire-to-Wire 9 Housing for Female Terminals Yes 2 Black
AMP MCP 2.8 SOCKET HSG 10 POS ASSY 1718156-1 Wire-to-Wire 10 Housing for Female Terminals Yes 2 Black
AMP MCP 2.8 SOCKET HSG 10POS. ASSY 1718156-2 Wire-to-Wire 10 Housing for Female Terminals Yes 2 Gray
MCP 1.5 SLD 10P PLUG ASS'Y 1897726-2 Wire-to-Wire 10 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-5 Wire-to-Board,  Wire-to-Wire 11 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-2 Wire-to-Board,  Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-7 Wire-to-Board,  Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MCP HYBRID MALE CONNECTOR 1-284844-1 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS.ECONOSEAL PLUG HSG ASSY JMARK II+ 2066042-1 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MCP HYBRID MALE CONN AS 284844-1 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MCP HYBRID MALE CONN AS 284844-2 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Gray
12 POS MCP HYBRID MALE CONN AS 284844-3 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MCP HYBRID MALE CONNECTOR 284844-5 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MCP HYBRID MALE CONN AS 284844-7 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MCP HYBRID FEMALE CONN 284848-1 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MCP HYBRID FEMALE CONN 284848-2 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Gray
12 POS MCP HYBRID FEMALE CONN 284848-3 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MCP HYBRID FEMALE CONNE 284848-5 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MCP HYBRID FEMALE CONNECTOR 284848-7 Wire-to-Wire 12 Housing for Female Terminals Yes 2 Black
12 POS MALE HOUSING ASS'Y 284858-1 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MALE HOUSING ASS'Y 284858-2 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Gray
12 POS MALE HOUSING ASS'Y 284858-3 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Black
12 POS MALE HOUSING ASS'Y 284858-4 Wire-to-Wire 12 Housing for Male Terminals Yes 2 Gray
12 POS. FEMALE CONNECTOR FOR S 284953-1 Wire-to-Panel 12 Housing for Female Terminals Yes 3 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-4 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEAL 2-2112780-2 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-4 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-6 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-9 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEAL 4-2112780-3 Wire-to-Board,  Wire-to-Wire 13 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-6 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-5 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-7 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-8 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-3 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 4-2112780-1 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 4-2112780-2 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEAL 4-2112780-4 Wire-to-Board,  Wire-to-Wire 14 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-3 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
15 WAY MCP 2.8 SEALED CONNECTOR 1745072-2 Wire-to-Wire 15 Housing for Female Terminals Yes 2 Gray
15W SEALED CONNECTOR FOR MCP CONTACT 1801326-1 Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-1 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 2-2112780-6 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-2 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-4 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-5 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-7 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 4-2112780-5 Wire-to-Board,  Wire-to-Wire 15 Housing for Female Terminals Yes 2 Black
AMP MCP 2.8 SOCKET HSG 16 POS.ASSY 1718149-1 Wire-to-Wire 16 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 4-2112780-6 Wire-to-Board,  Wire-to-Wire 16 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 3-2112780-8 Wire-to-Board,  Wire-to-Wire 17 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, CODA 1-1670782-1 Wire-to-Board,  Wire-to-Device 18 Housing for Female Terminals Yes 2 Black
18POS,  MIXED, REC HSG, ASSY, SEALED 1-2112780-9 Wire-to-Board,  Wire-to-Wire 18 Housing for Female Terminals Yes 2 Black
MCP 1.5 SLD 18P ASS'Y 1897688-2 Wire-to-Wire 18 Housing for Female Terminals Yes 3 Black
20 POS MALE HOUSING ASSY 284879-1 Wire-to-Wire 20 Housing for Male Terminals Yes 2 Black
20 POS MALE HOUSING ASSY 284879-2 Wire-to-Wire 20 Housing for Male Terminals Yes 2 Gray
20 POS MALE HOUSING ASSY 284879-3 Wire-to-Wire 20 Housing for Male Terminals Yes 2 Black
20 W. MALE CONNECTOR ASSY 284879-5 Wire-to-Wire 20 Housing for Male Terminals Yes 2 Brown
20 POS MALE HOUSING ASSY 284879-6 Wire-to-Wire 20 Housing for Male Terminals Yes 2 Brown
MQS/MCP HYB 22P CAP ASSY 1897540-1 Wire-to-Wire 22 Housing for Male Terminals No 3 Natural
MQS/MCP HYB 22P CAP ASSY 1897540-2 Wire-to-Wire 22 Housing for Male Terminals No 3 Black
22POS MIXED MQS REC 1897543-2 Wire-to-Wire 22 Housing for Female Terminals No 3 Black
24POS,  AMP MCP1.5K,  REC HSG,  ASSY 1703399-1 Wire-to-Board,   Wire-to-Device 24 Housing for Female Terminals Yes 5 Black
38POS,   MIXED,  REC HSG,  ASSY,  SEALED 1-2112499-1 Wire-to-Board,   Wire-to-Device 38 Housing for Female Terminals Yes 3 Black
38POS,  MIXED, REC HSG, ASSY, SEALED 1-2112502-1 Wire-to-Board,  Wire-to-Device 38 Housing for Female Terminals Yes 3 Gray
HYB SLD 38P PLUG ASSY(L) TYPE1 2-2219210-1 Wire-to-Board 38 Housing for Female Terminals Yes 3 Black
38POS,  MIXED, REC HSG, ASSY, SEALED 2112502-1 Wire-to-Board,  Wire-to-Device 38 Housing for Female Terminals Yes 3 Gray
HYB SLD 38P PLUG ASSY(L) TYPE2 3-2219210-3 Wire-to-Board 38 Housing for Female Terminals Yes 3 Gray
44POS, PR SPRNG CONTACT, REC HSG ASSY, SLD 2305186-1 Wire-to-Board,  Wire-to-Device 44 Housing for Female Terminals Yes 2 Gray
ABS 46P COVER ASSY TYPE C 4-2219072-2 Wire-to-Wire 46     3 Black





If you want to find these connectors' specs, then search TE's official website by using the correct part number and download the specs. you will get the exact info.



If you want to buy TE AMP MCP connectors, why not buy connectors with wires or complete wire harnesses? we provide wire and connector assembly, wire harness assembly services, contact us to get a free quote.
