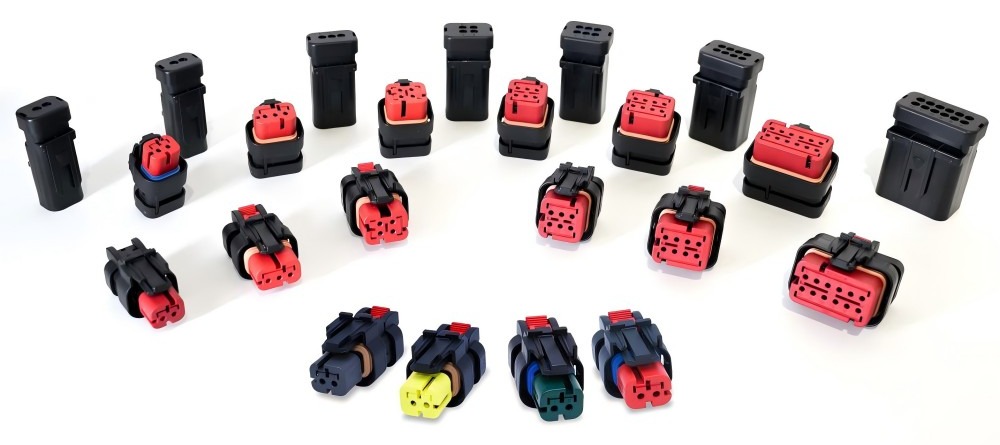

Introduction
AMPSEAL 16 connectors are designed for off-road, heavy-duty industrial, recreational, and agricultural applications. With an operating temperature of up to 150°C, the range is suitable for extended on-engine, after-treatment, and powertrain applications. The AMPSEAL 16 connectors are sealed, offering rugged reliability and preventing moisture and dirt from contaminating the connections. The installation time is reduced because the receptacle and pin housings are fully assembled as a one-piece design.
Features
- Accepts contact size HDSF 16 (up to 13 amps)
- 14-20 AWG (2.50-0.50 mm²)

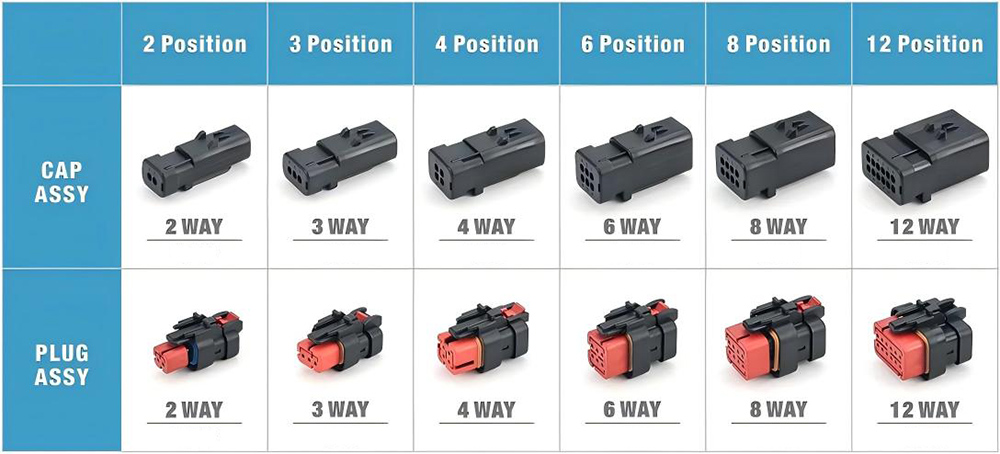

- 2, 3, 4, 6, 8, and 12 cavity arrangements
- In-line mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Integrated Primary Latch Reinforcement (PLR) confirms contact alignment and retention
- Available accessories: Backshells, mounting clips
Connector Benefits
- Optimize applied costs with the Heavy Duty Stamped & Formed (HDSF) size 16 contacts rated up to 13 amps each.
- Protect against dust, water, and overspray with up to IP67 rugged sealing.
- Connect easily with the plug-and-cap housings one-piece approach that comes fully assembled with Terminal Position Assurance (TPA) and Connector Position Assurance (CPA).
- Enhance design flexibility with optional backshell and mounting-clip accessories.
Connector Applications
AMPSEAL 16 connector series is designed to be installed in the truck, bus, construction, agriculture, and special vehicles industries, for the following applications:
- Motors and gearboxes
- ABS, EBS, and brake units
- Hydraulic pumps
- Actuators
- Switches
- Sensors
- Wire-to-wire
Including high-temperature applications:
- On-engine control
- After treatment
- Cooling system
- Engine Compartment
Performance Specifications
- Current: Up to 13 amps
- Temperature: Operating at temperatures -40° C to +125° C
- Durability: See Note. 50 cycles.
- Insulation Resistance: 20 megohms minimum. SAE J2030 6.3. Insulation resistance at 1000 volts DC adjacent terminals measured after 60 seconds or until stabilization occurs.
- Immersion: IP67 rating
- Random Vibration: No discontinuities. See Note. EIA-364-28 Subject-mated specimens to 21 G’s rms between 25 and 200 Hz. Twenty hours in each of three mutually perpendicular planes.
- Voltage: 250 volts DC
Note: Shall meet visual requirements, show no physical damage, and meet requirements of additional tests as specified in the Product Qualification and Requalification Test Sequence in Figure 3 of TE product document 108-2184.
Connector Part Number Lists
| Product Description | Part Number | Connector System | Number of Positions | Connector & Housing Type | Primary Product Color |
| CAP ASSY (14.5V)AMPSEAL16 2P | 1554369-1 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY (31.6V)AMPSEAL16 2P | 1554369-2 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY, 2P, BRACKET REVERSE TY | 1717672-1 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY, 2P, BRACKET REVERSE TYPE, ATAC CO | 1717672-2 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY, 2P, BRACKET REVERSE TYPE, ATAC CO | 1717672-3 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY, 2P, BRACKET REVERSE TYPE, ATAC CO | 1717672-4 | Wire-to-Wire | 2 | Cap | Black |
| AMPSEAL16, CAP ASSY, 2P-A, B/R TYPE, RWDS, | 1871412-1 | Wire-to-Wire | 2 | Cap | Red |
| AMP SEAL16 2P CAP ASSY WITH RESIST 120 | 1939556-4 | Wire-to-Wire | 2 | Cap | Black |
| AMP SEAL16 2P CAP ASSY WITH RESIST 150 | 1939556-5 | Wire-to-Wire | 2 | Cap | Black |
| AMP SEAL16 2P CAP ASSY WITH RESIST 1K | 1939604-1 | Wire-to-Wire | 2 | Housing for Male Terminals | Red |
| AMP SEAL16 2P CAP WITH DIODE, CAP ASSY | 2040104-2 | Wire-to-Wire | 2 | Housing for Male Terminals | Red |
| PLUG ASSY 120, AMPSEAL16 RESIST PLUG | 2040278-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Red |
| SEAL CAP HSG 2P, AMPSEAL16 SEA | 2040594-1 | Wire-to-Device, Wire-to-Wire | 2 | Cap | Black |
| AS16, PLUG ASSY, HT, 02P, N SEAL, CODE A | 2320920-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, N SEAL, CODE B | 2320920-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, N SEAL, CODE C | 2320920-3 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, N SEAL, CODE D | 2320920-4 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, E SEAL, CODE A | 2320932-1 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, E SEAL, CODE B | 2320932-2 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, E SEAL, CODE C | 2320932-3 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 02P, E SEAL, CODE D | 2320932-4 | Wire-to-Wire | 2 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 02P, N SEAL, CODE A | 776427-1 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, N SEAL, CODE B | 776427-2 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, N SEAL, CODE C | 776427-3 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, N SEAL, CODE D | 776427-4 | Wire-to-Wire | 2 | Plug | Black |
| AS16, CAP ASSY, ST, 02P, N SEAL, CODE A | 776428-1 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, N SEAL, CODE B | 776428-2 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, N SEAL, CODE D | 776428-4 | Wire-to-Wire | 2 | Cap | Black |
| AS16, PLUG ASSY, ST, 02P, E SEAL, CODE A | 776522-1 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, E SEAL, CODE B | 776522-2 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, E SEAL, CODE C | 776522-3 | Wire-to-Wire | 2 | Plug | Black |
| AS16, PLUG ASSY, ST, 02P, E SEAL, CODE D | 776522-4 | Wire-to-Wire | 2 | Plug | Black |
| AS16, CAP ASSY, ST, 02P, E SEAL, CODE A | 776534-1 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, E SEAL, CODE B | 776534-2 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, E SEAL, CODE C | 776534-3 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, E SEAL, CODE D | 776534-4 | Wire-to-Wire | 2 | Cap | Black |
| AS16, CAP ASSY, ST, 02P, N SEAL, CODE C | BACA-AMP-216 | Wire-to-Wire | 2 | Cap | Black |
| CAP ASSY, 3P, BRACKET REVERSE TYPE, ATAC CO | 1717673-1 | Wire-to-Wire | 3 | Cap | Black |
| CAP ASSY, 3P, BRACKET REVERSE TYPE, ATAC CO | 1717673-2 | Wire-to-Wire | 3 | Cap | Black |
| CAP ASSY, 3P, BRACKET REVERSE TYPE, ATAC CO | 1717673-3 | Wire-to-Wire | 3 | Cap | Black |
| CAP ASSY, 3P, BRACKET REVERSE TYPE, ATAC CO | 1717673-4 | Wire-to-Wire | 3 | Cap | Black |
| AMPSEAL16, CAP ASSY, 3P-A, B/R TYPE, RWDS, | 1871413-1 | Wire-to-Wire | 3 | Cap | Red |
| SEAL CAP HSG 3P, AMPSEAL16 SEA | 2040594-2 | Wire-to-Device, Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, HT, 03P, N SEAL, CODE A | 2320914-1 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, N SEAL, CODE B | 2320914-2 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, N SEAL, CODE C | 2320914-3 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, N SEAL, CODE D | 2320914-4 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, N SEAL, CODE A | 2320921-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, N SEAL, CODE B | 2320921-2 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, N SEAL, CODE C | 2320921-3 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, N SEAL, CODE D | 2320921-4 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, E SEAL, CODE A | 2320927-1 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, E SEAL, CODE B | 2320927-2 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, E SEAL, CODE C | 2320927-3 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 03P, E SEAL, CODE D | 2320927-4 | Wire-to-Wire | 3 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, E SEAL, CODE A | 2320933-1 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, E SEAL, CODE B | 2320933-2 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, E SEAL, CODE C | 2320933-3 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 03P, E SEAL, CODE D | 2320933-4 | Wire-to-Wire | 3 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 03P, N SEAL, CODE A | 776429-1 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, N SEAL, CODE B | 776429-2 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, N SEAL, CODE C | 776429-3 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, N SEAL, CODE D | 776429-4 | Wire-to-Wire | 3 | Plug | Black |
| AS16, CAP ASSY, ST, 03P, N SEAL, CODE A | 776430-1 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, N SEAL, CODE B | 776430-2 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, N SEAL, CODE C | 776430-3 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, N SEAL, CODE D | 776430-4 | Wire-to-Wire | 3 | Cap | Black |
| AS16, PLUG ASSY, ST, 03P, E SEAL, CODE A | 776523-1 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, E SEAL, CODE B | 776523-2 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, E SEAL, CODE C | 776523-3 | Wire-to-Wire | 3 | Plug | Black |
| AS16, PLUG ASSY, ST, 03P, E SEAL, CODE D | 776523-4 | Wire-to-Wire | 3 | Plug | Black |
| AS16, CAP ASSY, ST, 03P, E SEAL, CODE A | 776535-1 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, E SEAL, CODE B | 776535-2 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, E SEAL, CODE C | 776535-3 | Wire-to-Wire | 3 | Cap | Black |
| AS16, CAP ASSY, ST, 03P, E SEAL, CODE D | 776535-4 | Wire-to-Wire | 3 | Cap | Black |
| CAP ASSY, 4P, BRACKET REVERSE TY | 1717674-1 | Wire-to-Wire | 4 | Cap | Black |
| CAP ASSY, 4P, BRACKET REVERSE TYPE, ATAC CO | 1717674-2 | Wire-to-Wire | 4 | Cap | Black |
| CAP ASSY, 4P, BRACKET REVERSE TYPE, ATAC CO | 1717674-3 | Wire-to-Wire | 4 | Cap | Black |
| CAP ASSY, 4P, BRACKET REVERSE TYPE, ATAC CO | 1717674-4 | Wire-to-Wire | 4 | Cap | Black |
| AMPSEAL16, CAP ASSY, 4P-A, B/R TYPE, RWDS | 1871414-1 | Wire-to-Device, Wire-to-Wire | 4 | Cap | Black |
| SEAL CAP HSG 4P, AMPSEAL16 SEA | 2040594-3 | Wire-to-Device, Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, HT, 04P, N SEAL, CODE A | 2320915-1 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, N SEAL, CODE B | 2320915-2 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, N SEAL, CODE C | 2320915-3 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, N SEAL, CODE D | 2320915-4 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, N SEAL, CODE A | 2320922-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, N SEAL, CODE B | 2320922-2 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, N SEAL, CODE C | 2320922-3 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, N SEAL, CODE D | 2320922-4 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, E SEAL, CODE A | 2320928-1 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, E SEAL, CODE B | 2320928-2 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, E SEAL, CODE C | 2320928-3 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 04P, E SEAL, CODE D | 2320928-4 | Wire-to-Wire | 4 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, E SEAL, CODE A | 2320934-1 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, E SEAL, CODE B | 2320934-2 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, E SEAL, CODE C | 2320934-3 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 04P, E SEAL, CODE D | 2320934-4 | Wire-to-Wire | 4 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 04P, N SEAL, CODE A | 776487-1 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, N SEAL, CODE B | 776487-2 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, N SEAL, CODE C | 776487-3 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, N SEAL, CODE D | 776487-4 | Wire-to-Wire | 4 | Plug | Black |
| AS16, CAP ASSY, ST, 04P, N SEAL, CODE A | 776488-1 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, N SEAL, CODE B | 776488-2 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, N SEAL, CODE C | 776488-3 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, N SEAL, CODE D | 776488-4 | Wire-to-Wire | 4 | Cap | Black |
| AS16, PLUG ASSY, ST, 04P, E SEAL, CODE A | 776524-1 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, E SEAL, CODE B | 776524-2 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, E SEAL, CODE C | 776524-3 | Wire-to-Wire | 4 | Plug | Black |
| AS16, PLUG ASSY, ST, 04P, E SEAL, CODE D | 776524-4 | Wire-to-Wire | 4 | Plug | Black |
| AS16, CAP ASSY, ST, 04P, E SEAL, CODE A | 776536-1 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, E SEAL, CODE B | 776536-2 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, E SEAL, CODE C | 776536-3 | Wire-to-Wire | 4 | Cap | Black |
| AS16, CAP ASSY, ST, 04P, E SEAL, CODE D | 776536-4 | Wire-to-Wire | 4 | Cap | Black |
| 776310-1 SECONDARY LOCK WITH 120 OHM 1/2 | 776540-1 | Wire-to-Wire | 4 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TY | 1717675-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TYPE, ATAC CO | 1717675-2 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TYPE, ATAC CO | 1717675-3 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TYPE, ATAC CO | 1717975-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TYPE, ATAC CO | 1717975-2 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 6P, BRACKET REVERSE TYPE, ATAC CO | 1717975-3 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| SEAL CAP HSG 6P, AMPSEAL16 SEA | 2040594-4 | Wire-to-Device, Wire-to-Wire | 6 | Cap | Black |
| AS16, CAP ASSY, HT, 06P, N SEAL, CODE A | 2320916-1 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 06P, N SEAL, CODE B | 2320916-2 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 06P, N SEAL, CODE C | 2320916-3 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, N SEAL, CODE A | 2320923-1 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, N SEAL, CODE B | 2320923-2 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, N SEAL, CODE C | 2320923-3 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, CAP ASSY, HT, 06P, E SEAL, CODE A | 2320929-1 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 06P, E SEAL, CODE B | 2320929-2 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 06P, E SEAL, CODE C | 2320929-3 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, E SEAL, CODE A | 2320935-1 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, E SEAL, CODE B | 2320935-2 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 06P, E SEAL, CODE C | 2320935-3 | Wire-to-Device, Wire-to-Wire | 6 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 06P, N SEAL, CODE A | 776433-1 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, PLUG ASSY, ST, 06P, N SEAL, CODE B | 776433-2 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, PLUG ASSY, ST, 06P, N SEAL, CODE C | 776433-3 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, CAP ASSY, ST, 06P, N SEAL, CODE A | 776434-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| AS16, CAP ASSY, ST, 06P, N SEAL, CODE B | 776434-2 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| AS16, CAP ASSY, ST, 06P, N SEAL, CODE C | 776434-3 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| AS16, PLUG ASSY, ST, 06P, E SEAL, CODE A | 776531-1 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, PLUG ASSY, ST, 06P, E SEAL, CODE B | 776531-2 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, PLUG ASSY, ST, 06P, E SEAL, CODE C | 776531-3 | Wire-to-Wire | 6 | Housing for Female Terminals | Black |
| AS16, CAP ASSY, ST, 06P, E SEAL, CODE A | 776537-1 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| AS16, CAP ASSY, ST, 06P, E SEAL, CODE B | 776537-2 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| AS16, CAP ASSY, ST, 06P, E SEAL, CODE C | 776537-3 | Wire-to-Wire | 6 | Housing for Male Terminals | Black |
| CAP ASSY, 8P, BRACKET REVERSE TYPE, ATAC CO | 1717676-1 | Wire-to-Wire | 8 | Cap | Black |
| CAP ASSY, 8P, BRACKET REVERSE TYPE, ATAC CO | 1717676-2 | Wire-to-Wire | 8 | Cap | Black |
| CAP ASSY, 8P, BRACKET REVERSE TYPE, ATAC CO | 1717676-3 | Wire-to-Wire | 8 | Cap | Black |
| CAP ASSY, 8P, BRACKET REVERSE TYPE, ATAC CO | 1717676-4 | Wire-to-Wire | 8 | Cap | Black |
| AMPSEAL16, CAP ASSY, 8P-A, B/R TYPE, RWDS, | 1871415-1 | Wire-to-Wire | 8 | Cap | Red |
| SEAL CAP HSG 8P, AMPSEAL16 SEA | 2040594-5 | Wire-to-Device, Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, HT, 08P, N SEAL, CODE A | 2320917-1 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, N SEAL, CODE B | 2320917-2 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, N SEAL, CODE C | 2320917-3 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, N SEAL, CODE D | 2320917-4 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, N SEAL, CODE A | 2320924-1 | Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, N SEAL, CODE B | 2320924-2 | Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, N SEAL, CODE C | 2320924-3 | Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, N SEAL, CODE D | 2320924-4 | Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, E SEAL, CODE A | 2320930-1 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, E SEAL, CODE B | 2320930-2 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, E SEAL, CODE C | 2320930-3 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 08P, E SEAL, CODE D | 2320930-4 | Wire-to-Wire | 8 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, E SEAL, CODE A | 2320936-1 | Wire-to-Device, Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, E SEAL, CODE B | 2320936-2 | Wire-to-Device, Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, E SEAL, CODE C | 2320936-3 | Wire-to-Device, Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 08P, E SEAL, CODE D | 2320936-4 | Wire-to-Device, Wire-to-Wire | 8 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 08P, N SEAL, CODE A | 776494-1 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, N SEAL, CODE B | 776494-2 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, N SEAL, CODE C | 776494-3 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, N SEAL, CODE D | 776494-4 | Wire-to-Wire | 8 | Plug | Black |
| AS16, CAP ASSY, ST, 08P, N SEAL, CODE A | 776495-1 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, N SEAL, CODE B | 776495-2 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, N SEAL, CODE C | 776495-3 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, N SEAL, CODE D | 776495-4 | Wire-to-Wire | 8 | Cap | Black |
| AS16, PLUG ASSY, ST, 08P, E SEAL, CODE A | 776532-1 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, E SEAL, CODE B | 776532-2 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, E SEAL, CODE C | 776532-3 | Wire-to-Wire | 8 | Plug | Black |
| AS16, PLUG ASSY, ST, 08P, E SEAL, CODE D | 776532-4 | Wire-to-Wire | 8 | Plug | Black |
| AS16, CAP ASSY, ST, 08P, E SEAL, CODE A | 776538-1 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, E SEAL, CODE B | 776538-2 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, E SEAL, CODE C | 776538-3 | Wire-to-Wire | 8 | Cap | Black |
| AS16, CAP ASSY, ST, 08P, E SEAL, CODE D | 776538-4 | Wire-to-Wire | 8 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717677-1 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717677-2 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717677-3 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717677-4 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717934-1 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717934-2 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717934-3 | Wire-to-Wire | 12 | Cap | Black |
| CAP ASSY, 12P, BRACKET REVERSE TYPE, ATAC C | 1717934-4 | Wire-to-Wire | 12 | Cap | Black |
| SEAL CAP HSG 12P, AMPSEAL16 SE | 2040594-6 | Wire-to-Device, Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, HT, 12P, N SEAL, CODE A | 2320918-1 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, N SEAL, CODE B | 2320918-2 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, N SEAL, CODE C | 2320918-3 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, N SEAL, CODE D | 2320918-4 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, N SEAL, CODE A | 2320925-1 | Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, N SEAL, CODE B | 2320925-2 | Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, N SEAL, CODE C | 2320925-3 | Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, N SEAL, CODE D | 2320925-4 | Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, E SEAL, CODE A | 2320931-1 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, E SEAL, CODE B | 2320931-2 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, E SEAL, CODE C | 2320931-3 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, CAP ASSY, HT, 12P, E SEAL, CODE D | 2320931-4 | Wire-to-Wire | 12 | Housing for Male Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, E SEAL, CODE A | 2320937-1 | Wire-to-Device, Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, E SEAL, CODE B | 2320937-2 | Wire-to-Device, Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, E SEAL, CODE C | 2320937-3 | Wire-to-Device, Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, HT, 12P, E SEAL, CODE D | 2320937-4 | Wire-to-Device, Wire-to-Wire | 12 | Housing for Female Terminals | Gray |
| AS16, PLUG ASSY, ST, 12P, N SEAL, CODE A | 776437-1 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, N SEAL, CODE B | 776437-2 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, N SEAL, CODE C | 776437-3 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, N SEAL, CODE D | 776437-4 | Wire-to-Wire | 12 | Plug | Black |
| AS16, CAP ASSY, ST, 12P, N SEAL, CODE A | 776438-1 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, N SEAL, CODE B | 776438-2 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, N SEAL, CODE C | 776438-3 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, N SEAL, CODE D | 776438-4 | Wire-to-Wire | 12 | Cap | Black |
| AS16, PLUG ASSY, ST, 12P, E SEAL, CODE A | 776533-1 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, E SEAL, CODE B | 776533-2 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, E SEAL, CODE C | 776533-3 | Wire-to-Wire | 12 | Plug | Black |
| AS16, PLUG ASSY, ST, 12P, E SEAL, CODE D | 776533-4 | Wire-to-Wire | 12 | Plug | Black |
| AS16, CAP ASSY, ST, 12P, E SEAL, CODE A | 776539-1 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, E SEAL, CODE B | 776539-2 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, E SEAL, CODE C | 776539-3 | Wire-to-Wire | 12 | Cap | Black |
| AS16, CAP ASSY, ST, 12P, E SEAL, CODE D | 776539-4 | Wire-to-Wire | 12 | Cap | Black |
Support Custom Wire Harness Assembly
- Connectors: All AMPSEAL 16 connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
