AMPSEAL Receptacle Connectors, Custom Wiring Harness Assembly
Connector Introduction

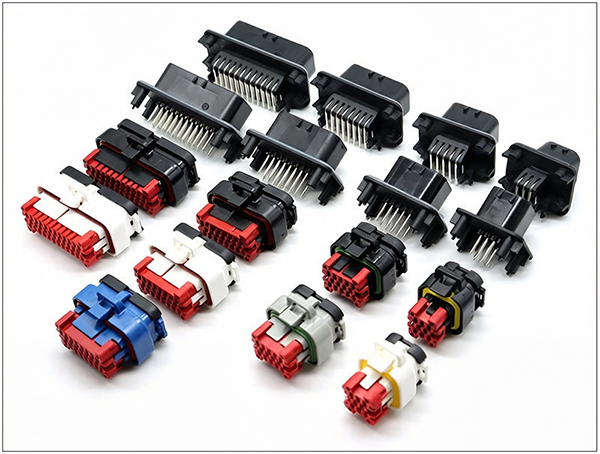

The AMPSEAL receptacle housings are designed to be environmentally sealed and are available in 8, 14, 23, and 35 cavity arrangements. They can accommodate size 1.3 mm contacts (supporting up to 17 amps gold or up to 8 amps tin) and feature an integrated latch for easy mating.
The AMPSEAL connector system features receptacle housings that withstand extreme temperatures and moisture, including high temperatures up to 125°C, with gold-plated contacts. This system is designed for electrical applications in the engine or transmission (under the hood), for power control units, bulkheads, chassis, or the cab of heavy-duty vehicles.
Connector Features
- Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)
- 16-24 AWG (1.25-0.20 mm²)
- 8, 14, 23, and 35 cavity arrangements
- PCB mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Integrated wedgelock confirms contact alignment and retention
- Available accessories: wire relief, CPA
Connector Part Number Lists
| Product Description | Part Number | Connector System | Number of Positions | Connector & Housing Type | Primary Product Color |
| 8POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 2371882-1 | Wire-to-Board | 8 | Housing for Female Terminals | Black |
| 8POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 2371882-2 | Wire-to-Board | 8 | Housing for Female Terminals | Natural |
| 8POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 776286-1 | Wire-to-Board, Wire-to-Panel | 8 | Plug | Black |
| 8POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 776286-2 | Wire-to-Board, Wire-to-Panel | 8 | Plug | Natural |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 2371883-1 | Wire-to-Board | 14 | Housing for Female Terminals | Black |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 2371883-2 | Wire-to-Board | 14 | Housing for Female Terminals | Natural |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 2371883-4 | Wire-to-Board | 14 | Housing for Female Terminals | Gray |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 2371883-5 | Wire-to-Board | 14 | Housing for Female Terminals | Blue |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 776273-1 | Wire-to-Board | 14 | Housing for Female Terminals | Black |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 776273-2 | Wire-to-Board | 14 | Housing for Female Terminals | Natural |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 776273-4 | Wire-to-Board | 14 | Housing for Female Terminals | Gray |
| 14POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 776273-5 | Wire-to-Board | 14 | Housing for Female Terminals | Blue |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 2371884-1 | Wire-to-Board | 23 | Housing for Female Terminals | Black |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 2371884-2 | Wire-to-Board | 23 | Housing for Female Terminals | Natural |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 2371884-4 | Wire-to-Board | 23 | Housing for Female Terminals | Gray |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 2371884-5 | Wire-to-Board | 23 | Housing for Female Terminals | Blue |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 770680-1 | Wire-to-Board | 23 | Plug | Black |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 770680-2 | Wire-to-Board | 23 | Plug | Natural |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 770680-3 | Wire-to-Board | 23 | Plug | Black |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 770680-4 | Wire-to-Board | 23 | Plug | Gray |
| 23POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 770680-5 | Wire-to-Board | 23 | Plug | Blue |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 2371885-1 | Wire-to-Board | 35 | Housing for Female Terminals | Black |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 2371885-2 | Wire-to-Board | 35 | Housing for Female Terminals | Natural |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 2371885-4 | Wire-to-Board | 35 | Housing for Female Terminals | Gray |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 2371885-5 | Wire-to-Board | 35 | Housing for Female Terminals | Blue |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 6 | 2371885-6 | Wire-to-Board | 35 | Housing for Female Terminals | Orange |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 1 | 776164-1 | Wire-to-Device | 35 | Plug | Black |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 2 | 776164-2 | Wire-to-Board | 35 | Plug | Natural |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 4 | 776164-4 | Wire-to-Board | 35 | Plug | Gray |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 5 | 776164-5 | Wire-to-Board | 35 | Plug | Blue |
| 35POS, AMPSEAL, SOC HSG ASSY, SLD, COD 6 | 776164-6 | Wire-to-Board | 35 | Plug | Orange |
Note: This series of connectors supports Chinese replacements.
Wire Harness Assembly Case

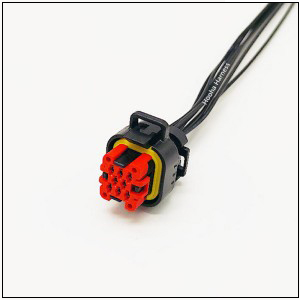

8P 776286-1 Wire Harness

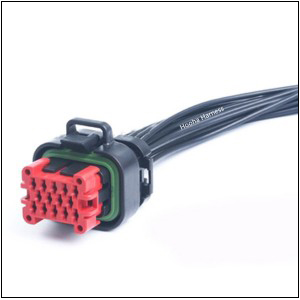

14P 776273-1 Wire Harness

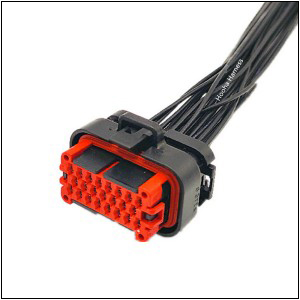

23P 770680-1 Wire Harness

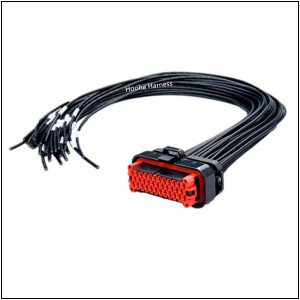

35P 776164-1 Wire Harness

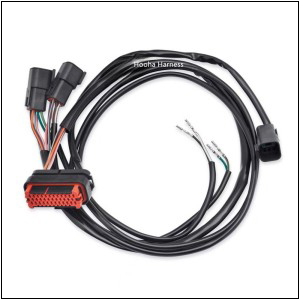

Radio wire harness

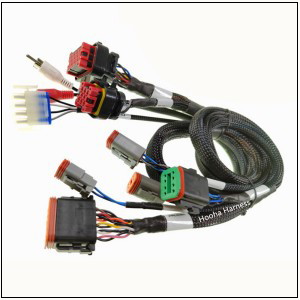

Amplifier Wire Harness

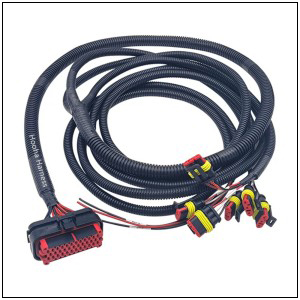

Auto Electrical Wiring Kits

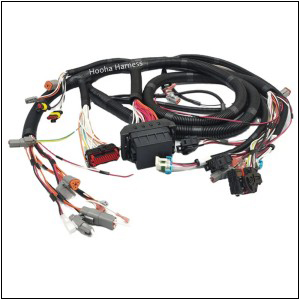

Auto Wiring Loom

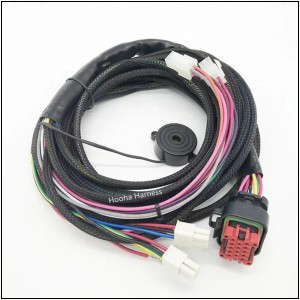

Automotive Electrical Wiring

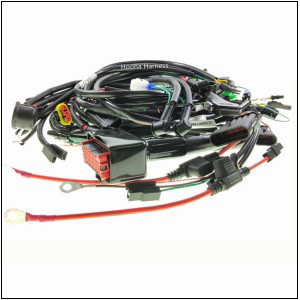

Automotive Wire Harness Assembly

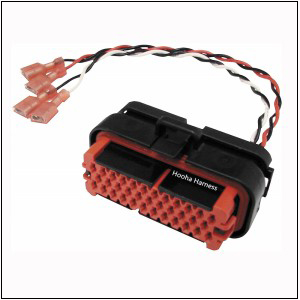

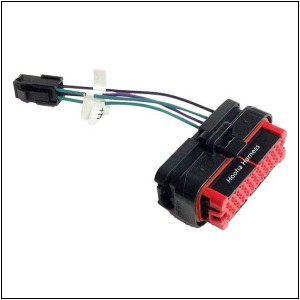

Car Audio Wire Harness
Car Speaker Wire Harness

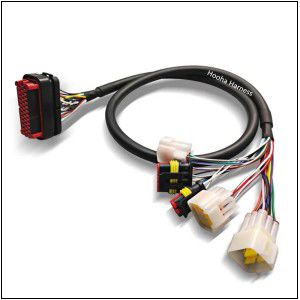

ECU Wiring Kit

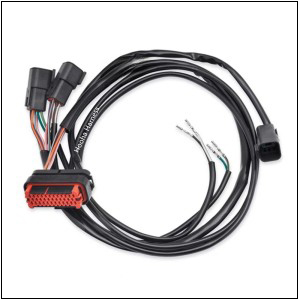

Harness Cable Assembly

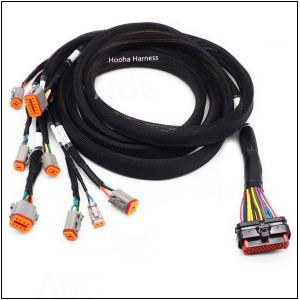

Race Car Wiring

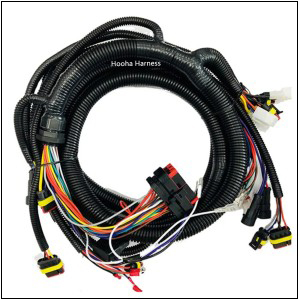

Wiring Harness in a Car
Support Custom Wire Harness Assembly
- Connectors: All AMPSEAL series connectors.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range, including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
