Aptiv APEX 2.8 Unsealed Series Connector

The APEX 2.8 Unsealed Series Connector is your go-to solution for heavy-duty, high-performance connections. Designed for durability and ease of use, it offers the highest current rating in its class, making it perfect for tough applications. Its ergonomic design makes handling and installation quick and simple, saving you time and effort.

Built to meet strict USCAR performance standards and GMW3191, the APEX 2.8mm series supports wire sizes from 0.35 mm² (22 AWG) to 5 mm² (10 AWG), giving you flexibility for various projects. The connectors come fully assembled, with features like Primary Lock Reinforcement (PLR) and mechanical polarization to ensure secure, reliable connections every time.

With cavity counts ranging from 2 to 14, both male and female options, and an optional CPA (Connector Position Assurance), the APEX 2.8 series can easily adapt to your needs. Whether you’re working on automotive, industrial, or other heavy-duty applications, the APEX 2.8 Unsealed Series Connector is ready to deliver performance and reliability that you can count on.

Features

• Heavy-duty performance
• Highest current rating
• Ergonomic design
• Meets or exceeds USCAR performance standards and GMW3191
• 0.35 mm² (22 AWG) to 5 mm² (10 AWG)
• Fully assembled connector for ease of use
• Primary Lock Reinforcement (PLR)
• Mechanical polarization
• Cavity Count (ways): 2, 3, 4, 5, 6, 10, 14
• Cavity Configurations (mm): 2.8
• Genders: Female, Male
• Centerline Spacing (mm): 5.25
• CPA Optional

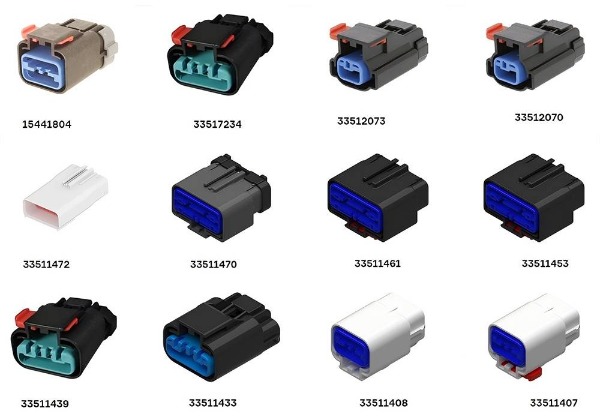

Connector Specification Lists

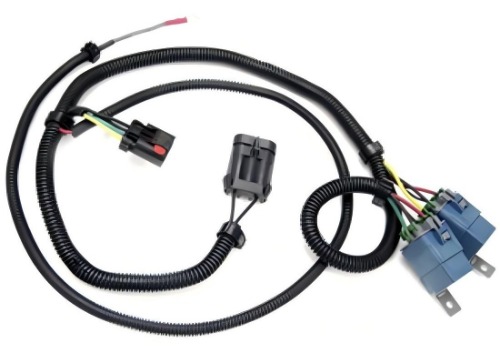

Support Custom Wire Harness Assembly

• Connectors: 2P to 14P.
• Wire Gauge: from 0.35 mm² (22 AWG) to 5 mm² (10 AWG)
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
