Aptiv CMC Connector Systems

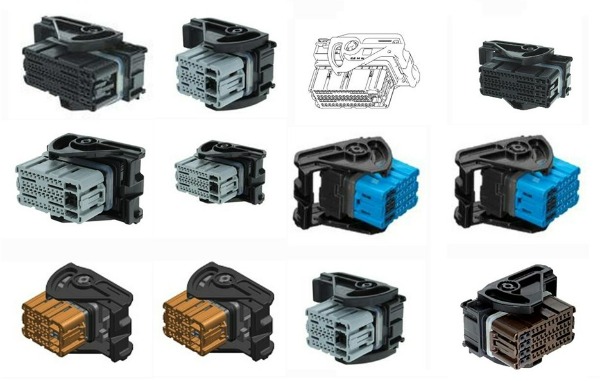

Aptiv CMC Connector Systems are compact, sealed, and perfect for use in challenging environments. These connection systems offer a wide range of products, including headers, connectors, covers, and terminals. The connectors come in 32, 48, 64, and 86 cavity options while the headers are available in 32, 48, 64, 86, 112, and 154 cavity variants. These connection systems feature clean body terminals that work well with block/mat seals. The connectors have a strong terminal retention force and allow for smooth guided terminal insertion. These connector systems find applications in chassis areas as well as engine compartments and Electronic Control Units (ECU).
Connector Features
- Clean body terminals friendly to block/mat seal
- Easy cable assembly
- High terminal retention force
- The mat seal is pre-closed by a membrane on the 0.64mm cavities (no need for the cavity plug)
- Polarized terminals
- Smooth guided terminal insertion
- Standard footprint interface interchangeable with multiple suppliers
- TPA front holder latch for lock and unlock
- Wide product range
Connector Specification Chart
| P/N | Old P/N | No. of Ways | Gender | Color | Descriptions |
| 33500507 | PPI0001506 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500498 | PPI0001493 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500497 | PPI0001492 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500496 | PPI0001491 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500495 | PPI0001490 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500494 | PPI0001489 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13851306 | PPI0001488 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13741940 | PPI0001487 | 32 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33121921 | 38 Way | Female | Black | CMC Cavity Module Connector | |
| 33121920 | 38 Way | Female | Black | CMC Cavity Module Connector | |
| 33500500 | PPI0001497 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500499 | PPI0001496 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500420 | F865000 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500419 | F765000 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13956255 | PPI0001495 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13956021 | PPI0001494 | 48 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13648596 | PPI0001501 | 64 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500504 | PPI0001503 | 64 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33500503 | PPI0001502 | 64 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 13722628 | PPI0001500 | 64 Way | Female | Black | Hybrid 0.64 1.5 CMC Sealed Connector |
| 33156001 | 86 Way | Female | Black | Hybrid 1.5 2.8 0.64 CMC Sealed Connector | |
| 33156000 | 86 Way | Female | Black | Hybrid 1.5 2.8 0.64 CMC Sealed Connector | |
| 33155995 | 86 Way | Female | Black | Hybrid 1.5 2.8 0.64 CMC Sealed Connector | |
| 33155993 | 86 Way | Female | Black | Hybrid 1.5 2.8 0.64 CMC Sealed Connector |

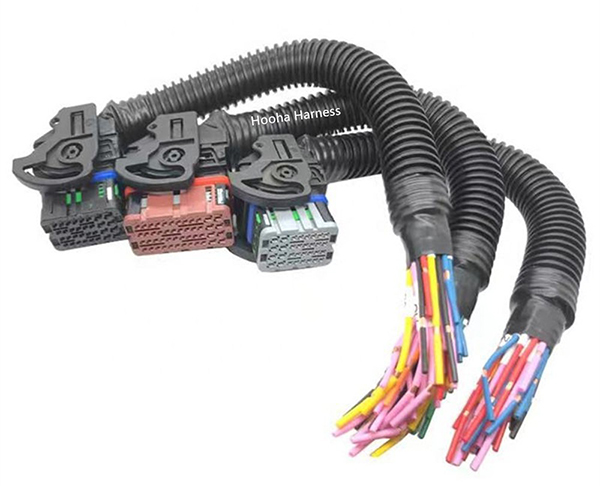

Support Custom Wire Harness Assembly
- Connectors: 32P, 48P, 64P, and 86P.
- Wire Gauge: based on GTS 0.64mm terminals
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
