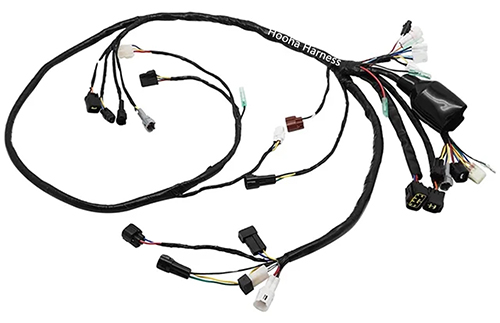

Aptiv CTCS Connector, Support Custom Wire Harness Assembly

Aptiv CTCS Connector

Aptiv's CTCS Automotive Connectors are designed to meet the toughest demands in the commercial and heavy-duty vehicle sectors, ensuring a reliable connection even in harsh conditions. As the backbone of vehicle electronics, the CTCS series supports key systems like powertrain, safety features, entertainment systems, and telematics, all while addressing the latest environmental regulations for greener vehicles.

The CTCS family includes three series—SP, XP, and Unsealed—each offering specific advantages to suit a range of applications. Whether it’s for a rugged engine compartment or a sophisticated telematics system, these connectors offer versatility and durability. With their cross-mating capability, CTCS connectors are compatible with other industry terminals, ensuring easy integration into existing systems.

What sets the CTCS connectors apart is their enhanced vibration resistance. They can withstand up to 30G sine vibration, and 20Grms random vibration, and remain robust for over 330 hours per axis. This makes them ideal for high-performance and heavy-duty environments. Their high-temperature tolerance, up to 140°C, ensures that these connectors keep working efficiently, even in extreme heat.

On top of that, Aptiv has added an extra layer of environmental protection with debris ingress shielding, making them perfect for tough outdoor or engine-related applications. You’ll find CTCS connectors performing reliably in chassis systems, engine compartments, and even directly on engines, where durability and resistance to the elements are key.

Aptiv CTCS Connector

Features

Interchangeable with other industry terminals, cross-mating capability
Improved vibration resistance with up to 30G sine, 20Grms random 330 hrs/axis, and robust backshells
High-temperature ratings up to 140°C
Superior environmental protection due to an additional connector shielding for protection against debris ingress

Connector Classification

XP Series Connector
SP Series Connector
Unsealed Series Connector

XP Series Connector

P/N	No. of Position	Color	Gender	Terminal Size
33347816	2	Black	Female	6.3
33347802	2	Black	Female	6.3
33347788	2	Black	Female	6.3
33347787	2	Blue	male	6.3
33347786	2	Green	male	6.3
33347785	2	Gray	male	6.3
33347783	2	Blue	male	6.3
33347782	2	Green	male	6.3
33347781	2	Gray	male	6.3
33344877	2	Blue	male	2.8
33344868	2	Green	male	2.8
33344852	2	Gray	male	2.8
33344673	2	Blue	Female	1.5
33344652	2	Black	Female	2.8
33344650	2	Black	Female	2.8
33344649	2	Black	Female	2.8
33344641	2	Green	Female	1.5
33344640	2	Gray	Female	1.5
33341402	2	Blue	male	6.3
33341401	2	Green	male	6.3
33341400	2	Gray	male	6.3
33341399	2	Black	Female	6.3
33341398	2	Black	Female	6.3
33341148	2	Black	male	6.3
33341146	2	Black	Female	6.3
33341145	2	Blue	male	6.3
33341144	2	Green	male	6.3
33341143	2	Gray	male	6.3
33285119	2	Black	Female	6.3
33285118	2	Black	male	6.3
33254221	2	Black	male	2.8
33254220	2	Gray	male	2.8
33254108	2	Green	male	2.8
33254107	2	Blue	male	2.8
33253563	2	Black	Female	2.8
33253560	2	Black	Female	2.8
33253557	2	Black	Female	2.8
33253554	2	Black	Female	2.8
33344864	3	Blue	male	1.5
33344863	3	Green	male	1.5
33344862	3	Gray	male	1.5
33344827	3	Blue	male	1.5
33344676	3	Black	Female	1.5
33344675	3	Black	Female	1.5
33344672	3	Green	male	1.5
33344671	3	Gray	male	1.5
33344635	3	Black	Female	1.5
33254285	3	Black	male	1.5
33254281	3	Gray	male	1.5
33254267	3	Green	male	1.5
33254231	3	Blue	male	1.5
33254098	3	Black	male	1.5
33254088	3	Gray	male	1.5
33254085	3	Green	male	1.5
33254084	3	Blue	male	1.5
33253551	3	Black	Female	1.5
33253277	3	Black	Female	1.5
33253276	3	Black	Female	1.5
33253275	3	Black	Female	1.5
33253269	3	Black	Female	1.5
33253268	3	Black	Female	1.5
33253267	3	Black	Female	1.5
33253266	3	Black	Female	1.5
33347799	4	Blue	male	2.8
33347798	4	Green	male	2.8
33347795	4	Gray	male	2.8
33347794	4	Blue	male	2.8
33347791	4	Green	male	2.8
33347789	4	Gray	male	2.8
33346862	4	Gray	Female	2.8
33346860	4	Green	Female	2.8
33346858	4	Blue	Female	2.8
33308981	4	Blue	male	2.8
33308980	4	Green	male	2.8
33308979	4	Gray	male	2.8
33308978	4	Black	male	2.8
33308977	4	Blue	Female	2.8
33308976	4	Green	Female	2.8
33308975	4	Gray	Female	2.8
33308974	4	Black	Female	2.8
33308973	4	Blue	male	2.8
33308962	4	Green	male	2.8
33308735	4	Gray	male	2.8
33308731	4	Black	male	2.8
33347889	6	Blue	male	1.5
33347888	6	Green	male	1.5
33347887	6	Gray	male	1.5
33347869	6	Blue	male	1.5
33347868	6	Green	male	1.5
33347867	6	Gray	male	1.5
33347850	6	Black	Female	1.5
33347849	6	Black	Female	1.5
33347848	6	Black	Female	1.5
33308982	6	Black	male	1.5
33308965	6	Blue	Female	1.5
33308964	6	Green	Female	1.5
33308963	6	Gray	Female	1.5
33308961	6	Black	Female	1.5
33308915	6	Blue	male	1.5
33308914	6	Green	male	1.5
33308913	6	Gray	male	1.5
33308912	6	Black	male	1.5
33308911	6	Blue	male	1.5
33308910	6	Green	male	1.5
33308909	6	Gray	male	1.5
33347858	7	Green	male	Hybrid 1.5 2.8
33347855	7	Blue	male	Hybrid 1.5 2.8
33347854	7	Gray	male	Hybrid 1.5 2.8
33347853	7	Green	male	Hybrid 1.5 2.8
33347852	7	Blue	male	Hybrid 1.5 2.8
33347851	7	Black	Female	Hybrid 1.5 2.8
33347841	7	Black	Female	Hybrid 1.5 2.8
33347822	7	Black	Female	Hybrid 1.5 2.8
33347542	7	Gray	male	Hybrid 2.8 1.5
33341407	7	Blue	male	Hybrid 2.8 1.5
33341406	7	Green	male	Hybrid 2.8 1.5
33341405	7	Gray	male	Hybrid 1.5 2.8
33341403	7	Black	male	Hybrid 2.8 1.5
33285168	7	Black	Female	Hybrid 1.5 2.8
33285167	7	Black	Female	Hybrid 1.5 2.8
33285165	7	Black	Female	Hybrid 1.5 2.8
33285164	7	Black	Female	Hybrid 1.5 2.8
33285160	7	Blue	male	Hybrid 1.5 2.8
33285152	7	Green	male	Hybrid 1.5 2.8
33285146	7	Gray	male	Hybrid 1.5 2.8
33285120	7	Black	male	Hybrid 1.5 2.8
35015739	8	Gray	male	2.8
35015738	8	Green	male	2.8
35015737	8	Blue	male	2.8
35015736	8	Black	male	2.8
35015735	8	Gray	male	2.8
35015734	8	Green	male	2.8
35015733	8	Blue	male	2.8
33350418	8	Black	Female	2.8
33350416	8	Black	Female	2.8
33350413	8	Black	Female	2.8
33347541	8	Black	Female	1.5
33347539	8	Black	Female	1.5
33347538	8	Black	Female	1.5
33347537	8	Blue	male	1.5
33347535	8	Green	male	1.5
33347533	8	Gray	male	1.5
33347530	8	Blue	male	1.5
33347519	8	Green	male	1.5
33347518	8	Gray	male	1.5
33343688	8	Black	Female	2.8
33343686	8	Black	Female	2.8
33343508	8	Black	Female	2.8
33343499	8	Black	Female	2.8
33341420	8	Black	Female	1.5
33341419	8	Black	Female	1.5
33341418	8	Black	Female	1.5
33341417	8	Black	Female	1.5
33341416	8	Blue	male	1.5
33341415	8	Green	male	1.5
33341414	8	Gray	male	1.5
33341413	8	Black	male	1.5
33341411	8	Blue	male	1.5
33341410	8	Green	male	1.5
33341409	8	Gray	male	1.5
33341408	8	Black	male	1.5
33350433	10	Blue	male	Hybrid 1.5 2.8
33350432	10	Green	male	Hybrid 1.5 2.8
33350431	10	Gray	male	Hybrid 1.5 2.8
33350259	10	Black	Female	Hybrid 1.5 2.8
33350258	10	Black	Female	Hybrid 1.5 2.8
33350257	10	Black	Female	Hybrid 1.5 2.8
33344017	10	Gray	Female	Hybrid 1.5 2.8
33344014	10	Gray	Female	Hybrid 1.5 2.8
33344013	10	Gray	Female	Hybrid 1.5 2.8
33344008	10	Gray	Female	Hybrid 1.5 2.8
33343773	10	Blue	male	Hybrid 1.5 2.8
33343767	10	Green	male	Hybrid 1.5 2.8
33343766	10	Gray	male	Hybrid 1.5 2.8
33343722	10	Black	male	Hybrid 1.5 2.8
33350335	12	Black	Female	1.5
33350334	12	Black	Female	1.5
33350276	12	Black	Female	1.5
33350121	12	Blue	male	1.5
33350119	12	Green	male	1.5
33350117	12	Gray	male	1.5
33340247	12	Blue	male	1.5
33340246	12	Green	male	1.5
33340244	12	Gray	male	1.5
33340243	12	Black	male	1.5
33340235	12	Black	Female	1.5
33340234	12	Black	Female	1.5
33340130	12	Black	Female	1.5
33339571	12	Black	Female	1.5
33349669	15	Black	Female	Hybrid 1.5 2.8
33349154	15	Black	Female	Hybrid 1.5 2.8
33349153	15	Black	Female	Hybrid 1.5 2.8
33349152	15	Blue	male	Hybrid 1.5 2.8
33348730	15	Black	Female	Hybrid 1.5 2.8
33348727	15	Blue	male	Hybrid 2.8 1.5
33347894	15	Gray	male	Hybrid 2.8 1.5
33347870	15	Green	male	Hybrid 1.5 2.8
33344007	15	Black	Female	Hybrid 1.5 2.8
33344006	15	Black	Female	Hybrid 1.5 2.8
33344005	15	Black	Female	Hybrid 1.5 2.8
33343715	15	Green	male	Hybrid 1.5 2.8
33343703	15	Gray	male	Hybrid 2.8 1.5
33343701	15	Black	male	Hybrid 2.8 1.5
33349702	16	Green	male	Hybrid 1.5 2.8
33349698	16	Gray	male	Hybrid 1.5 2.8
33349607	16	Black	Female	Hybrid 1.5 2.8
33349606	16	Black	Female	Hybrid 1.5 2.8
33349150	16	Black	Female	Hybrid 1.5 2.8
33349149	16	Blue	male	Hybrid 1.5 2.8
33349148	16	Green	male	Hybrid 1.5 2.8
33349147	16	Gray	male	Hybrid 1.5 2.8
33349145	16	Blue	male	Hybrid 1.5 2.8
33342262	16	Black	Female	Hybrid 1.5 2.8
33342251	16	Green	male	Hybrid 2.8 1.5
33342249	16	Black	Female	Hybrid 1.5 2.8
33342248	16	Gray	male	Hybrid 2.8 1.5
33342243	16	Black	male	Hybrid 2.8 1.5
33342241	16	Blue	male	Hybrid 2.8 1.5
33342239	16	Black	Female	Hybrid 1.5 2.8
33342238	16	Green	male	Hybrid 2.8 1.5
33342236	16	Blue	male	Hybrid 1.5 2.8
33342231	16	Gray	male	Hybrid 2.8 1.5
33285172	16	Black	Female	Hybrid 1.5 2.8
33285171	16	Black	male	Hybrid 1.5 2.8
33349712	18	Blue	male	1.5
33349711	18	Green	male	1.5
33349707	18	Gray	male	1.5
33349700	18	Blue	male	1.5
33349696	18	Green	male	1.5
33349684	18	Gray	male	1.5
33348732	18	Black	Female	1.5
33348731	18	Black	Female	1.5
33347893	18	Black	Female	1.5
33342300	18	Blue	male	1.5
33342295	18	Green	male	1.5
33342294	18	Gray	male	1.5
33342293	18	Black	male	1.5
33342281	18	Black	Female	1.5
33342280	18	Black	Female	1.5
33342279	18	Black	Female	1.5
33342277	18	Black	Female	1.5
33342261	18	Blue	male	1.5
33342250	18	Green	male	1.5
33342245	18	Gray	male	1.5
33342234	18	Black	male	1.5

SP Series Connector

P/N	No. of Position	Color	Gender	Terminal Size
33276639	15	Natural	Female	2.8
33276638	15	Black	Female	2.8
33188785	15	Black	Female	2.8
33188784	15	Natural	Female	2.8
33188783	15	Blue	Female	2.8
35106477	21	Natural	Female	2.8
35037812	21	Black	Female	2.8
33276637	21	Purple	male	2.8
33276636	21	Blue	male	2.8
33276635	21	Natural	male	2.8
33276634	21	Black	male	2.8
33276633	21	Purple	Female	2.8
33276632	21	Blue	Female	2.8
33276631	21	Natural	Female	2.8
33276630	21	Black	Female	2.8
33237996	21	Violet	male	2.8
33237995	21	Blue-Dark	male	2.8
33237994	21	Natural	male	2.8
33237993	21	Black	male	2.8
33101322	21	Purple	Female	2.8
33101321	21	Blue	Female	2.8
33101320	21	Natural	Female	2.8
33101162	21	Black	Female	2.8
33284522	26	Green	male	1.5 2.8 5.8
33284521	26	Blue	male	1.5 2.8 5.8
33284520	26	Gray	male	1.5 2.8 5.8
33284519	26	Black	male	2.8 1.5 2.8 5.8
33284001	26	Green	Female	1.5 2.8 6.3
33284000	26	Blue	Female	1.5 2.8 6.3
33283999	26	Gray	Female	1.5 2.8 6.3
33283998	26	Black	Female	6.3 1.5 2.8 6.3
33207223	26	Green	Female	1.5 2.8 6.3
33207222	26	Blue	Female	2.8 1.5 2.8 6.3
33207221	26	Gray	Female	6.3 1.5 2.8 6.3
33207220	26	Black	Female	Hybrid 6.3 1.5 2.8
33207144	26	Green	male	1.5 2.8 5.8
33207143	26	Blue	male	1.5 2.8 5.8
33207138	26	Gray	male	2.8 1.5 2.8 5.8
33207134	26	Black	male	Hybrid 1.5 2.8 5.8
33276706	39	Brown	male	2.8
33276705	39	Green	male	2.8
33273783	39	Brown	Female	2.8
33273782	39	Green	Female	2.8
33198863	39	Brown	male	2.8
33198862	39	Green	male	2.8
33111402	39	Brown	Female	2.8
33111401	39	Green	Female	2.8
33337584	62	Green	Female	Hybrid 1.5 2.8
33337583	62	Blue-Dark	Female	Hybrid 1.5 2.8
33337582	62	Gray-Light	Female	Hybrid 1.5 2.8
33337581	62	Black	Female	Hybrid 1.5 2.8
33337580	62	Green	Female	Hybrid 1.5 2.8
33337579	62	Blue-Dark	Female	Hybrid 1.5 2.8
33337578	62	Gray	Female	Hybrid 1.5 2.8
33337577	62	Black	Female	Hybrid 1.5 2.8
33276722	62	Green	male	1.5 2.8
33276721	62	Blue	male	1.5 2.8
33276720	62	Gray	male	1.5 2.8
33276719	62	Black	male	Hybrid 1.5 2.8
33213202	62	Green	male	1.5 2.8
33213201	62	Blue	male	Hybrid 1.5 2.8
33213200	62	Gray	male	1.5 2.8
33213199	62	Black	male	Hybrid 1.5 2.8
33276640	15	Blue	Female	2.8

Unsealed Series Connector

P/N	No. of Position	Color	Gender	Terminal Size
33136690	4	Black	Female	6.3
35129605	18	Natural	Female	2.8
35129604	18	Gray	Female	2.8
33156624	18	Blue	Female	2.8
33156623	18	Purple	Female	2.8
33219799	25	Green	Female	Hybrid 1.5 2.8
33219798	25	Blue-Dark	Female	Hybrid 1.5 2.8
33219797	25	Gray	Female	Hybrid 1.5 2.8
33219796	25	Black	Female	Hybrid 1.5 2.8
33252411	36	Blue-Dark	Female	1.5
33252410	36	Green	Female	1.5
33252409	36	Violet	Female	1.5
33252408	36	Brown	Female	1.5
33136691	4	Gray	Female	6.3

Support Custom Wire Harness Assembly

Connectors: 2P to 62P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 50 pieces per order.

custom wiring harness

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Aptiv CTCS Connector, Support Custom Wire Harness Assembly
