Aptiv DCS Connectors

Aptiv DCS Power Sealed Connectors are designed with a range of features that make them highly efficient and user-friendly. These connectors come with housings suitable for wires up to 10 mm², allowing for the transmission of high currents up to 75 A at 23°C.

One notable feature is the sealing performance, which is ensured by both a single wire seal and a front interfacial seal. This double-sealing mechanism provides excellent protection against moisture, dust, and other environmental factors, making these connectors ideal for use in demanding applications.

Additionally, these connectors are equipped with an integrated secondary lock device that allows for easy detection of unseated terminals. This feature ensures secure connections and minimizes the risk of accidental disconnection or loss of signal integrity.

The GO-NO-GO locking principle further enhances the ease and speed of connection. With this system, users can quickly determine if the connector is properly locked into place without any guesswork or complicated procedures. Furthermore, the male terminal guiding system simplifies installation by providing clear guidance during connection.

Overall, Aptiv DCS Power Sealed Connectors offer a reliable solution for various industries such as automotive, aerospace, industrial equipment manufacturing, and more. Their robust design and user-friendly features make them an excellent choice for applications requiring high current carrying capacity while maintaining optimal sealing performance.

DCS Connector Features

• Housings suitable for wires up to 10 mm² and carrying up to 75 A at 23°C
• Sealing performance is ensured by a single wire seal and by a front interfacial seal
• User-friendly with integrated secondary lock device allowing for detection of unseated terminal
• Easy and quick connection system with GO-NO-GO locking principle and male terminal guiding system

DCS Connector P/N Lists and Specifications

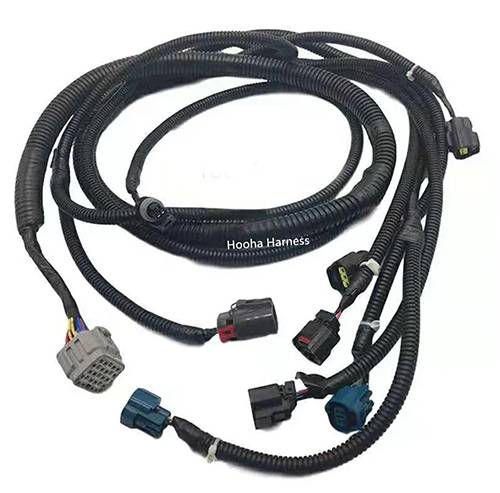

Support Custom Wire Harness Assembly

• Connectors: 2P to 46P.
• Wire Gauge: based on terminal requirement
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
