Aptiv DUO-TWIN 0.64 Connector, Custom Wire Harness Assembly

Aptiv DUO-TWIN 0.64 Connector



The Aptiv DuoTwin 0.64 is an innovative automotive product line that focuses on miniaturization and offers a wide range of terminals and housings for standard, low pin-count inline connections up to ECU high pin-count applications. Key features include lanced versions for both sealed and unsealed applications (with single wire seal options), male and female versions, low contact mating force, long robust auxiliary steel springs for low insertion and high pull-out forces, as well as clean body (lance-less) versions available in mat seal options. Additionally, the product comes in various plating options such as Sn or AuCo and can be used with wire applications ranging from 0.22 mm² to 0.75 mm². It has been approved by numerous OEM customers worldwide while also being compliant with major automotive standards.

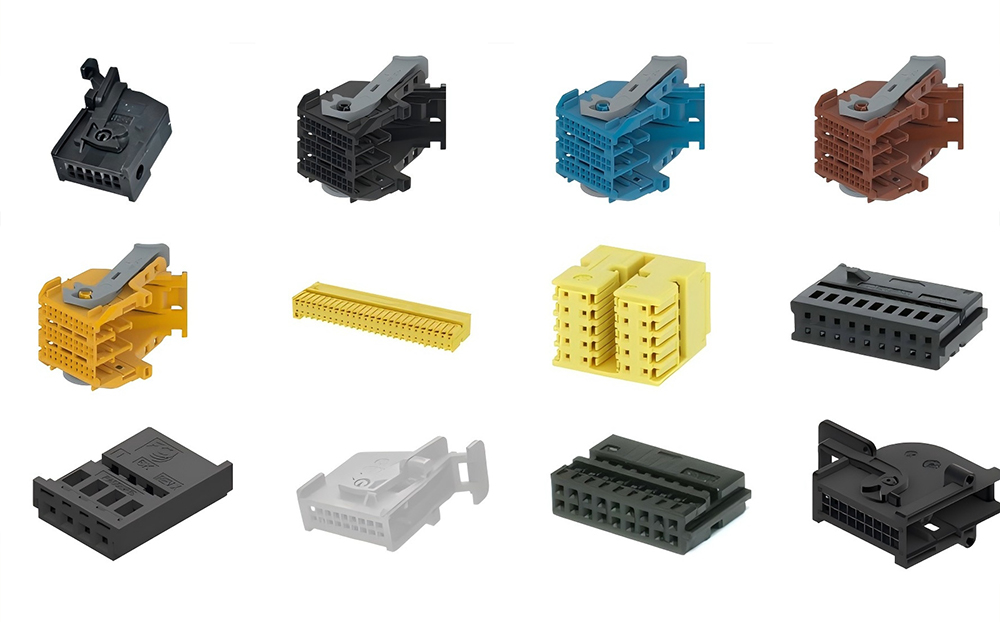

DUO-TWIN Connector





DUO-TWIN Connector Features



  • Lanced version available for unsealed & sealed applications (single wire seal version)
  • Male and female versions are available.
  • Low contact mating force.
  • Long, robust auxiliary steal spring, enabling low insertion & high pull-out forces.
  • Clean body (lance less) version available for unsealed & sealed applications (mat seal version)
  • Available in various plating options (Sn, AuCo)
  • Available for wire applications 0.22 mm² - 0.75 mm²
  • Approved by a wide range of OEM customers, compliant with major Automotive standards globally





DUO-TWIN Connector P/N lists and Specification Chart

Sort by the Number of Ways.

P/N Old P/N No. of Way Gender Color Unsealed
13771272 PPI0000944 4 Female Black Unsealed
33514426 17280810 8 Female Brown Unsealed
33513091   8 Female Black Unsealed
33510889   8 Female Gray Unsealed
13706506 PPI0000896 8 Female Black Unsealed
13706504 17280950 9 Female Green Unsealed
13706459 17280990 9 Female White Unsealed
13706457 17280960 9 Female Blue Unsealed
13706455 17280900 9 Female Black Unsealed
10811581   10 Female Black Unsealed
33405706   12 Female Black Unsealed
13796916 F407500 18 Female Black Unsealed
13759632 PPI0000793 18 Female White Unsealed
13739774 17281800 18 Female Black Unsealed
13729871 PPI0000556 18 Female White Unsealed
13724280 PPI0000498 18 Female Black Unsealed
13724278 PPI0000557 18 Female Black Unsealed
13706507 PPI0000792 18 Female Black Unsealed
33513065 F767100 20 Female Black Unsealed
13842289 F067100 20 Female Yellow Unsealed
33514898 F067700 32 Female Green Unsealed
13705788 17283669A 36 Female Blue Unsealed
33503770 17284070 40 Female Violet Unsealed
33500282 100840BKK 40 Female Black Unsealed
33500008 17284080 40 Female Gray Unsealed
33500007 17284050 40 Female Green Unsealed
33523210 F577100 52 Female Yellow Unsealed
13848514 F477100 52 Female Yellow Unsealed
13854846 F001300 60 Female Black Unsealed
13854835 F201300 60 Female Blue Unsealed
13854828 F301300 60 Female Brown Unsealed
13854822 F101300 60 Female Yellow Unsealed
33514399   104 Female Yellow Unsealed
33503468 F847100 104 Female Yellow Unsealed





Support Custom Wire Harness Assembly



  • Connectors: 4P to 104P.
  • Wire Gauge: 0.22 mm² - 0.75 mm²
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 50 pieces per order.





Custom Wire Harness Cases

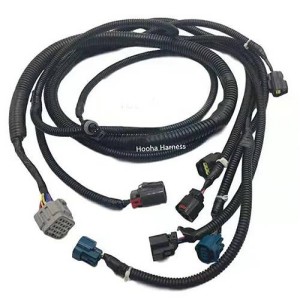

car wire harness

car wire harness

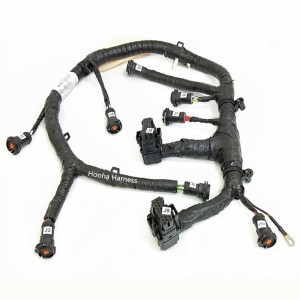

race car wiring kit

race car wiring kit

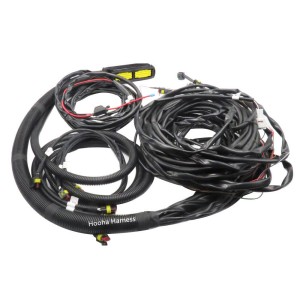

chassis wire harness

chassis wire harness

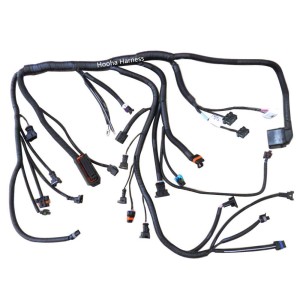

Auto wiring harness

Auto wiring harness

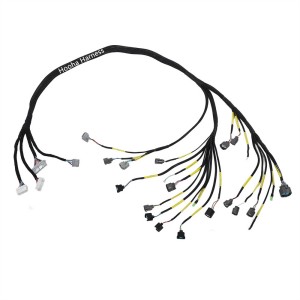

street rod wiring harness

street rod wiring harness

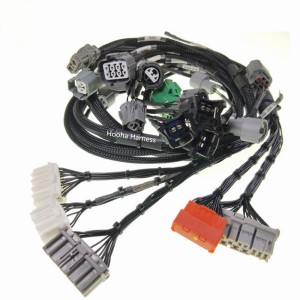

custom wiring looms

custom wiring looms





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
