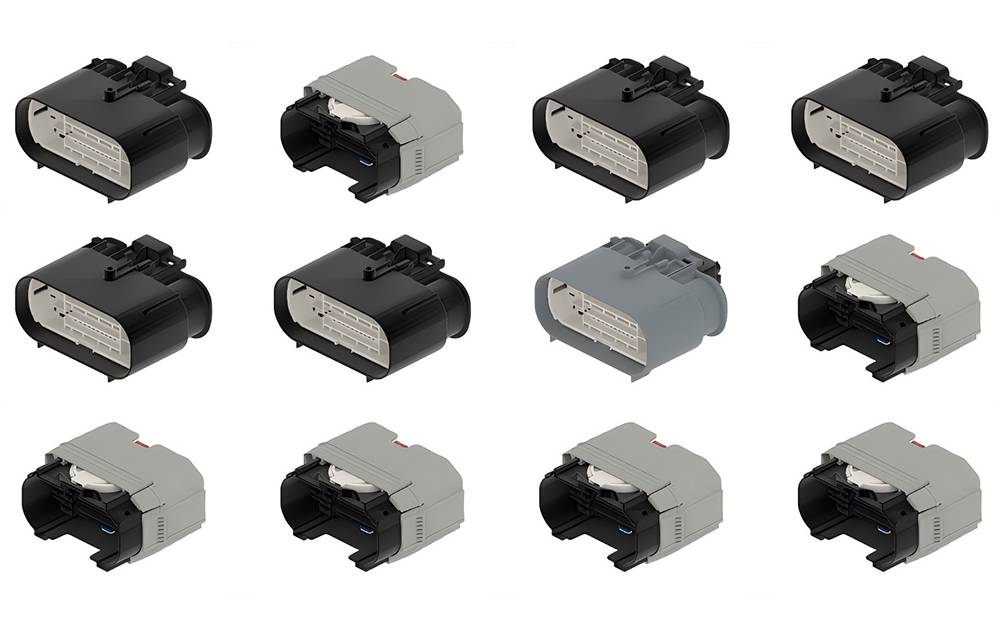

Aptiv ErgoMate Connectors
Aptiv's ErgoMate Connectors boast an ergonomic mating mechanism along with a sturdy yet compact design that ensures durability while offering versatile application possibilities. These connectors can be found in both the ErgoMate series (with options for 38-Way or 55-Way female/male cavities) as well as the APEX ErgoMate series (offering choices for 24-Way female/male cavities). The simplified engagement system of the ErgoMate connectors minimizes mis-mating risks while their self-contained geared cam and slider system provides an operational advantage of a 3:1 ratio for enhanced ease of use. Operating effectively within temperatures ranging from -40°C to +125°C, Aptiv's ErmoGate Connectors find common usage across transmission systems, trunks, and passenger compartments.
ErgoMate Connectors Features
- A lower-profile, user-friendly option compared to traditional lever assists
- Expanded area for gripping
- Reliable performance
- The geared cam and slider system is self-contained and offers a 3:1 mechanical advantage
- The simplified engagement system helps prevent mismating
ErgoMate Connectors P/N Lists and Specifications Comparison
| P/N | No. of Way | Gender | Color | Sealed |
| 35565132 | 38 Way | Female | Black | Sealed |
| 35811448 | 55 Way | Female | Black | Sealed |
| 35726856 | 55 Way | Female | Black | Sealed |
| 35726360 | 55 Way | Male | Black | Sealed |
| 35717875 | 55 Way | Female | Black | Sealed |
| 35717874 | 55 Way | Male | Black | Sealed |
| 35716591 | 55 Way | Female | Gray-Light | Sealed |
| 35716589 | 55 Way | Female | Gray-Light | Sealed |
| 35716588 | 55 Way | Male | Gray | Sealed |
| 35716583 | 55 Way | Male | Gray | Sealed |
| 35696049 | 55 Way | Male | Black | Sealed |
| 35696035 | 55 Way | Male | Black | Sealed |
| 35696026 | 55 Way | Male | Black | Sealed |
| 35695805 | 55 Way | Female | Black | Sealed |
| 35674048 | 55 Way | Male | Black | Sealed |
| 35674047 | 55 Way | Male | Black | Sealed |
| 35664006 | 55 Way | Male | Black | Sealed |
| 35664005 | 55 Way | Male | Black | Sealed |
| 35664004 | 55 Way | Male | Gray | Sealed |
| 35649539 | 55 Way | Female | Black | Sealed |
| 35648965 | 55 Way | Female | Black | Sealed |
| 35648964 | 55 Way | Female | Black | Sealed |
| 35624029 | 55 Way | Female | Black | Sealed |
| 35624024 | 55 Way | Female | Black | Sealed |
| 35624023 | 55 Way | Female | Black | Sealed |
| 35621837 | 55 Way | Female | Black | Sealed |
| 35605245 | 55 Way | Female | Black | Sealed |
| 35605244 | 55 Way | Male | Black | Sealed |
| 35601287 | 55 Way | Male | Black | Sealed |
| 35597637 | 55 Way | Female | Black | Sealed |
| 35592429 | 55 Way | Male | Black | Sealed |
| 35582969 | 55 Way | Female | Gray-Light | Sealed |
| 35572191 | 55 Way | Female | Black | Sealed |
| 35452326 | 55 Way | Female | Black | Sealed |
| 35205183 | 55 Way | Male | Black | Sealed |
Applications of Aptiv ErgoMate Connectors
Chassis
Aptiv ErgoMate connectors are well-suited for integration into the chassis, where they provide stable connections for various electronic control systems. This includes anti-lock braking systems (ABS), suspension control, and steering systems, ensuring these critical systems receive uninterrupted signals in harsh driving conditions.
On-Engine
The high-temperature resistance and vibration tolerance of Aptiv ErgoMate connectors make them ideal for on-engine applications. They can be used to connect sensors, actuators, and control modules that monitor engine performance, fuel injection systems, and turbochargers. Their durable design ensures performance under extreme heat and vibration near the engine block.
Passenger Compartment
In the passenger compartment, ErgoMate connectors are used to facilitate the electronic systems that enhance safety and comfort. This includes connectivity for infotainment systems, climate control, seat adjustments, airbags, and dashboard electronics. Their compact size and secure mating mechanisms make them perfect for the space-constrained environment inside the vehicle.
Transmission
Aptiv ErgoMate connectors are commonly used in transmission systems where high-performance electrical connections are essential for managing the vehicle's gear shifting, clutch systems, and automatic transmission control units. Their design ensures long-term reliability under continuous mechanical and thermal stress.
Trunk
These connectors can be found in the trunk area, supporting systems such as rear lighting, backup cameras, power trunk lifts, and parking sensors. Their ability to withstand moisture and debris ensures optimal performance in exposed environments.
Underhood
Aptiv ErgoMate connectors are ideal for underhood applications, where they must perform in the face of high heat, moisture, and potential exposure to chemicals. Common uses include connecting components like relays, fuses, and wiring harnesses for the vehicle’s power distribution, cooling systems, and electrical control units.
Note: This is not an exhaustive list of applications for Aptiv ErgoMate connectors. They are versatile and may be used in a wide range of automotive and industrial applications, depending on the specific design requirements.

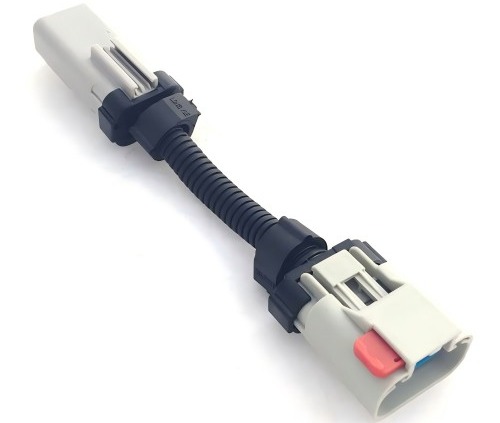

Support Custom Wire Harness Assembly
- Connectors: 4P to 104P.
- Wire Gauge: 0.22 mm² - 0.75 mm²
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
