Aptiv HDK (HPCS) Connector, Custom Wire Harness Manufacturer

Aptiv HDK (HPCS) Connector



Aptiv HDK (HPCS) Connector has two series products: 1.2 sealed series and 2.8 sealed series.



HDK 1.2 Sealed Series Connector Features



  • High-performance solution for the AK standard
  • Superior connection reliability
  • Validated to harsh environment profiles
  • AK 1.2 footprint interface (USCAR 120 short shroud)
  • Pre-staged CPA with SLS (Smart Locking System) technology
  • Optional strain relief allows to increase performance to 80G and operation in temperatures from -40 up to +140 °C
  • Cavity Count (ways): 2
  • Cavity Configurations (mm): 1.2
  • Materials: PA66
  • Genders: Female

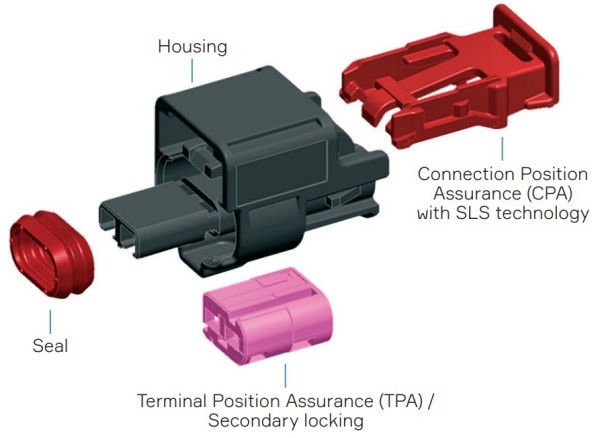

1.2 Sealed connector exploded image



HDK 2.8 Sealed Series Connector Features



  • High-performance solution for the AK standard
  • Superior connection reliability
  • Validated to harsh environment profiles
  • Lateral secondary lock for terminal position assurance
  • Mechanical polarization
  • Cavity Count (ways): 2, 3, 4
  • Cavity Configurations (mm)" 2.8
  • Materials: PBT GF 10
  • Genders: Female

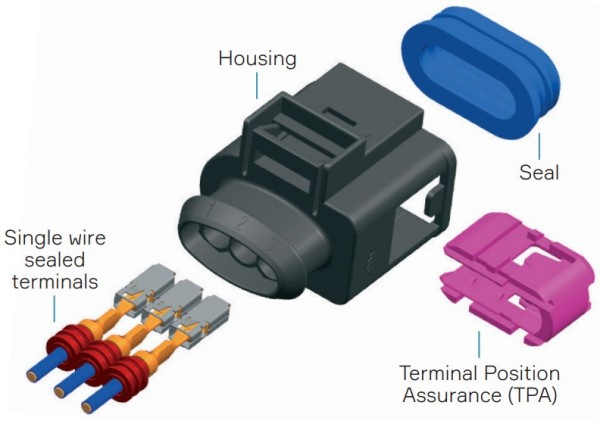

2.8 Sealed connector exploded image





HDK (HPCS) Connector Specifications Chart



P/N Old P/N No. of Way Gender Color Description
33503772 F986410 2 Female Black HDK (HPCS) 2.8 Sealed Connector
33500745 F671800 2 Female Black HDK (HPCS) 2.8 Sealed Connector
33405609   2 Female Black HDK (HPCS) 1.2 Sealed Connector
33405608   2 Female Black HDK (HPCS) 1.2 Sealed Connector
33405607   2 Female Black HDK (HPCS) 1.2 Sealed Connector
15501898 F711800 2 Female Black HDK (HPCS) 2.8 Sealed Connector
13887338 F237010 2 Female Black 2.8 HPCS Sealed Connector
13604181   2 Female Black HPCS 2.8 Sealed Connector
35151504   3 Female Black HDK (HPCS) 2.8 Sealed Connector
33105660   3 Female Black HDK (HPCS) 2.8 Sealed Connector
33347555   4 Female Black HDK (HPCS) 2.8 Sealed Connector
13853167 F391800 4 Female Black HDK (HPCS) 2.8 Sealed Connector
10788453   6 Female Black HPCS 2.8 Sealed Connector
10787251   6 Male Black 2.8 DCS-2 Sealed Connector





Support Custom Wire Harness Assembly



  • Connectors: 2P to 6P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 50 pieces per order.

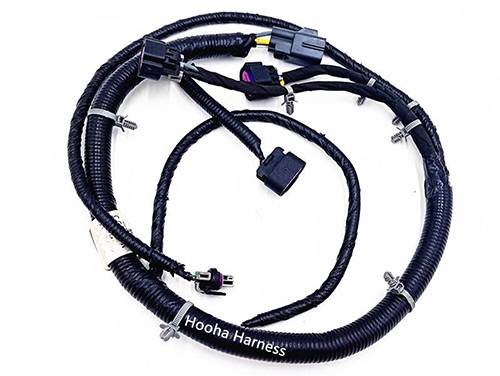

auto wiring harness





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
