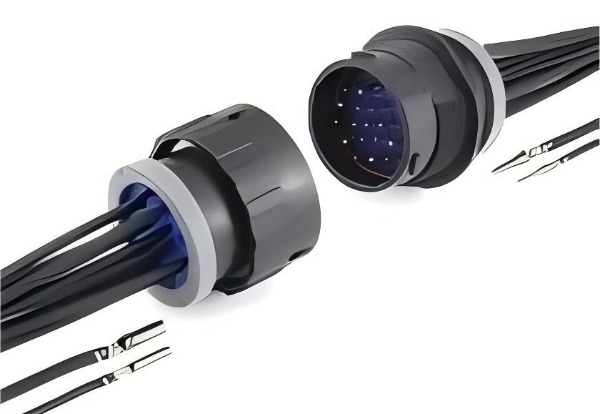

Aptiv HES Series Connector
The Aptiv HES Series Connectors are built for tough environments, offering excellent electrical performance and durability. Designed with an interchangeable interface, they easily integrate into a variety of systems, making them versatile and adaptable. These connectors provide superior environmental protection, with a 3-rib seal that enhances sealing performance by up to 30%, ensuring protection against moisture and contaminants. The specialized lock finger design prevents terminals from unseating, improving reliability in critical applications. Additionally, the HES Series offers forward and backward compatibility, allowing it to work with both newer and older systems. Validated to meet SAE J2030 standards, these connectors ensure high levels of durability and performance, making them a dependable choice for rugged applications.
HES Series Connector Features
- Interchangeable industry mating interface
- Superior environmental protection
- Designed to outperform the competition
- 3-rib seal design provides up to 30% higher performance
- Specialized lock finger design to eliminate terminal unseats
- Forward/backward compatibility
- HES terminals provide improved electrical performance
- Validated to SAE J2030
- Cavity Count (ways): 19, 21, 23, 29, 31, 47
- Cavity Configurations (mm): 1.0, 1.6, 2.4
- Materials: PBT, PA66
Aptiv HES Series Connectors Specifications Chart
Sort by the number of ways
Support Custom Wire Harness Assembly
- Connectors: 9P to 60P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
