Aptiv MQS 0.64 Series Connectors
The MQS 0.64 series connector is a versatile and reliable solution for various applications. It offers both sealed and unsealed types, providing flexibility in different environments. With a wide range of options, it supports connectors ranging from 2P to 90P, offering a total of 76 types to choose from.
MQS 0.64 series connector terminal tab size is 0.64mm. This is compatible with wires ranging from 0.5-0.75mm², making it suitable for various wire sizes commonly used in electrical and electronic systems.
We understand that some customers may require Chinese equivalent parts for their specific needs or preferences. Therefore, we encourage you to contact us so that we can assist you in checking if there are any available Chinese equivalents for the desired connectors.

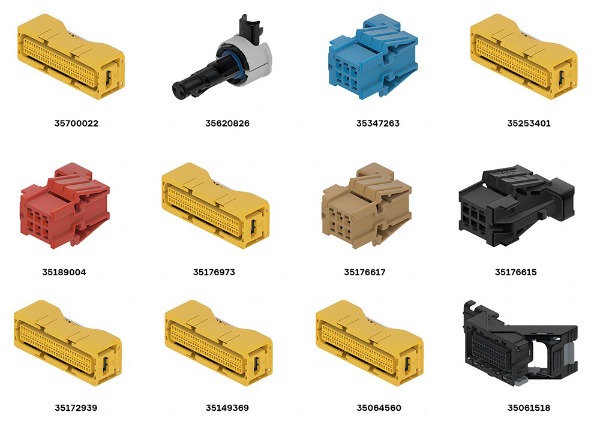

Aptiv MQS Connector Specifications Chart
| P/N | No. of Way | Gender | Color | Description |
| 35620826 | 2 | Female | Black | MQS 0.64 Unsealed Connector |
| 15533288 | 3 | Female | Black | MQS 0.64 Unsealed Connector |
| 33517430 | 4 | Female | Green | MQS 0.64 2.8 Unsealed Connector |
| 13837423 | 6 | Female | Black | MQS 0.64 Sealed Connector |
| 13608513 | 6 | Female | Black | MQS 0.64 Sealed Connector |
| 35176615 | 6 | Female | Black | MQS 0.64 Unsealed Connector |
| 35347263 | 6 | Female | Blue | MQS 0.64 Unsealed Connector |
| 35176617 | 6 | Female | Brown | MQS 0.64 Unsealed Connector |
| 35189004 | 6 | Female | Red | MQS 0.64 Unsealed Connector |
| 13660312 | 8 | Female | Black | MQS 0.63 Sealed Connector |
| 15493279 | 8 | Female | Black | MQS 0.64 Unsealed Connector |
| 13660270 | 8 | Female | Black | MQS 0.64 Unsealed Connector |
| 13660271 | 8 | Female | Natural | MQS 0.64 Unsealed Connector |
| 13567786 | 10 | Female | Natural | MQS 0.64 Unsealed Connector |
| 13968593 | 10 | Male | Black | MQS 0.64 Unsealed Connector |
| 13774545 | 12 | Female | Black | MQS 0.64 Unsealed Connector |
| 13705784 | 12 | Female | Black | MQS 0.64 Unsealed Connector |
| 13705782 | 12 | Female | Black | MQS 0.64 Unsealed Connector |
| 13705786 | 12 | Female | Blue | MQS 0.64 Unsealed Connector |
| 13705783 | 12 | Female | Blue | MQS 0.64 Unsealed Connector |
| 33513069 | 12 | Female | Brown | MQS 0.64 Unsealed Connector |
| 13802846 | 12 | Female | Brown | MQS 0.64 Unsealed Connector |
| 33404693 | 12 | Female | Yellow | MQS 0.64 Unsealed Connector |
| 15533312 | 16 | Female | Black | MQS 0.64 Unsealed Connector |
| 13641515 | 16 | Female | Black | MQS 0.64 Unsealed Connector |
| 33343684 | 18 | Female | Black | MQS 0.64 Unsealed Connector |
| 13796912 | 18 | Female | Black | MQS 0.64 Unsealed Connector |
| 13796910 | 18 | Female | Black | MQS 0.64 Unsealed Connector |
| 13759585 | 18 | Female | Black | MQS 0.64 Unsealed Connector |
| 13759511 | 18 | Female | Black | MQS 0.64 Unsealed Connector |
| 13852577 | 18 | Female | Blue | MQS 0.64 Unsealed Connector |
| 33501027 | 18 | Female | Green | MQS 0.64 Unsealed Connector |
| 13855075 | 18 | Female | Green | MQS 0.64 Unsealed Connector |
| 13796913 | 18 | Female | White | MQS 0.64 Unsealed Connector |
| 33343683 | 18 | Male | Black | MQS 0.64 Unsealed Connector |
| 15345480 | 18 | Male | Black | MQS 0.64 Unsealed Connector |
| 13965362 | 24 | Female | Black | MQS 0.64 Unsealed Connector |
| 13964859 | 24 | Female | Gray | MQS 0.64 Unsealed Connector |
| 15533303 | 26 | Female | Black | MQS 0.64 Unsealed Connector |
| 13587356 | 32 | Female | Blue | MQS 0.64 Unsealed Connector |
| 13611286 | 32 | Female | Green | MQS 0.64 Unsealed Connector |
| 13919084 | 32 | Male | Gray-Medium | MQS 0.64 Unsealed Connector |
| 35061518 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 35061515 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 33503525 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 13916521 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 13697643 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 13697641 | 56 | Female | Black | MQS 0.64 Sealed Connector |
| 33503535 | 56 | Female | Multi-Colors | MQS 0.64 Sealed Connector |
| 33245698 | 56 | Female | Multi-Colors | MQS 0.64 Sealed Connector |
| 35700022 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35253401 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35176973 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35172939 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35149369 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35064560 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35043778 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35041263 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35041261 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35015758 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35015757 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 35015756 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33390216 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33390215 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33390212 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33389420 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33389419 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33389405 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33388905 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33385445 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33385444 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33380815 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33378406 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 33378405 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 15514688 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |
| 15514237 | 90 | Female | Yellow | MQS 0.64 Sealed Connector |

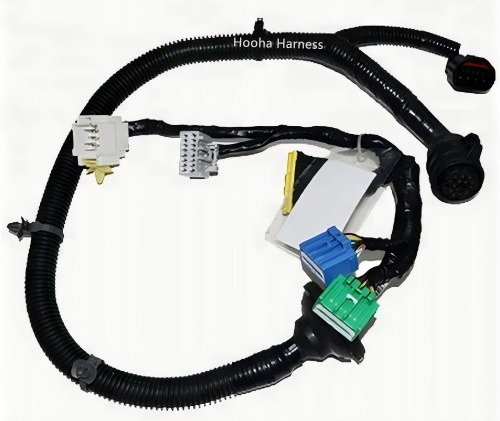

Support Custom Wire Harness Assembly
- Connectors: 2P to 90P.
- Wire Gauge:
- depends on your needs
- recommend by us
- Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
- Wire Length: Fully customizable to your specifications.
- Wiring Diagram: Tailor-made to meet your project needs.
- Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
- Minimum Order: 50 pieces per order.
Customize Your Wire Harness
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
