Aptiv Micro-Pack Connectors

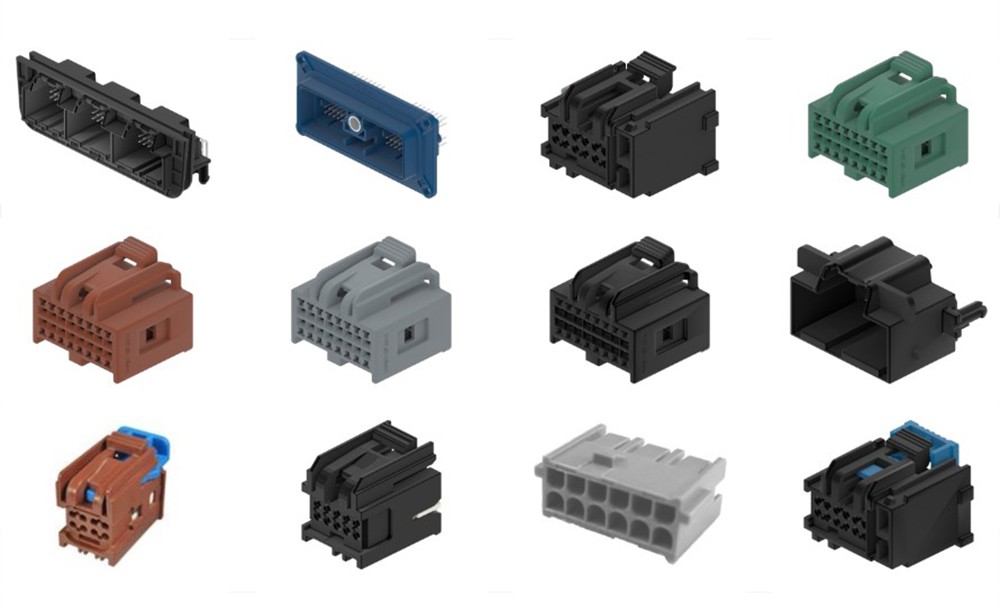

Aptiv (formerly Delphi) Micro-Pack Connectors are designed for low energy (less than 5A), high-density applications. You can get these connectors as headers or in-lines, and they come in both unsealed and sealed versions. The filtered or shielded connectors protect against electromagnetic interference (EMI). Both the 100 series (unsealed) and the 100W series (sealed) systems use a 1mm male pin. The female terminal of the 100 series has a box design with four contact points, while the female terminal of the 100W series has a sleeve configuration. They are also available in the HVT series with up to 96 positions and in the Micro-Pack 64 series with up to 73 positions.

Micro-Pack Connector Features

• Low energy (less than 5A), high-density capabilities
• Multiple electronic signals to be accommodated in one space-saving connector
• 3.0mm to 3.5mm centerlines accommodate applications with limited space
• Mechanical assist and bolt-together designs enable ergonomic assembly/disassembly
• Filtered or shielded systems protect against EMI
• One-piece female terminal for sealed applications
• Sealed version for excellent resistance to temperature, chemicals, and abrasion (100W)
• Connector Position Assurance (CPA) and Terminal Position Assurance (TPA) for superior connection reliability

Micro-Pack Connector Specifications Chart

Sort by the number of ways.

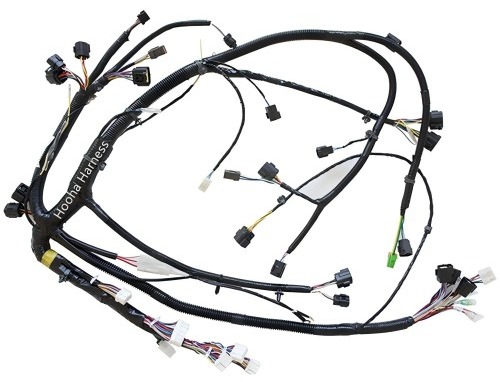

Support Custom Wire Harness Assembly

• Connectors: 2P to 100P.
• Wire Gauge:
  • depends on your needs
  • recommend by us
• Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
• Wire Length: Fully customizable to your specifications.
• Wiring Diagram: Tailor-made to meet your project needs.
• Custom type:
  • Send drawing to customize.
  • Send a sample to customize.
  • Tell us as many details as possible to customize.
• Minimum Order: 50 pieces per order.

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
