Aptiv OCS Series Connectors

Aptiv OCS Connectors are engineered for reliability and durability, offering both sealed and unsealed options to meet a range of automotive applications. Designed for inline configurations, these connectors feature Primary Lock Reinforcement (PLR) to improve unseated terminal detection, while the optional Connector Position Assurance (CPA) adds an extra layer of locking security to ensure stable connections even in demanding environments. The sealed OCS connectors are capable of withstanding temperatures from -40°C to +125°C, offering V2 vibration performance and S3 sealing, making them suitable for harsh conditions. In comparison, the unsealed variants operate within a temperature range of -40°C to +105°C, provide V1 vibration performance, and feature S1 sealing. The OCS connectors are built with a robust powertrain contact geometry that can handle severe vibration scenarios, ensuring long-lasting performance. Additionally, they are lighter by up to 11% compared to competing products, supporting efficient and reliable powertrain connectivity. With a projected reliability of 6+ sigma at 150,000 miles (241,401 km), these connectors are ideal for high-performance applications, supporting unsealed and mat-sealed 1.2 applications, and are compatible with independent secondary locks for enhanced security.

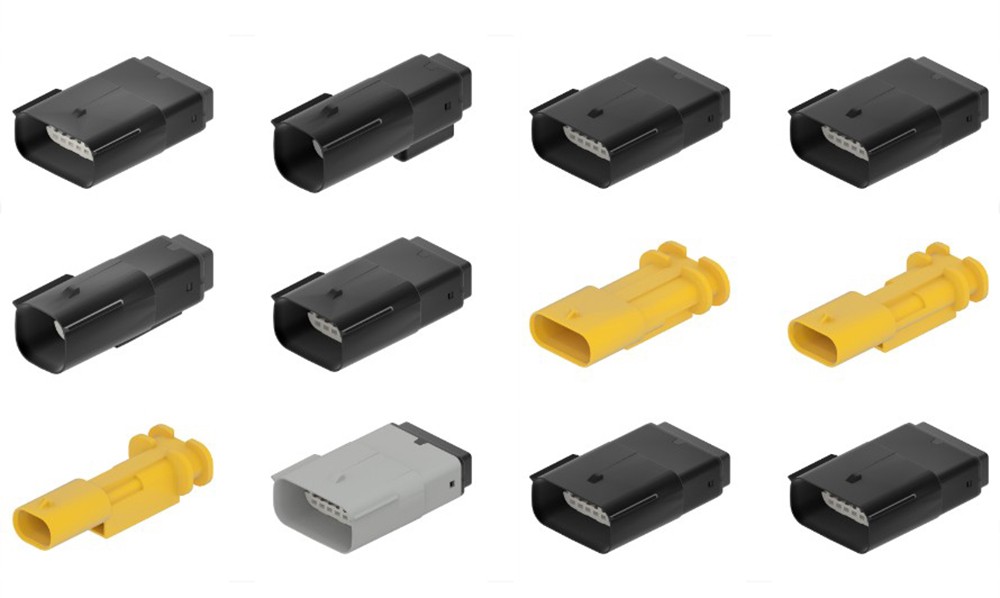

Aptiv OCS Connector

OCS Connector Features

6+ Sigma projected reliability at 150,000 miles (241,401 km)
Robust powertrain contact geometry that is severe vibration-capable
Up to 11% less mass than the competing product
For use in unsealed, & mat sealed 1.2 applications
Independent secondary lock compatible

OCS Connector Specifications Chart

Sort by the number of ways.

P/N	No. of Way	Gender	Color	Description
33189088	2	Female	Black	OCS 1.5 Sealed Connector
33164011	2	Female	Black	OCS 1.5 Sealed Connector
35530270	2	Male	Yellow	OCS 1.2 Sealed Connector
35517805	2	Male	Yellow	OCS 1.2 Sealed Connector
35406168	2	Female	Green	OCS 1.2 Unsealed Connector
35406163	2	Female	Blue	OCS 1.2 Unsealed Connector
35406157	2	Female	Natural	OCS 1.2 Unsealed Connector
35382827	2	Male	Gray-Light	OCS 1.2 Sealed Connector
35382826	2	Male	Black	OCS 1.2 Sealed Connector
35335124	2	Female	Gray-Dark	OCS 1.5 Sealed Connector
35250348	2	Female	Black	OCS 1.2 Unsealed Connector
35221726	2	Male	Black	OCS 1.2 Unsealed Connector
35216092	2	Male	Black	OCS 1.2 Unsealed Connector
35197957	2	Male	Gray-Light	OCS 1.2 Sealed Connector
35197956	2	Male	Black	OCS 1.2 Sealed Connector
35197955	2	Male	Gray-Dark	OCS 1.2 Sealed Connector
35197954	2	Male	Gray-Light	OCS 1.2 Sealed Connector
35147454	2	Male	Black	OCS 1.2 Sealed Connector
35123774	2	Male	Black	OCS 1.5 Unsealed Connector
35058586	2	Female	Gray	OCS 1.2 Unsealed Connector
33314786	2	Female	Black	OCS 1.5 Sealed Connector
33298837	2	Male	Black	OCS 1.5 Sealed Connector
33277560	2	Female	Gray-Dark	OCS 1.2 Unsealed Connector
33277559	2	Female	Black	OCS 1.2 Unsealed Connector
33277555	2	Female	Gray-Dark	OCS 1.2 Unsealed Connector
33277554	2	Female	Black	OCS 1.2 Unsealed Connector
33277550	2	Male	Gray-Dark	OCS 1.2 Unsealed Connector
33277549	2	Male	Black	OCS 1.2 Unsealed Connector
33189092	2	Female	Gray-Dark	OCS 1.5 Sealed Connector
33189090	2	Female	Black	OCS 1.5 Sealed Connector
33174099	2	Female	Green	OCS 0.64 ISM Sealed Connector
33174098	2	Female	Brown	OCS 0.64 ISM Sealed Connector
33174097	2	Female	Gray	OCS 0.64 ISM Sealed Connector
33174096	2	Female	Black	OCS 0.64 ISM Sealed Connector
33145080	2	Female	Natural	OCS 1.2 Unsealed Connector
15532340	2	Female	Black	OCS 1.5 Sealed Connector
15531910	2	Female	Gray-Light	OCS 1.5 Unsealed Connector
15531908	2	Female	Black	OCS 1.5 Unsealed Connector
15514574	2	Female	Gray-Light	OCS 1.5 Sealed Connector
15514573	2	Female	Black	OCS 1.5 Sealed Connector
15514551	2	Male	Gray-Light	OCS 1.5 Sealed Connector
15514550	2	Male	Black	OCS 1.5 Sealed Connector
15509275	2	Female	Gray-Light	OCS 1.5 Unsealed Connector
15509274	2	Female	Black	OCS 1.5 Unsealed Connector
15509261	2	Male	Gray-Light	OCS 1.5 Unsealed Connector
15509260	2	Male	Black	OCS 1.5 Unsealed Connector
13960983	2	Female	Gray	OCS 0.64 IUR Unsealed Connector
13960971	2	Male	Green	0.64 OCS Unsealed Connector
13960967	2	Male	Blue	OCS 0.64 Unsealed Connector
13862418	2	Female	Black	OCS 1.2 Unsealed Connector
13848934	2	Female	Gray-Light	OCS 1.2 Unsealed Connector
13766241	2	Female	Natural	OCS 1.2 Sealed Connector
13761048	2	Female	Yellow	OCS 0.64 ISM Unsealed Connector
13580002	2	Female	Black	OCS 1.5 Sealed Connector
13954931	2	Female	Natural	OCS 1.2 Unsealed Connector
35530273	3	Male	Yellow	OCS 1.2 Sealed Connector
35517806	3	Male	Yellow	OCS 1.2 Sealed Connector
35197945	3	Male	Black	OCS 1.2 Sealed Connector
35197944	3	Male	Gray-Dark	OCS 1.2 Sealed Connector
35197943	3	Male	Gray-Light	OCS 1.2 Sealed Connector
35148571	3	Male	Black	OCS 1.2 Sealed Connector
35148565	3	Male	Black	OCS 1.2 Sealed Connector
35117225	3	Male	Gray-Light	OCS 1.5 Sealed Connector
35117224	3	Male	Black	OCS 1.5 Sealed Connector
15532356	3	Female	Gray-Light	OCS 1.5 Sealed Connector
15532355	3	Female	Black	OCS 1.5 Sealed Connector
15514763	3	Female	Gray-Light	OCS 1.5 Sealed Connector
15514762	3	Female	Black	OCS 1.5 Sealed Connector
15514744	3	Male	Black	OCS 1.5 Sealed Connector
15509305	3	Female	Gray-Light	OCS 1.5 Unsealed Connector
15509304	3	Female	Gray-Dark	OCS 1.5 Unsealed Connector
15509291	3	Male	Gray-Light	OCS 1.5 Unsealed Connector
15509290	3	Male	Gray-Dark	OCS 1.5 Unsealed Connector
35530275	4	Male	Yellow	OCS 1.2 Sealed Connector
35517807	4	Male	Yellow	OCS 1.2 Sealed Connector
35197974	4	Male	Blue	OCS 1.2 Sealed Connector
35197973	4	Male	Gray-Dark	OCS 1.2 Sealed Connector
35197972	4	Male	Gray-Light	OCS 1.2 Sealed Connector
35197971	4	Male	Black	OCS 1.2 Sealed Connector
35197970	4	Male	Blue	OCS 1.2 Sealed Connector
35197969	4	Male	Gray-Dark	OCS 1.2 Sealed Connector
35197968	4	Male	Gray-Light	OCS 1.2 Sealed Connector
35147457	4	Male	Black	OCS 1.2 Sealed Connector
35147453	4	Male	Black	OCS 1.2 Sealed Connector
35117242	4	Male	Gray-Light	OCS 1.5 Sealed Connector
35117241	4	Male	Black	OCS 1.5 Sealed Connector
35051300	4	Male	Yellow	OCS 1.2 Unsealed Connector
35051298	4	Female	Yellow	OCS 1.2 Unsealed Connector
33377702	4	Female	Black	OCS 0.64 IDR Unsealed Connector
33362829	4	Male	Black	0.64 0.64 Unsealed Connector
33299838	4	Female	Natural	OCS 1.2 Unsealed Connector
33299837	4	Female	Black	OCS 1.2 Unsealed Connector
33230521	4	Male	Natural	OCS 1.2 Unsealed Connector
33230510	4	Female	Natural	OCS 1.2 Unsealed Connector
33198634	4	Male	Black	OCS 1.2 Unsealed Connector
33198617	4	Female	Black	OCS 1.2 Unsealed Connector
15532370	4	Female	Gray-Light	OCS 1.5 Sealed Connector
15532369	4	Female	Black	OCS 1.5 Sealed Connector
15514525	4	Female	Gray-Light	OCS 1.5 Sealed Connector
15514524	4	Female	Black	OCS 1.5 Sealed Connector
15514501	4	Male	Gray-Light	OCS 1.5 Sealed Connector
15514500	4	Male	Black	OCS 1.5 Sealed Connector
15509333	4	Female	Black	OCS 1.5 Unsealed Connector
15509319	4	Male	Black	OCS 1.5 Unsealed Connector
13794751	4	Female	Natural	OCS 0.64 IUR Unsealed Connector
13766022	4	Male	Orange	0.64 2.8 MIXED Sealed Connector
35617175	6	Female	Black	OCS 1.5 Sealed Connector
35617173	6	Male	Black	OCS 1.5 Sealed Connector
35607630	6	Female	Black	OCS 1.5 Sealed Connector
35607629	6	Male	Black	OCS 1.5 Sealed Connector
35572838	6	Female	Black	OCS 1.5 Sealed Connector
35572836	6	Male	Black	OCS 1.5 Sealed Connector
35550103	6	Male	Black	OCS 1.5 Sealed Connector
35547326	6	Female	Natural	OCS 0.64 ISM Unsealed Connector
35481349	6	Male	Black	OCS 1.5 Sealed Connector
35390639	6	Female	Black	OCS 0.64 ISM Sealed Connector
35390637	6	Female	Black	OCS 0.64 ISM Sealed Connector
35325491	6	Female	Black	OCS 1.5 Sealed Connector
35247624	6	Female	Black	OCS 1.5 Sealed Connector
35151166	6	Female	Black	1.5 OCS Sealed Connector
35117259	6	Male	Gray-Dark	OCS 1.5 Sealed Connector
35117257	6	Male	Black	OCS 1.5 Sealed Connector
35049847	6	Female	Multi-Colors	OCS 1.5 Sealed Connector
33299872	6	Female	Gray-Medium	OCS 1.2 Unsealed Connector
33299870	6	Female	Black	OCS 1.2 Unsealed Connector
33257509	6	Male	Gray-Light	OCS 1.2 Unsealed Connector
33257505	6	Male	Gray-Medium	OCS 1.2 Unsealed Connector
33257503	6	Male	Black	OCS 1.2 Unsealed Connector
33257497	6	Female	Gray-Medium	OCS 1.2 Unsealed Connector
33257493	6	Female	Gray-Light	OCS 1.2 Unsealed Connector
33257488	6	Female	Black	OCS 1.2 Unsealed Connector
33134940	6	Female	Natural	OCS 1.2 Unsealed Connector
15532390	6	Female	Gray-Light	OCS 1.5 Sealed Connector
15532389	6	Female	Black	OCS 1.5 Sealed Connector
15531939	6	Female	Black	OCS 1.5 Unsealed Connector
15513506	6	Female	Gray-Dark	OCS 1.5 Sealed Connector
15513505	6	Female	Gray-Light	OCS 1.5 Sealed Connector
15513504	6	Female	Black	OCS 1.5 Sealed Connector
15513476	6	Male	Gray-Dark	OCS 1.5 Sealed Connector
15513475	6	Male	Gray-Light	OCS 1.5 Sealed Connector
15513474	6	Male	Black	OCS 1.5 Sealed Connector
15512462	6	Female	Gray-Light	OCS 1.5 Unsealed Connector
15512461	6	Female	Gray-Dark	OCS 1.5 Unsealed Connector
13970548	6	Male	Gray-Light	OCS 1.5 Unsealed Connector
13968716	6	Male	Black	OCS 1.5 Unsealed Connector
13955963	6	Male	Gray	0.64 Unsealed Connector
13608242	6	Female	Black	OCS 1.5 Sealed Connector
35614448	8	Female	Black	OCS 1.5 Sealed Connector
35604110	8	Female	Black	OCS 1.5 Sealed Connector
35603804	8	Male	Black	OCS 1.5 Sealed Connector
35600058	8	Female	Gray-Light	OCS 0.64 ISM Sealed Connector
35517315	8	Female	Black	OCS 0.64 Sealed Connector
35507578	8	Female	Black	OCS 1.5 Sealed Connector
35505222	8	Female	Black	OCS 1.5 Sealed Connector
35488320	8	Female	Black	OCS 1.5 Sealed Connector
35464979	8	Male	Black	OCS 1.5 Sealed Connector
35464978	8	Male	Black	OCS 1.5 Sealed Connector
35421619	8	Female	Gray-Light	OCS 0.64 ISM Sealed Connector
35410574	8	Male	Black	OCS 1.5 Sealed Connector
35410572	8	Female	Black	OCS 1.5 Sealed Connector
35410571	8	Male	Black	OCS 1.5 Sealed Connector
35410570	8	Male	Black	OCS 1.5 Sealed Connector
35410567	8	Male	Black	OCS 1.5 Sealed Connector
35410566	8	Female	Black	OCS 1.5 Sealed Connector
35410565	8	Female	Black	OCS 1.5 Sealed Connector
35410564	8	Female	Black	OCS 1.5 Sealed Connector
35410563	8	Male	Black	OCS 1.5 Sealed Connector
35410562	8	Female	Multi-Colors	OCS 1.5 Sealed Connector
35410561	8	Female	Multi-Colors	OCS 1.5 Sealed Connector
35410553	8	Female	Multi-Colors	OCS 1.5 Sealed Connector
35410551	8	Male	Black	OCS 1.5 Sealed Connector
35366051	8	Female	Black	OCS 1.2 Sealed Connector
35128932	8	Female	Black	OCS 1.2 Sealed Connector
35117272	8	Male	Black	OCS 1.5 Sealed Connector
33299853	8	Female	Black	OCS 1.2 Unsealed Connector
33255759	8	Male	Black	OCS 1.2 Unsealed Connector
33255744	8	Female	Black	OCS 1.2 Unsealed Connector
33130470	8	Female	Black	OCS 1.2 Sealed Connector
15532405	8	Female	Black	OCS 1.5 Sealed Connector
15526973	8	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
15526972	8	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
15514670	8	Female	Black	OCS 1.5 Sealed Connector
15514669	8	Female	Gray-Dark	OCS 1.5 Sealed Connector
15514668	8	Female	Gray-Light	OCS 1.5 Sealed Connector
15514667	8	Female	Black	OCS 1.5 Sealed Connector
15514655	8	Male	Black	1.5 OCS Sealed Connector
15514653	8	Male	Gray	1.5 OCS Sealed Connector
15514652	8	Male	Gray-Light	OCS 1.5 Sealed Connector
15514651	8	Male	Black	OCS 1.5 Sealed Connector
15509371	8	Female	Purple	OCS 1.5 Unsealed Connector
15509366	8	Female	Black	OCS 1.5 Unsealed Connector
15509356	8	Male	Purple	1.5 OCS Unsealed Connector
15509351	8	Male	Black	OCS 1.5 Unsealed Connector
15417921	8	Male	Green	0.64 Micro Unsealed Connector
15417920	8	Male	Brown	0.64 Micro Unsealed Connector
13942894	8	Female	Black	OCS 0.64 Unsealed Connector
13890058	8	Female	Black	OCS 1.2 Sealed Connector
13782038	8	Female	Gray-Light	OCS 0.64 IUR Unsealed Connector
13720596	8	Female	Black	OCS 1.2 Sealed Connector
13567796	8	Female	Black	OCS 1.2 Sealed Connector
35666378	10	Female	Gray-Dark	OCS 0.64 Sealed Connector
35666377	10	Female	Black	OCS 0.64 Sealed Connector
35617855	10	Female	Gray-Dark	OCS 0.64 Sealed Connector
35567053	10	Female	Black	OCS 1.5 Sealed Connector
35502531	10	Male	Black	OCS 1.5 Sealed Connector
35492095	10	Male	Black	OCS 1.5 Sealed Connector
35492094	10	Male	Black	OCS 1.5 Sealed Connector
35492093	10	Male	Black	OCS 1.5 Sealed Connector
35492089	10	Male	Black	OCS 1.5 Sealed Connector
35447114	10	Male	Black	OCS 1.5 Sealed Connector
35447112	10	Male	Black	OCS 1.5 Sealed Connector
35446723	10	Female	Multi-Colors	OCS 1.5 Sealed Connector
35446722	10	Female	Multi-Colors	OCS 1.5 Sealed Connector
35446721	10	Female	Multi-Colors	OCS 1.5 Sealed Connector
35446720	10	Female	Multi-Colors	OCS 1.5 Sealed Connector
35446719	10	Male	Black	OCS 1.5 Sealed Connector
35446718	10	Male	Black	OCS 1.5 Sealed Connector
35446717	10	Female	Black	OCS 1.5 Sealed Connector
35446716	10	Female	Black	OCS 1.5 Sealed Connector
35269093	10	Female	Black	OCS 1.2 Sealed Connector
35238931	10	Female	Green	OCS 0.64 Sealed Connector
35238927	10	Female	Black	OCS 0.64 Sealed Connector
35238921	10	Female	Black	OCS 0.64 Sealed Connector
35238885	10	Female	Black	OCS 0.64 Sealed Connector
35238883	10	Female	Brown	OCS 0.64 Sealed Connector
35102693	10	Female	Multi-Colors	OCS 1.5 Sealed Connector
35102169	10	Male	Black	OCS 1.5 Sealed Connector
35066651	10	Female	Black	OCS 1.5 Sealed Connector
35063640	10	Female	Multi-Colors	OCS 0.64 Sealed Connector
35063639	10	Female	Multi-Colors	OCS 0.64 Sealed Connector
35063638	10	Female	Multi-Colors	OCS 0.64 Sealed Connector
35063637	10	Female	Multi-Colors	OCS 0.64 Sealed Connector
33190055	10	Female	Purple	OCS 0.64 Unsealed Connector
33190054	10	Female	Blue	OCS 0.64 Unsealed Connector
33190053	10	Female	Red	OCS 0.64 Unsealed Connector
33188791	10	Female	Black	OCS 0.64 Unsealed Connector
33171460	10	Male	Black	OCS 1.5 Sealed Connector
33157038	10	Male	Black	0.64 CONN Unsealed Connector
15532124	10	Female	Black	OCS 1.5 Sealed Connector
15531966	10	Female	Black	OCS 1.5 Unsealed Connector
15514822	10	Female	Gray-Light	OCS 1.5 Sealed Connector
15514821	10	Female	Black	OCS 1.5 Sealed Connector
15514814	10	Female	Black	1.5 OCS Sealed Connector
15514808	10	Male	Gray-Light	OCS 1.5 Sealed Connector
15514807	10	Male	Black	OCS 1.5 Sealed Connector
15512475	10	Female	Black	OCS 1.5 Unsealed Connector
13968808	10	Male	Black	OCS 1.5 Unsealed Connector
35685951	12	Female	Black	OCS 1.5 Sealed Connector
35685949	12	Female	Black	OCS 1.5 Sealed Connector
35681845	12	Female	Black	OCS 1.2 Sealed Connector
35662541	12	Female	Black	OCS 1.5 Sealed Connector
35659179	12	Female	Black	OCS 1.5 Sealed Connector
35659177	12	Female	Black	OCS 1.5 Sealed Connector
35659175	12	Female	Black	OCS 1.5 Sealed Connector
35659173	12	Female	Black	OCS 1.5 Sealed Connector
35659169	12	Female	Black	OCS 1.5 Sealed Connector
35659167	12	Female	Black	OCS 1.5 Sealed Connector
35657346	12	Female	Black	OCS 1.5 Sealed Connector
35645530	12	Female	Black	OCS 1.5 Sealed Connector
35644062	12	Male	Gray-Light	OCS 1.5 Sealed Connector
35636016	12	Male	Black	OCS 1.5 Sealed Connector
35636014	12	Male	Black	OCS 1.5 Sealed Connector
35630342	12	Female	Black	OCS 1.5 Sealed Connector
35630341	12	Female	Black	OCS 1.5 Sealed Connector
35630340	12	Female	Black	OCS 1.5 Sealed Connector
35629745	12	Female	Black	OCS 1.2 Sealed Connector
35625947	12	Female	Black	OCS 1.5 Sealed Connector
35621057	12	Female	Gray-Light	OCS 1.5 Sealed Connector
35607300	12	Female	Black	OCS 1.5 Sealed Connector
35607298	12	Female	Black	OCS 1.5 Sealed Connector
35538265	12	Male	Black	OCS 1.5 Sealed Connector
35512835	12	Female	Black	OCS 1.2 Sealed Connector
35494610	12	Male	Black	OCS 1.5 Sealed Connector
35494608	12	Male	Black	OCS 1.5 Sealed Connector
35485862	12	Female	Black	OCS 1.5 Sealed Connector
35480127	12	Male	Black	OCS 1.5 Sealed Connector
35465010	12	Female	Black	OCS 1.5 Sealed Connector
35465005	12	Male	Black	OCS 1.5 Sealed Connector
35465003	12	Male	Black	OCS 1.5 Sealed Connector
35425182	12	Male	Black	OCS 1.5 Sealed Connector
35425181	12	Male	Black	OCS 1.5 Sealed Connector
35425180	12	Male	Black	OCS 1.5 Sealed Connector
35425179	12	Male	Black	OCS 1.5 Sealed Connector
35425178	12	Male	Black	OCS 1.5 Sealed Connector
35425177	12	Male	Black	OCS 1.5 Sealed Connector
35410785	12	Male	Black	OCS 1.5 Sealed Connector
35410784	12	Female	Black	OCS 1.5 Sealed Connector
35410145	12	Female	Black	OCS 1.5 Sealed Connector
35410144	12	Female	Black	OCS 1.5 Sealed Connector
35410139	12	Female	Black	OCS 1.5 Sealed Connector
35410138	12	Female	Black	OCS 1.5 Sealed Connector
35305666	12	Male	Black	OCS 1.5 Sealed Connector
35305665	12	Male	Black	OCS 1.5 Sealed Connector
35305663	12	Male	Black	OCS 1.5 Sealed Connector
35280173	12	Female	Black	OCS 1.5 Sealed Connector
35276185	12	Female	Black	OCS 1.5 Sealed Connector
35276093	12	Male	Black	OCS 1.5 Sealed Connector
35250588	12	Male	Black	OCS 1.5 Sealed Connector
35247000	12	Female	Black	OCS 1.5 Sealed Connector
35246999	12	Female	Black	OCS 1.5 Sealed Connector
35246998	12	Female	Black	OCS 1.5 Sealed Connector
35141931	12	Female	Black	OCS 1.2 Sealed Connector
35117331	12	Male	Black	OCS 1.5 Sealed Connector
35117329	12	Male	Gray-Light	OCS 1.5 Sealed Connector
35117328	12	Male	Black	OCS 1.5 Sealed Connector
35104798	12	Male	Black	OCS 1.5 Sealed Connector
35104797	12	Female	Multi-Colors	OCS 1.5 Sealed Connector
35096259	12	Female	Black	OCS 1.5 Sealed Connector
35067300	12	Female	Purple	OCS 1.2 Sealed Connector
35067299	12	Female	Blue	OCS 1.2 Sealed Connector
35016616	12	Female	Black	OCS 0.64 IUR Unsealed Connector
35016615	12	Female	Gray-Light	OCS 0.64 IUR Unsealed Connector
35016613	12	Female	Brown	OCS 0.64 IUR Unsealed Connector
35013150	12	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
35013145	12	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
33299846	12	Female	Black	OCS 1.2 Unsealed Connector
33269315	12	Female	Black	OCS 1.2 Sealed Connector
33250087	12	Male	Natural	OCS 1.2 Unsealed Connector
33250086	12	Male	Black	OCS 1.2 Unsealed Connector
33250072	12	Female	Natural	OCS 1.2 Unsealed Connector
33250071	12	Female	Black	OCS 1.2 Unsealed Connector
33178007	12	Female	Purple	OCS 1.2 Sealed Connector
33178000	12	Female	Red	OCS 1.2 Sealed Connector
33177196	12	Male	Black	1 1 Unsealed Connector
33109284	12	Female	Black	OCS 1.2 Sealed Connector
33109148	12	Female	Black	OCS 1.2 Sealed Connector
33107732	12	Female	Black	OCS 1.2 Sealed Connector
33107730	12	Female	Black	OCS 1.2 Sealed Connector
15548980	12	Female	Black	OCS 1.2 Sealed Connector
15548978	12	Female	Black	OCS 1.2 Sealed Connector
15532141	12	Female	Black	OCS 1.5 Sealed Connector
15532140	12	Female	Gray-Dark	OCS 1.5 Sealed Connector
15532139	12	Female	Gray-Light	OCS 1.5 Sealed Connector
15532138	12	Female	Black	OCS 1.5 Sealed Connector
15521150	12	Male	Black	OCS 1.5 Sealed Connector
15521149	12	Male	Gray-Dark	OCS 1.5 Sealed Connector
15521148	12	Male	Gray-Light	OCS 1.5 Sealed Connector
15521147	12	Male	Black	OCS 1.5 Sealed Connector
15514629	12	Female	Black	OCS 1.5 Sealed Connector
15514628	12	Female	Gray-Dark	OCS 1.5 Sealed Connector
15514625	12	Female	Gray-Light	OCS 1.5 Sealed Connector
15514623	12	Female	Black	OCS 1.5 Sealed Connector
15514608	12	Female	Gray-Light	1.5 OCS Sealed Connector
15514606	12	Female	Black	OCS 1.5 Sealed Connector
15512489	12	Female	Black	OCS 1.5 Unsealed Connector
15423730	12	Male	Brown	0.64 Micro Unsealed Connector
15423729	12	Male	Gray	0.64 Micro Unsealed Connector
15423728	12	Male	Black	0.64 Micro Unsealed Connector
13968810	12	Male	Black	OCS 1.5 Unsealed Connector
13960992	12	Female	Black	OCS 1.2 Sealed Connector
13881217	12	Female	Black	OCS 1.2 Sealed Connector
13833301	12	Female	Black	OCS 1.2 Sealed Connector
13820424	12	Female	Black	OCS 1.2 Sealed Connector
13820423	12	Female	Black	OCS 1.2 Sealed Connector
13608257	12	Male	Gray-Dark	OCS 1.5 Unsealed Connector
15512506	16	Female	Black	OCS 1.5 Unsealed Connector
35696477	16	Female	Black	OCS 1.5 Sealed Connector
35696475	16	Female	Black	OCS 1.5 Sealed Connector
35696474	16	Female	Black	OCS 1.5 Sealed Connector
35644037	16	Female	Black	OCS 1.5 Sealed Connector
35644032	16	Female	Black	OCS 1.5 Sealed Connector
35641311	16	Male	Black	OCS 1.5 Sealed Connector
35617172	16	Female	Black	OCS 1.5 Sealed Connector
35617134	16	Female	Black	OCS 1.5 Sealed Connector
35604144	16	Female	Black	OCS 1.5 Sealed Connector
35604143	16	Female	Black	OCS 1.5 Sealed Connector
35604114	16	Female	Black	OCS 1.5 Sealed Connector
35603810	16	Male	Black	OCS 1.5 Sealed Connector
35603809	16	Male	Black	OCS 1.5 Sealed Connector
35603808	16	Male	Black	OCS 1.5 Sealed Connector
35603807	16	Male	Black	OCS 1.5 Sealed Connector
35603805	16	Male	Black	OCS 1.5 Sealed Connector
35594896	16	Female	Black	OCS 1.5 Sealed Connector
35589680	16	Male	Black	OCS 1.5 Sealed Connector
35554106	16	Male	Black	OCS 1.5 Sealed Connector
35554080	16	Male	Black	OCS 1.5 Sealed Connector
35554078	16	Female	Black	OCS 1.5 Sealed Connector
35554077	16	Female	Black	OCS 1.5 Sealed Connector
35518701	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35518699	16	Male	Black	OCS 1.5 Sealed Connector
35518678	16	Male	Black	OCS 1.5 Sealed Connector
35516250	16	Female	Black	OCS 1.5 Sealed Connector
35516229	16	Female	Black	OCS 1.5 Sealed Connector
35503282	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35502386	16	Female	Black	OCS 1.5 Sealed Connector
35502379	16	Female	Black	OCS 1.5 Sealed Connector
35502371	16	Female	Black	OCS 1.5 Sealed Connector
35496205	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35492154	16	Female	Black	OCS 1.5 Sealed Connector
35492153	16	Female	Black	OCS 1.5 Sealed Connector
35492101	16	Female	Black	OCS 1.5 Sealed Connector
35492100	16	Female	Black	OCS 1.5 Sealed Connector
35492084	16	Male	Black	OCS 1.5 Sealed Connector
35492083	16	Male	Black	OCS 1.5 Sealed Connector
35492082	16	Male	Black	OCS 1.5 Sealed Connector
35492081	16	Male	Black	OCS 1.5 Sealed Connector
35483852	16	Female	Black	OCS 1.5 Sealed Connector
35483851	16	Female	Black	OCS 1.5 Sealed Connector
35483850	16	Male	Black	OCS 1.5 Sealed Connector
35483849	16	Male	Black	OCS 1.5 Sealed Connector
35483847	16	Male	Black	OCS 1.5 Sealed Connector
35483846	16	Male	Black	OCS 1.5 Sealed Connector
35483845	16	Male	Black	OCS 1.5 Sealed Connector
35483844	16	Male	Black	OCS 1.5 Sealed Connector
35483843	16	Male	Black	OCS 1.5 Sealed Connector
35483842	16	Male	Black	OCS 1.5 Sealed Connector
35480207	16	Female	Black	OCS 1.5 Sealed Connector
35480188	16	Female	Black	OCS 1.5 Sealed Connector
35465033	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35465032	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35465020	16	Male	Gray-Light	OCS 1.2 2.8 Unsealed Connector
35465018	16	Female	Gray-Light	OCS 1.2 2.8 Unsealed Connector
35465017	16	Male	Black	OCS 1.2 2.8 Unsealed Connector
35465015	16	Female	Black	OCS 1.2 2.8 Unsealed Connector
35410131	16	Female	Black	OCS 1.5 Sealed Connector
35410130	16	Female	Black	OCS 1.5 Sealed Connector
35410129	16	Female	Black	OCS 1.5 Sealed Connector
35402944	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35394439	16	Female	Black	OCS 1.5 Sealed Connector
35327868	16	Male	Black	OCS 1.5 Sealed Connector
35327867	16	Male	Black	OCS 1.5 Sealed Connector
35290253	16	Female	Black	OCS 1.5 Sealed Connector
35290252	16	Female	Black	OCS 1.5 Sealed Connector
35290251	16	Female	Black	OCS 1.5 Sealed Connector
35290250	16	Female	Black	OCS 1.5 Sealed Connector
35275822	16	Male	Black	OCS 1.5 Sealed Connector
35275821	16	Female	Black	OCS 1.5 Sealed Connector
35275820	16	Female	Black	OCS 1.5 Sealed Connector
35249075	16	Male	Black	OCS 1.5 Sealed Connector
35249074	16	Female	Black	OCS 1.5 Sealed Connector
35249073	16	Female	Black	OCS 1.5 Sealed Connector
35205201	16	Male	Black	OCS 1.5 Sealed Connector
35205170	16	Female	Black	OCS 1.5 Sealed Connector
35151164	16	Female	Black	OCS 1.5 Sealed Connector
35123795	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35123792	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35123788	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35123781	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35123780	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35123779	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35123778	16	Female	Gray-Light	OCS 1.5 Sealed Connector
35037560	16	Male	Black	OCS 1.5 Sealed Connector
35037559	16	Male	Black	OCS 1.5 Sealed Connector
35037556	16	Male	Black	OCS 1.5 Sealed Connector
35037546	16	Male	Black	OCS 1.5 Sealed Connector
35037544	16	Male	Black	OCS 1.5 Sealed Connector
35037543	16	Male	Black	OCS 1.5 Sealed Connector
35021688	16	Male	Gray-Light	OCS 1.5 Sealed Connector
35021687	16	Male	Black	OCS 1.5 Sealed Connector
35019568	16	Female	Black	OCS 1.5 Sealed Connector
35019541	16	Female	Black	OCS 1.5 Sealed Connector
35018917	16	Female	Black	OCS 1.5 Sealed Connector
35018914	16	Female	Black	OCS 1.5 Sealed Connector
35018913	16	Female	Black	OCS 1.5 Sealed Connector
35018903	16	Female	Black	OCS 1.5 Sealed Connector
35018902	16	Female	Black	OCS 1.5 Sealed Connector
35018901	16	Female	Black	OCS 1.5 Sealed Connector
35018899	16	Female	Black	OCS 1.5 Sealed Connector
35018898	16	Female	Black	OCS 1.5 Sealed Connector
35018895	16	Female	Black	OCS 1.5 Sealed Connector
35018894	16	Female	Black	OCS 1.5 Sealed Connector
35016347	16	Female	Blue-Dark	OCS 0.64 IUR Unsealed Connector
35016346	16	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
35016345	16	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
35016344	16	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
35016343	16	Female	Multi-Colors	OCS 0.64 IUR Unsealed Connector
35013271	16	Female	Gray-Light	OCS 0.64 Unsealed Connector
35013270	16	Female	Brown	OCS 0.64 Unsealed Connector
35013094	16	Female	Black	OCS 0.64 Unsealed Connector
33377712	16	Female	Multi-Colors	OCS 1.5 Sealed Connector
33374882	16	Male	Black	OCS 1.5 Sealed Connector
33374881	16	Female	Multi-Colors	OCS 1.5 Sealed Connector
33374880	16	Female	Multi-Colors	OCS 1.5 Sealed Connector
33374878	16	Female	Black	OCS 1.5 Sealed Connector
33368161	16	Male	Black	OCS 1.5 Sealed Connector
33368160	16	Male	Black	OCS 1.5 Sealed Connector
33368159	16	Male	Black	OCS 1.5 Sealed Connector
33368158	16	Male	Black	OCS 1.5 Sealed Connector
33368157	16	Male	Black	OCS 1.5 Sealed Connector
33368156	16	Male	Black	OCS 1.5 Sealed Connector
33368155	16	Male	Black	OCS 1.5 Sealed Connector
33368154	16	Male	Black	OCS 1.5 Sealed Connector
33368153	16	Male	Black	OCS 1.5 Sealed Connector
33368152	16	Male	Black	OCS 1.5 Sealed Connector
33368151	16	Male	Black	OCS 1.5 Sealed Connector
33350503	16	Female	Black	OCS 1.5 Sealed Connector
33350502	16	Female	Black	OCS 1.5 Sealed Connector
33350501	16	Female	Black	OCS 1.5 Sealed Connector
33350500	16	Female	Black	OCS 1.5 Sealed Connector
33350498	16	Female	Black	OCS 1.5 Sealed Connector
33350497	16	Female	Black	OCS 1.5 Sealed Connector
33350496	16	Female	Black	OCS 1.5 Sealed Connector
33350495	16	Female	Black	OCS 1.5 Sealed Connector
33350493	16	Male	Black	OCS 1.5 Sealed Connector
33350492	16	Male	Gray-Light	OCS 1.5 Sealed Connector
33299863	16	Female	Natural	OCS 1.2 Unsealed Connector
33299861	16	Female	Black	OCS 1.2 Unsealed Connector
33257538	16	Male	Natural	OCS 1.2 Unsealed Connector
33257537	16	Male	Black	OCS 1.2 Unsealed Connector
33257520	16	Female	Natural	OCS 1.2 Unsealed Connector
33257519	16	Female	Black	OCS 1.2 Unsealed Connector
15532156	16	Female	Black	OCS 1.5 Sealed Connector
15532155	16	Female	Black	OCS 1.5 Sealed Connector
15531983	16	Female	Black	OCS 1.5 Unsealed Connector
15531982	16	Female	Black	OCS 1.5 Unsealed Connector
15521021	16	Male	Gray-Light	OCS 1.5 Sealed Connector
15521020	16	Male	Black	OCS 1.5 Sealed Connector
15514474	16	Female	Gray-Light	OCS 1.5 Sealed Connector
15514473	16	Female	Black	OCS 1.5 Sealed Connector
15514462	16	Female	Black	1.5 OCS Sealed Connector
15512509	16	Female	Green	OCS 1.5 Unsealed Connector
15512508	16	Female	Brown	OCS 1.5 Unsealed Connector
15512507	16	Female	Gray-Dark	OCS 1.5 Unsealed Connector
15421763	16	Male	Blue-Dark	0.64 Micro Unsealed Connector
15421762	16	Male	Green	0.64 Micro Unsealed Connector
15421761	16	Male	Brown	0.64 Micro Unsealed Connector
15421760	16	Male	Gray	0.64 Micro Unsealed Connector
13969801	16	Male	Green	OCS 1.5 Unsealed Connector
13969786	16	Male	Brown	OCS 1.5 Unsealed Connector
13969778	16	Male	Gray-Light	OCS 1.5 Unsealed Connector
13968813	16	Male	Black	OCS 1.5 Unsealed Connector
13968730	16	Male	Black	OCS 1.5 Unsealed Connector
13864754	16	Male	Black	OCS 1.5 Unsealed Connector
13864753	16	Female	Black	OCS 1.5 Unsealed Connector
13608247	16	Male	Green	OCS 1.5 Unsealed Connector
13518951	16	Male	Black	0.64 Micro Unsealed Connector
35116050	18	Female	Black	OCS 0.64 ISM Unsealed Connector
13713668	18	Female	Gray-Dark	OCS 1.2 Sealed Connector
13658063	18	Female	Gray-Dark	OCS 1.2 Sealed Connector
35465723	20	Male	Brown	OCS 1.2 Sealed Connector
35465721	20	Male	Gray	OCS 1.2 Sealed Connector
35465720	20	Male	Black	OCS 1.2 Sealed Connector
35465660	20	Female	Brown	OCS 1.2 Sealed Connector
35465659	20	Female	Gray-Dark	OCS 1.2 Sealed Connector
35465658	20	Female	Black	OCS 1.2 Sealed Connector
35395775	20	Male	Black	0.64 OCS Unsealed Connector
35395614	20	Female	Black	OCS 0.64 Unsealed Connector
35176729	20	Female	Black	OCS 1.2 Unsealed Connector
33299833	20	Female	Brown	OCS 1.2 Unsealed Connector
33299829	20	Female	Natural	OCS 1.2 Unsealed Connector
33299828	20	Female	Black	OCS 1.2 Unsealed Connector
33239522	20	Male	Brown	OCS 1.2 Unsealed Connector
33239519	20	Male	Natural	OCS 1.2 Unsealed Connector
33239518	20	Male	Black	OCS 1.2 Unsealed Connector
33239511	20	Female	Brown	OCS 1.2 Unsealed Connector
33239504	20	Female	Brown	OCS 1.2 Unsealed Connector
33239500	20	Female	Natural	OCS 1.2 Unsealed Connector
33239497	20	Female	Black	OCS 1.2 Unsealed Connector
33167783	20	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
15547108	20	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
15547107	20	Female	Gray-Dark	OCS 1.5 2.8 Unsealed Connector
15547106	20	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
35638811	24	Female	Black	OCS 1.2 Sealed Connector
35638807	24	Male	Black	OCS 1.2 Unsealed Connector
33371043	24	Female	Yellow	OCS 0.64 Sealed Connector
33297289	24	Female	Yellow	OCS 0.64 Sealed Connector
13938271	24	Female	Yellow	OCS 0.64 IDR Sealed Connector
15531019	26	Male	Gray-Light	OCS 1.2 2.8 Unsealed Connector
13981046	26	Female	Gray-Light	OCS 1.2 2.8 Unsealed Connector
35450265	30	Male	Natural	OCS 0.64 1.2 Unsealed Connector
35450263	30	Male	Gray-Dark	OCS 0.64 1.2 Unsealed Connector
35450261	30	Male	Gray-Light	OCS 0.64 1.2 Unsealed Connector
35450260	30	Male	Black	OCS 0.64 1.2 Unsealed Connector
35392323	36	Female	Black	OCS 1.2 Sealed Connector
13972192	36	Female	Black	OCS 1.2 Sealed Connector
13947534	36	Male	Black	1.2 1.2 Sealed Connector
33388086	40	Male	Gray	OCS 0.64 IUR 2.8 Unsealed Connector
33333649	40	Female	Multi-Colors	OCS 0.64 2.8 Unsealed Connector
33333648	40	Female	Black	OCS 0.64 2.8 Unsealed Connector
33170835	40	Female	Gray-Dark	0.64 2.8 Mixed Unsealed Connector
33170833	40	Female	Black	0.64 2.8 MIXED Unsealed Connector
33167549	40	Male	Gray	0.64 2.8 MIXED Unsealed Connector
33167548	40	Male	Black	0.64 2.8 MIXED Unsealed Connector
15533172	40	Male	Black	OCS 0.64 2.8 Unsealed Connector
33160247	42	Female	Gray	OCS 1.2 2.8 Unsealed Connector
33160245	42	Female	Yellow	OCS 1.2 2.8 Unsealed Connector
33155179	42	Male	Multi-Colors	0.64 2.8 MIXED Unsealed Connector
33155177	42	Male	Multi-Colors	0.64 2.8 MIXED Unsealed Connector
35392347	48	Female	Black	OCS 1.2 Sealed Connector
35321948	50	Male	Black	1.2 2.8 OCS Unsealed Connector
35283943	50	Female	Black	OCS 1.2 2.8 Unsealed Connector
33390117	50	Female	Black	OCS 1.2 Unsealed Connector
33390111	50	Male	Black	OCS 1.2 2.8 Unsealed Connector
33115112	50	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
33115111	50	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
33115110	50	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
33115109	50	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
33114819	50	Female	Multi-Colors	OCS 1.5 2.8 Unsealed Connector
13924051	50	Female	Black	OCS 1.5 2.8 Unsealed Connector
33207616	54	Female	Yellow	OCS 0.64 Sealed Connector
13955416	54	Female	Yellow	OCS 0.64 IDR Sealed Connector
13955415	54	Female	Yellow	OCS 0.64 IDR Sealed Connector
28301256	78	Male	Black	0.64 Sealed Connector
28282591	78	Male	Black	0.64 Sealed Connector
13862851	78	Male	Black	0.64 Sealed Connector
35699943	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35687662	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35664944	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35656239	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35653628	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35653607	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35649042	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35648826	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35642154	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35598154	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35562203	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35534576	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35513025	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35489098	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35372429	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35322423	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35104247	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35104246	95	Female	Black	OCS 0.64 1.5 Sealed Connector
35034742	95	Female	Black	OCS 0.64 1.5 Unsealed Connector
35032584	95	Female	Black	OCS 0.64 1.5 Sealed Connector
13839474	96	Female	Black	OCS 1.2 Sealed Connector
13839472	96	Female	Black	1.2 OCS Sealed Connector
13839471	96	Female	Black	1.2 OCS Sealed Connector
13784965	96	Male	Multi-Colors	OCS 1.2 Sealed Connector
13784964	96	Male	Multi-Colors	OCS 1.2 Sealed Connector
13784963	96	Male	Brown	OCS 1.2 Sealed Connector
13784962	96	Male	Gray-Dark	OCS 1.2 Sealed Connector
13784957	96	Male	Gray-Dark	OCS 1.2 Sealed Connector
35699020	103	Female	Black	OCS 1.5 0.64 Sealed Connector
35687661	103	Female	Black	OCS 1.5 0.64 Sealed Connector
35651972	103	Female	Gray	OCS 1.5 0.64 Sealed Connector
35642155	103	Female	Gray	OCS 1.5 0.64 Sealed Connector
35600072	103	Female	Black	OCS 0.64 1.5 Sealed Connector
35598155	103	Female	Black	OCS 0.64 1.5 Sealed Connector
35517141	103	Female	Black	OCS 0.64 1.5 Sealed Connector
35372432	103	Female	Gray	OCS 0.64 1.5 Sealed Connector
35322424	103	Female	Gray	OCS 0.64 1.5 Sealed Connector
35104249	103	Female	Gray	OCS 0.64 1.5 Sealed Connector
35104248	103	Female	Gray	OCS 0.64 1.5 Sealed Connector
35035785	103	Female	Black	OCS 0.64 1.5 Sealed Connector
35032585	103	Female	Black	OCS 0.64 1.5 Sealed Connector

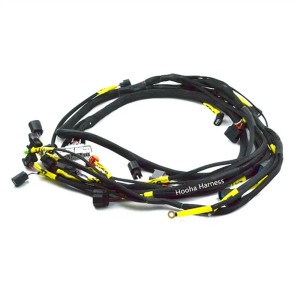

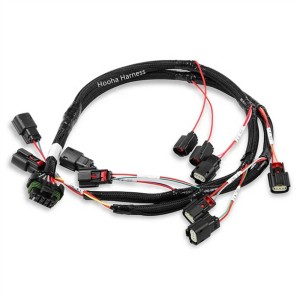

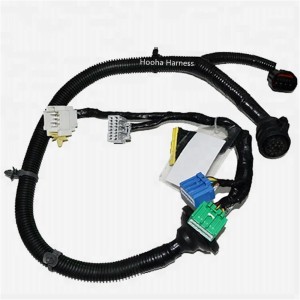

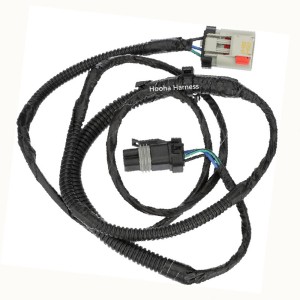

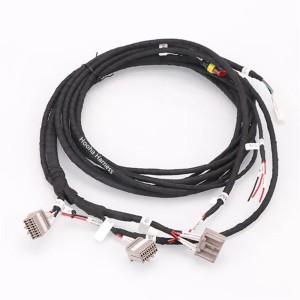

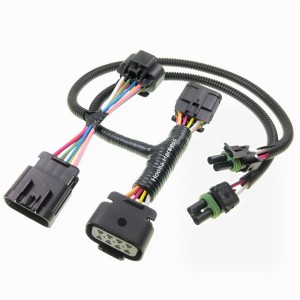

Support Custom Wire Harness Assembly

Connectors: 2P to 103P.
Wire Gauge:
- depends on your needs
- recommend by us
Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
Wire Length: Fully customizable to your specifications.
Wiring Diagram: Tailor-made to meet your project needs.
Custom type:
- Send drawing to customize.
- Send a sample to customize.
- Tell us as many details as possible to customize.
Minimum Order: 50 pieces per order.

custom car wiring

wire harness assemblies

cable and wire harness assembly

Radio wiring harness

custom auto wiring harness

fuel pump wire harness

Customize Your Wire Harness

Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Aptiv OCS Series Connectors, Custom Wire Harness Manufacturer
