Aptiv SICMA Series Connectors, Custom Wire Harness Manufacturer

Aptiv OCS Series Connectors



Aptiv SICMA Connectors offer a versatile and comprehensive selection of sealed and unsealed solutions, designed to meet the demands of various automotive and industrial applications. These connectors include inline, panel-through, interconnect, miniature, and onboard diagnostic types, ensuring flexibility for different setups. The mat- or cable-sealed versions provide robust IP protection, making them ideal for harsh environments such as engine compartments, chassis, and exposed external areas. Available with a range of centerline spacing options, these connectors accommodate different design needs, with cavity counts that range from 0.64mm, 1.5mm, 2.8mm, or mixed configurations. Aptiv SICMA connectors are engineered to ensure reliable electrical performance, ease of assembly, and enhanced durability, making them suitable for dashboards, cockpits, and other critical automotive systems. Their adaptability, coupled with robust sealing options, makes them an excellent choice for high-vibration and moisture-prone settings.

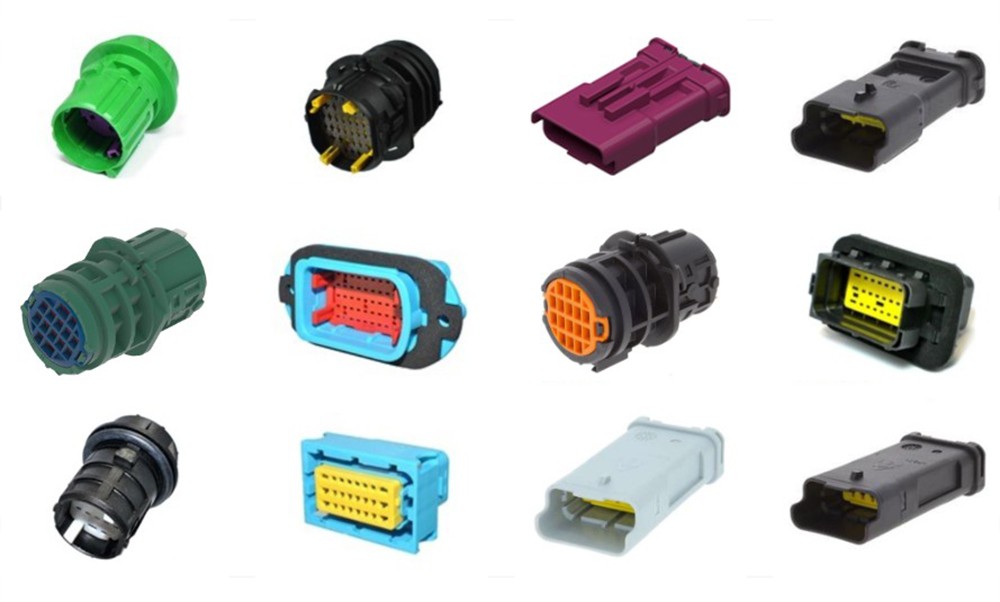

Aptiv SICMA Connector





SICMA Connector Series



  1. Sensomate High Performance
  2. Sealed Full Interconnect
  3. Panel Through Sealed
  4. Mini Sealed Connector
  5. Inline Unsealed Connector
  6. Inline sealed
  7. Relay Socket Sealed
  8. Panel Through Unsealed
  9. On-Board Diagnostic
  10. Mixed





SICMA Connector Specifications Chart



Sort by the number of way.

P/N Old P/N No. of Way Gender Color Description
10820165 211PC022S8149 2 Female Gray 1.5 SICMA Mini Sealed Connector
33500319 211PL022S5010 2 Male Green 1.5 SICMA Inline Connector
13805641   2 Female Green SICMA-3 1.5 Sealed Connector
13642521 211PL022S9049 2 Male White 1.5 SICMA Mini Sealed Connector
13547273   2 Female Brown SICMA-3 1.5 Sealed Connector
12198239   2 Female Yellow SICMA-3 1.5 Unsealed Connector
10890082   2 Female Green SICMA-3 1.5 Sealed Connector
10889967 211PL022S8049 2 Male Gray 1.5 SICMA Mini Sealed Connector
10889573   2 Female Black SICMA-3 1.5 Sealed Connector
10889572   2 Female Green SICMA-3 1.5 Sealed Connector
10889567   2 Female Orange SICMA-3 1.5 Sealed Connector
10889566   2 Female White SICMA-3 1.5 Sealed Connector
10889565   2 Female Blue SICMA-3 1.5 Sealed Connector
10889564   2 Female Gray SICMA-3 1.5 Sealed Connector
10889563   2 Female Red SICMA-3 1.5 Sealed Connector
10888949   2 Female Green SICMA-3 1.5 Sealed Connector
10866899   2 Female Blue SICMA-3 1.5 Sealed Connector
10864463   2 Female Gray SICMA-3 1.5 Sealed Connector
10864462   2 Female Black SICMA-3 1.5 Sealed Connector
10847162 211PL022S1049 2 Male Brown 1.5 SICMA Mini Sealed Connector
10846693   2 Female Brown SICMA-3 1.5 Sealed Connector
10846261 211PL022S4049 2 Male Yellow 1.5 SICMA Mini Sealed Connector
10820166 211PC022S9149 2 Female White 1.5 SICMA Mini Sealed Connector
10820164 211PC022S6149 2 Female Blue 1.5 SICMA Mini Sealed Connector
10820163 211PC022S5149 2 Female Green 1.5 SICMA Mini Sealed Connector
10820162 211PC022S4149 2 Female Yellow 1.5 SICMA Mini Sealed Connector
10820161 211PC022S3149 2 Female Orange 1.5 SICMA Mini Sealed Connector
10820160 211PC022S2149 2 Female Red 1.5 SICMA Mini Sealed Connector
10820159 211PC022S1149 2 Female Brown 1.5 SICMA Mini Sealed Connector
10820158 211PC022S0149 2 Female Black 1.5 SICMA Mini Sealed Connector
10812039 211PL022S5049 2 Male Green 1.5 SICMA Mini Sealed Connector
10787262 211PL022S0049 2 Male Black 1.5 SICMA Mini Sealed Connector
10776332   2 Female Black SICMA-3 2.8 Sealed Connector
10768567 211PL022S6049 2 Male Blue 1.5 SICMA Mini Sealed Connector
10723551   2 Female Gray SICMA-3 2.8 Sealed Connector
33501995   3 Female Yellow SICMA-3 1.5 Sealed Connector
33501994   3 Female Brown SICMA-3 1.5 Sealed Connector
33500321 211PL032S6049 3 Male Blue 1.5 SICMA Mini Sealed Connector
33500320 211PL032S1049 3 Male Brown 1.5 SICMA Mini Sealed Connector
13548595 211PL032S5049 3 Male Green 1.5 SICMA Mini Sealed Connector
10890168   3 Female Gray SICMA-3 1.5 Sealed Connector
10889574   3 Female Green SICMA-3 1.5 Sealed Connector
10889570   3 Female Red SICMA-3 1.5 Sealed Connector
10889569   3 Female Blue SICMA-3 1.5 Sealed Connector
10889568   3 Female White SICMA-3 1.5 Sealed Connector
10866570   3 Female Red SICMA-3 1.5 Sealed Connector
10865146   3 Female Black SICMA-3 1.5 Sealed Connector
10864080 211PL032S4049 3 Male Yellow 1.5 SICMA Mini Sealed Connector
10863762   3 Female Black SICMA-3 1.5 Sealed Connector
10863645 211PL032S8049 3 Male Gray 1.5 SICMA Mini Sealed Connector
10846692   3 Female Gray SICMA-3 1.5 Sealed Connector
10820174 211PC032S9149 3 Female White 1.5 SICMA Mini Sealed Connector
10820173 211PC032S8149 3 Female Gray 1.5 SICMA Mini Sealed Connector
10820172 211PC032S6149 3 Female Blue 1.5 SICMA Mini Sealed Connector
10820171 211PC032S5149 3 Female Green 1.5 SICMA Mini Sealed Connector
10820170 211PC032S4149 3 Female Yellow 1.5 SICMA Mini Sealed Connector
10820169 211PC032S2149 3 Female Red 1.5 SICMA Mini Sealed Connector
10820168 211PC032S1149 3 Female Brown 1.5 SICMA Mini Sealed Connector
10820167 211PC032S0149 3 Female Black 1.5 SICMA Mini Sealed Connector
10788983 211PL032S0049 3 Male Black 1.5 SICMA Mini Sealed Connector
33502133 F133700 4 Male Black 1.5 SICMA SensoMate High Performance Connector
33511733 F533700 4 Male Violet 1.5 SICMA SensoMate High Performance Connector
33511732 F433700 4 Male Red 1.5 SICMA SensoMate High Performance Connector
33511731 F233700 4 Male Blue 1.5 SICMA SensoMate High Performance Connector
33511728 F033700 4 Female Violet 1.5 SICMA Sensomate High Performance Connector
33502175 F333700 4 Male Gray 1.5 SICMA SensoMate High Performance Connector
33500322 211PL042S8011 4 Male Gray 1.5 SICMA Mini Sealed Connector
15369055   4 Female Black SICMA-3 1.5 Sealed Connector
13966699 F823700 4 Female Gray 1.5 SICMA Sensomate High Performance Connector
13948561 F923700 4 Female Red 1.5 SICMA Sensomate High Performance Connector
13893672 F723700 4 Female Blue 1.5 SICMA Sensomate High Performance Connector
13876521 F623700 4 Female Black 1.5 SICMA Sensomate High Performance Connector
13825587 211PL042S6011 4 Male Blue 1.5 SICMA Mini Sealed Connector
13624447   4 Female Black SICMA-3 1.5 2.8 Sealed Connector
10811785 211PC042S6021 4 Female Blue 1.5 SICMA Mini Sealed Connector
10768812 211PL042S0011 4 Male Black 1.5 SICMA Mini Sealed Connector
10763691 211PC042S4021 4 Female Black 1.5 SICMA Mini Sealed Connector
10763659 211PC042S8021 4 Female Gray 1.5 SICMA Mini Sealed Connector
33511737 F543700 5 Male Violet 1.5 SICMA SensoMate High Performance Connector
33511736 F443700 5 Male Red 1.5 SICMA SensoMate High Performance Connector
33511735 F343700 5 Male Gray 1.5 SICMA SensoMate High Performance Connector
33511734 F243700 5 Male Blue 1.5 SICMA SensoMate High Performance Connector
33511730 F043700 5 Female Violet 1.5 SICMA Sensomate High Performance Connector
33511729 F933700 5 Female Red 1.5 SICMA Sensomate High Performance Connector
33500325 211PL052S8049 5 Male Gray 1.5 SICMA Mini Sealed Connector
33500324 211PL052S6049 5 Male Blue 1.5 SICMA Mini Sealed Connector
33500323 211PL052S0049 5 Male Black 1.5 SICMA Mini Sealed Connector
33500308 211PC052S6081 5 Female Blue 1.5 SICMA Mini Sealed Connector
13962774 F733700 5 Female Blue 1.5 SICMA Sensomate High Performance Connector
13949300 F833700 5 Female Gray 1.5 SICMA Sensomate High Performance Connector
13893671 F633700 5 Female Black 1.5 SICMA Sensomate High Performance Connector
13855072 F143700 5 Male Black 1.5 SICMA SensoMate High Performance Connector
13798030   5 Female Black SICMA-3 1.5 Sealed Connector
10846260 211PC052S8081 5 Female Gray 1.5 SICMA Mini Sealed Connector
10820113 211PC052S0081 5 Female Black 1.5 SICMA Mini Sealed Connector
10812038   5 Female Yellow SICMA-3 2.8 Sealed Connector
10763118   5 Female Black SICMA-3 2.8 Sealed Connector
13846922 F843700 6 Female Brown 1.5 SICMA Sensomate High Performance Connector
13805790   6 Female Brown SICMA-3 1.5 Sealed Connector
10866614 211PC069S8149 6 Female Gray Hybrid 1.5 2.8 SICMA Mini Sealed Connector
35369791   6 Female Gray SICMA-3 1.5 Sealed Connector
35077846   6 Female Black SICMA 1.5 2.8 Sealed Connector
33511993 F053700 6 Female Violet 1.5 SICMA Sensomate High Performance Connector
33511739 F063700 6 Male Violet 1.5 SICMA SensoMate High Performance Connector
33511738 F253700 6 Male Green 1.5 SICMA SensoMate High Performance Connector
33504495   6 Female Black SICMA-2 2.8 Sealed Connector
33504154   6 Female Green SICMA-3 1.5 2.8 Sealed Connector
33502278   6 Female Blue SICMA-3 1.5 2.8 Sealed Connector
33502277 F953700 6 Male Red 1.5 SICMA SensoMate High Performance Connector
33502275 F943700 6 Female Red 1.5 SICMA Sensomate High Performance Connector
33502113   6 Female Gray SICMA-3 1.5 2.8 Sealed Connector
33500005   6 Female Gray SICMA 1.5 2.8 Sealed Connector
15522303   6 Female Black SICMA-2 2.8 SICMA-3 1.5 Sealed Connector
15470070 211PL063S8003 6 Male Gray 2.8 SICMA Inline sealed Connector
15458165   6 Female Black 2.8 SICMA BTS 1.5 2.8 Sealed Connector
15396354 211PL069S0049 6 Male Black Hybrid 1.5 2.8 SICMA Mini Sealed Connector
13967810 F153700 6 Male Yellow 1.5 SICMA SensoMate High Performance Connector
13940599   6 Female Black SICMA-2 2.8 Sealed Connector
13935410 F743700 6 Female Green 1.5 SICMA Sensomate High Performance Connector
13885362 F643700 6 Female Yellow 1.5 SICMA Sensomate High Performance Connector
13830087 F353700 6 Male Brown 1.5 SICMA SensoMate High Performance Connector
13826420   6 Female Gray SICMA-3 1.5 2.8 Sealed Connector
13798029   6 Female Black SICMA-3 1.5 2.8 Sealed Connector
13737603   6 Female Black SICMA-3 1.5 2.8 Sealed Connector
13716617 211PL062S5049 6 Male Green 1.5 SICMA Mini Sealed Connector
13642394 211PL062S4049 6 Male Yellow 1.5 SICMA Mini Sealed Connector
13642288   6 Female Black SICMA 1.5 2.8 Sealed Connector
13606820 211PL062S1049 6 Male Brown 1.5 SICMA Mini Sealed Connector
13545757   6 Female Black SICMA-3 1.5 2.8 Sealed Connector
13541036 211PC063S9018 6 Female White 2.8 SICMA Inline sealed Connector
10866616 211PC062S4149 6 Female Yellow 1.5 SICMA Mini Sealed Connector
10866615 211PC062S5149 6 Female Green 1.5 SICMA Mini Sealed Connector
10866612 211PC069S6149 6 Female Blue Hybrid 1.5 2.8 SICMA Mini Sealed Connector
10866611 211PC069S0149 6 Female Black Hybrid 1.5 2.8 SICMA Mini Sealed Connector
10865112 211PC062S1149 6 Female Brown 1.5 SICMA Mini Sealed Connector
10846695   6 Female White SICMA-3 1.5 2.8 Sealed Connector
10811866 211PC063S1003 6 Female Brown 2.8 SICMA Inline sealed Connector
10811863 211PL063S1003 6 Male Brown 2.8 SICMA Inline sealed Connector
10810529   6 Female Gray SICMA-3 1.5 2.8 Sealed Connector
10788559   6 Female Black 2.8 HPCS Sealed Connector
10781174   6 Female Black 2.8 HPCS Sealed Connector
10779504 211PL069S6049 6 Male Blue Hybrid 2.8 1.5 SICMA Mini Sealed Connector
10769031   6 Female Brown SICMA-3 1.5 Sealed Connector
10768570 211PL069S8049 6 Male Gray Hybrid 2.8 1.5 SICMA Mini Sealed Connector
10752307 211PL063S0003 6 Male Black 2.8 SICMA Inline sealed Connector
10740367 211PC063S8003 6 Female Gray 2.8 SICMA Inline sealed Connector
10723553 211PC063S0003 6 Female Black 2.8 SICMA Inline sealed Connector
33504157   8 Male Green SICMA-2 2.8 SICMA-3 1.5 Sealed Connector
33501257   8 Male Black SICMA 1.5 2.8 Unsealed Connector
33500006   8 Male Black SICMA-3 1.5 2.8 Unsealed Connector
13949302 240PC089S8015 8 Female Gray Hybrid 2.8 8 SICMA Relay Socket Sealed Connector
13800077   8 Female Black 1.5 SICMA Inline sealed Connector
13800072   8 Female Gray 1.5 SICMA Inline sealed Connector
13799644   8 Male Gray 1.5 SICMA Inline sealed Connector
13799643   8 Male Black 1.5 SICMA Inline sealed Connector
13653659   8 Female Black SICMA-3 1.5 2.8 Sealed Connector
13606031   8 Female Green SICMA-3 1.5 2.8 Sealed Connector
13606030   8 Female Brown SICMA-3 1.5 2.8 Sealed Connector
10820381   8 Female Black SICMA-3 2.8 Unsealed Connector
10812007 240PC089S0015 8 Female Black Hybrid 2.8 8 SICMA Relay Socket Sealed Connector
33522125   10 Male Black 1.5 FPC Unsealed Connector
13830565   10 Female Black SICMA 1.5 Sealed Connector
13800082   10 Female Black 1.5 SICMA Inline Unsealed Connector
13800057   10 Male Black 1.5 SICMA Inline Unsealed Connector
13775368   10 Female Black SICMA-3 1.5 Sealed Connector
10846270   10 Female Gray SICMA-3 1.5 2.8 Unsealed Connector
15470069   12 Female Gray SICMA-3 2.8 Sealed Connector
10776107   12 Female Black SICMA-3 2.8 Sealed Connector
35559215   14 Male Green SICMA-2 1.5 2.8 Sealed Connector
35440027   14 Female Black SICMA-2 1.5 2.8 Sealed Connector
35432533   14 Female Black SICMA-2 1.5 2.8 Unsealed Connector
35432402   14 Female Black SICMA-2 1.5 2.8 Sealed Connector
35425805   14 Male Green SICMA-2 1.5 2.8 Sealed Connector
33517516 DTBFHPE14BKSV 14 Female Black Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33517515   14 Female Black SICMA-2 2.8 SICMA-3 1.5 Sealed Connector
33504494   14 Male Green SICMA-3 1.5 2.8 Sealed Connector
33501109   14 Male Green SICMA 1.5 2.8 Sealed Connector
33500396   14 Male Black SICMA-3 1.5 2.8 Sealed Connector
33405007   14 Female Black SICMA-2 2.8 SICMA-3 1.5 Sealed Connector
13832076   14 Male Gray SICMA 1.5 2.8 Sealed Connector
13798672 DTBMHPE14BKSV 14 Male Green Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
13755725   14 Female Black 1.5 2.8 MIXED Sealed Connector
33500530 FSA309424 16 Male Black 1.5 SICMA Panel Through Sealed Connector
13800155   16 Female Gray 1.5 SICMA On-Board Diagnostic Connector
13800154   16 Female Black 1.5 SICMA On-Board Diagnostic Connector
10779313 SICFHPE16BKSV 16 Female Black 1.5 SICMA Panel Through Sealed Connector
35163355   24 Male Purple Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
35163354   24 Male Red Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
35163353   24 Male Green-Light Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
35163352   24 Male Brown-Light Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
35163344   24 Male Blue-Dark Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33504115 211PC249S0053 24 Female Black Hybrid 1.5 2.8 SICMA Sealed Connector Full Interconnect Connector
33504103   24 Female Gray SICMA-3 1.5 2.8 Sealed Connector
33504100   24 Female Black SICMA-3 1.5 2.8 Sealed Connector
33503460   24 Female Gray SICMA-3 1.5 2.8 Sealed Connector
33503459   24 Female Brown SICMA-3 1.5 2.8 Sealed Connector
33503458   24 Female Black SICMA-3 1.5 2.8 Sealed Connector
33500427 HCCMHPE24BKAFSV 24 Male Black Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33500327 211PL249S6033 24 Male Blue Hybrid 1.5 2.8 SICMA Inline sealed Connector
33500326 211PL249S0020 24 Male Black Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
33500315 211PC249S6033 24 Female Blue Hybrid 1.5 2.8 SICMA Sealed Connector Full Interconnect Connector
33403923   24 Female Orange SICMA-3 1.5 2.8 Sealed Connector
33403922   24 Female Green SICMA-3 1.5 2.8 Sealed Connector
33403921   24 Female Natural SICMA-3 1.5 2.8 Sealed Connector
33403917   24 Male Orange Hybrid 1.5 2.8 SICMA Inline sealed Connector
33403916   24 Male Green Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33403915   24 Male Natural Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
15535519   24 Female Gray SICMA-3 1.5 2.8 Sealed Connector
15470023 211PL249S0033 24 Male Black Hybrid 1.5 2.8 SICMA Inline sealed Connector
15396450   24 Male Black SICMA-3 1.5 2.8 Sealed Connector
13949173 211PL249S8033 24 Male Gray Hybrid 1.5 2.8 SICMA Inline sealed Connector
13949170 211PL249S1033 24 Male Brown Hybrid 1.5 2.8 SICMA Inline sealed Connector
13841588 211PC249S8033 24 Female Gray Hybrid 1.5 2.8 SICMA Sealed Connector Full Interconnect Connector
13841561 211PC249S1033 24 Female Brown Hybrid 1.5 2.8 SICMA Sealed Connector Full Interconnect Connector
13751295 211PC249S0020 24 Female Black Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
13593552   24 Male Black SICMA-3 1.5 2.8 Sealed Connector
13522984   24 Male Black 1.5 2.8 MIXED Sealed Connector
10820454 211PC249S0033 24 Female Black Hybrid 1.5 2.8 SICMA Sealed Connector Full Interconnect Connector
10776496   24 Female Black SICMA-3 1.5 2.8 Sealed Connector
33522474   24 Male   1.5 2.8 SICMA Sealed Connector
33522472   24 Male   1.5 2.8 SICMA Sealed Connector
10811873 211PC269S0046 26 Female Black Hybrid 0.64 1.5 2.8 SICMA Panel Through Sealed Connector
33500316   29 Female Black MICROSICMA 0.64 SICMA-3 1.5 2.8 Sealed Connector
10819390 211PC299S0042 29 Female Black Hybrid 0.64 1.5 2.8 SICMA Panel Through Unsealed Connector
10811880 211PL299S0042 29 Male Black Hybrid 0.64 1.5 2.8 SICMA Panel Through Sealed Connector
33500293   30 Male Black SICMA-3 1.5 2.8 Sealed Connector
33500626   32 Female Brown SICMA-3 1.5 2.8 Unsealed Connector
33513844 F399300 33 Male Gray Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33503445 F299300 33 Female Gray Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33503444 F618300 33 Female Gray Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33503443 F518300 33 Male Black Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33523237 211PL349S8033 34 Male Gray Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
33507790   34 Male Black SICMA-3 1.5 2.8 Sealed Connector
33504369   34 Male Green-Dark SICMA-3 1.5 2.8 Sealed Connector
33501110   34 Male Black SICMA 1.5 2.8 Unsealed Connector
15470208   34 Female Black SICMA-3 1.5 2.8 Sealed Connector
15368869   34 Female Gray SICMA-3 1.5 2.8 Sealed Connector
15368860   34 Male Black SICMA-3 1.5 2.8 Sealed Connector
13830915   34 Male Black SICMA-3 1.5 2.8 Unsealed Connector
13725941 211PC349S8033 34 Female Gray Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
13593616   34 Male Black SICMA-3 1.5 2.8 Sealed Connector
10889065 211PL349S0033 34 Male Black Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
10769015   34 Female Black SICMA-3 1.5 2.8 Sealed Connector
10763095 211PC349S0033 34 Female Black Hybrid 1.5 2.8 SICMA Panel Through Sealed Connector
13651269 PPI0000249 36 Female Black Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
33511064 PPI0000344 36 Female Gray Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
33511062 PPI0000346 36 Female Yellow Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
33502301 PPI0000142 36 Male Gray Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
33500789 PPI0000108 36 Female Black Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
13651194 PPI0000104 36 Male Black Hybrid 1.5 2.8 SICMA Inline Unsealed Connector
10811874 211PC429S0034 42 Female Black Hybrid 1.5 2.8 SICMA Panel Through Unsealed Connector
10811875 211PL429S0034 42 Male Black Hybrid 1.5 2.8 SICMA Panel Through Unsealed Connector
33526932   50 Male Natural 1.5 SICMA-3 Sealed Connector
33522478   50 Female Natural SICMA 1.5 Sealed Connector
33512039   50 Male Brown SICMA-3 1.5 Sealed Connector
33512038   50 Female Brown SICMA-3 1.5 Sealed Connector
33512037   50 Female Blue SICMA-3 1.5 Sealed Connector
33501054   50 Male Blue SICMA 1.5 Sealed Connector
33500394   50 Female Black SICMA-3 1.5 Unsealed Connector
10867079 DTB50GMFH 50 Female Black 1.5 SICMA Panel Through Sealed Connector
10866552 DTB50GMMH 50 Male Black 1.5 SICMA Panel Through Sealed Connector
13669859 PPI0001258 56 Female Black 1.5 SICMA Sealed Connector Full Interconnect Connector
13632173   76 Male Multi-Colors 1 2.8 MIXED Sealed Connector
33525675   90 Female Black 1.5 SICMA Sealed Connector Full Interconnect Connector
10776517 211PC902S0009 90 Female Black 1.5 SICMA Sealed Connector Full Interconnect Connector





Support Custom Wire Harness Assembly



  • Connectors: 2P to 90P.
  • Wire Gauge:
    • depends on your needs
    • recommend by us
  • Wire Colors: Available in a wide range including white, black, red, yellow, blue, green, brown, orange, purple, grey, and more.
  • Wire Length: Fully customizable to your specifications.
  • Wiring Diagram: Tailor-made to meet your project needs.
  • Custom type:
    • Send drawing to customize.
    • Send a sample to customize.
    • Tell us as many details as possible to customize.
  • Minimum Order: 50 pieces per order.

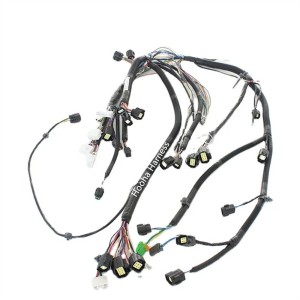

custom wire harness

custom wire harness





wiring harness Assembly

Wring Harness Assembly

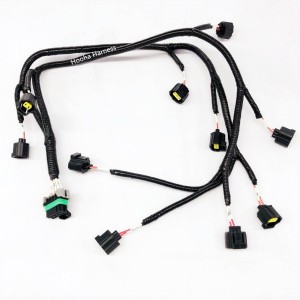

car electrical wiring

car electrical wiring

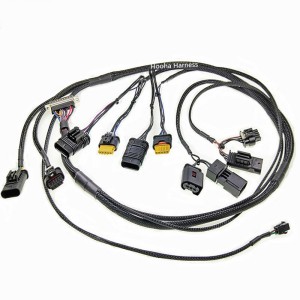

classic car wiring harness

classic car wiring harness

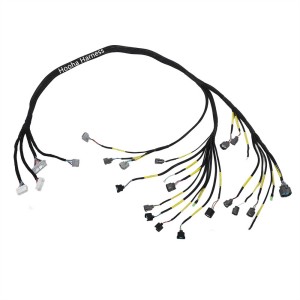

street rod wiring harness

street rod wiring harness

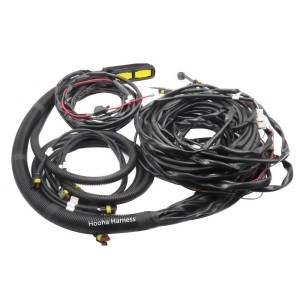

chassis wire harness

chassis wire harness





Customize Your Wire Harness



Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→ Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.

Product Tags
rocker switch (16)switch panel (18)tailgate switch (6)custom wire harness (314)car charger (26)car switch (31)Toyota (12)OBD (31)D-sub Cable (33)RJ45 (12)BNC (12)USB cable (28)RCA cable (9)Automotive Wire Harness (144)DIN Cable (6)SAE bullet connector (12)Deutsch Connector Wiring (51)Waterproof Connector (31)GX12/ 16/ 19/ 20/ 25/ 30 connector (6)XT90/ 60/ 30 connector (6)Barrel Jack (20)LED light wire harness (37)Molex Connector Wiring (45)JST Connector Wiring (48)Battery/ Power/ Booster/ Jumper cable (49)Fuse Holder/ Fuse Box (24)Communication/ Telecom cable (29)Computer wire and cable (45)Overmold with cable (30)Motorcycle/ Motorbike/ Electromobile wire harness (12)FFC/ IDC cable (7)Audio/ Video cable (46)Trailer wire harness (11)Terminal Block wires (9)Medical Cable (4)Spring/ Spiral Cable (7)Banana Plug Cable (3)LS Engine Wire Harness (15)OFF-Road (27)Sensor cable (6)
ABOUT US

HooHA wire&cable products were founded in Humen Town, Dongguan city, Guangdong province, China, located in the middle of Guangzhou and Shenzhen city, which is a comprehensive enterprise mainly focused on ......   [ read more>>]

CONTACT US

Hooha Harness

Contact： Deco Yiu

Phone: +86-13532747009

E-mail: sales@hoohawirecable.com

WeChat/WhatsApp: 0086 13532747009

Links
TE connector
Molex connector
JST connector
Aptive connector
Lear connector
Sumitomo connector
Yazaki connector
Amphenol connector
KET connector
COPYRIGHT 2001-2024 © HOOHA WIRE&CABLE PRODUCTS ALL RIGHTS RESERVED.
