JST HR series 1.0mm pitch 5 pin connector HRP-05V-S custom wire harness assembly
This is a custom wire harness that has been specifically designed to meet the unique needs of a customer based in the United States. The customer requires this custom-made wire harness for their high-density equipment products, which demand only the highest quality components and materials.
To ensure optimal performance, this wire harness features a JST HR series connector with a 1.0mm pitch and 5 pins. The presence of a dimple in the contact ensures reliable and secure connectivity, making the same header suitable for both HR insulation displacement connectors and EH crimp-style connectors. Also, this particular connector model is known for its reliability and durability, making it an ideal choice for demanding applications.
The part number for this custom wire harness assembly is HRP-05V-S, which has been carefully selected to ensure compatibility with the customer's existing equipment. Our team of experts worked closely with the client to understand their specific requirements and design a solution that meets all of their needs.
At our company, we take great pride in delivering high-quality solutions that exceed our customers' expectations. We use only top-of-the-line materials and employ skilled technicians who are dedicated to producing exceptional results every time.
If you're looking for a reliable partner who can provide you with customized wiring solutions tailored to your exact specifications, contact us for asking a quoted price for your reference!

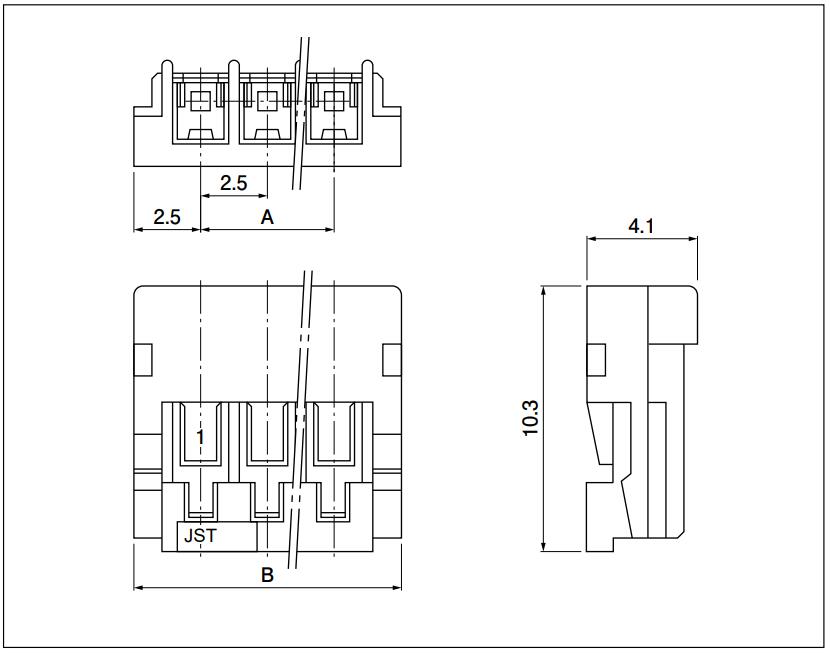

Related JST HR series connector that we can process with its specs:
| No. of circuits |
Model No. | Dimensions(mm) | Q'ty/ bag |
|
| A | B | |||
| 2 | HRP-02-S | 2.5 | 7.5 | 2000 |
| 3 | HRP-03-S | 5 | 10 | 2000 |
| 4 | HRP-04-S | 7.5 | 12.5 | 1000 |
| 5 | HRP-05-S | 10 | 15 | 1000 |
| 6 | HRP-06-S | 12.5 | 17.5 | 1000 |
| 7 | HRP-07-S | 15 | 20 | 500 |
| 8 | HRP-08-S | 17.5 | 22.5 | 500 |
| 9 | HRP-09-S | 20 | 25 | 500 |
| 10 | HRP-10-S | 22.5 | 27.5 | 500 |
| 11 | HRP-11-S | 25 | 30 | 500 |
| 12 | HRP-12-S | 27.5 | 32.5 | 500 |
| 13 | HRP-13-S | 30 | 35 | 250 |
How to custom your own wire harness?
Send your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
