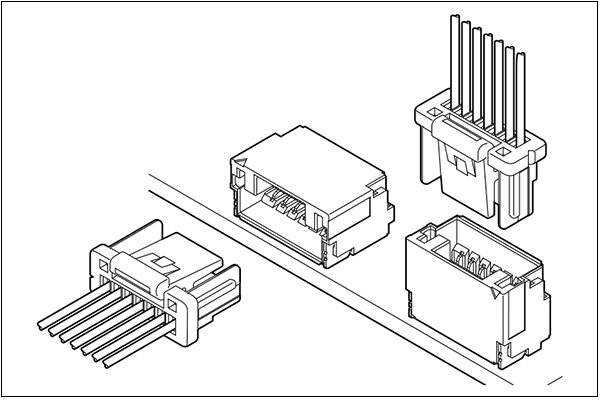

JST NSH Connector
The JST NSH Connector is a 1.0mm pitch secure-lock type connector designed to provide reliable and efficient connections for compact applications. Its low insertion force feature ensures an easy and smooth mating process, reducing effort during assembly while maintaining robust performance. Building on the proven reliability of the SHL connector series, the NSH incorporates several advanced features to enhance durability and usability. The secure locking structure ensures a firm connection, preventing accidental disconnections even under vibration or movement. Additionally, the connector is equipped with a contact lock mechanism that stabilizes the contacts during operation, reducing the risk of deformation. This design not only enhances the mechanical integrity but also extends the lifespan of the connector in demanding environments. A clear, audible engagement click provides immediate feedback during mating, confirming a secure connection for the user. Combining ease of use with high-performance reliability, the NSH connector is ideal for applications requiring compact yet durable solutions.
NSH Connector Specifications
- Connector type: Disconnectable Crimp style connectors
- Connector pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 50 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max. After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm
PC board layout and Assembly layout

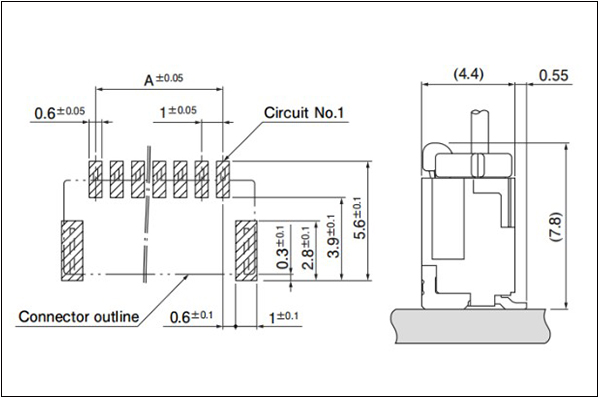

Top entry type

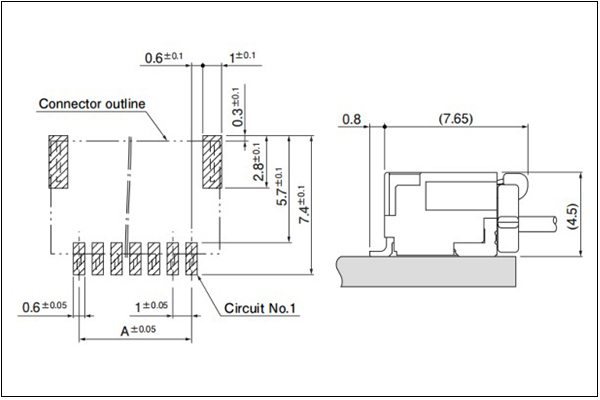

Side entry type
NSH Connector Contact Size and P/N

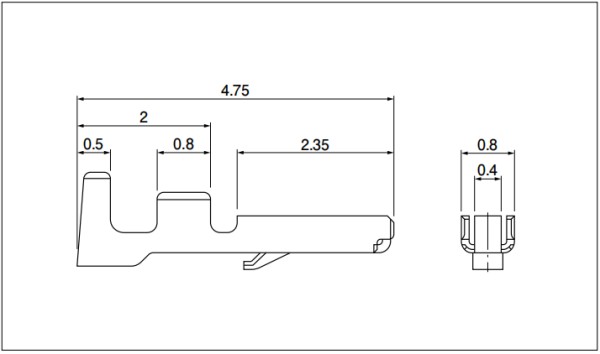

Contact Size

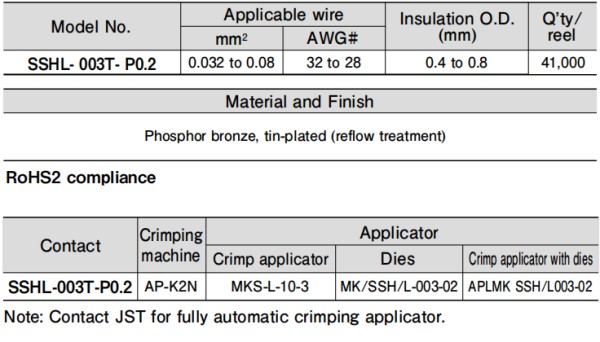

Contact P/N
NSH Connector Housing Size and P/N

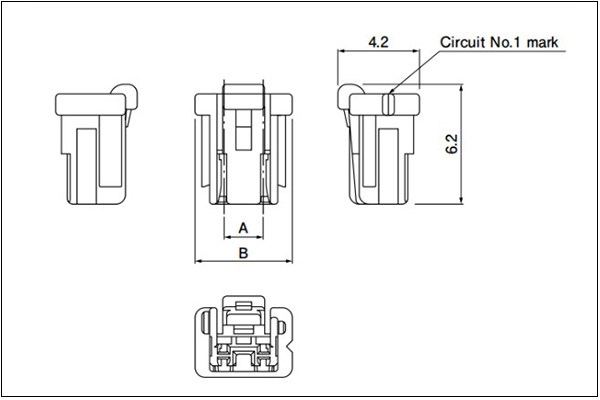

2-Circuits

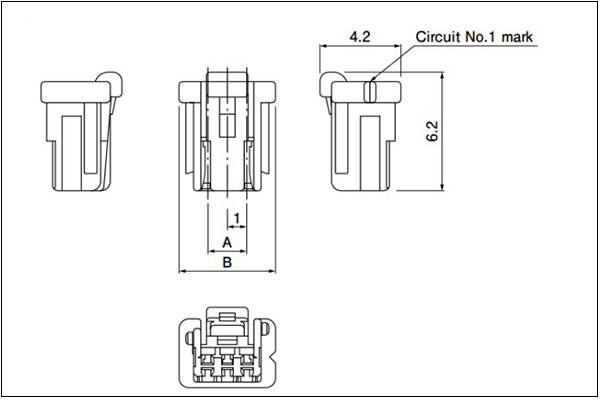

3 Circuits

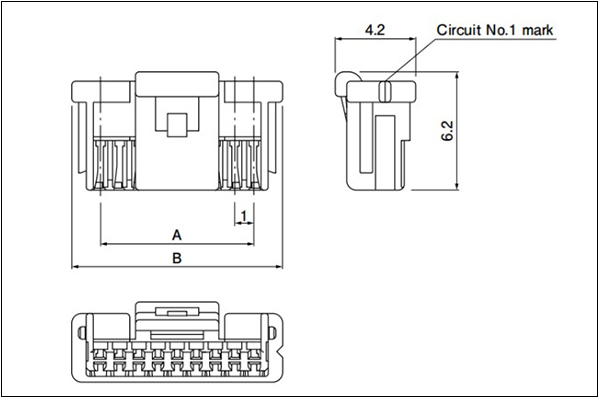

4 to 9 Circuits

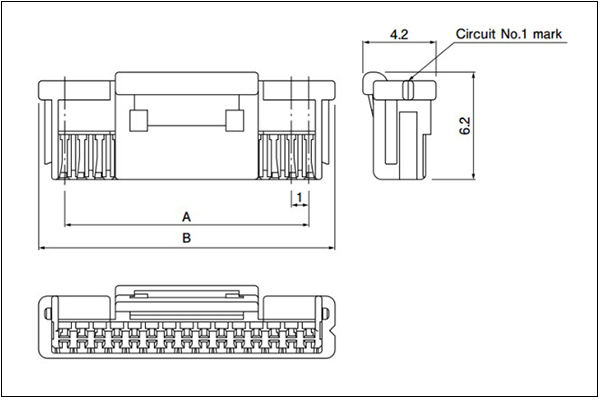

10 to 15 Circuits
NSH Connector P/N:
| No. of circuits |
Model No. | Dimensions(mm) | Q'ty/ bag |
|
| A | B | |||
| 2 | NSHR-02V-S | *2.0 | *5.0 | 3,000 |
| 3 | NSHR-03V-S | 2.0 | 5.0 | 3,000 |
| 4 | NSHR-04V-S | 3.0 | 6.0 | 2,500 |
| 5 | NSHR-05V-S | 4.0 | 7.0 | 2,000 |
| 6 | NSHR-06V-S | 5.0 | 8.0 | 1,500 |
| 7 | NSHR-07V-S | 6.0 | 9.0 | 1,500 |
| 8 | NSHR-08V-S | 7.0 | 10.0 | 1,500 |
| 9 | NSHR-09V-S | 8.0 | 11.0 | 1,000 |
| 10 | NSHR-10V-S | 9.0 | 12.0 | 1,000 |
| 11 | NSHR-11V-S | 10.0 | 13.0 | 1,000 |
| 12 | NSHR-12V-S | 11.0 | 14.0 | 1,000 |
| 13 | NSHR-13V-S | 12.0 | 15.0 | 1,000 |
| 14 | NSHR-14V-S | 13.0 | 16.0 | 1,000 |
| 15 | NSHR-15V-S | 14.0 | 17.0 | 1,000 |
Note:
- Material and Finish: PBT, UL94V-0, natural
- RoHS2 compliance
- 2 circuits product is that the second pin of 3 circuits product is plugged up. (Between circuits 2.0mm pitch)
JST NSH Connector Wiring Harness Cases

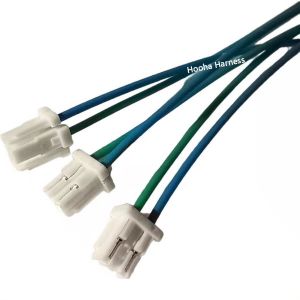

JST NSH Connector 2-Pin Wiring

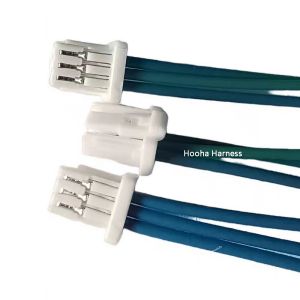

JST NSH Connector 3-Pin Wiring

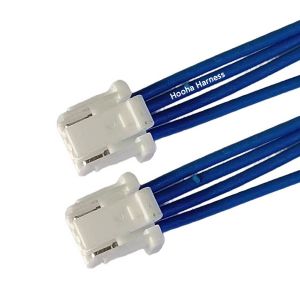

JST NSH Connector 4-Pin Wiring

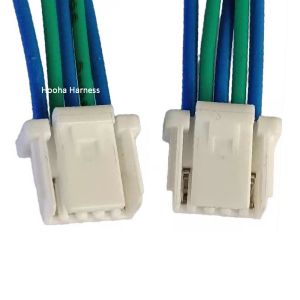

JST NSH Connector 5-Pin Wiring

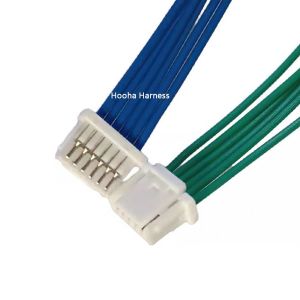

JST NSH Connector 6-Pin Wiring

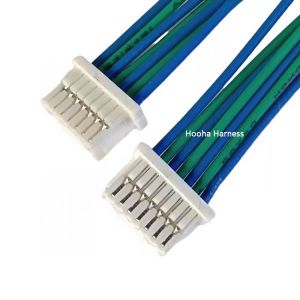

JST NSH Connector 7-Pin Wiring

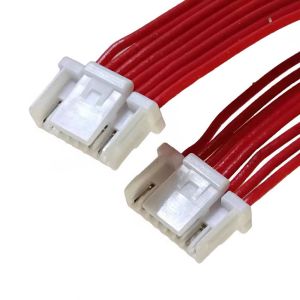

JST NSH Connector 8-Pin Wiring

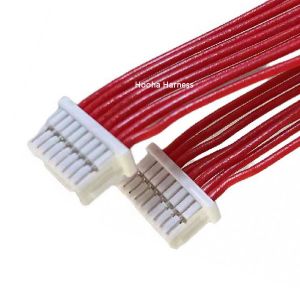

JST NSH Connector 8-Pin Wiring

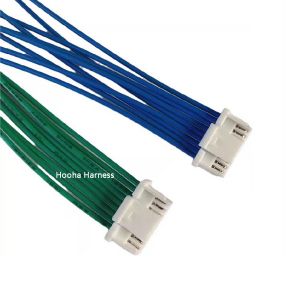

JST NSH Connector 9-Pin Wiring

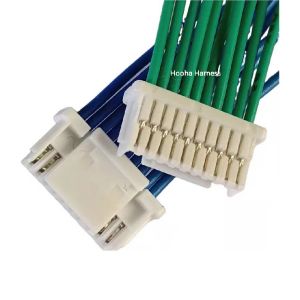

JST NSH Connector 10-Pin Wiring

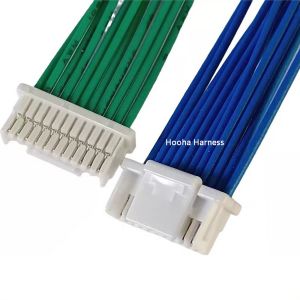

JST NSH Connector 11-Pin Wiring

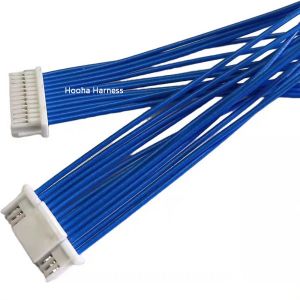

JST NSH Connector 12-Pin Wiring

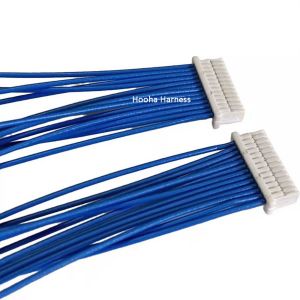

JST NSH Connector 13-Pin Wiring

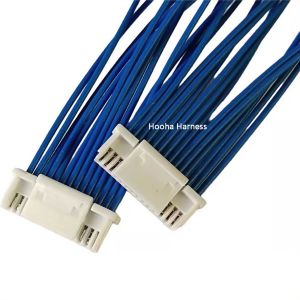

JST NSH Connector 14-Pin Wiring

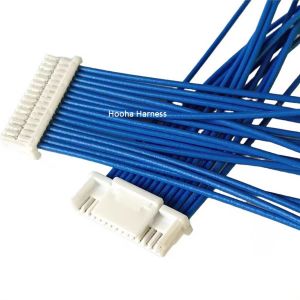

JST NSH Connector 15-Pin Wiring
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) →place order for Mass production(2~3 weeks)→Quality checking→Packing →Delivery →After Service →Repeat Order.
