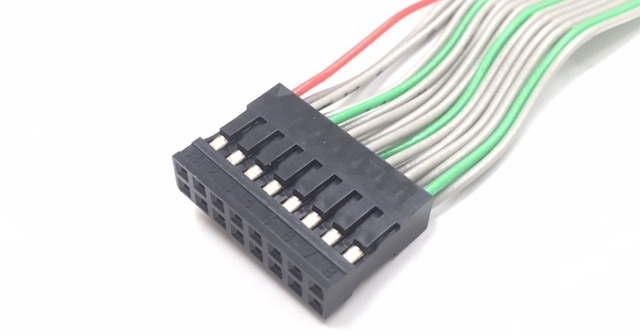

JST RF series connector RF-06 custom wire harness assembly

This is a custom wire harness that has been specifically designed to meet the needs of a valued customer based in the United States. The custom wire harness is an essential component for their high-density mounting on PC board products, and it features a JST RF series connector with a 2.54mm pitch and 6 positions.

The part number for this unique wire harness assembly is RF-06, which has been tailored to meet the exact specifications of our client's requirements. We take great pride in delivering top-quality products that are built to last, and this custom wire harness is no exception.

The RF connector used in this design was developed as a highly reliable and cost-effective solution for connecting wires to printed circuit boards. It's well-suited for internal connections in office automation equipment such as personal computers, making it an ideal choice for our client's specific needs.

Highly reliable, yet low in cost

Our original double-leaf spring construction withstands the stresses caused by repeated insertions and withdrawals and ensures reliable contact performance. Depending on the application, the socket contacts and header posts can be selectively gold-plated or fully tin-plated to minimize costs.

Space-saving, high-density design

The 2.54mm pitch contacts are arranged in two rows. The mated connectors can be placed side by side or end to end without a loss in pitch. This facilitates space saving. high-density circuit designs.

Easy connection

A slight force is all that is required for contact insertion because the housing has resilient lances. Furthermore. the positions of the contacts in the housing can be visually checked. This facilitates the insertion of the contacts in the housing

It can be cut to any length to provide a header with any number of circuits.

Notches are provided on the insulator that allows it to be cut to any length without using special tools.

JST RF series connector part number:

At Hooha Harness, we understand that every project requires careful attention to detail and personalized service. That's why we work closely with each of our clients to ensure that their unique needs are met with precision and excellence. With years of experience under our belt, we have become experts at creating custom solutions like this one – solutions that exceed expectations while staying within budget constraints.

If you're looking for a reliable partner who can deliver customized wire harnesses tailored specifically to your needs – look no further than us! Our team of experts will work tirelessly until your project meets or exceeds all expectations!

If you require custom wire harness assembly, please provide us with your drawing or diagram, I will quote a price for your reference.
