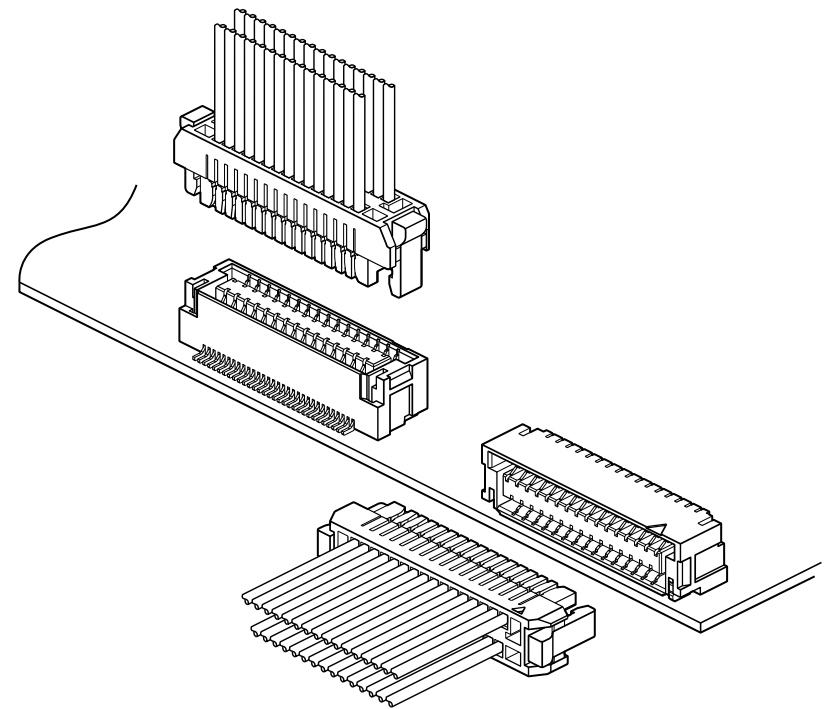

JST SHLV Connector
The JST SHLV Connector is a versatile wire-to-board connector specifically designed to support high-frequency transmission, including Low Voltage Differential Signaling (LVDS). Widely adopted in applications such as Plasma Display Panels (PDPs), LCD televisions, and other high-tech electronic devices, it offers exceptional performance in both specialized and general-purpose circuits. Engineered for superior usability, durability, and cost-effectiveness, the SHLV Connector delivers a secure and reliable connection in compact and space-saving designs. Its robust feature set includes compatibility with LVDS, a secure locking structure for stable connections, and reinforced connector strength for enhanced durability. The contact locking mechanism further ensures reliable mating, making this connector suitable for high-density wiring needs while maintaining optimal functionality and efficiency.
SHLV Connector Specifications
- Connector Type: Wire to Board disconnectable Crimp style
- Connector Pitch: 1.0mm
- Current rating: 1.0 A AC/DC (AWG #28)
- Voltage rating: 30 V AC/DC
- Temperature range: -25℃ to +85℃ (including temperature rise in applying electrical current)
- Contact resistance: Initial value/ 30 mΩ max, After environmental tests/ 50 mΩ max.
- Insulation resistance: 100 MΩ min.
- Withstanding voltage: 500 VAC/minute
- Applicable wire: Conductor size/ AWG #32 to #28, Insulation O.D./ 0.4 to 0.8 mm

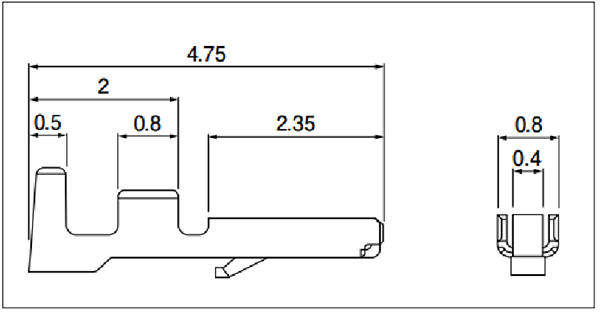

SHLV Connector Terminal Size
- Model Number: SSHL-003GA1-P0.2
- Suitable Wire Gauge: 0.032 - 0.08mm² (32 - 28AWG)
- Insulation O.D. (mm): 0.4 - 0.8
- Qty/Reel: 41000pcs
- Material and Finish: Phosphor bronze, nickel-undercoated, Mating part; gold-plated, Crimping part; gold-plated
- RoHS2 compliance

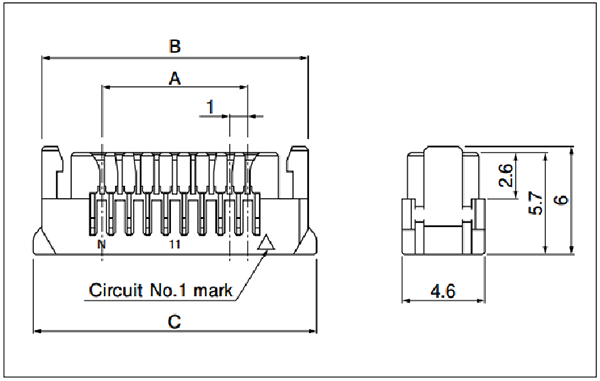

SHLV Connector Housing Size
| No. of circuits | Model No. | Dimensions (mm) | Q'ty/bag | ||
| A | B | C | |||
| 21 | SHLVP-21V-S-1 | 10.0 | 16.7 | 17.7 | 3000 |
| 31 | SHLVP-31V-S-1 | 15.0 | 21.7 | 22.7 | 2000 |
Material and Finish: PBT, UL94V-0, natural (white)
SHLV Shrouded Header Size

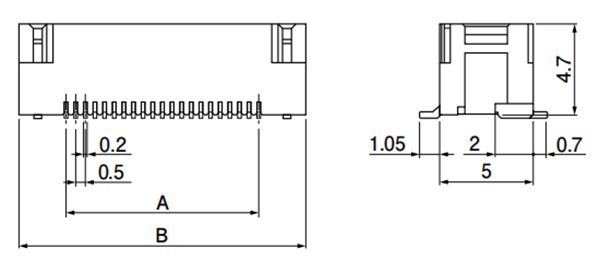

Top entry type

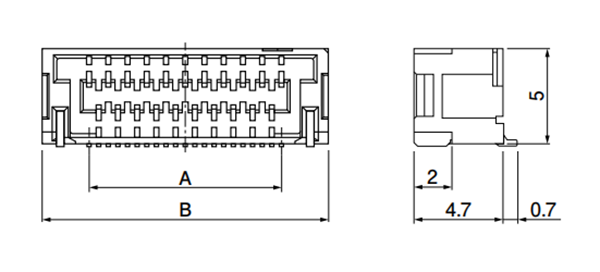

Side entry type
| Type | No. of circuits | Model No. | Dimensions (mm) | Q'ty/reel | |
| A | B | ||||
| Top entry type | 21 | BM21B-SHLVS-G-TBT | 10 | 15 | 1500 |
| 31 | BM31B-SHLVS-G-TBT | 15 | 20 | 1500 | |
| Side entry type | 21 | SM21B-SHLVS-G-TB | 10 | 15 | 2000 |
| 31 | SM31B-SHLVS-G-TB | 15 | 20 | 2000 | |
Material and Finish:
- Contact: Phosphor bronze, nickel-undercoated, gold-plated
- Wafer: Polyamide, UL94V-0, natural (ivory)
- Solder tab: Brass, copper-undercoated, tin-plated (reflow treatment)

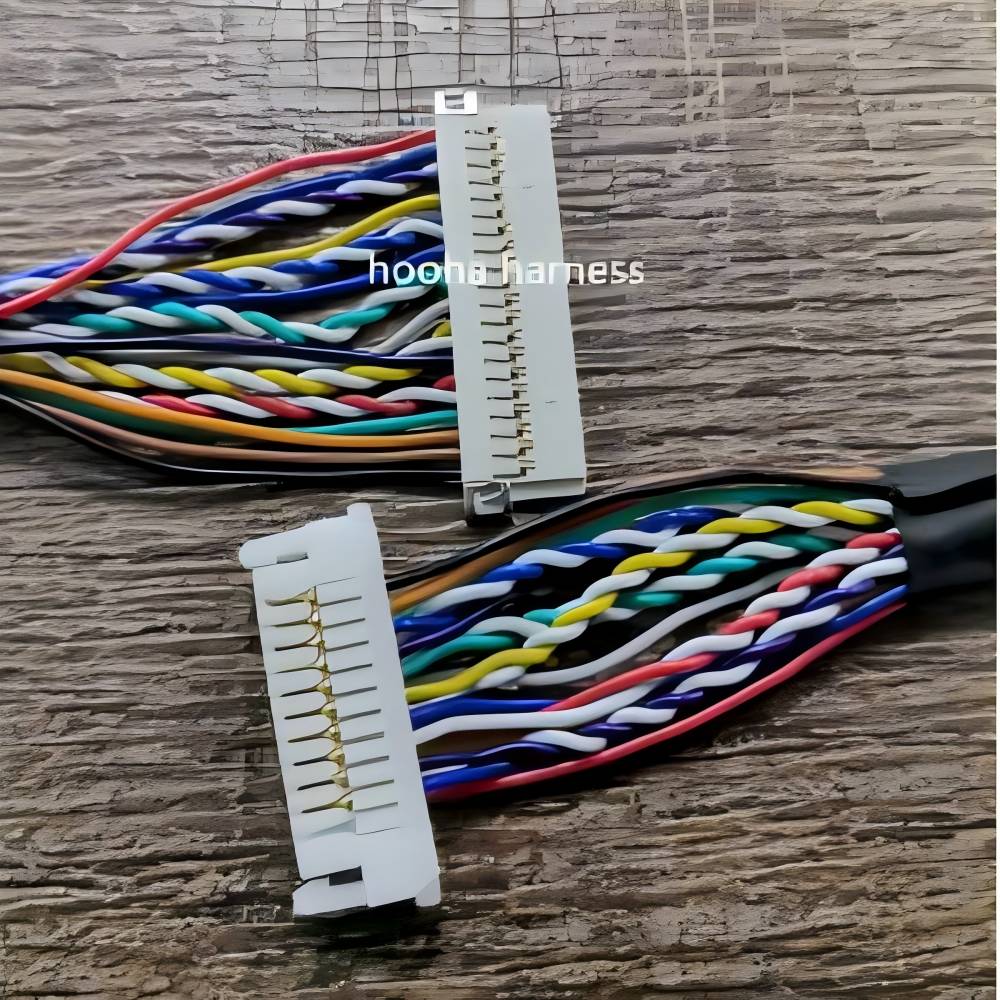

Support Custom Wiring Harness Assembly
- Connector: 21, 31pin
- Wire gauge: 28 - 32AWG (0.032 - 0.08mm²)
- Wire length: as long as your needs
- Wire color: white, black, red, yellow, grey, blue, green, purple, orange, brown, etc.
- Custom type:
- wire to wire
- wire to tinned end
- wire to open end
- wire to any suitable connectors
- Minimum Order: 100 pieces per order.
Customize Your Wire Harness
Send us your sample or drawing/schematic for quote price→ Feedback with quotation(1~3 days) → Confirm quotation → Arrange sample you for approval→ [Make mold if needed (7 days) →Mold test] → Making samples(1~3 days)→Samples test(Approval) → place order for Mass production(2~3 weeks)→ Quality checking→ Packing → Delivery → After Service → Repeat Order.
