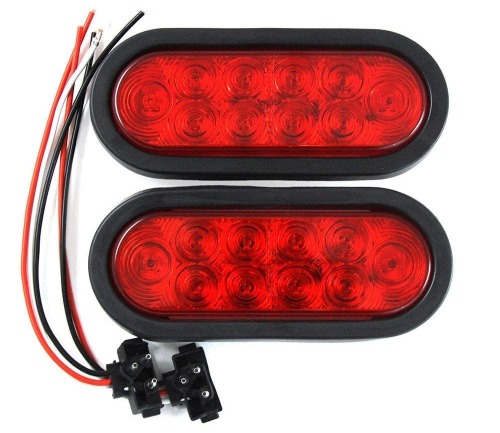

Right Angle 3-wire Pigtail for Sealed Trailer Stop, Turn and Tail Lights

In the world of vehicle lighting, safety, and visibility are paramount, especially when it comes to trailers. Sealed trailer stop, turn, and tail lights are essential components for ensuring that your trailer is visible and communicates your intentions to other drivers on the road. The right angle 3-wire pigtail for these lights is a versatile and efficient solution designed to simplify installation while providing reliable performance. In this article, we'll explore the features, benefits, and installation of this innovative wiring harness.

Features and Design:

The right angle 3-wire pigtail for sealed trailer stop, turn, and tail lights is engineered with precision and attention to detail. Its design offers several key features that make it a valuable addition to any trailer lighting system:

1. 3-Prong Design: The pigtail features a standard 3-prong design, making it compatible with a wide range of sealed round or oval lights commonly used on trailers.

2. Color-Coded Wires: The wiring harness is equipped with color-coded wires, simplifying the installation process and ensuring correct connections. The color-coding enhances user-friendliness, even for those with limited electrical experience.

3. White Ground Wire: The white wire includes a #10 ring terminal on its end, providing a secure and reliable ground connection. Proper grounding is crucial for maintaining the integrity of the electrical circuit.

4. Versatile Functionality: The 3-wire design enables the harness to serve multiple functions, catering to various lighting needs. The red wire, when connected to the white wire, operates as a high-brightness stop/turn/brake light, while the black wire, similarly connected, functions as a low-brightness tail/running light.

5. Universal Compatibility: This pigtail is suitable for 12V vehicles, making it an excellent choice for a wide range of applications, including pickups, trucks, trailers, boats, lorries, vans, caravans, RVs, and campers.

Benefits:

The right angle 3-wire pigtail offers several benefits that make it a valuable investment for trailer owners:

1. Simplified Installation: The color-coded wires and clear functionality make installation straightforward, even for individuals with limited electrical knowledge.

2. Enhanced Safety: The pigtail's ability to provide distinct lighting functions (stop/turn/brake and tail/running) contributes to safer road interactions, reducing the risk of accidents.

3. Durability: Designed for use in various outdoor conditions, the pigtail is built to withstand exposure to elements such as moisture, heat, and vibrations, ensuring long-lasting performance.

4. Versatility: Whether you're hauling cargo, towing a boat, or embarking on a road trip, this pigtail adapts to your lighting needs, enhancing your trailer's visibility in different scenarios.

Installation:

Installing the right angle 3-wire pigtail is a straightforward process:

1. Connect the white wire to the vehicle's grounding point using the provided #10 ring terminal.

2. For high-brightness stop/turn/brake functionality, connect the red wire to the white wire.

3. For low-brightness tail/running functionality, connect the black wire to the white wire.

4. Secure all connections and ensure proper insulation to prevent shorts.

Conclusion:

The right angle 3-wire pigtail for sealed trailer stop, turn, and tail lights offer a convenient and efficient solution for enhancing the visibility and safety of your trailer. Its user-friendly design, versatile functionality, and durable construction make it a must-have accessory for any trailer owner. By simplifying installation and providing reliable performance, this wiring harness contributes to a safer and more enjoyable towing experience, whether you're cruising down the highway or maneuvering through tight spaces.
