What kind of wiring harness do I need to tow a trailer?

The type of wiring harness you need to tow a trailer depends on several factors, including the size and type of the trailer, the towing vehicle's electrical system, and the trailer's lighting and braking requirements. Here are the common types of wiring harnesses and their corresponding applications:

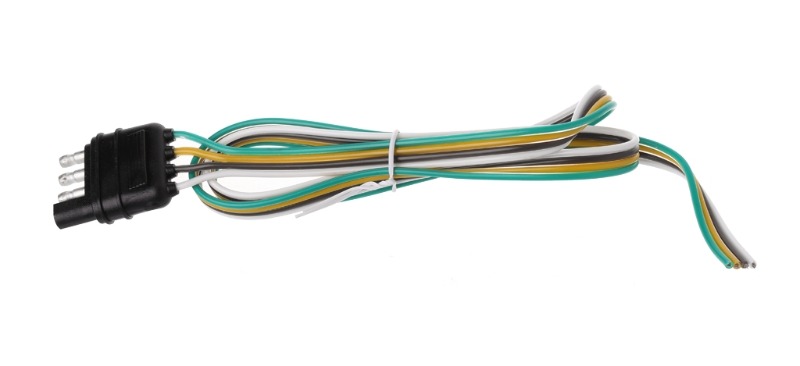

1. Four-Wire Harness (4-Pin Flat Connector)

• Suitable for small trailers, such as utility trailers, small camping trailers, or small boat trailers, that have basic lighting functions.
• Provides connections for the trailer's tail lights, brake lights, left turn signal, and right turn signal.
• If your trailer does not have electric brakes or advanced electrical features, a four-wire harness may be sufficient.

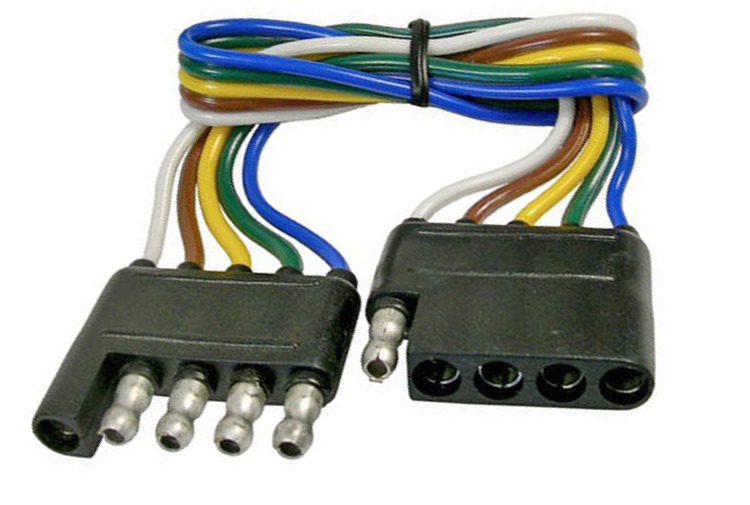

2. Five-Wire Harness (5-Pin Flat Connector)

• Similar to the four-wire harness, but includes an additional wire for trailers equipped with surge brakes or electric trailer brakes.
• Electric trailer brakes require an additional power wire to activate the trailer's braking system.

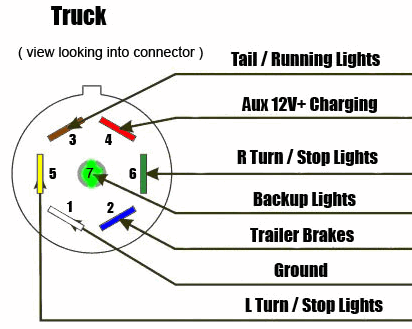

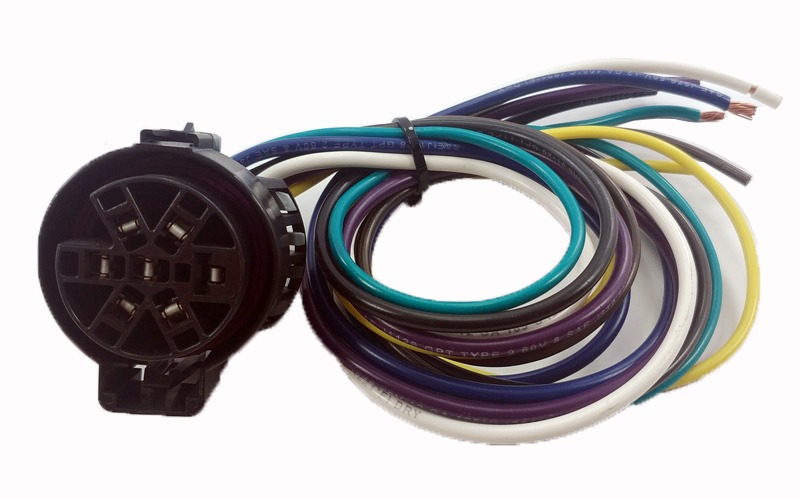

3. Seven-Wire Harness (7-Pin Round or 7-Pin Flat Connector)

• Suitable for larger trailers, RVs, horse trailers, and trailers with electric brakes or advanced electrical systems.
• Provides all the functionalities of the four and five-wire harnesses, along with additional wires for 12V power supply and reverse lights.
• The 12V power supply is essential for charging the trailer's batteries and powering various electrical components inside the trailer.

4. Six-Wire Harness (6-Pin Round Connector)

• This type of harness is less common but may be found on certain trailers.
• Provides connections for basic lighting functions, left and right turn signals, brake lights, and a separate power wire for charging the trailer's batteries.

5. Custom Wiring Harness

• In some cases, trailers may have specific electrical requirements that do not fit into standard wiring harness configurations.
• For unique setups or modifications, custom wiring harnesses may be necessary, designed to match the specific needs of the trailer and the towing vehicle.

Before choosing a wiring harness, ensure that it matches the connector on your tow vehicle. Most modern tow vehicles come with factory-installed wiring harnesses, usually equipped with a 4-pin, 5-pin, or 7-pin connector. If your towing vehicle doesn't have a compatible connector, you may need to install a wiring adapter or have a professional mechanic install the appropriate wiring harness for your specific trailer.

Always follow the recommended wiring harness type as specified by your trailer's manufacturer and consult local regulations and laws to ensure compliance with towing requirements and safety standards. A proper wiring harness is essential for safe towing and ensures that your trailer's lighting, braking, and electrical systems operate reliably during transit.
